Présentation du produit

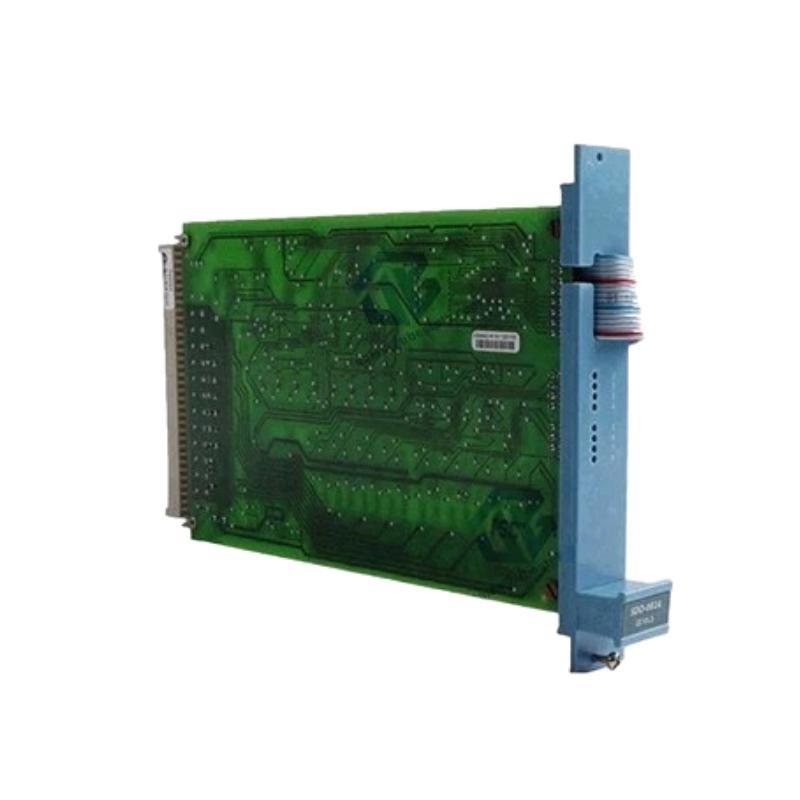

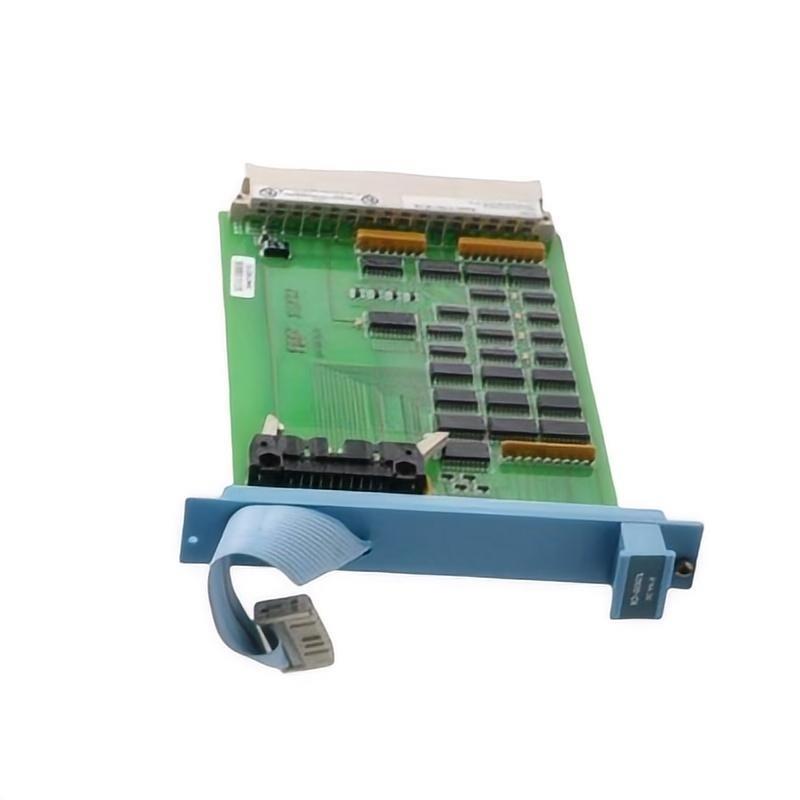

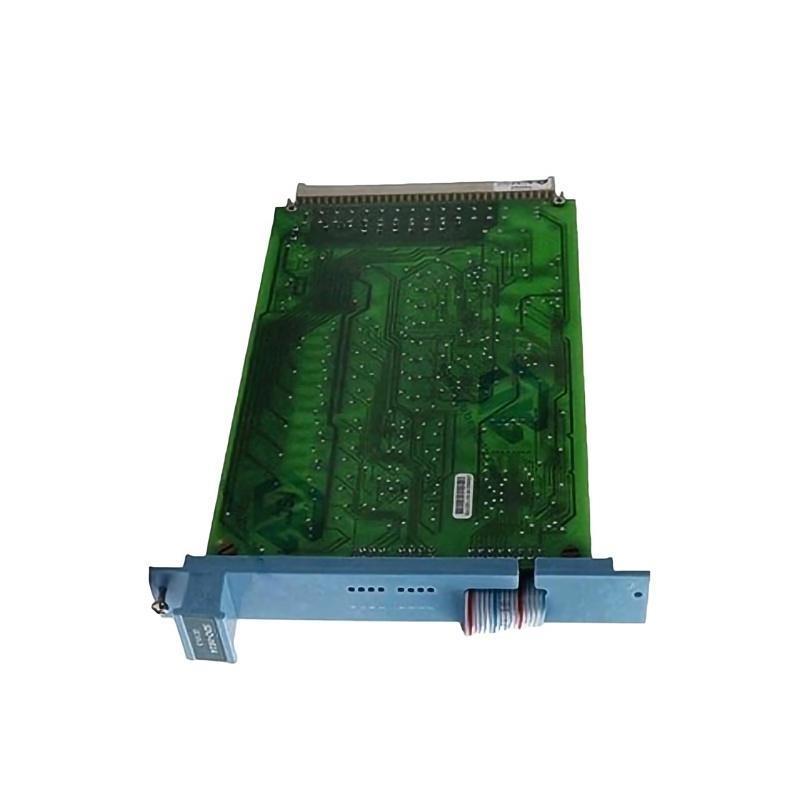

The Honeywell FS-RO-1024 Relay Output Module is a high-performance relay output module designed for industrial automation and control systems. It provides reliable relay outputs for signaling, alarm activation, and control functions in complex process control environments.
The module is engineered to integrate seamlessly with Honeywell automation systems, including PLCs and distributed control systems. Its precise switching, high isolation, and robust construction make it suitable for critical industrial applications requiring reliable relay actuation for machinery, process equipment, and instrumentation.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | FS-RO-1024 |
| Type | Relay Output Module |
| Number sur Outputs | 8–16 configurable |
| Relay Type | SPST or SPDT electromechanical relays |
| Maximum Switching Voltage | 250 V AC / 30 V DC |
| Maximum Switching Current | 5 A per channel |
| Isolation Voltage | 1500 V between coil and contacts |
| Response Time | 5 ms typical |
| Mounting | DIN rail compatible |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Material | Industrial-grade polycarbonate and metal components |
| Dimensions | 150 × 35 × 110 mm |
| Poids | 0.8 kg |
Applications
-
Industrial Automation – controlling machinery and actuators in manufacturing lines.
-
Process Control – providing relay outputs for alarms, shutdowns, and status signaling.
-
PLC Integration – extending programmable logic controller output capabilities.
-
Building Automation – controlling HVAC, lighting, and security systems.
-
Remote Monitoring Systems – acting as remote relay output interface for distributed equipment.
-
Safety and Alarm Systems – activating safety devices, sirens, or warning indicators.
Advantages
-
Reliable Relay Outputs: Provides accurate and stable switching for industrial applications.
-
High Isolation: 1500 V isolation between coil and contacts reduces risk sur electrical interference.
-
DIN Rail Mountable: Simplifies installation in industrial panels.
-
Flexible Output Configuration: 8–16 configurable relay outputs to suit different control requirements.
-
Compact Design: Minimizes space usage in control cabinets.
-
Durable Construction: Polycarbonate housing and metal components ensure long-term reliability.
-
Seamless Integration: Fully compatible with Honeywell automation and PLC systems.
Questions fréquentes (FAQ)
-
What is the maximum switching voltage for each relay?
Each relay can switch up to 250 V AC or 30 V DC. -
What is the maximum switching current per channel?
The module supports up to 5 A per relay output. -
How many outputs does the FS-RO-1024 provide?
The module provides 8–16 configurable relay outputs. -
What type sur relays are used in this module?
SPST or SPDT electromechanical relays are employed. -
Is the module suitable for DIN rail mounting?
Yes, it is designed for standard DIN rail installation. -
What is the isolation voltage between coil and contacts?
The isolation is rated at 1500 V. -
Can the module be used for alarm and signaling applications?
Yes, it is designed for alarms, status signaling, and process notifications. -
Does it integrate with Honeywell PLCs and automation systems?
Yes, it works seamlessly with Honeywell control systems. -
What is the typical relay response time?
The typical response time is 5 ms. -
Can the module operate in industrial temperature ranges?
Yes, it operates between -20°C and +60°C.
Related Modèles (Same Series or Similar)
| Modèle Number | Description |
|---|---|
| FS-RO-1016 | 8-channel relay output module |
| FS-RO-1018 | 16-channel high-density relay module |
| FS-RO-1020 | Relay output module with integrated surge protection |
| FS-RO-1022 | Modular relay output module for distributed control systems |
| FS-RO-1025 | Relay output module with configurable SPST/SPDT outputs |
| FS-RO-1030 | High-speed relay output module for alarm and control applications |
