Product Overview

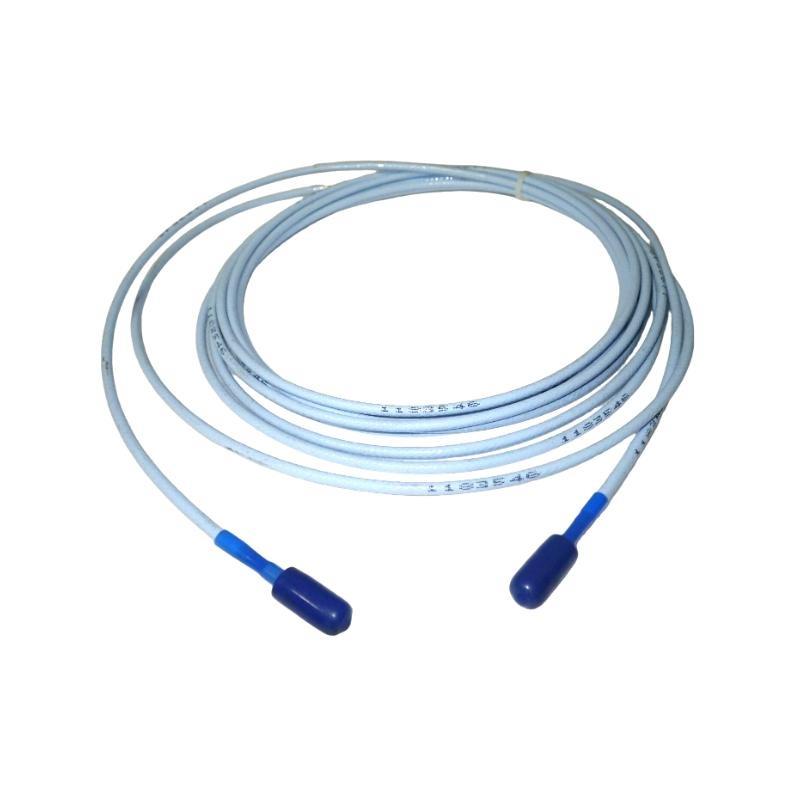

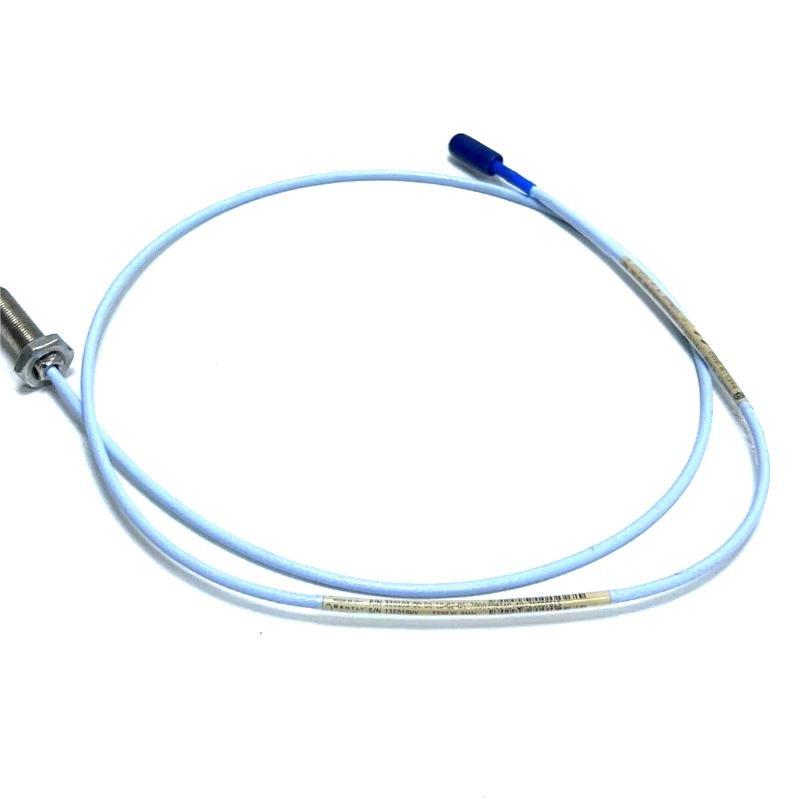

The Bently Nevada 330103-00-20-10-01-00 is part sur the 3300 XL 8 mm Proximity Transducer System. This proximity probe is designed for critical machinery monitoring, providing accurate measurements sur shaft vibration, displacement, and position. The probe is suitable for fluid-film bearing machines and is compliant with API 670 standards.
Key Features
-
Compliant with API 670 standards
-
Measures both static and dynamic displacement
-
Highly resistant to RFI/EMI
-
ClickLoc connectors for secure, tool-free installation
-
Compatible with both XL and non-XL systems
-
No bench calibration required
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | 330103-00-20-10-01-00 |
| Probe Tip Diameter | 8.0 mm |
| Thread Type | M10 x 1 |
| Total Length | 1.0 meter |
| Cable Type | Standard ClickLoc coaxial connector |
| Target Material Calibration | AISI 4140 steel |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (standard 1 m) |
| Case Material | AISI 303/304 stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Operating Temperature | –52°C to +177°C |
| Poids | 0.323 kg |
| Frequency Response | 0 to 10 kHz (+0, –3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Shaft Diameter Recommendation | ≥76.2 mm (3 in) for optimal performance |
Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Generators and motors
-
Keyphasor speed sensing
-
Shaft vibration and thrust position monitoring
Product Advantages
-
No field calibration required
-
High immunitéy to environmental noise and interference
-
Modular components allow full interchangeability
-
Rugged probe tip construction improves durability
-
Supports high-temperature applications with ETR options
FAQs
Q1: What does the 330103-00-20-10-01-00 probe measure?
A1: It measures shaft displacement, vibration, and position.
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is electrically and mechanically compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Does the probe require field calibration?
A3: No, it is factory-calibrated and fully interchangeable.
Q4: What is the recommended shaft diameter for accurate readings?
A4: A shaft diameter sur at least 76.2 mm (3 inches) is recommended.
Q5: Can this probe be used in hazardous areas?
A5: Yes, it meets CSA, ATEX, and IECEx requirements for hazardous locations.
Q6: What type sur connector is used on this model?

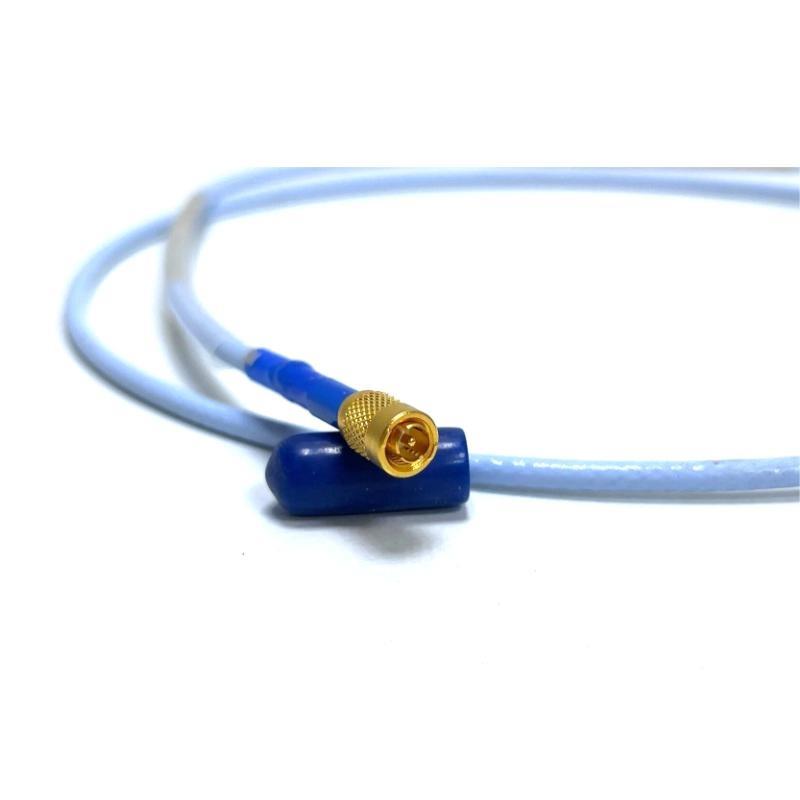

A6: It uses a miniature ClickLoc coaxial connector.
Q7: What is the typical total system weight?
A7: For a 1-meter configuration, the weight is approximately 0.323 kg.
Q8: Can it operate at high temperatures?
A8: Yes, it supports –52°C to +177°C; ETR versions support even higher.
Q9: Is this probe suitable for speed (Keyphasor) measurements?
A9: Yes, it supports Keyphasor and overspeed applications when installed per guidelines.
Q10: What is the material sur the probe case and tip?
A10: The case is stainless steel (AISI 303/304); the tip is PPS plastic.
Related Modèles (Same Series)
| Modèle Number | Thread Type | Armor | Length (m) | Poids (kg) |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | 3/8-24 UNF | No | 1.0 | 0.323 |
| 330102-00-20-10-02-00 | 3/8-24 UNF | Yes | 1.0 | 0.340 |
| 330104-00-20-10-02-00 | M10 x 1 | Yes | 1.0 | 0.340 |
| 330140-00-20-10-02-00 | Smooth Case | No | 1.0 | 0.323 |
| 330192-00-20-10-02-05 | 3/8-24 UNF | Yes | 1.0 (ETR) | 0.340 |
| 330194-00-20-10-02-05 | M10 x 1 | Yes | 1.0 (ETR) | 0.340 |
Popular Bently Nevada Modèles
| Modèle Number | Description | Application Area | Poids (kg) |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | Vibration Monitoring | 0.45 |
| 3500/22M | Transient Data Interface Module | Data Collection | 0.40 |
| 3500/33 | 16-Channel Relay Module | Alarm Outputs | 0.50 |
| 3500/25 | Keyphasor Module | Rotational Speed | 0.35 |
| 330180-91-00 | Proximitor Sensor 1.0 m | Probe Interface | 0.25 |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Vibration Monitoring | 0.323 |
