Product Introduction

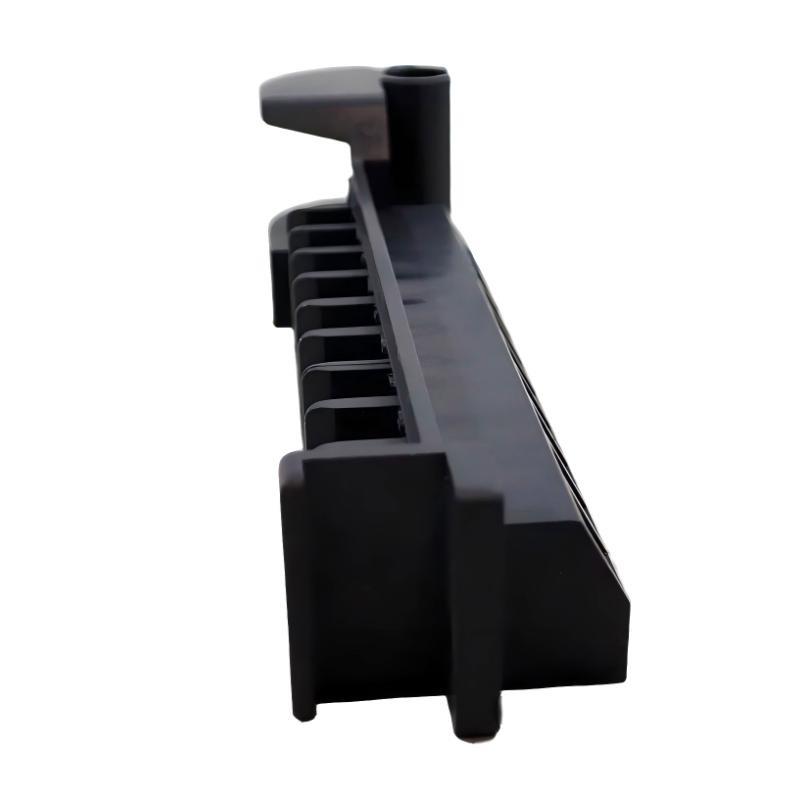

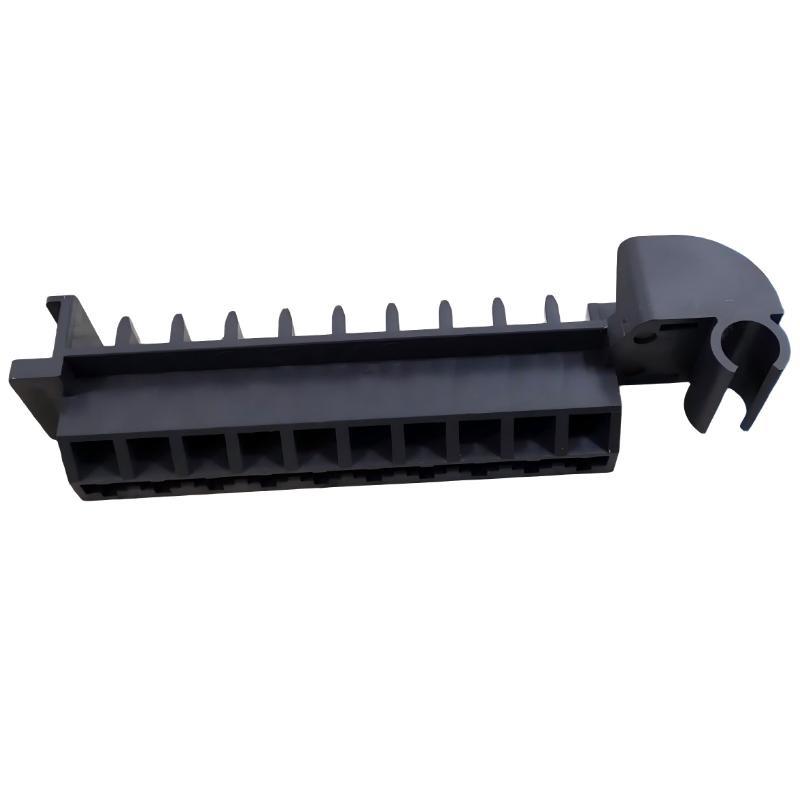

The Allen-Bradley 1771-WC Field Wiring Arm is an accessory for the Allen-Bradley 1771 PLC-5 I/O System. It provides a structured interface for field wiring, simplifying the connection between PLC modules and external devices.

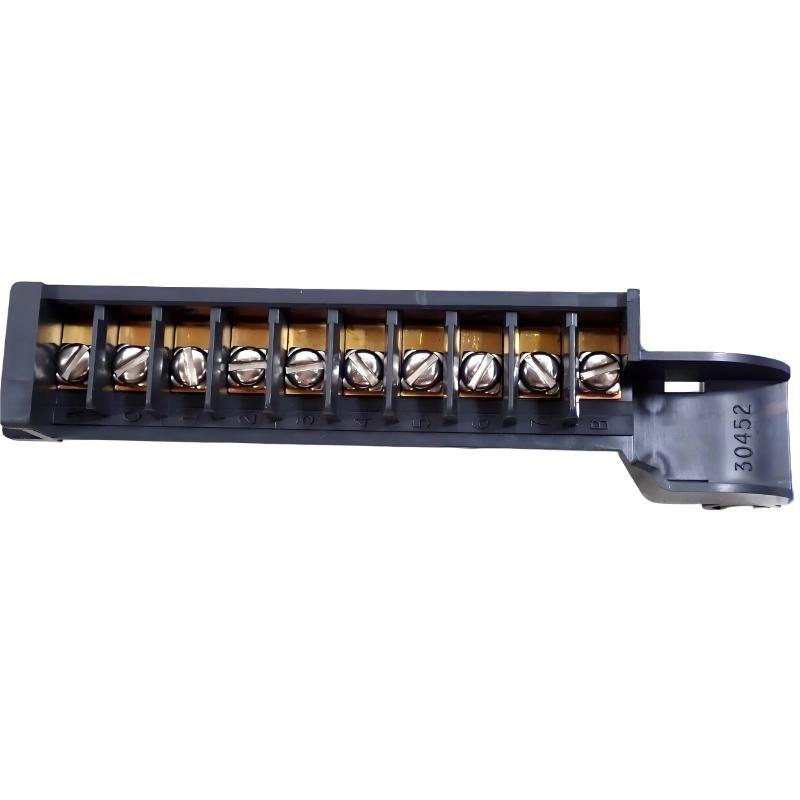

The wiring arm includes 10 terminals with gold-plated contacts to ensure reliable electrical connections and reduce signal degradation or corrosion. It is designed for 8 I/O points, making it suitable for small to medium PLC-5 applications.
The 1771-WC improves wiring organization and system maintenance, making it ideal for industrial automation, process control, and compact control panel installations.
Product Specifications
| Parameter | Specification |
|---|---|
| Modèle | 1771-WC |
| Marque | Allen-Bradley |
| Module Type | Field Wiring Arm |
| Series | 1771 PLC-5 I/O Series |
| Number sur I/O | 8 |
| Number sur Terminals | 10 |
| Contact Plating | Gold |
| Installation Method | 1771 I/O Chassis Mount |
| Application Type | Field wiring for PLC modules |
| Dimensions | 100 × 25 × 80 mm |
| Poids | 0.09 kg |
Applications
• Field wiring interface
Provides connection points for 8 I/O modules, enabling neat and reliable wiring to external devices.
• Industrial automation systems
Used to connect sensors, actuators, and digital or analog modules to the PLC rack.
• Process control applications
Simplifies wiring for systems managing valves, pumps, and monitoring instruments.
• Compact control panels
Small size allows integration in tight control cabinets or modular setups.
• Maintenance and troubleshooting
Organized layout helps technicians identify and service connections efficiently.
Advantages
• Gold-plated contacts
Ensures reliable electrical connections and long-term corrosion resistance.
• Supports 8 I/O modules
Provides terminals for small to medium I/O configurations.
• Compact and lightweight
Facilitates easy installation in restricted control panel spaces.
• Improves wiring organization
Consolidates field connections into a single interface, reducing clutter.
• Compatibility with 1771 PLC-5 modules
Integrates seamlessly into the PLC-5 I/O system.
• Facilitates maintenance
Simplifies troubleshooting, upgrades, and I/O modifications.
