Présentation du produit

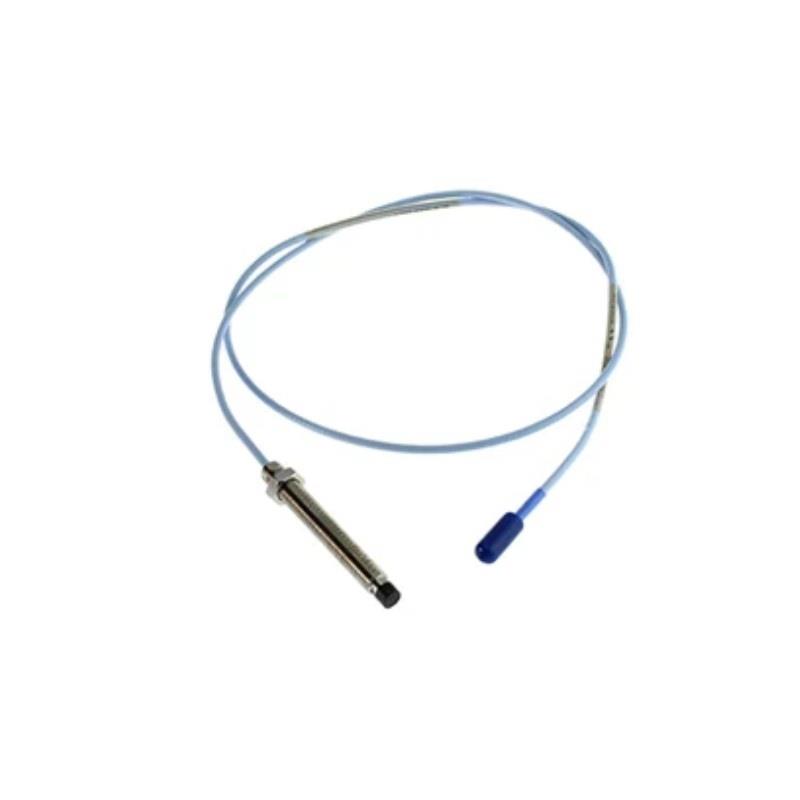

The Bently Nevada 330102-03-25-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for industrial machinery vibration monitoring and shaft displacement measurement. It is part sur the 3300 XL series, known for robustness, high reliability, and compatibility with critical rotating equipment systems. The probe uses eddy-current technology to accurately capture relative motion between the probe tip and the target, ensuring early detection sur machinery faults.
This sensor is suitable for high-speed turbines, compressors, pumps, and generators, where precise measurement sur shaft position and vibration is critical for predictive maintenance and avoiding unscheduled downtime.
Product Advantages
-
High Accuracy: Eddy-current sensing provides precise shaft position and vibration data.
-
Wide Temperature Range: Operates reliably under extreme industrial conditions.
-
Compatibility: Fully compatible with Bently Nevada 3300 XL monitoring systems.
-
Durability: Resistant to harsh environments, including high vibration and contamination.
-
Low Maintenance: Solid-state design reduces the need for frequent recalibration.
-
Early Fault Detection: Supports predictive maintenance programs by detecting imbalance, misalignment, and bearing faults early.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Référence | 330102-03-25-10-02-05 |
| Sensing Range | 0–0.25 inches (0–6.35 mm) |
| Probe Tip Diameter | 8 mm |
| Cable Type | Shielded twisted pair, armored or unarmored |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Output | Differential voltage (compatible with 3300 XL monitoring system) |
| Mounting | Threaded or compression fitting |
| Materials | Stainless steel housing, non-magnetic probe tip |
| Total Length | 1 m |
| Poids | 0.323 kg |
| Response Frequency | DC to 25 kHz |
| Environmental Rating | IP67 |
| Connector | M12 or customer-specified |
Applications
-
Vibration monitoring sur turbines, compressors, and pumps
-
Shaft displacement measurement in generators
-
État-based monitoring in industrial machinery
-
Predictive maintenance programs for critical rotating equipment
-
Alignment verification and imbalance detection in mechanical systems
-
Integration with Bently Nevada 3300 XL monitoring systems
FAQ
Q1: What is the maximum vibration frequency this probe can accurately measure?
A1: The probe has a response frequency up to 25 kHz, suitable for high-speed rotating machinery.
Q2: Can the probe be used in explosive environments?
A2: Yes, when installed with appropriate intrinsically safe barriers or certified housings.
Q3: What type sur cable termination is compatible with the probe?
A3: M12 connectors or shielded twisted-pair wiring compatible with 3300 XL modules.
Q4: How does the probe compensate for temperature variations?
A4: The probe incorporates temperature compensation in the sensor circuitry to maintain accuracy across -40°C to 120°C.
Q5: What is the maximum shaft excursion it can measure?
A5: The sensing range is up to 0.25 inches (6.35 mm) from the probe tip.
Q6: Can it detect both axial and radial displacement?
A6: It primarily measures radial displacement but can be arranged in dual configurations for axial monitoring.
Q7: How is signal integrity maintained over long cable runs?
A7: Using shielded twisted-pair cables and differential voltage outputs reduces electrical noise interference.
Q8: Is it compatible with older 3300 XL system models?
A8: Yes, it is backward compatible with most standard 3300 XL monitoring modules.
Q9: How does the probe perform in high-moisture environments?
A9: The IP67-rated housing ensures reliable operation in wet or humid industrial conditions.
Q10: What maintenance is required for the probe?
A10: Minimal; periodic visual inspection and cleaning sur the probe tip to prevent debris accumulation.
Recommended 6 Same-Series or Related Modèles
| Modèle | Description | Sensing Range | Probe Tip |
|---|---|---|---|
| 330102-03-25-10-01-00 | 3300 XL 8 mm Proximity Probe | 0–0.25 in | 8 mm |
| 330102-03-25-10-02-00 | 3300 XL 8 mm Proximity Probe | 0–0.25 in | 8 mm |
| 330102-03-30-10-02-05 | 3300 XL 8 mm Proximity Probe | 0–0.30 in | 8 mm |
| 330102-05-25-10-02-05 | 3300 XL 8 mm Proximity Probe | 0–0.25 in | 8 mm |
| 330102-04-25-10-02-05 | 3300 XL 8 mm Proximity Probe | 0–0.25 in | 8 mm |
| 330102-03-20-10-02-05 | 3300 XL 8 mm Proximity Probe | 0–0.20 in | 8 mm |
Recommended 6 Popular Modèles from Bently Nevada
| Modèle | Description | Sensing Range | Probe Tip |
|---|---|---|---|
| 330102-00-16-90-02-05 | 3300 XL 8 mm Proximity Probe | 0–0.16 in | 8 mm |
| 330102-00-90-10-02-00 | 3300 XL 8 mm Proximity Probe | 0–0.90 in | 8 mm |
| 330102-00-88-10-02-05 | 3300 XL 8 mm Proximity Probe | 0–0.88 in | 8 mm |
| 330102-00-80-10-01-00 | 3300 XL 8 mm Proximity Probe | 0–0.80 in | 8 mm |
| 330102-00-79-10-02-05 | 3300 XL 8 mm Proximity Probe | 0–0.79 in | 8 mm |
| 330102-05-25-10-01-05 | 3300 XL 8 mm Proximity Probe | 0–0.25 in | 8 mm |
