Présentation du produit

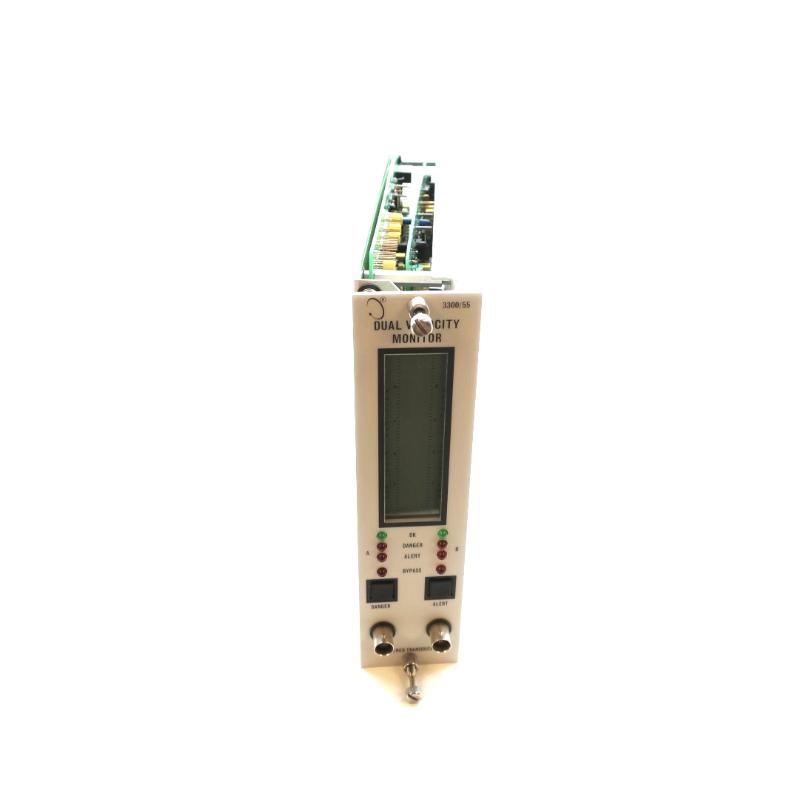

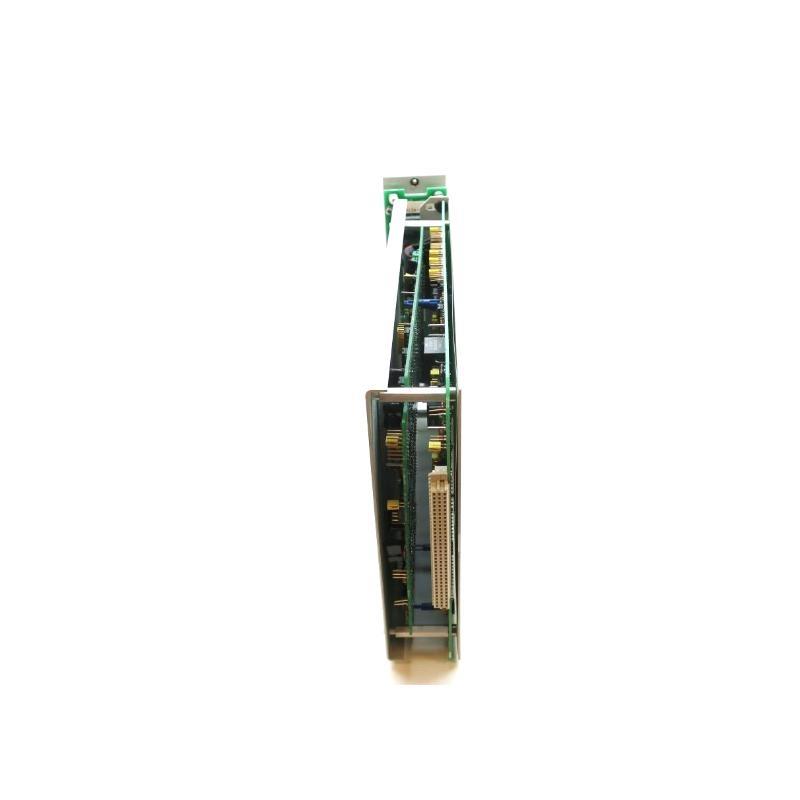

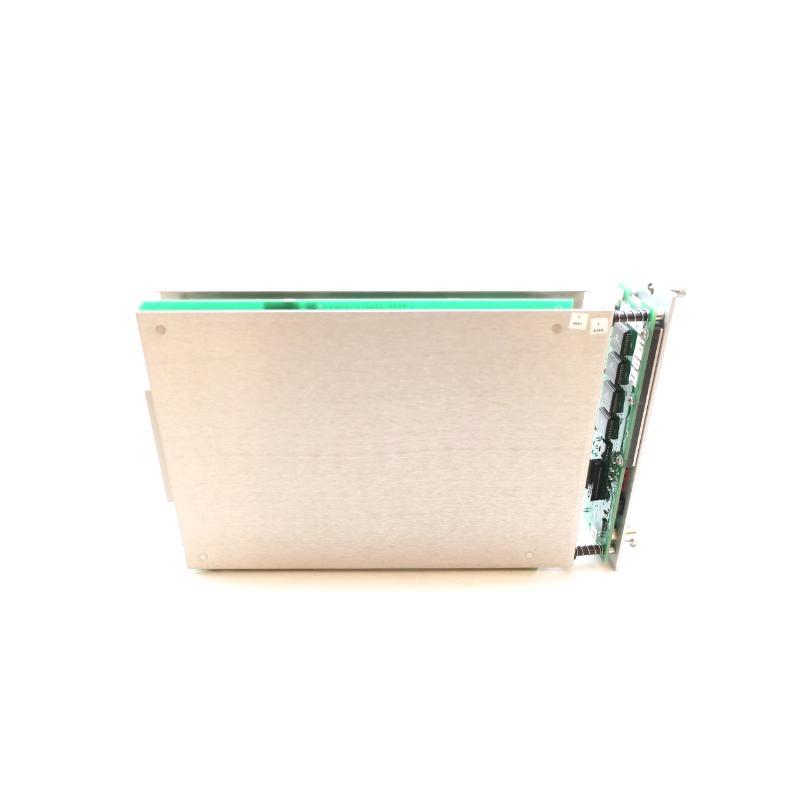

The Bently Nevada 3300/55-04-01-08-08-00-00-00-00 Dual Velocity Monitor is a sophisticated device engineered for continuous, real-time monitoring sur vibration velocity in rotating machinery. As a pivotal component sur the renowned 3300 series, this monitor surfers dual-channel inputs, allowing simultaneous assessment sur two independent vibration signals. It is compatible with Velomitor® transducers, High Temperature Velomitor Systems (HTVS), and Velocity Seismoprobe® transducers, eliminating the need for additional interface modules. This flexibility ensures accurate detection sur mechanical issues such as imbalance, misalignment, and looseness, facilitating proactive maintenance strategies.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | 3300/55-04-01-08-08-00-00-00-00 |
| Measurement Type | Dual-channel velocity monitoring |
| Input Types | Velomitor® transducers, HTVS, Velocity Seismoprobe® transducers |
| Sensitivity Options | 500 mV/in/s, 145 mV/in/s, 100 mV/in/s (jumper-programmable) |
| Frequency Response | 3 Hz to 10,000 Hz (-3 dB nominal) |
| Alarm Setpoints | Digitally adjustable from 0% to 100% sur full-scale |
| Output Options | +4 to +20 mA, 0 to -10 Vdc, +1 to +5 Vdc |
| Power Consumption | Nominal 1.5 Watts |
| Operating Temperature | 0°C to +65°C (32°F to 150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | Up to 95%, non-condensing |
| Vertical Dimension | 83 mm |
| Poids | 1 kg |
Applications
The 3300/55 Dual Velocity Monitor is utilized across various industries for the protection and maintenance sur critical rotating equipment:
-
Power Generation: Monitoring turbines and generators to detect early signs sur vibration-related issues.
-
Oil & Gas: Ensuring the integrity sur compressors and pumps in upstream and downstream operations.
-
Petrochemical: Overseeing the performance sur rotating machinery in processing plants.
-
Manufacturing: Maintaining the health sur motors, fans, and other rotating equipment on production lines.
-
Mining: Supervising crushers, conveyors, and other heavy-duty machinery for vibration anomalies.
Advantages
-
Dual-Channel Monitoring: Enables simultaneous assessment sur two separate vibration signals, enhancing diagnostic capabilities.
-
Wide Frequency Response: Covers a broad spectrum, allowing detection sur various vibration issues.
-
Flexible Sensitivity Settings: Accommodates different machinery types and operational conditions.
-
User-Selectable Filters: High- and low-pass filter options can be easily configured via plug-in jumpers.
-
Comprehensive Output Options: Provides multiple output formats for integration with diverse control systems.
-
Robust Alarm System: Digitally adjustable alarm setpoints facilitate timely alerts for preventive action.
-
Environmental Resilience: Designed to operate effectively across a range sur temperatures and humidity levels.
Latest News Headlines
-
“Bently Nevada 3300/55 Enhances Predictive Maintenance in Power Plants”
-
“Advancements in Vibration Monitoring: Spotlight on Bently Nevada’s Dual Velocity Monitor”
-
“Oil & Gas Industry Adopts Bently Nevada 3300/55 for Improved Equipment Reliability”
-
“Case Study: Reducing Downtime with Bently Nevada’s 3300/55 Monitor”
-
“Integrating Bently Nevada 3300/55 into Modern Industrial IoT Systems”
Questions fréquentes (FAQ)
-
What is the primary function sur the Bently Nevada 3300/55-04-01-08-08-00-00-00-00 Dual Velocity Monitor?
-
It provides continuous, real-time monitoring sur vibration velocity in rotating machinery to detect and diagnose mechanical issues early.
-
-
Which transducers are compatible with this monitor?
-
It is compatible with Bently Nevada Velomitor® transducers, High Temperature Velomitor Systems (HTVS), and Velocity Seismoprobe® transducers.
-
-
What sensitivity options are available?
-
The monitor surfers jumper-programmable sensitivity settings sur 500 mV/in/s, 145 mV/in/s, and 100 mV/in/s.
-
-
What is the frequency response range sur the monitor?
-
For Velocity Seismoprobe® transducers, the range is 3 Hz to 10,000 Hz (-3 dB nominal). For HTVS and Velomitor® transducers, it is 3 Hz to 3,000 Hz (-3 dB nominal).
-
-
How are alarm setpoints configured?
-
Both Alert and Danger alarms are digitally adjustable from 0% to 100% sur full-scale, allowing customization based on specific monitoring requirements.
-
-
What output options does the monitor provide?
-
It surfers recorder outputs that are user-programmable for +4 to +20 mA, 0 to -10 Vdc, or +1 to +5 Vdc, proportional to the programmed monitor full-scale.
-
-
Is the monitor suitable for harsh industrial environments?
-
Yes, it operates effectively within a temperature range sur 0°C to +65°C (+32°F to +150°F) and can withstand relative humidity up to 95%, non-condensing.
-
-
What are the dimensions and weight sur the monitor?
-
The monitor occupies one rack position and weighs 1 kg.
-
-
Can the monitor integrate with existing control systems?
-
Yes, its comprehensive output options facilitate seamless integration with various control and automation systems.
-
-
What maintenance is required for optimal performance?
-
Regular calibration checks and visual inspections are recommended to ensure the monitor functions correctly and provides accurate readings.
-
