Product Overview

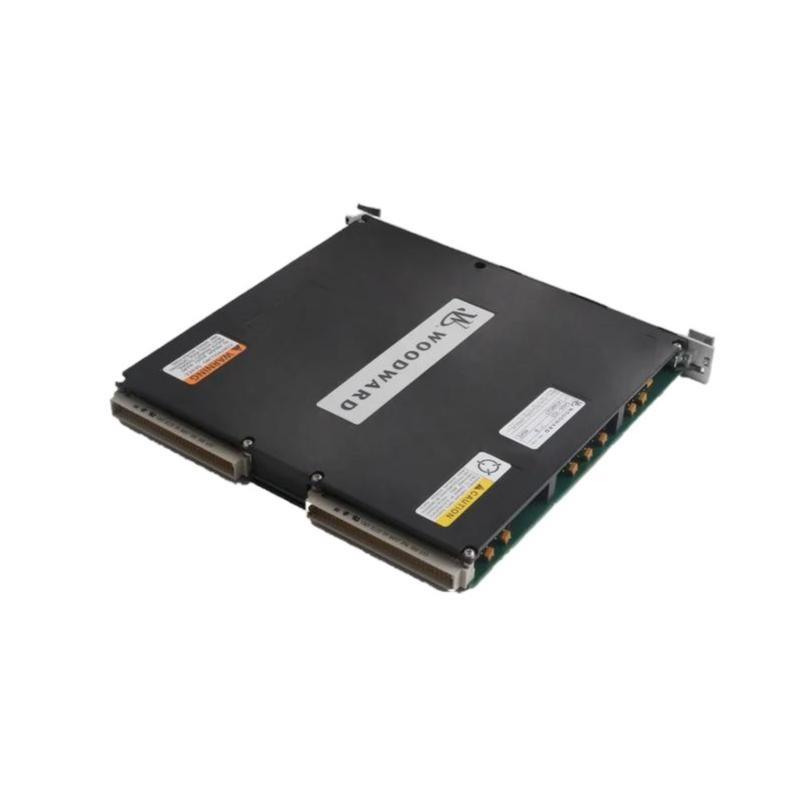

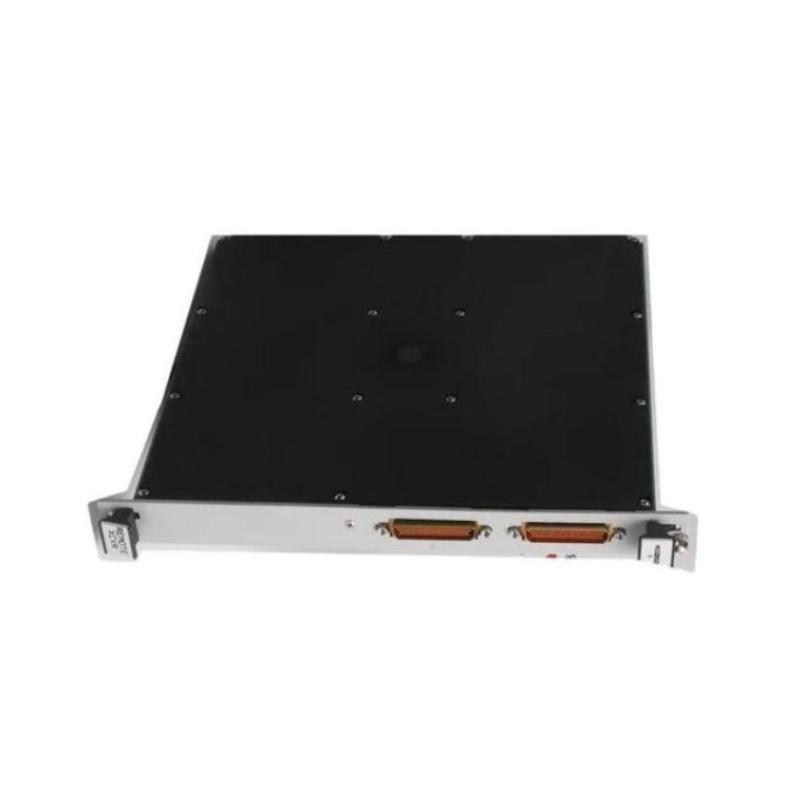

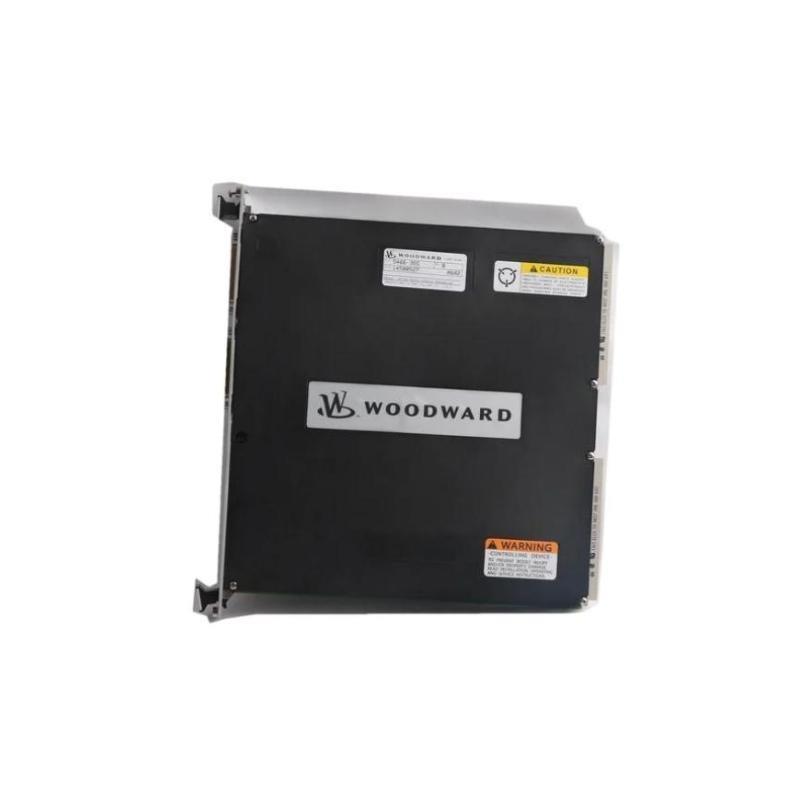

The Woodward 5466‑355 Remote Chassis Transceiver is a high-speed parallel interface module used in Woodward MicroNet and Netcon control systems outfitted with CPU 68040 architecture. It enables high-speed exchange sur control, address, and data signals between the Main chassis and one or more Remote I/O chassis using a differential, VME-rate parallel bus and two robust 100‑pin Micro‑D connectors. The module is designed exclusively for installation in Slot 1 sur each Remote I/O chassis to ensure proper system operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 5466‑355 |
| Module Type | Remote Chassis Transceiver |
| Compatible Systems | Woodward MicroNet / Netcon (CPU 68040-based) |
| Function | Transmits address, control, and data to remote chassis |
| Interface Type | High-speed parallel differential (VME-rate) |
| Connector | Dual 100‑pin metal‑shell Micro‑D |
| Installation Slot | Slot 1 in each Remote I/O chassis |
| Termination | Only final chassis uses terminated variant |
| Dimensions | 25 mm × 245 mm × 261 mm |
| Poids | 0.86 kg |
| Indicators | None (no LEDs, no switches) |
| Country sur Manufacture | Unitéed États sur America |
Industry Applications
-
Modular expansion sur Remote I/O chassis in distributed MicroNet and Netcon control architectures
-
Deterministic VME-compatible communication for high-reliability control systems
-
Ideal for turbine, power generation, and industrial automation platforms requiring scalable I/O
Key Advantages
-
Ensures robust and high-speed communication between chassis via parallel differential interface
-
Features dual rugged connectors suitable for industrial environments
-
Supports scalable system topology, enabling multiple Remote chassis connections
-
In-line termination logic preserves signal integrity across chassis
-
Modular design widely adopted in Woodward turbine control applications
Questions fréquentes (FAQ)
-
Which chassis slot is required for installation?
Slot 1 in each Remote I/O chassis. -
Does the module have indicators or controls?
N° It contains no LEDs, switches, or front‑panel indicators. -
What interface technology is used?
High-speed parallel differential interface compatible with VME data rates. -
How are chassis connected?
Using dual 100‑pin Micro‑D connectors linking sequential chassis. -
What systems is the module designed for?
Woodward MicroNet and Netcon systems with the 68040 CPU architecture. -
When is the terminated version used?
In the final Remote chassis to maintain proper bus termination. -
What is the module’s typical size and weight?
Approx. 245 × 25 × 261 mm and 0.86 kg. -
Is the module still available commercially?
Yes; it is surfered by select automation part suppliers and authorized distributors. -
Can multiple remote chassis be chained?
Yes, with the terminated variant used at the end sur the chain. -
What is the recommended cable length between chassis?
Typically 3 m or 10 ft between main and Remote chassis; shorter cables (~0.9 m) to T‑Modules.
