Product Overview

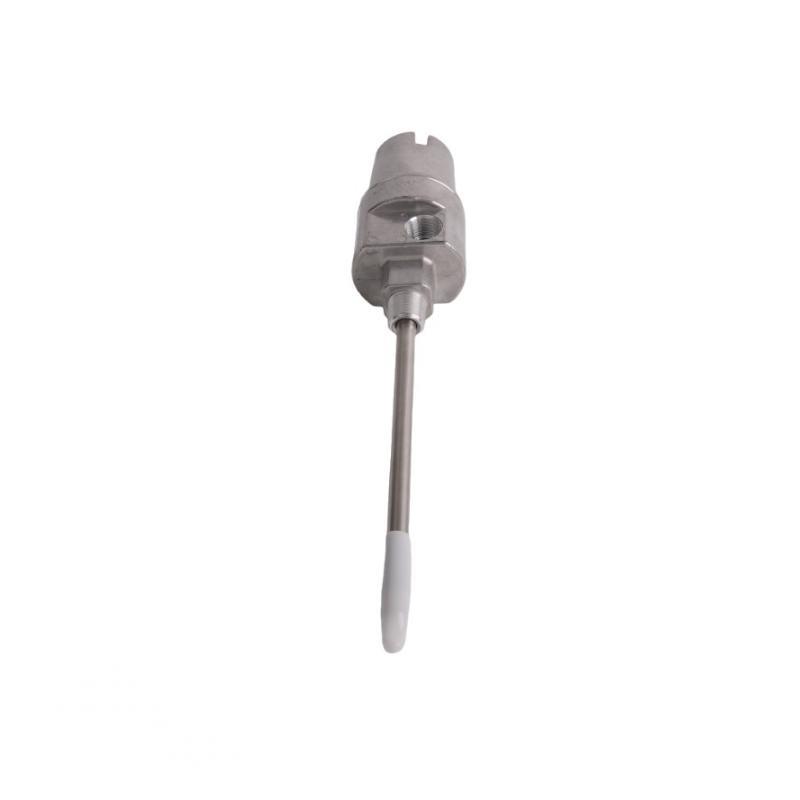

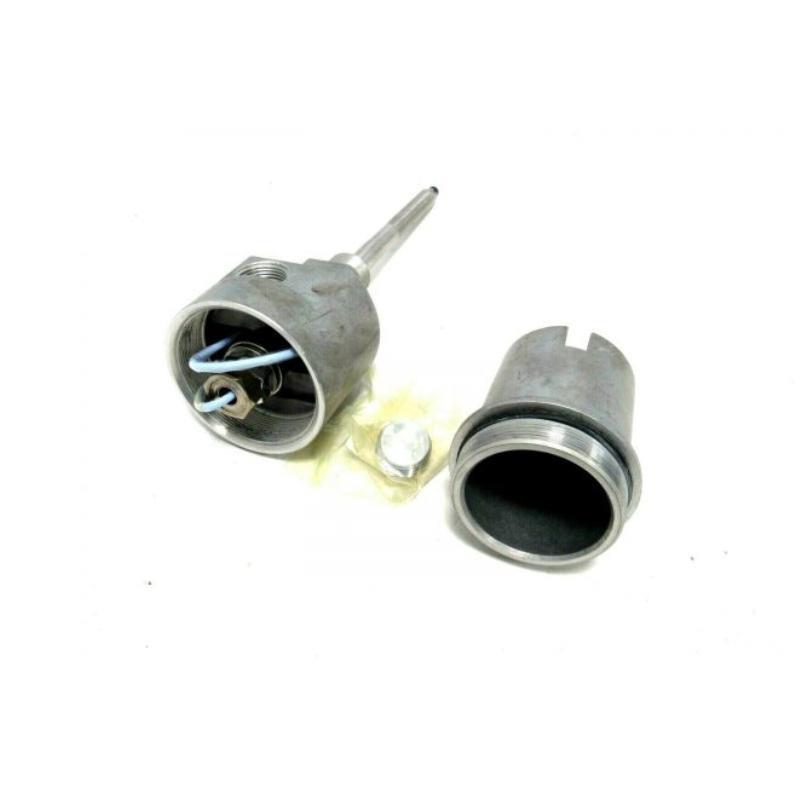

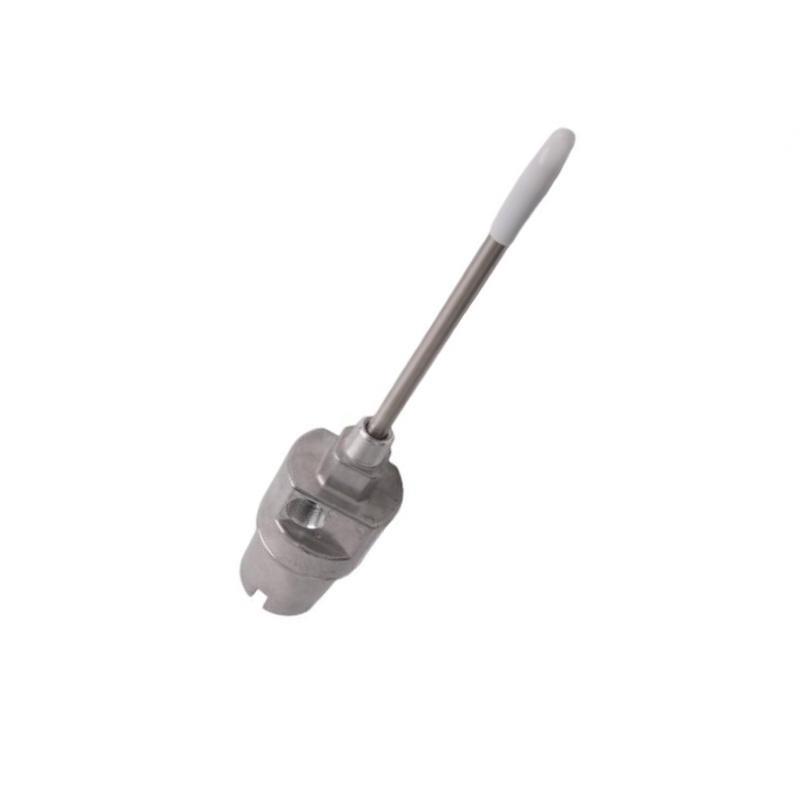

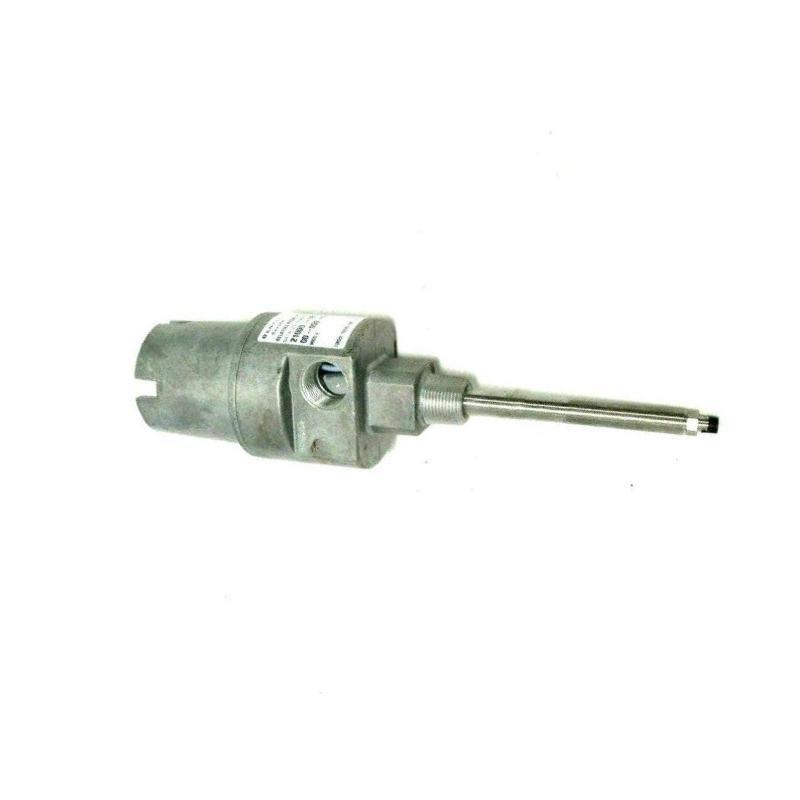

The Bently Nevada 21000-16-05-00-065-04-02 is a high-reliability Proximity Probe Housing Assembly designed for use with the 3300 XL 8 mm Proximity Transducer System. It provides robust mechanical protection and environmental sealing for proximity probes in industrial environments where vibration, dust, moisture, and temperature fluctuations are common. This housing assembly ensures that the sensitive components sur the probe remain operational in even the most challenging applications, such as turbines, compressors, and rotating machinery.
With a corrosion-resistant enclosure and precise mounting configuration, this assembly facilitates accurate and stable probe placement, enhancing the performance and longevity sur the monitoring system.
Key Features
-
Compatible with 3300 XL 8 mm Proximity Probe systems
-
Durable stainless steel or corrosion-resistant housing material
-
Sealed for protection against dust, oil, and contaminants
-
Supports easy and secure mounting sur probes
-
Withstands high temperatures and mechanical stress
-
Designed for demanding rotating machinery applications
-
Facilitates accurate probe positioning for optimal signal integrity
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | 21000-16-05-00-065-04-02 |
| Compatible Probe System | Bently Nevada 3300 XL 8 mm |
| Housing Material | Corrosion-resistant alloy / Stainless Steel |
| Mounting Type | Threaded or Flanged (dependent on version) |
| Environmental Rating | Sealed against dust, oil, and splashes |
| Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Max Vibration | 50 g peak, 10–2000 Hz |
| Electrical Isolation | Isolated from machinery frame |
| Dimensions | Housing Body Diameter : 83.3 mm |
| Poids | 1.1 kg |
| Certifications | CE, ATEX (in applicable variants) |
| Application Compatibility | Gas/steam turbines, compressors, pumps |
| Cable Entry Port | NPT or Metric thread available |
| Assembly Components | Housing, seals, mounting hardware, probe mount |
Industry Applications
-
Power Generation (Steam and Gas Turbines)
-
Oil & Gas (Compressors, Pumps, Motors)
-
Petrochemical Processing Plants
-
Pulp and Paper Manufacturing
-
Marine Propulsion Systems
-
Heavy Industrial Machinery Monitoring
-
Rotating Equipment État Monitoring
Product Advantages
-
Enhanced Protection: Shields proximity probes from physical and environmental damage.
-
Reliable Performance: Ensures consistent data acquisition under harsh conditions.
-
Simplified Installation: Provides standard configurations to streamline integration.
-
Longevity: Corrosion-resistant materials extend the service life.
-
Versatile Use: Suitable for a wide range sur industrial rotating machines.
-
Reduces Downtime: Minimizes risk sur failure due to mechanical stress or contamination.
-
Precision Fit: Secure probe placement improves measurement accuracy.
-
Global Standards: Built to meet industrial reliability and safety certifications.
Questions fréquentes (FAQ)
-
What probe types are compatible with this housing assembly?
This housing is designed for Bently Nevada 3300 XL 8 mm proximity probes. -
Is it suitable for high-temperature environments?
Yes, it can operate in temperatures up to 177°C (350°F). -
Does it surfer environmental sealing?
Yes, the housing is sealed to prevent ingress sur dust, oil, and other contaminants. -
Can it be mounted in vertical or horizontal positions?
Yes, the assembly supports flexible mounting orientations. -
Is the assembly electrically isolated?
Yes, it provides electrical isolation from the machinery housing. -
What industries commonly use this housing?
Power generation, oil & gas, chemical processing, and heavy machinery. -
Does the unité require calibration?
The housing itself does not require calibration, but probe positioning must be precise. -
What is the weight sur the unité?
Approximately 1.1 kg. -
Is it ATEX certified for explosive environments?
Certain variants are ATEX-certified; please verify specific model certification. -
Can it be used with extension cables?
Yes, it is compatible with Bently Nevada extension cables and connectors.
Related Modèles
| Modèle Number | Description |
|---|---|
| 21000-16-05-00-047-04-02 | Proximity Probe Housing Assembly (3300XL) |
| 21000-16-05-00-030-04-02 | Compact Probe Housing for 3300XL |
| 21000-16-05-00-015-04-02 | Standard Probe Housing for turbine applications |
| 21000-16-05-00-050-04-02 | Dual Probe Housing Assembly |
| 21000-16-05-00-075-04-02 | Extended Housing with reinforced mount |
| 21000-16-05-00-035-04-02 | Housing for vertical mount configurations |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330130-080-00-00 | 3300 XL Extension Cable |
| 330180-90-00 | 3300 XL Proximitor Sensor |
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 330104-00-05-10-12-05 | 3300 XL 8 mm Probe for high-temp applications |
| 146031-01 | 3500 System Monitor Module |
