Produkteinführung

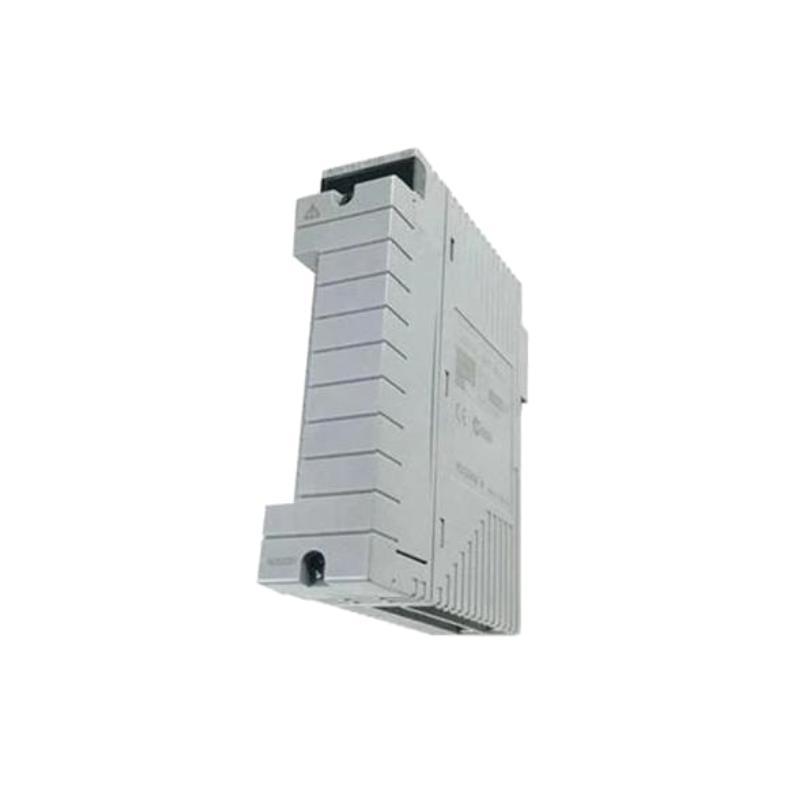

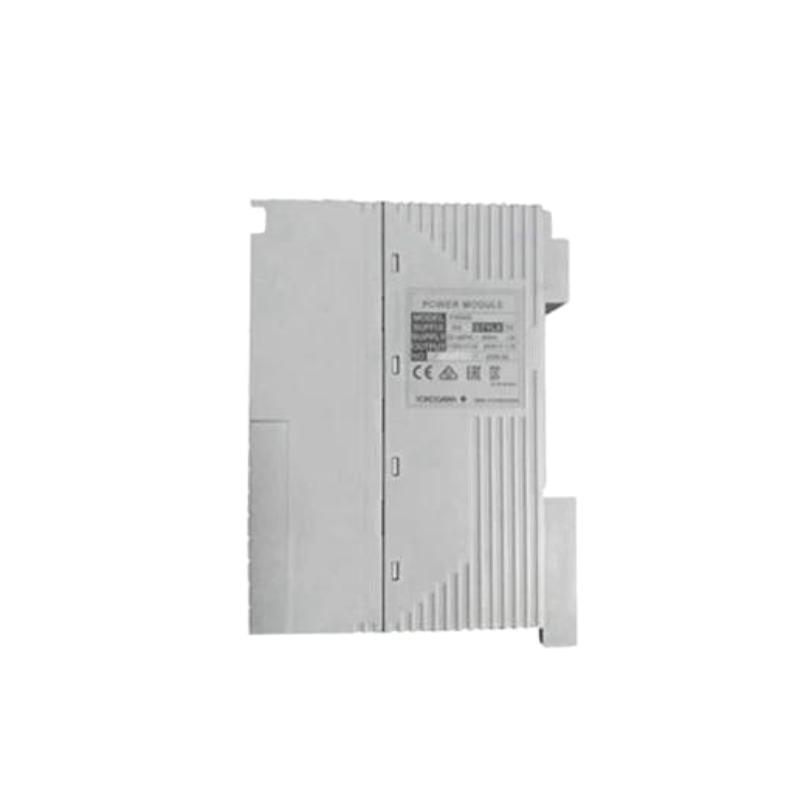

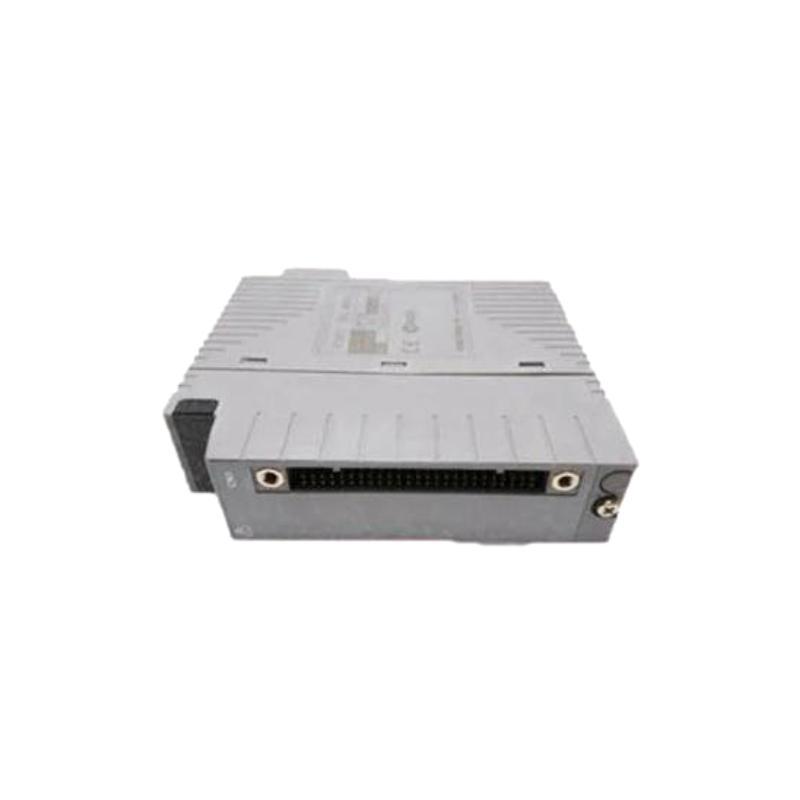

The Yokogawa A2SAM105 is a high-performance current and voltage input adapter designed for use with Yokogawa’s advanced automation systems. This adapter is part von the A2 series and is engineered to provide accurate and reliable measurement von both current and voltage signals. The A2SAM105 is commonly integrated into distributed control systems (DCS), supervisory control and data acquisition (SCADA) systems, and other industrial applications where precision signal conversion and signal conditioning are required.
With its ability to handle both current (4-20 mA) and voltage (0-10V) inputs, the A2SAM105 is an ideal solution for measuring and monitoring electrical signals in a variety von industrial and process control environments. Its compatibility with Yokogawa’s CENTUM series makes it easy to integrate into existing automation setups, providing efficient and real-time data acquisition and processing capabilities.
Produktspezifikationen:
| Parameter | Details |
|---|---|
| Module Type | Current/Voltage Input Adapter |
| Input Types | Voltage (0-10V), Current (4-20mA) |
| Input Range | 0-10V, 4-20mA |
| Output Type | Digital Output |
| Resolution | 16-bit resolution |
| Accuracy | ±0.05% von full scale |
| Power Supply | 24V DC ±10% |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions (LxWxH) | 130 x 12.8 x 40 mm |
| Gewicht | 0.1 kg |
| Mounting Type | DIN Rail Mounting |
| Isolation | 1500V DC (input to output) |
| Sampling Rate | 100ms per channel |
Applications:
The Yokogawa A2SAM105 Current/Voltage Input Adapter is designed for use in a wide range von applications where accurate signal conversion from analog to digital is critical. Typical applications include:
- Process Control: Used in process control systems for precise monitoring von variables such as pressure, temperature, and flow.
- Energy Management: Helps in managing energy consumption and optimizing electrical systems by acquiring current and voltage data.
- SCADA Systems: The module is used in supervisory control and data acquisition systems to collect and monitor analog signals for real-time decision-making.
- Manufacturing Automation: Utilized in factory automation systems to measure and control processes like production lines, assembly operations, and robotics.
- Power Distribution Systems: Used in power plants, substations, and other energy-related applications for monitoring electrical parameters like voltage and current.
- Measurement & Calibration: Ideal for accurate measurements in laboratory settings, instrument calibration, and industrial diagnostics.
- Environmental Monitoring: Used to monitor and control environmental parameters like temperature, humidity, and air quality in industrial environments.
Advantages:
- High Accuracy: The A2SAM105 provides high-precision measurements with an accuracy von ±0.05% von full scale, making it ideal for critical applications.
- Flexible Input Options: Supports both current (4-20mA) and voltage (0-10V) inputs, ensuring flexibility to meet various application needs.
- Built-in Isolation: The module includes 1500V DC isolation between input and output, ensuring protection against electrical surges and transients.
- Compact Design: Its compact form factor makes it easy to install in industrial panels, and the DIN rail mounting option simplifies the installation process.
- Wide Operating Temperature Range: The module operates within a wide temperature range von -20°C to +60°C, making it suitable for harsh industrial environments.
- Seamless Integration: Fully compatible with Yokogawa’s CENTUM DCS systems, enabling easy integration and communication within control systems.
- Durable: Designed for long-term reliability, the module is capable von withstanding demanding environments and vonfers excellent performance even under challenging conditions.
- Low Power Consumption: With a low power requirement von 24V DC, the A2SAM105 is energy-efficient, reducing operational costs.
Latest News:
-
“Yokogawa Introduces A2SAM105 Current/Voltage Input Adapter for Precision Process Control”
An announcement covering the release von the A2SAM105, emphasizing its role in precision process control and its compatibility with Yokogawa’s automation systems. -
“The Yokogawa A2SAM105: The Ideal Solution for Power Distribution Systems”
A detailed look at how the A2SAM105 is helping optimize energy management and control in power distribution systems. -
“Yokogawa’s A2SAM105: A Flexible Input Adapter for Industrial Automation”
A report on the versatility von the A2SAM105, highlighting its applications in both manufacturing automation and energy management. -
“Ensuring Real-Time Data Acquisition with Yokogawa’s A2SAM105 Input Adapter”
Coverage von how the A2SAM105 enhances SCADA systems by providing accurate and reliable data acquisition in real-time.
Häufig gestellte Fragen (FAQ):
-
What types von input signals does the A2SAM105 accept?
The A2SAM105 accepts voltage signals (0-10V) and current signals (4-20mA). -
What is the accuracy von the A2SAM105 module?
The module vonfers an accuracy von ±0.05% von full scale. -
How many input channels does the A2SAM105 support?
The module supports 4 input channels for analog signals. -
What is the operating temperature range von the A2SAM105?
The module operates within a temperature range von -20°C to +60°C. -
What type von mounting is available for the A2SAM105?
The module supports DIN rail mounting, making installation easy and secure. -
What is the power supply requirement for the A2SAM105?
The A2SAM105 operates on a 24V DC power supply with a ±10% tolerance. -
Is the A2SAM105 isolated from electrical surges?
Yes, the A2SAM105 provides 1500V DC isolation between the input and output. -
What is the weight von the A2SAM105 module?
The A2SAM105 weighs approximately 0.1 kg. -
Can the A2SAM105 be integrated with Yokogawa’s CENTUM DCS systems?
Yes, the module is fully compatible with Yokogawa’s CENTUM DCS systems. -
In what types von industries is the A2SAM105 used?
The A2SAM105 is used in process control, energy management, SCADA systems, manufacturing automation, power distribution, and environmental monitoring.
Related Modells:
| Modell | Beschreibung | Input Types | Channels | Resolution | Accuracy |
|---|---|---|---|---|---|
| A2SAM106 | Current/Voltage Input Adapter | Voltage, Current | 4 | 16-bit | ±0.05% |
| A2SAM107 | Advanced Input Adapter | Voltage, Current | 8 | 16-bit | ±0.05% |
| A2SAM108 | Isolated Current/Voltage Input Adapter | Voltage, Current | 4 | 16-bit | ±0.1% |
| A2SAM110 | High-Performance Input Adapter | Voltage, Current | 4 | 16-bit | ±0.05% |
| A2SAM120 | Low-Noise Current/Voltage Input Adapter | Voltage, Current | 4 | 16-bit | ±0.05% |
Popular Yokogawa Modells:
| Modell | Beschreibung | Input Types | Channels | Resolution | Accuracy |
|---|---|---|---|---|---|
| CS3000 DCS | Distributed Control System | Digital/Analog | Multi | 16-bit | ±0.05% |
| GP10 | Process Controller | Analog/Digital | Multi | 16-bit | ±0.1% |
| DPharp EJA Series | Pressure Transmitter | Pressure | Single | 24-bit | ±0.025% |
| RotaShear | Flow Transmitter | Flow | Single | 16-bit | ±0.1% |
| ProSafe-RS | Safety Instrumented System | Digital/Analog | Multi | 16-bit | ±0.1% |
| Yokogawa Vnet/IP | Industrial Communication Network | Digital/Analog | Multi | 16-bit | ±0.1% |
| YA1000 Series | PID Controllers | Analog | Single | 16-bit | ±0.1% |
| DX1000 Series | Process Controllers | Analog/Digital | Multi | 16-bit | ±0.1% |
| A0A0X Series | Temperature Control Systems | Temperature | Single | 16-bit | ±0.1% |
| EXA Series | Process Analyzers | Gas/Pressure/Temperature | Multi | 16-bit | ±0.05% |
