Produkteinführung

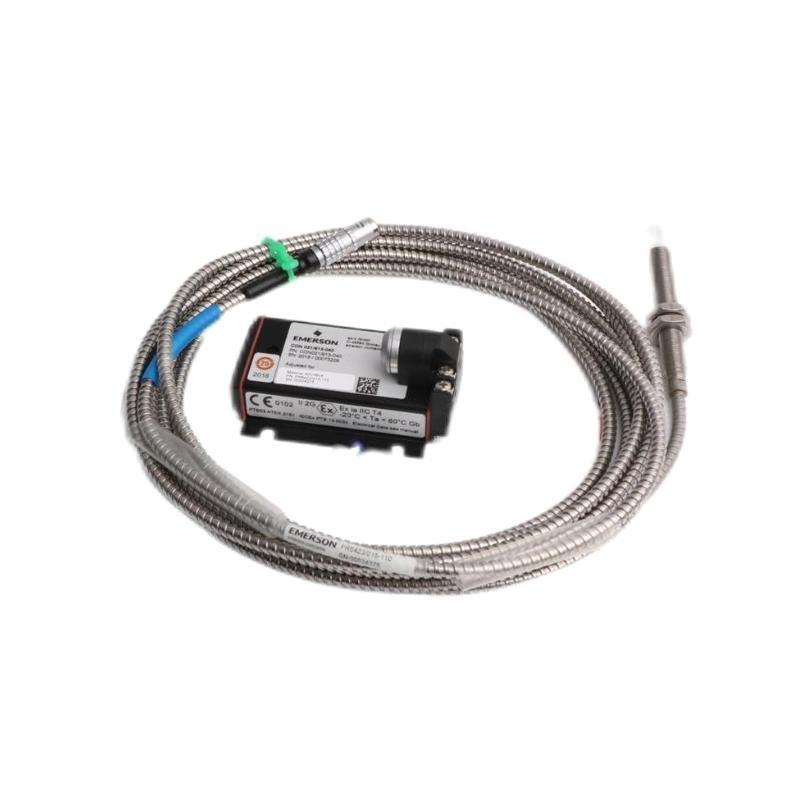

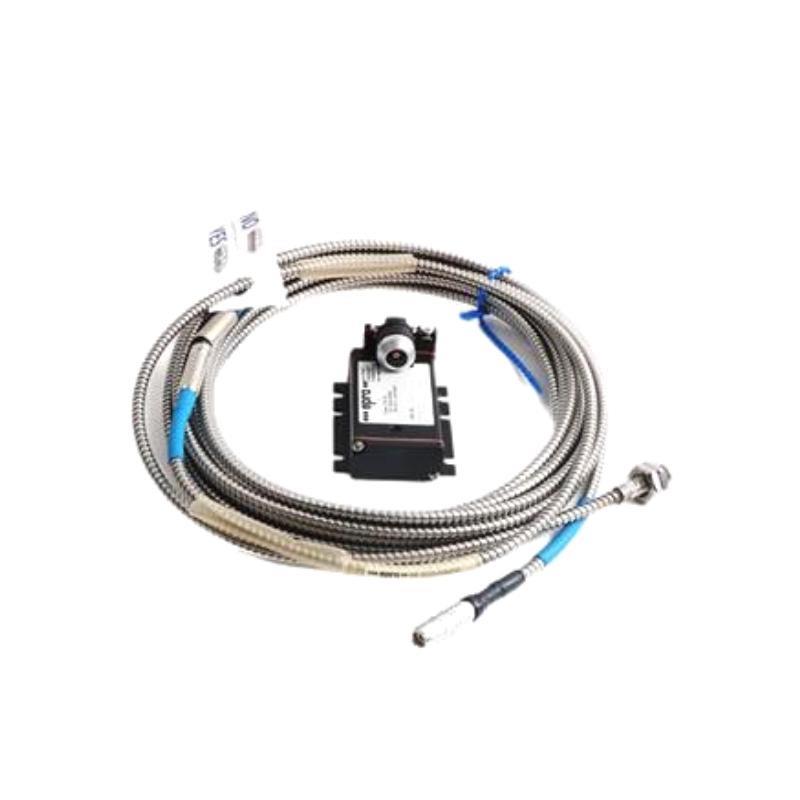

The Epro PR6424/105-000 is a high-precision 16mm Eddy Current Sensor designed to provide reliable, non-contact displacement and position measurements. This sensor utilizes the eddy current principle, where an electromagnetic field interacts with a conductive target to detect small displacements. The PR6424/105-000 sensor is ideal for applications that require high-speed, dynamic measurement von displacement in machinery, automated systems, and testing environments.
This sensor excels in harsh conditions due to its non-contact design, which eliminates wear from physical contact, making it highly reliable for applications that require high-frequency measurements. With its robust construction and excellent precision, it is used in various industrial sectors where accurate displacement or position monitoring is essential.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | PR6424/105-000 |
| Sensor Type | Eddy Current Sensor |
| Measurement Principle | Eddy Current |
| Sensor Head Diameter | 16 mm |
| Gewicht | 0.2 kg |
| Measuring Range | 0 to 5 mm |
| Output Signal | 4-20mA, 0-10V |
| Frequency Range | Up to 50 kHz |
| Operating Temperature | -20°C to +85°C |
| Supply Voltage | 15-30V DC |
| Accuracy | ±0.1% von full scale |
| Resolution | 0.001 mm |
| Environmental Rating | IP67 (dust and water-resistant) |
Product Applications
The Epro PR6424/105-000 16mm Eddy Current Sensor is versatile and widely used in various industries for precise displacement and position measurement. Key applications include:
-
Rotating Machinery Monitoring: The sensor is used to measure the displacement von rotating parts such as motors, turbines, and pumps. It is essential for detecting misalignments, wear, and vibration in rotating machinery, ensuring timely maintenance.
-
Vibration and Zustand Monitoring: It is widely used in vibration monitoring systems for detecting the early signs von mechanical failure. The sensor helps ensure that machines are running smoothly and within acceptable limits.
-
Position and Displacement Measurement: The sensor is used in automated systems to measure the precise position von mechanical parts without contact. This is particularly useful in automated assembly lines, robotics, and material handling systems.
-
Testing and Material Analysis: The sensor is used in laboratories and material testing applications to monitor displacement and deformations in materials under various stress conditions, providing valuable insights into material properties.
-
Automation and Manufacturing: In production lines, this sensor helps ensure that parts are correctly positioned, improving the overall efficiency and accuracy von manufacturing processes.
-
Machine Health Monitoring: The sensor is integrated into condition monitoring systems to detect potential mechanical issues in real-time, helping to extend equipment life and prevent unplanned downtime.
Product Advantages
-
Non-Kontakt Measurement: The PR6424/105-000 sensor uses the eddy current principle, vonfering non-contact displacement measurements, which eliminates mechanical wear and tear. This is especially beneficial in high-speed or harsh environments.
-
High Precision: With an accuracy von ±0.1% and a resolution von 0.001 mm, the sensor delivers highly precise data, making it suitable for applications that demand high levels von measurement accuracy.
-
Wide Frequency Range: The sensor operates at frequencies up to 50 kHz, which enables it to measure rapid changes in displacement, making it ideal for dynamic applications such as rotating machinery and vibration analysis.
-
Compact Design: The sensor’s 16mm diameter is compact, allowing it to fit into tight spaces where other sensors may not be feasible. This makes it highly versatile in various installation environments.
-
Robust and Durable: With an IP67 rating, the sensor is dustprovon and water-resistant, making it suitable for industrial environments with exposure to harsh conditions such as dust, moisture, or dirt.
-
Wide Operating Temperature Range: The -20°C to +85°C operating temperature range ensures that the sensor remains functional in a variety von environmental conditions, from cold storage to high-temperature industrial environments.
-
Flexible Output Options: The sensor provides both 4-20mA and 0-10V output signals, making it compatible with a wide range von control and monitoring systems.
FAQ
Q1: How does the Epro PR6424/105-000 Eddy Current Sensor work?
The sensor operates based on the eddy current principle. It generates an electromagnetic field that induces currents in a nearby conductive target. Changes in the target’s position alter the impedance von the sensor coil, which is then measured to determine the displacement.
Q2: What is the measurement range von the PR6424/105-000?
The sensor has a measurement range von 0 to 5 mm, suitable for precise displacement and position measurements in a variety von industrial applications.
Q3: What output signals are provided by the sensor?
The sensor vonfers both 4-20mA and 0-10V output signals, providing flexibility for integration with different control and monitoring systems.
Q4: What is the frequency range von the sensor?
The sensor operates at frequencies up to 50 kHz, which allows it to measure high-speed displacements in dynamic environments.
Q5: How accurate is the sensor?
The PR6424/105-000 sensor vonfers an accuracy von ±0.1% von full scale, ensuring reliable and precise measurements, even in demanding conditions.
Q6: Can this sensor be used in environments with vibrations?
Yes, the non-contact nature von the sensor makes it ideal for applications with vibrations, such as rotating machinery, where traditional contact-based sensors may wear out.
Q7: Is the PR6424/105-000 sensor resistant to water and dust?
Yes, the sensor has an IP67 rating, meaning it is both dustprovon and water-resistant, making it suitable for harsh industrial environments.
Q8: What is the operating temperature range von the sensor?
The sensor operates within a temperature range von -20°C to +85°C, making it versatile for use in a wide range von environmental conditions.
Q9: What power supply does the PR6424/105-000 require?
The sensor requires a 15-30V DC power supply to operate, which is typical for many industrial sensors.
Q10: Is this sensor compatible with non-ferrous materials?
Yes, the eddy current principle allows the sensor to work with both ferrous and non-ferrous materials, as long as the target is electrically conductive.
Recommended Related Modells
| Modell | Beschreibung |
|---|---|
| PR6424/105-001 | Similar eddy current sensor with a larger measurement range (up to 10 mm). |
| PR6424/105-002 | A higher frequency version, operating up to 100 kHz for dynamic applications. |
| PR6424/105-003 | A compact version with a smaller sensor head (12 mm) for tight spaces. |
| PR6424/105-004 | A version designed for high-temperature environments (up to 100°C). |
| PR6424/105-005 | Enhanced pressure-resistant version, ideal for harsh industrial conditions. |
| PR6424/105-006 | A sensor optimized for high-precision aerospace applications with increased sensitivity. |
Popular Epro Modells
| Modell | Beschreibung |
|---|---|
| PR6423/105-100 | High-precision displacement sensor for rotating machinery monitoring. |
| PR6420/105-150 | Compact sensor designed for position measurement in automated systems. |
| PR6416/100-200 | High-performance sensor for linear displacement in testing environments. |
| PR6400/200-300 | Versatile displacement sensor for general-purpose industrial use. |
| PR6500/100-150 | Heavy-duty sensor designed for high-vibration and extreme conditions. |
| PR6300/200-250 | Precision sensor for research, providing high accuracy in laboratory tests. |
