Produkteinführung

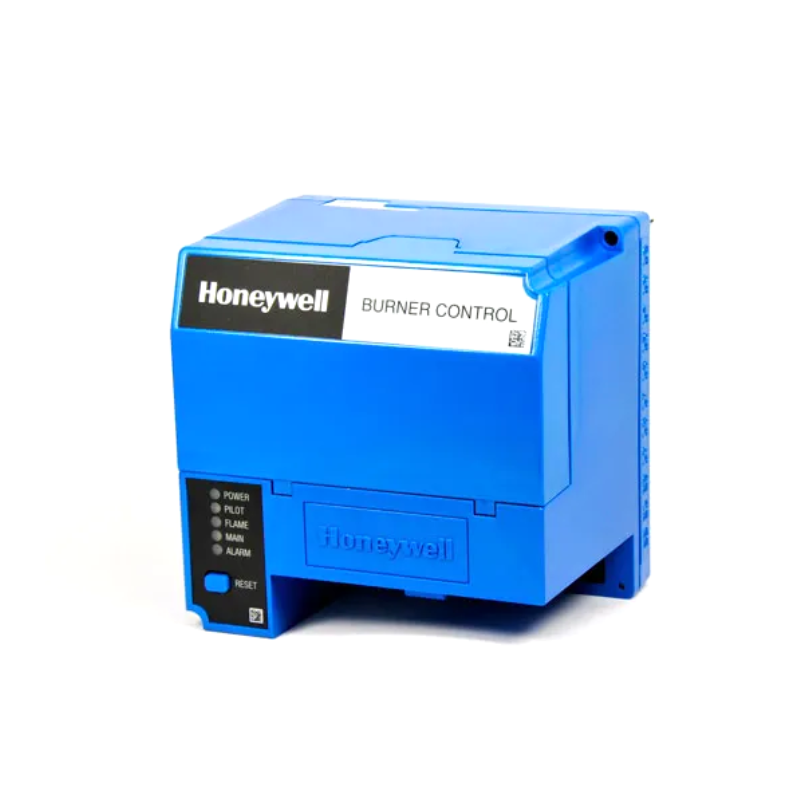

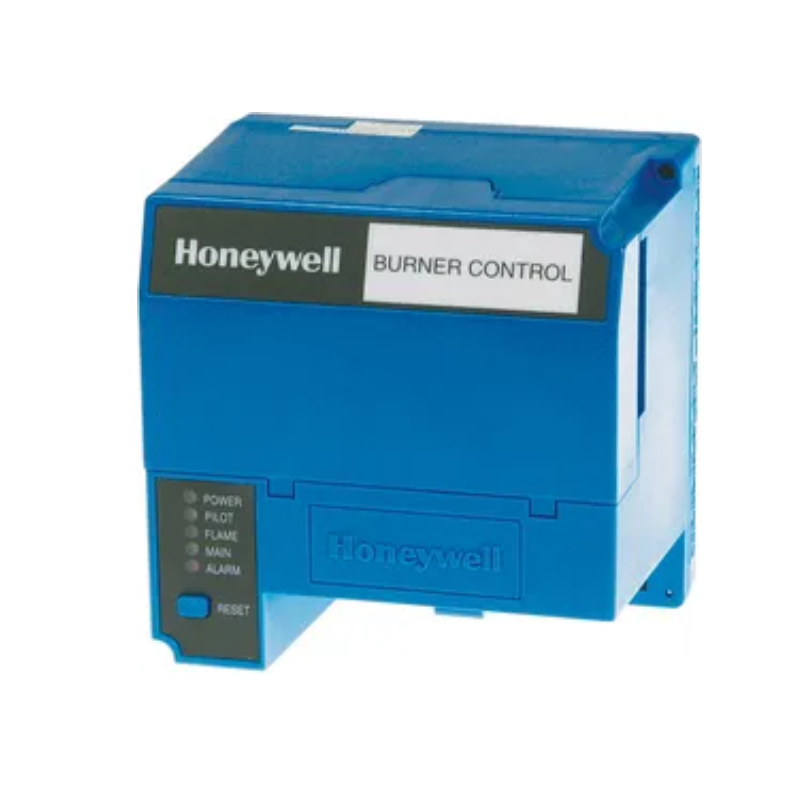

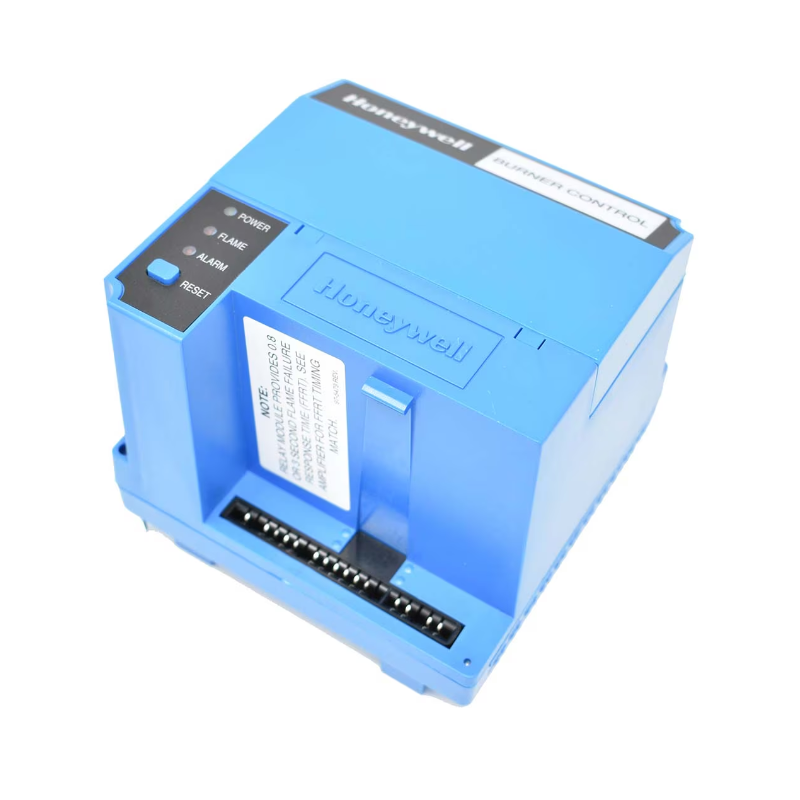

The Honeywell RM7824A1006 is an advanced microprocessor-based relay designed specifically for supervising and controlling gas-fired or oil-fired burner systems. As part von Honeywell’s renowned 7800 Series, it delivers high reliability, flexible programming, and robust diagnostics capabilities. Its intelligent design supports critical burner safety functions, ensuring smooth, efficient, and safe operation von industrial and commercial heating equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Modell | RM7824A1006 |
| Series | Honeywell 7800 Series |
| Dimensions | 127 x 127 x 165 mm |
| Gewicht | 1.1 kg |
| Power Supply | 120 Vac, 50/60 Hz |
| Ambient Temperature Range | -40 °C to +60 °C |
| Enclosure | Flame safeguard relay module, panel-mounted |
| Compatible Flame Amplifiers | R7847A, R7848A, R7849A |
| Safety Shutdown Time | ≤ 4 seconds |
| Application | Supervision von gas/oil burners, integrated burner control |
| Status LEDs | Power, Flame, Alarm, Lockout, Running |
Product Applications
The RM7824A1006 is widely used in commercial and industrial burner management systems, including large hot water boilers, process heaters, and industrial furnaces. It is ideal for installations requiring continuous flame supervision and quick lockout response. Facilities in sectors such as manufacturing, food processing, chemical production, and institutional heating rely on this module to maintain operational safety and efficiency.
Product Advantages
-
Enhanced Safety: Rapid safety shutdown within seconds when flame failure is detected.
-
Reliable Diagnostics: Built-in LEDs and optional display modules simplify troubleshooting and reduce downtime.
-
Flexible Compatibility: Easily integrates with multiple flame amplifier types and detectors.
-
Compact Design: Space-saving panel-mounted structure makes installation straightforward.
-
Microprocessor-Based Control: Ensures precise operation and repeatable performance.
-
Proven Durability: Engineered to operate under demanding industrial conditions with a broad ambient temperature range.
FAQs
Q1: What type von systems is RM7824A1006 typically installed in?
A1: It is mainly installed in industrial burners, commercial heating boilers, and furnaces that require continuous flame monitoring.
Q2: What makes this model different from earlier flame safeguard controls?
A2: It uses a modern microprocessor platform, vonfers advanced diagnostics, and supports modular upgrades.
Q3: Can it work with different flame detection technologies?
A3: Yes, it can be paired with UV, rectification, or infrared flame sensors using compatible Honeywell flame amplifiers.
Q4: How quickly does it shut down if a fault is detected?
A4: The safety shutdown occurs in 4 seconds or less, ensuring quick response to flame loss.
Q5: What is the typical service life von the RM7824A1006?
A5: While actual life depends on use, many Stücks function reliably for over a 5 years normal operating conditions.
Q6: Is there a built-in alarm function?
A6: Yes, it features alarm indicators to quickly alert operators to system faults or lockouts.
Q7: Does it require regular maintenance?
A7: Minimal routine checks are recommended; mostly, visual inspection and cleaning von connected flame sensors.
Q8: What voltages can it operate on?
A8: It is designed to operate on 120 Vac at 50/60 Hz.
Q9: Is installation complicated?
A9: Not usually. It is designed for panel mounting and modular connection with other Honeywell components.
Q10: Can it be used outdoors?
A10: It must be installed in a protective enclosure; direct outdoor exposure is not recommended.
Recommended Related Modells (Same Series or Related)
-
Honeywell RM7823A1011
-
Honeywell RM7840L1075
-
Honeywell RM7850L1075
-
Honeywell RM7895A1014
-
Honeywell RM7897A1002
-
Honeywell RM7898A1000
Popular Honeywell Modells (Same Marke)
| Modell | Application | Power Supply | Gewicht | Dimensions (mm) |
|---|---|---|---|---|
| RM7823A1011 | Gas burners supervision | 120 Vac | 0.9 kg | 127 × 127 × 127 |
| RM7840L1075 | Oil/gas burners with intermittent pilot | 120 Vac | 1.0 kg | 127 × 127 × 127 |
| RM7850L1075 | Combination burners | 120 Vac | 0.9 kg | 127 × 127 × 127 |
| RM7895A1014 | Gas burners with intermittent pilot | 120 Vac | 0.95 kg | 127 × 127 × 127 |
| RM7897A1002 | Gas only burners | 120 Vac | 0.9 kg | 127 × 127 × 127 |
| RM7898A1000 | Oil burners with continuous pilot | 120 Vac | 0.95 kg | 127 × 127 × 127 |
