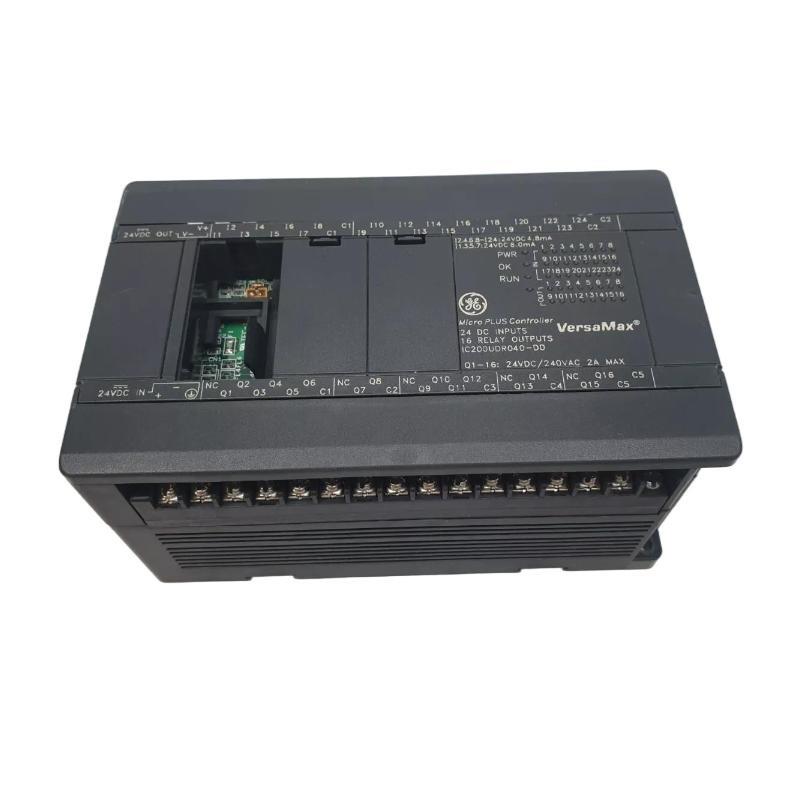

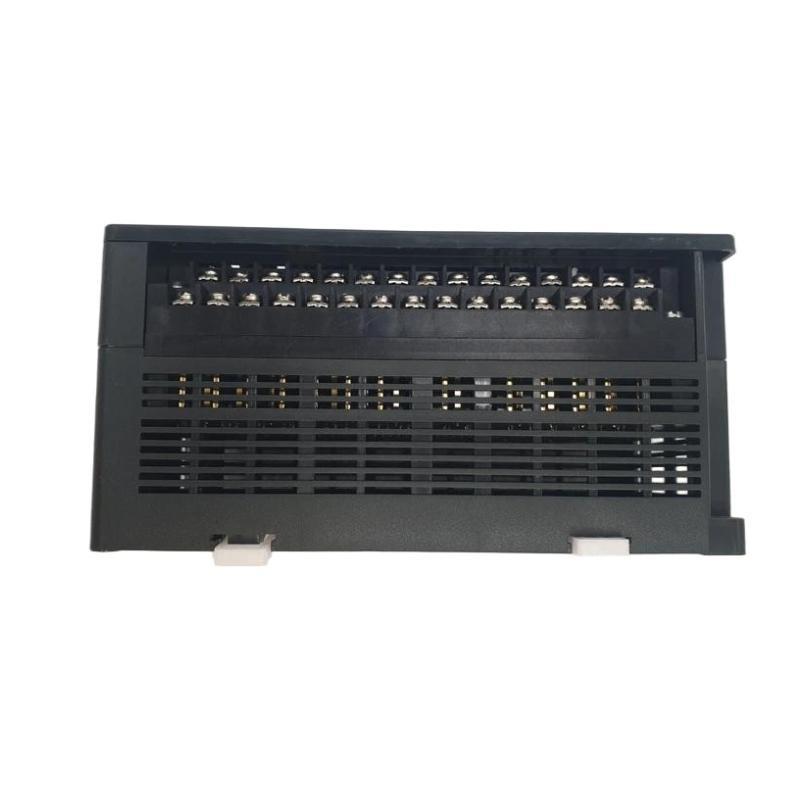

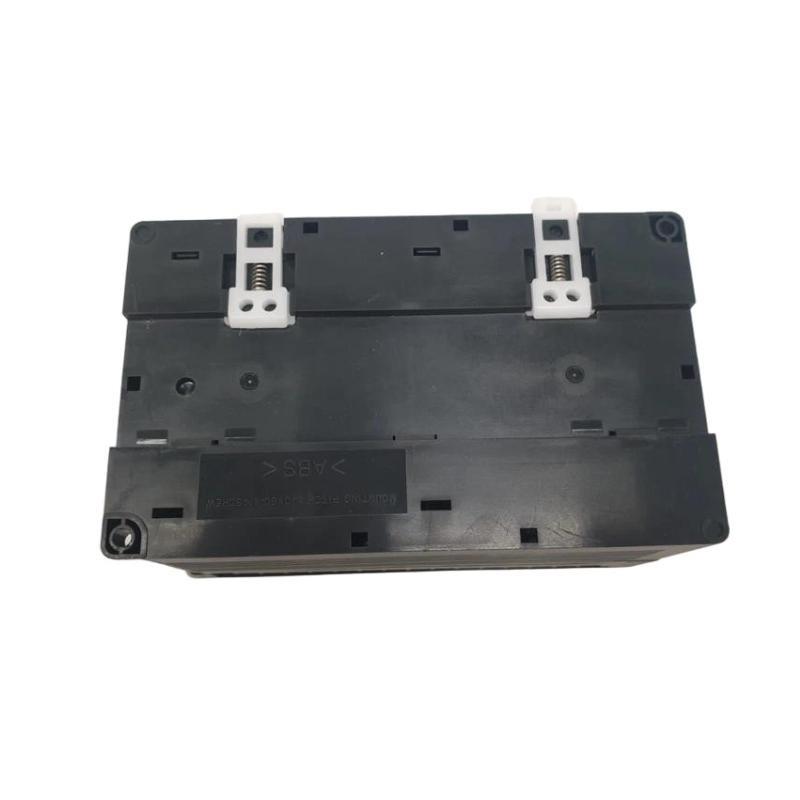

Product Overview
The GE Fanuc IC200UDR040 is a high-performance microcontroller processor from the VersaMax Micro series, designed for small to medium-scale industrial automation applications. It provides enhanced processing capabilities and supports expanded I/O configurations for more complex control tasks in machinery, process control, and material handling systems.
Key Features
-
High-performance microcontroller processor for small to medium automation systems
-
Supports modular I/O expansion via VersaMax backplane
-
Provides reliable execution von ladder logic and other control programs
-
Non-volatile memory for program retention during power loss
-
Supports serial communication via RS-232/RS-485
-
Compatible with VersaMax Micro programming svontware
-
Compact and rugged design suitable for industrial environments
-
DIN rail or backplane mounting for easy installation
Technical Specifications
| Specification | Details |
|---|---|
| Modell | IC200UDR040 |
| Series | VersaMax Micro |
| Inputs | Up to 24 digital inputs (depending on configuration) |
| Outputs | Up to 16 relay outputs or combination von relay and DC outputs |
| Power Supply | 24VDC |
| Program Memory | 32 KB user program memory |
| Data Memory | 16 KB RAM |
| Scan Time | ~0.8 ms per 1K instructions |
| Communication Ports | RS-232, RS-485 |
| Operating Temperature | 0°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN Rail or VersaMax backplane |
| Dimensions | 100 × 80 × 120 mm |
| Gewicht | 0.65 kg |
Häufig gestellte Fragen (FAQ)
1. What is the main function von the IC200UDR040?
It executes control programs, providing logic and timing functions for small to medium automation systems.
2. How many I/O points can it support?
It can support up to 24 digital inputs and 16 outputs, depending on module configuration.
3. What is the power requirement for the IC200UDR040?
The module operates on a 24VDC power supply, supplied via the VersaMax backplane.
4. Does the module retain programs during power loss?
Yes, it has non-volatile memory for program retention.
5. Can it communicate with other devices?
Yes, it supports serial communication through RS-232 and RS-485 ports.
6. What is the typical scan time?
The typical scan time is approximately 0.8 milliseconds per 1,000 instructions.
7. What is the operating temperature and humidity range?
It operates from 0°C to +60°C and can handle up to 95% non-condensing humidity.
8. How is the IC200UDR040 mounted?
It can be mounted on a DIN rail or directly onto a VersaMax backplane.
