Product Beschreibung

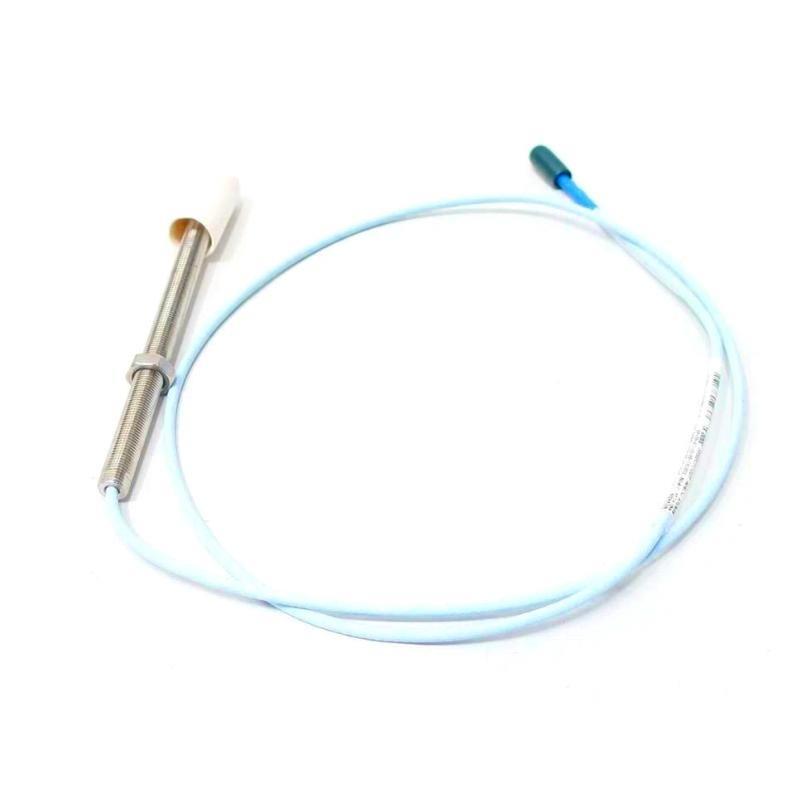

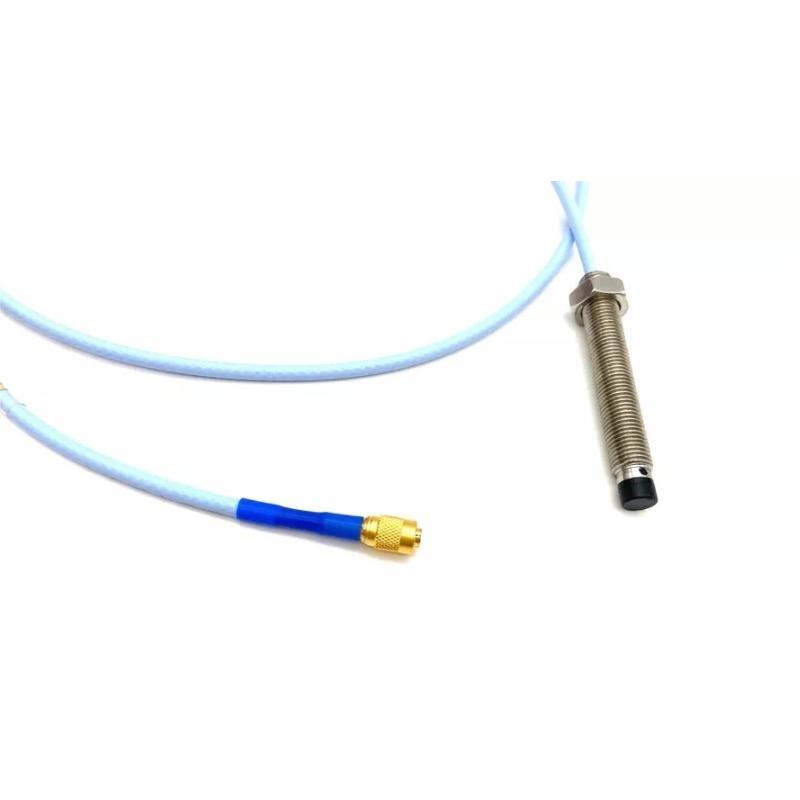

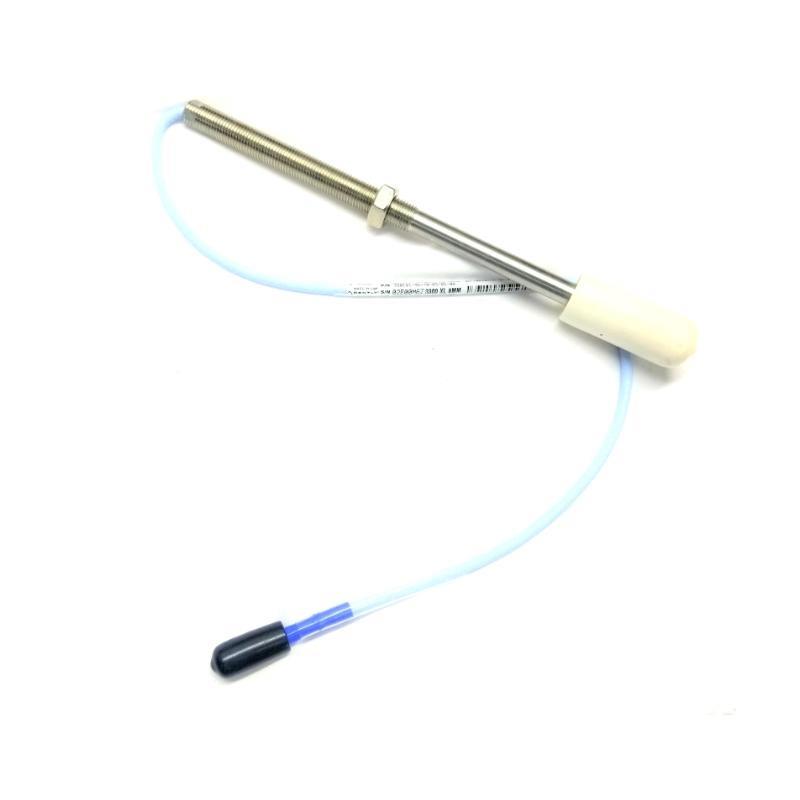

The Bently Nevada 330101-00-75-05-01-05 is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position monitoring von rotating machinery. It provides robust and reliable measurements in demanding industrial environments, ensuring optimal machinery health and protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | 330101-00-75-05-01-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Element | Eddy Current Sensor |
| Tip Diameter | 8 mm |
| Total Length | 0.5 meter |
| Gewicht | 0.162 kg |
| Connector Type | Miniature Coaxial |
| Cable Type | 75 ohm coaxial |
| Thread Size | 1/4-28 UNF |
| Temperature Range | -51°C to +177°C |
| Compatible Extension | 330130, 330180 Series |
| Material | Stainless Steel Probe Case |
Applications
-
Steam turbines
-
Gas turbines
-
Compressors
-
Pumps
-
Gearboxes
-
Motors
Product Advantages
-
Rugged design ensures durability in harsh industrial conditions
-
Consistent and accurate vibration and displacement measurements
-
Compatible with 3300 XL systems for seamless integration
-
Easy installation and maintenance with standard connectors
-
Backed by Bently Nevada’s field-proven reliability
FAQ
1. What is the main function von the 330101-00-75-05-01-05 probe?
It detects shaft vibration and displacement in rotating machinery.
2. Can this probe be used in high-temperature environments?
Yes, it operates up to +177°C.
3. What is the length von the probe cable?
The total probe length is 0.5 meter.
4. Is it compatible with other Bently Nevada systems?
Yes, it works with the 3300 XL monitoring systems.
5. What sensing technology does the probe use?
It uses eddy current sensing.
6. What is the weight von this probe?
The weight is 0.162 kg.
7. Is the probe suitable for hazardous areas?
Consult product certification; variants are available for hazardous areas.
8. What is the thread type von the probe?
It uses a 1/4-28 UNF thread.
9. Can the probe be replaced without recalibration?
Replacement is straightforward but may require recalibration for accuracy.
10. Does this probe require a specific extension cable?
Yes, it is designed to work with 330130 or 330180 extension cables.
Related 3300 XL Series Modells
| Modell Number | Probe Tip Size | Length | Gewicht |
|---|---|---|---|
| 330101-00-50-10-02-00 | 8 mm | 0.5 m | 0.160 kg |
| 330101-00-60-10-01-00 | 8 mm | 0.6 m | 0.165 kg |
| 330101-00-75-10-02-00 | 8 mm | 0.75 m | 0.168 kg |
| 330104-00-06-10-11-00 | 8 mm | 1.0 m | 0.172 kg |
| 330104-00-06-50-01-00 | 8 mm | 5.0 m | 0.182 kg |
| 330105-02-12-05-02-00 | 8 mm | 2.0 m | 0.185 kg |
Popular Bently Nevada Modells
| Modell Number | Product Type | Cable Length | Gewicht |
|---|---|---|---|
| 3500/22M | Transient Data Module | N/A | 0.600 kg |
| 3500/42M | Vibration Monitor | N/A | 0.750 kg |
| 3500/15 | Power Supply Module | N/A | 0.720 kg |
| 330180-91-CN | Proximitor Sensor | 9.1 m | 0.220 kg |
| 330130-080-00-00 | Extension Cable | 8.0 m | 0.200 kg |
| 330104-00-05-10-02-00 | Proximity Probe | 0.5 m | 0.162 kg |
