Product Beschreibung

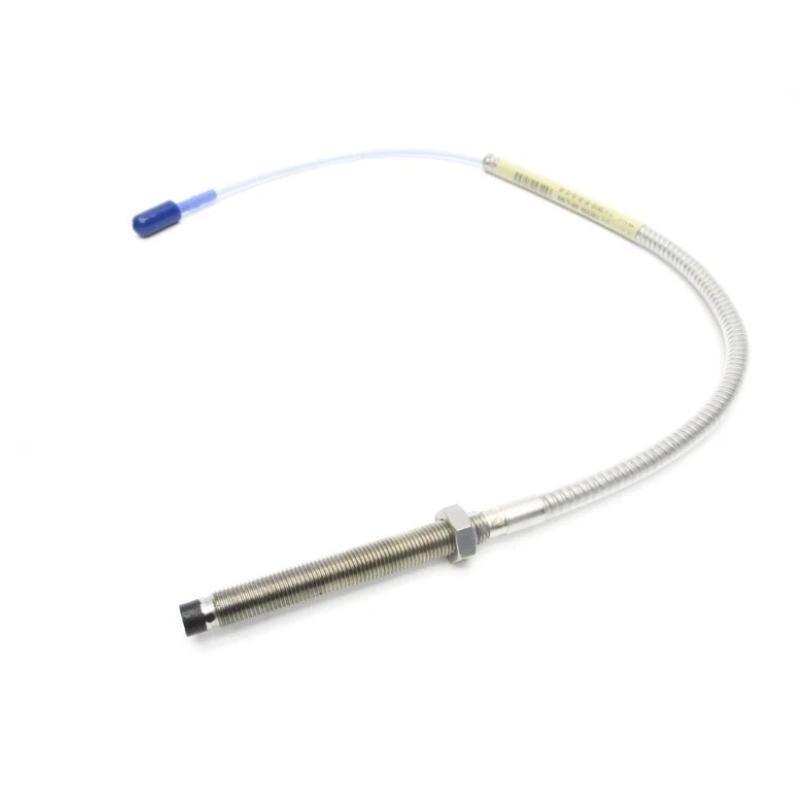

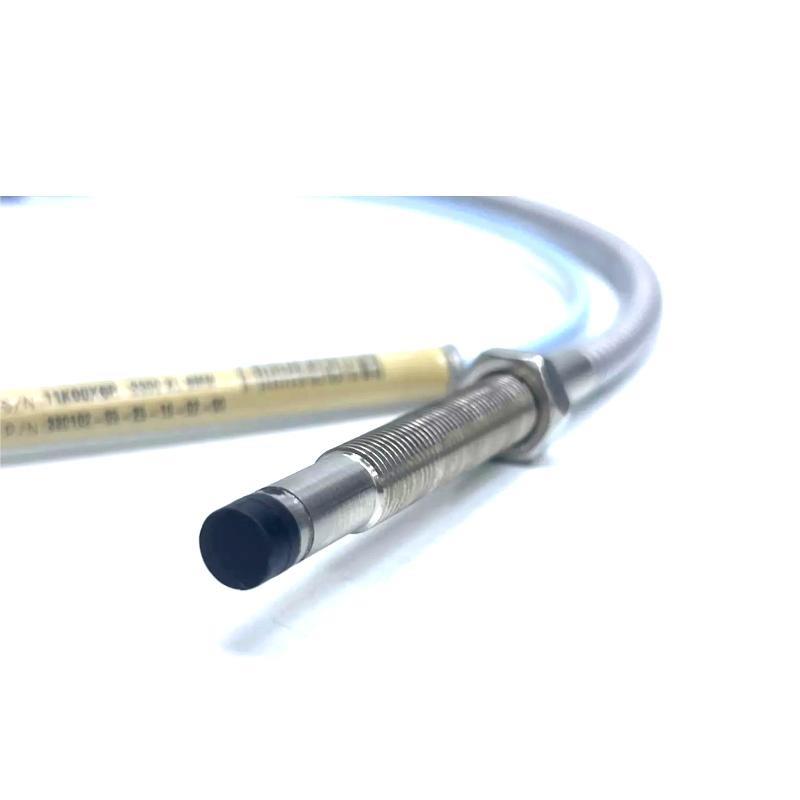

The Bently Nevada 330102-00-24-10-02-00 is part von the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement von static position and dynamic vibration in rotating machinery. It features a robust armored cable, advanced TipLoc and CableLoc construction, and ClickLoc gold-plated connectors for reliable operation in industrial environments. It fully meets API 670 mechanical and performance standards.
Product Applications
-
Shaft vibration and position monitoring in fluid-film bearing machines
-
Keyphasor reference and speed measurements
-
Vibration protection and condition monitoring in turbines, compressors, and pumps
-
Suitable for high-temperature and high-density installations
Product Advantages
-
Complies with API 670 standards for performance and interchangeability
-
Armored cable and FluidLoc option for enhanced durability and fluid resistance
-
High immStücky to RFI/EMI with CE compliance
-
Backward compatibility with non-XL 3300 series components
-
ClickLoc connectors for secure, tool-free installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Probe Tip Diameter | 8 mm |
| Case Material | Stainless Steel 303/304 |
| Probe Temperature Range | -52°C to +177°C (Standard) |
| Linear Range | 0.25 mm to 2.3 mm (10–90 mils) |
| Frequency Response | 0–10 kHz |
| Output Scale Factor | 7.87 V/mm ±5% (Standard 5m system) |
| Mounting Thread | 3/8-24 UNF |
| Connector | Miniature coaxial ClickLoc with protector |
| Cable Type | Armored standard cable |
FAQ
Q1: What is the primary use von the 330102-00-24-10-02-00 probe?
A1: It is primarily used for vibration and position monitoring von rotating machinery shafts.
Q2: Does this probe comply with industry standards?
A2: Yes, it meets API 670 mechanical and performance specifications.
Q3: Can it be used in high-temperature environments?
A3: Yes, the standard version operates up to 177°C. Extended temperature versions are also available.
Q4: Is the probe interchangeable with older 3300 series components?
A4: Yes, it is backward compatible and interchangeable with non-XL 3300 8 mm components.
Q5: What type von connector does it use?

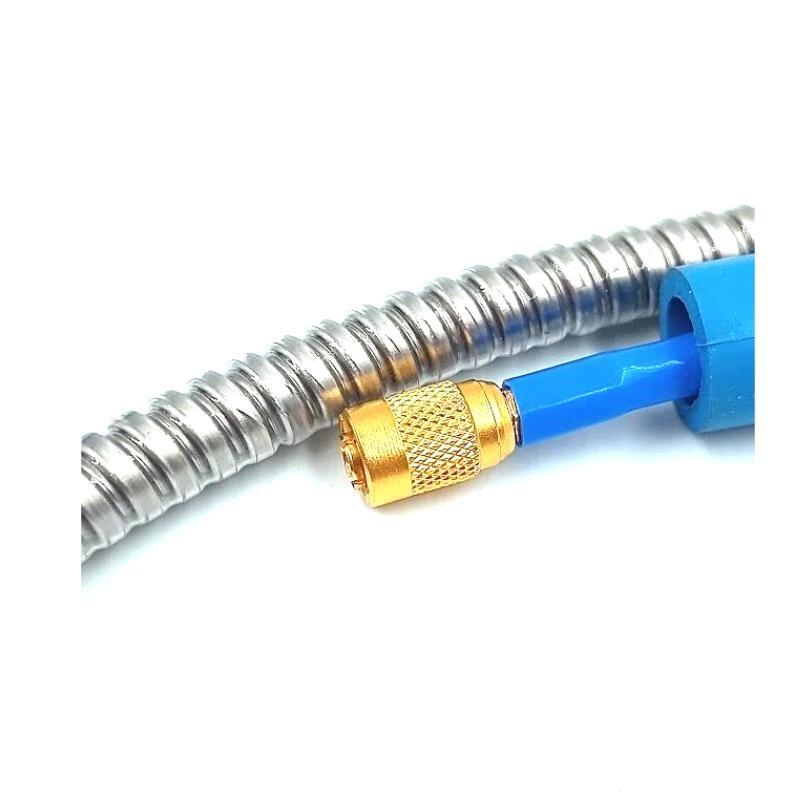

A5: It uses a gold-plated ClickLoc connector, designed for secure, tool-free installation.
Q6: Is the cable fluid-resistant?
A6: Yes, the FluidLoc option prevents oil and other fluids from leaking through the cable.
Q7: What is the recommended gap voltage setting?
A7: The recommended gap voltage is approximately -9 VDC, corresponding to about 1.27 mm (50 mils).
Q8: Can it be used with a 9-meter system?
A8: No, the 1-meter probe is designed for 5-meter systems, not 9-meter systems.
Q9: Does it come with a connector protector?
A9: Yes, this model includes a connector protector for enhanced environmental protection.
Q10: Is any special calibration required for different target materials?
A10: By default, it is calibrated for AISI 4140 steel; other materials require factory calibration.
Recommended Related Modells
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-00-08-10-02-00 | 8 mm probe, no armor, 1.0 m | 1.0 m | 0.3 kg |
| 330104-00-06-10-02-00 | 8 mm probe, M10 thread, armored, 1.0 m | 1.0 m | 0.32 kg |
| 330191-00-10-10-02-00 | ETR probe, 3/8-24 thread, no armor, 1.0 m | 1.0 m | 0.3 kg |
| 330192-00-10-10-02-00 | ETR probe, 3/8-24 thread, armored, 1.0 m | 1.0 m | 0.32 kg |
| 330140-00-24-10-02-00 | Smooth case probe, no armor, 1.0 m | 1.0 m | 0.3 kg |
| 330105-02-12-10-02-00 | Reverse mount probe, 3/8-24 thread, 1.0 m | 1.0 m | 0.31 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330180-01-00 | Proximitor Sensor, 1.0 m, panel mount | 1.0 m | 0.25 kg |
| 330180-51-00 | Proximitor Sensor, 5.0 m, DIN mount | 5.0 m | 0.25 kg |
| 330130-030-00 | Extension Cable, standard, 3.0 m | 3.0 m | 0.1 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | N/A | 0.4 kg |
| 3500/22M-01-00 | Transient Data Interface Module | N/A | 0.5 kg |
| 3500/15-05-01-00 | Power Supply Module | N/A | 1.2 kg |
