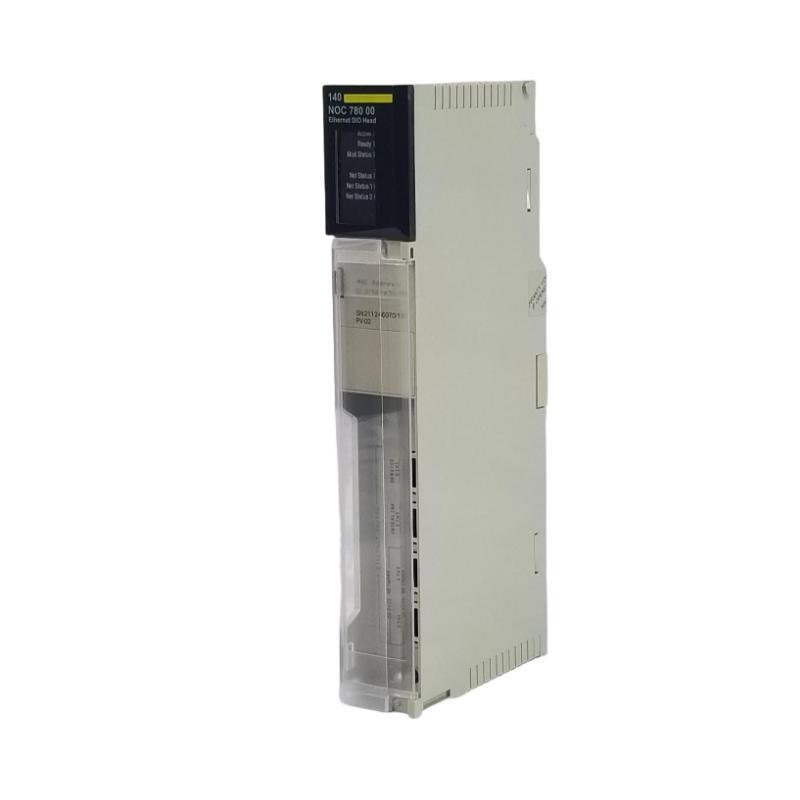

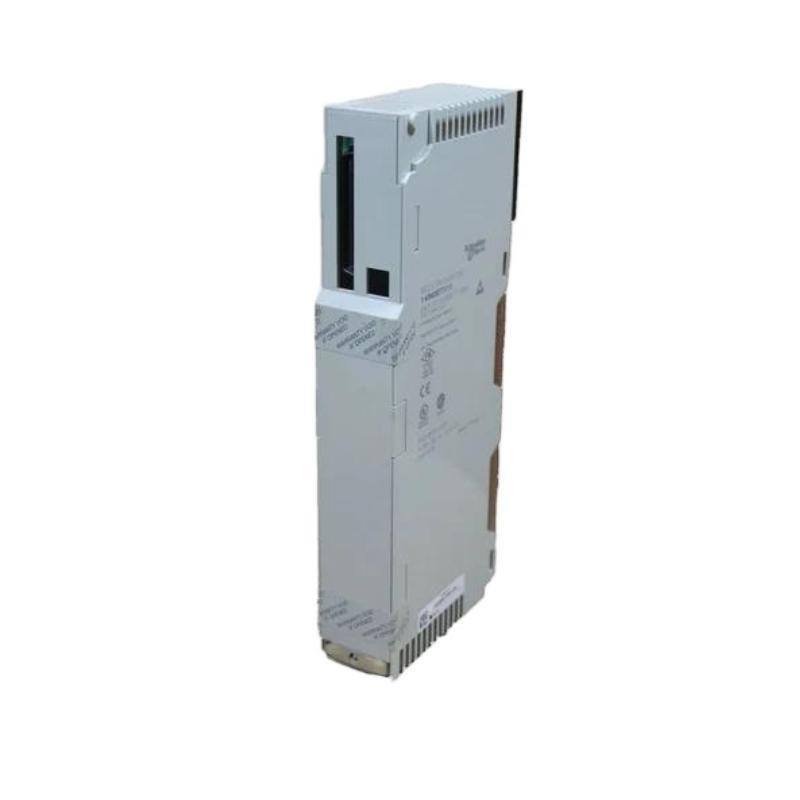

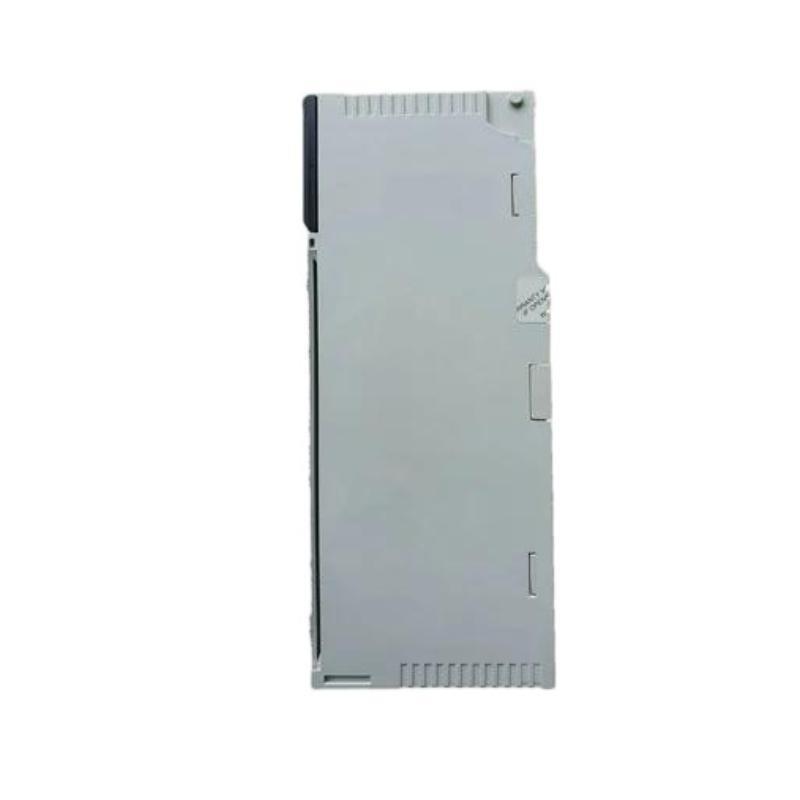

Schneider 140NOC78000 Ethernet I/O Master Module

Product Overview

The Schneider 140NOC78000 Ethernet I/O Master Module is an advanced communication module designed for the Modicon Quantum automation system. It serves as a powerful Ethernet I/O master, providing high-speed network communication and seamless integration between Quantum PLCs and distributed I/O devices via Ethernet networks.

This module supports various industrial protocols and ensures deterministic communication required in mission-critical applications. It is built for industrial environments, delivering reliable performance, extensive diagnostics, and flexible network configuration options. The 140NOC78000 enhances system scalability and connectivity, supporting modern Ethernet-based industrial automation architectures.

Key Features

• Acts as Ethernet I/O Master for Modicon Quantum PLCs

• الدعمs high-speed 10/100 Mbps Ethernet communication

• Compatible with multiple industrial protocols, including Modbus TCP/IP and proprietary Schneider protocols

• Enables distributed I/O network management over Ethernet

• الدعمs up to 64 remote I/O stations

• Integrated diagnostics and status LEDs for easy monitoring

• Hot-swappable for minimal downtime

• Advanced network configuration and management capabilities

• Designed for harsh industrial conditions with robust construction

• Compliant with global industrial standards (CE, UL, CSA, RoHS)

Technical Specifications

Industry Applications

The 140NOC78000 Ethernet I/O Master Module is widely used in various industries requiring distributed I/O management and high-speed Ethernet communication:

• Industrial Manufacturing: Managing distributed sensors and actuators over Ethernet networks for production automation

• Power and Utilities: Remote monitoring and control من substations and distributed assets

• Oil & Gas: Networked control and monitoring من field instrumentation and safety systems

• Transportation: Ethernet-based signaling and control systems for railways and highways

• Water and Wastewater: Distributed control من pumps, valves, and sensors for water treatment plants

• Building Automation: Integration من HVAC, lighting, and security systems on Ethernet networks

Product Advantages

• High-Performance Network Communication: Provides fast and reliable Ethernet communication for large distributed I/O systems

• Extensive I/O Management: الدعمs up to 64 remote I/O stations, enabling scalable control architectures

• Robust Industrial Design: Engineered to operate reliably under vibration, shock, and temperature extremes

• User-Friendly Diagnostics: LEDs and network tools simplify system monitoring and troubleshooting

• Flexible Protocol الدعم: Compatible with standard Modbus TCP/IP and Schneider proprietary protocols

• Hot-Swappable: Allows module replacement or upgrade without system downtime

• Seamless Integration: Easily integrates with existing Modicon Quantum racks and systems

• Improved System Availability: Enhances uptime with reliable communication and fault diagnostics

• Global Compliance: Certified for worldwide industrial use under multiple safety and environmental standards

• Scalable Network Architecture: الدعمs complex Ethernet-based automation networks

الأسئلة الشائعة (FAQ)

1. What is the function من the 140NOC78000 module?
It acts as an Ethernet I/O Master, managing communication between a Quantum PLC and remote I/O devices over Ethernet.

2. How many remote I/O stations can the module support?
The module supports up to 64 remote I/O stations.

3. Which communication protocols does it support?
It supports Modbus TCP/IP and Schneider proprietary Ethernet protocols.

4. Can the module be replaced while the system is running?
Yes, it is hot-swappable, allowing replacement without shutting down the system.

5. What is the Ethernet speed supported?
The module supports 10/100 Mbps Ethernet.

6. Is the module compatible with all Quantum PLC models?
Yes, it integrates with all Modicon Quantum Series PLCs.

7. How can I monitor the status من the module?
Status LEDs indicate power, network link, activity, and diagnostic information.

8. What are the operating temperature and environmental ratings?
The module operates from 0°C to 60°C and meets IEC standards for shock and vibration.

9. Does the module have built-in diagnostics?
Yes, diagnostics include LEDs and network monitoring tools for easy troubleshooting.

10. What certifications does this module hold?
It holds CE, UL, CSA, and RoHS certifications.
