Product Overview

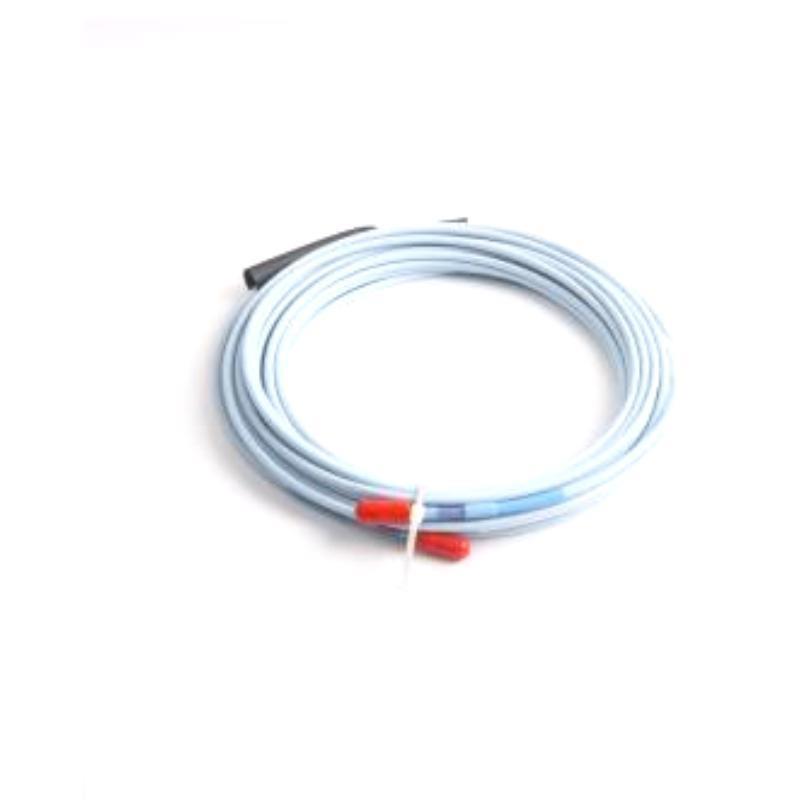

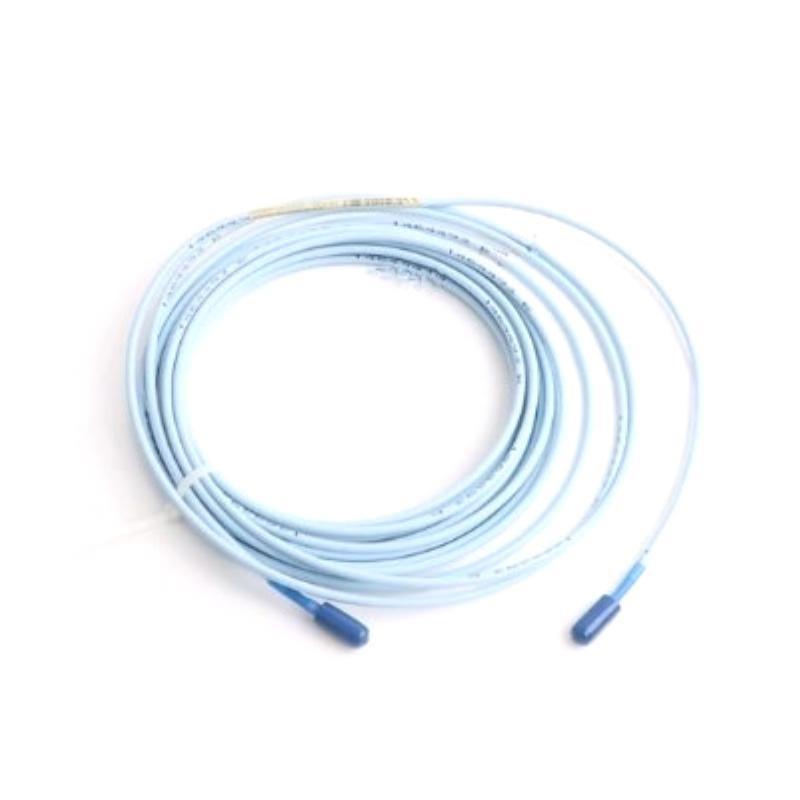

The Bently Nevada 330130-075-00-00 is a 7.5-meter 3300 XL Standard Extension Cable designed for use in proximity transducer systems. It transmits signals between proximity probes and the 3300 XL Proximitor Sensor. Its robust construction ensures signal integrity, high reliability, and mechanical durability in industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | 330130-075-00-00 |
| Cable Length | 7.5 meters |
| الوزن | 0.255 kg (approx.) |
| DC Resistance (RCORE) | 1.65 ± 0.25 Ω |
| Jacket Resistance (RJACKET) | 0.49 ± 0.10 Ω |
| Capacitance | 69.9 pF/m typical |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | ClickLoc, gold-plated coaxial connectors |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Temperature Range | -52°C to +177°C |
Applications
-
Vibration and position monitoring in rotating machinery
-
Fluid-film bearing machines
-
Keyphasor reference and speed measurements
-
Systems requiring high EMI/RFI immوحدةy
Product Advantages
-
Durable Design: Features CableLoc construction providing 330 N (75 lbf) tensile strength.
-
Secure Connections: Gold-plated ClickLoc connectors ensure corrosion resistance and reliable signal transmission.
-
Flexible Installation: Optional connector protectors and minimal bend radius allow easy routing.
-
Environmental Protection: Withstands harsh industrial conditions including high temperature and mechanical stress.
-
System Compatibility: Fully interchangeable with other 3300 XL 8 mm system components.
FAQs
Q1: What is the length من the 330130-075-00-00 cable?
A1: 7.5 meters (24.6 feet).
Q2: Is this cable compatible with ETR systems?
A2: Yes, but the system accuracy will be limited to ETR specifications if ETR components are used.
Q3: What is the cable’s weight?
A3: Approximately 0.255 kg.
Q4: What is the bend radius requirement?
A4: Minimum bend radius is 25.4 mm (1 inch).
Q5: Are special tools required for connector installation?
A5: No, ClickLoc connectors can be installed finger-tight.
Q6: What environments is this cable rated for?
A6: Rated for temperatures from -52°C to +177°C; suitable for harsh industrial environments.
Q7: Can it be used in hazardous areas?
A7: Yes, with appropriate approvals such as CSA, ATEX, IECEx when ordered with such options.
Q8: Is the cable shielded?
A8: Yes, it uses a 75Ω triaxial design with effective shielding.
Q9: Does it support high-frequency applications?
A9: Yes, it supports signal frequencies up to 10 kHz.
Q10: Can I use it with older 3300 non-XL systems?
A10: Yes, it is backward compatible with 3300 5 mm and 8 mm systems.
Related الطرازs (Same Series or Function)
| الطراز Number | الوصف | Cable Length | الوزن |
|---|---|---|---|
| 330130-070-00-00 | 3300 XL Extension Cable | 7.0 m | 0.238 kg |
| 330130-060-00-00 | 3300 XL Extension Cable | 6.0 m | 0.204 kg |
| 330130-045-00-00 | 3300 XL Extension Cable | 4.5 m | 0.153 kg |
| 330130-030-00-00 | 3300 XL Extension Cable | 3.0 m | 0.102 kg |
| 330130-085-00-00 | 3300 XL Extension Cable | 8.5 m | 0.289 kg |
| 330190-075-00-00 | 3300 XL ETR Extension Cable | 7.5 m | 0.255 kg |
Popular الطرازs from Bently Nevada
| الطراز Number | الوصف | Application |
|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Proximity Probe | Vibration monitoring |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Probe (M10, armored) | Tight-space installations |
| 330180-50-05 | 3300 XL Proximitor Sensor, 5 m, Panel Mount | Signal conditioning |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Machinery protection |
| 3500/22M | Transient Data Interface | الحالة monitoring systems |
| 330106-05-30-10-02-05 | Reverse Mount 8 mm Probe (M10, armored) | Motor/generator vibration probes |
