Product Overview

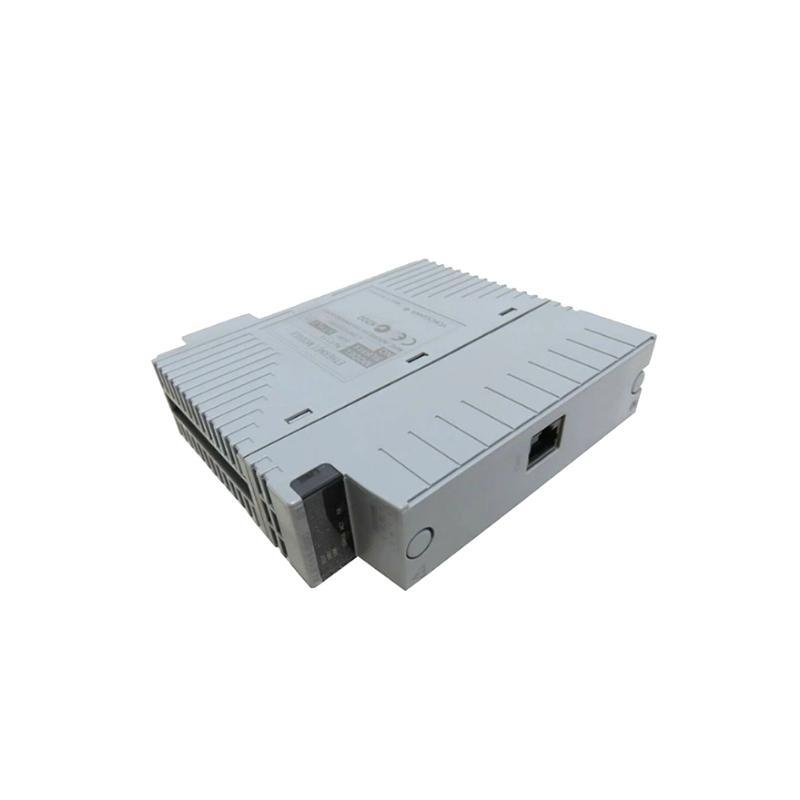

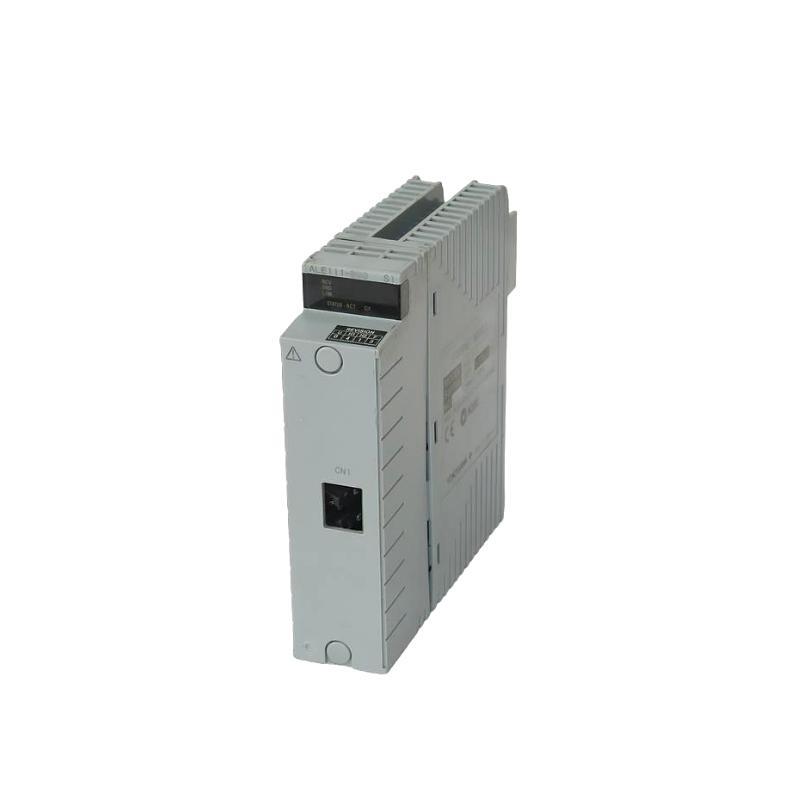

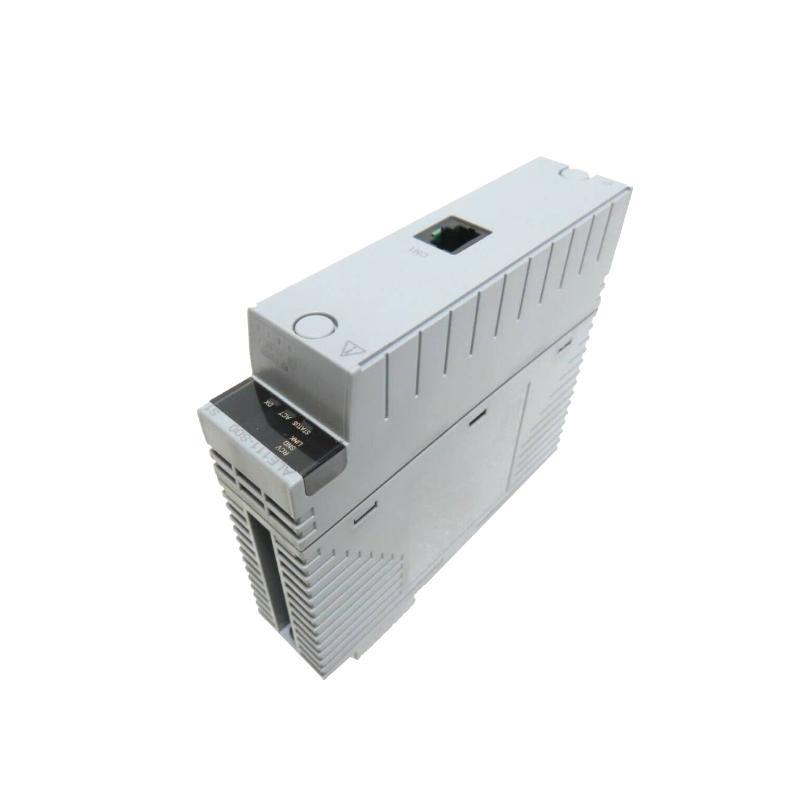

The Yokogawa ALE111-S50 is an Ethernet communication module designed to facilitate seamless integration between Yokogawa’s Field Control Stations (FCS) and various subsystems, such as the FA-M3. This module enables efficient data exchange over Ethernet networks, enhancing the connectivity and performance من industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Physical Layer Interface | IEEE802.3 10BASE-T |
| Connection Method | Point-to-point |
| Connector | RJ-45 |
| Transmission Method | Half-duplex |
| Transmission Speed | 10 Mbps |
| Transmission Route | 100-ohm twisted-pair cable (unshielded) |
| Transmission Distance | Up to 100 meters (328 feet) per segment |
| Installation Compatibility | Mountable on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40 وحدةs |
| Number من Ports | 1 |
| Media Access Control | CSMA/CD |
| Current Consumption | 0.5 A |
| الوزن | 0.3 kg |
| Dimensions | 130 x 125.5 x 32.8 mm |
Applications
The ALE111-S50 module is utilized in various industrial applications, including:
-
Industrial Automation Systems: Facilitates communication between FCS and subsystems like the FA-M3, enhancing process control and monitoring.
-
Process Control Systems: Ensures reliable data exchange in complex process control environments, contributing to operational efficiency.
-
Building Automation Systems: Integrates with building management systems to monitor and control HVAC, lighting, and security systems.
-
Security Systems: Enables real-time data transmission for surveillance and access control systems.
-
Transportation Systems: الدعمs communication in traffic management and railway control systems.
Advantages
-
Seamless Integration: Designed to work effortlessly with Yokogawa’s automation systems, ensuring smooth communication between devices.
-
Reliable Performance: الدعمs half-duplex communication at 10 Mbps, providing stable and efficient data transmission.
-
Flexible Installation: Compatible with multiple Yokogawa وحدةs, منfering versatility in various industrial setups.
-
Compact Design: Its lightweight and compact form factor allow for easy installation without occupying excessive space.
Recent News Headlines
-
“Yokogawa Introduces ALE111-S50 Module to Enhance Industrial Ethernet Communication”
-
“New ALE111-S50 Module Boosts Connectivity in Yokogawa Control Systems”
-
“Yokogawa’s ALE111-S50: Advancing Industrial Automation Networks”
الأسئلة الشائعة (FAQ)
-
What is the primary function من the ALE111-S50 module?
-
It enables Ethernet communication between Yokogawa’s Field Control Stations and subsystems like the FA-M3.
-
-
Which communication protocols does the ALE111-S50 support?
-
It supports Ethernet protocols, facilitating communication with various subsystems.
-
-
What is the maximum transmission distance من the ALE111-S50?
-
The module supports transmission distances up to 100 meters (328 feet) per segment.
-
-
Can the ALE111-S50 operate in high humidity environments?
-
Yes, it is designed to function reliably in typical industrial environments, though specific humidity tolerances are not specified.
-
-
Is the ALE111-S50 compatible with non-Yokogawa devices?
-
While optimized for Yokogawa systems, it can communicate with other devices supporting compatible Ethernet protocols.
-
-
What are the power requirements for the ALE111-S50?
-
It requires a 24 VDC power supply with a current consumption من 0.5 A.
-
-
What type من connector does the ALE111-S50 use?
-
It utilizes an RJ-45 connector for Ethernet connections.
-
-
What is the transmission speed من the ALE111-S50?
-
The module supports a transmission speed من 10 Mbps.
-
-
Which Yokogawa وحدةs are compatible with the ALE111-S50?
-
It can be mounted on وحدةs such as ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, and AFV40.
-
-
What are the dimensions and weight من the ALE111-S50 module?
-
The module measures 130 x 125.5 x 32.8 mm and weighs 0.3 kg.
-
Related الطرازs (Same Series or Functionally Similar)
| الطراز Number | الوصف | الدعمed Protocols | Transmission Speed | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| ALE111-S00 | Ethernet Communication Module | Ethernet | 10 Mbps | 100 x 120 x 25 | 0.3 |
| ALE111-S01 | Ethernet Communication Module | Ethernet | 10 Mbps | 100 x 120 x 25 | 0.3 |
| ALE111-S02 | Advanced Ethernet Communication Module | Ethernet | 100 Mbps | 100 x 120 x 30 | 0.35 |
| ALE111-S53 | High-Performance Ethernet Communication Module | Ethernet | 100 Mbps | 100 x 120 x 30 | 0.35 |
| ALE111-S000 | Ethernet Communication Module | Ethernet | 10 Mbps | 100 x 120 x 25 | 0.3 |
| ALE111-S50-S | Ethernet Communication Module with Enhanced Security | Ethernet | 10 Mbps | 100 x 120 x 25 | 0.3 |
| ALE111-S51 | Ethernet Communication Module with Extended Features | Ethernet | 10 Mbps | 100 x 120 x 25 | 0.3 |
| ALE111-S52 | Ethernet Communication Module with Redundancy الدعم | Ethernet | 10 Mbps | 100 x 120 x 25 | 0.3 |
Popular Yokogawa الطرازs from the Same العلامة التجارية
| الطراز Number | الوصف | الدعمed Protocols | Transmission Speed | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| STARDOM FCN-500 | Autonomous Controller for Distributed Control Systems | Ethernet, Modbus, OPC | 100 Mbps | 200 x 150 x 50 | 1.2 |
| FA-M3R | High-Performance PLC | Ethernet, Modbus TCP/IP | 100 Mbps | 250 x 200 x 70 | 2.5 |
| ProSafe-RS | Safety Instrumented System | Ethernet, OPC, DNP3 | 100 Mbps | 300 x 250 x 100 | 3.0 |
| Centum VP FCS | Integrated Process Control System | Ethernet, Modbus | 100 Mbps | 400 x 300 x 120 | 5.0 |
| STARDOM FCN-RTU | Remote Terminal وحدة for Field Control | Ethernet, Modbus | 10/100 Mbps | 220 x 180 x 60 | 2.0 |
| YS1000 | Panel Mount Industrial Controller | Serial, Ethernet | 10 Mbps | 280 x 190 x 80 | 3.2 |
| DX1000 | Data Acquisition Recorder | Ethernet, Modbus | 100 Mbps | 210 x 180 x 50 | 2.1 |
| GX20 | Touchscreen Paperless Recorder | Ethernet, OPC, Modbus | 100 Mbps | 250 x 200 x 60 | 2.8 |
