Product Overview

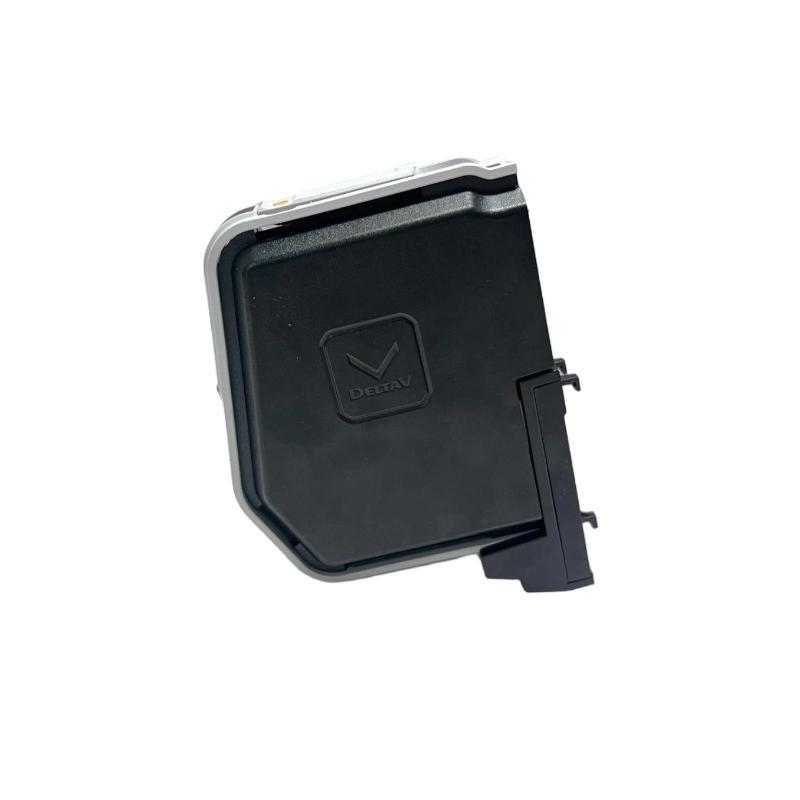

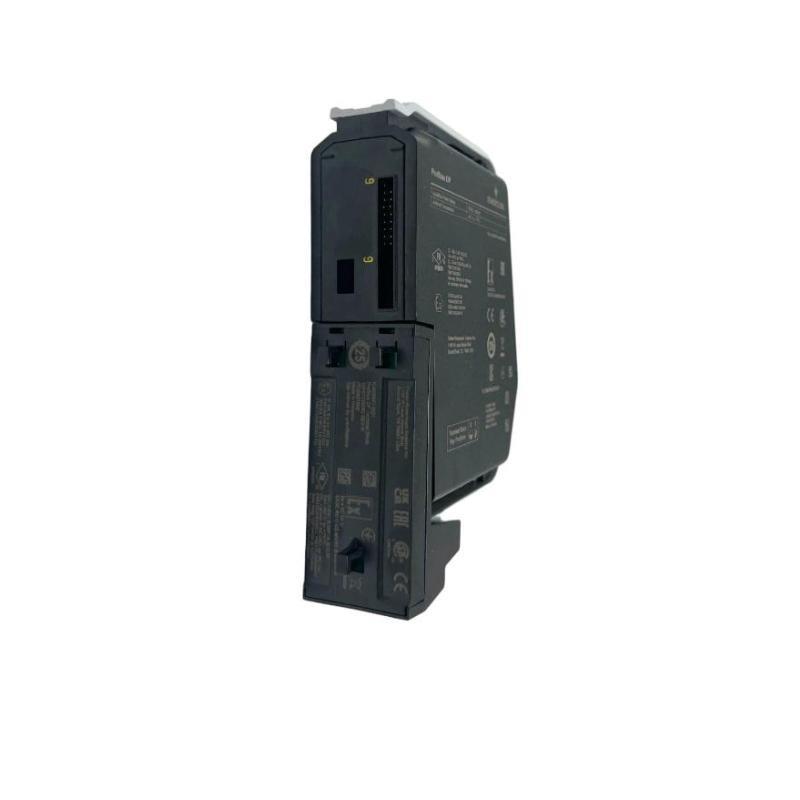

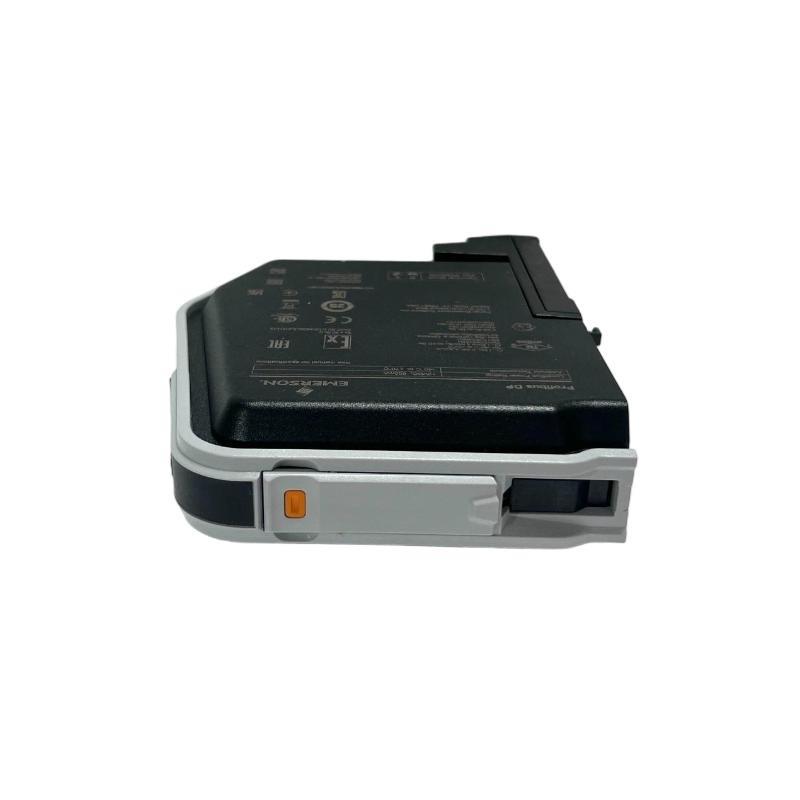

The Emerson SE4003S2B1 Analog Input Card is a high-performance solution designed for precise and reliable analog signal acquisition in industrial control systems. It is part من Emerson’s DeltaV series and is specifically designed to interface with industrial sensors, actuators, and control devices that require accurate signal processing. The card is engineered to handle a wide range من analog input types, including 4-20mA and 0-10V signals, providing flexibility and compatibility with various industrial applications.
The module is well-suited for manufacturing, energy, chemical processing, and other industries where monitoring and controlling process variables is critical. The SE4003S2B1 is designed to integrate seamlessly into Emerson’s DeltaV control system, منfering high accuracy, speed, and ease من use.
Technical Specifications
The Emerson SE4003S2B1 Analog Input Card includes the following specifications:
| Specification | Details |
|---|---|
| الطراز | SE4003S2B1 |
| Dimensions (L x W x H) | 102 x 114 x 46 mm |
| الوزن | 0.399 kg |
| Input Type | 4-20mA, 0-10V |
| Input Channels | 8 Analog input channels |
| Input Impedance | 250Ω (4-20mA) / 1MΩ (0-10V) |
| Power Supply | +24V DC |
| Accuracy | ±0.1% من full scale |
| Temperature Range | -20°C to +60°C |
| Signal الحالةing | High-performance analog-to-digital conversion |
| Communication Protocol | Modbus, Ethernet |
| Mounting | DIN rail mounting |
Product Applications
The Emerson SE4003S2B1 Analog Input Card is ideal for a wide range من applications requiring precise analog signal acquisition:
-
Industrial Automation: Used in factories and manufacturing plants for monitoring process variables such as pressure, temperature, and flow rates.
-
Energy Systems: In power generation plants, renewable energy systems, and electrical substations to measure critical system variables.
-
Oil and Gas: Monitoring and controlling parameters like pressure and temperature in drilling rigs, pipelines, and refineries.
-
Chemical Processing: Accurately reading sensors in chemical processes to ensure optimal performance and safety.
-
Water Treatment: Used to read sensor data for maintaining water quality and controlling pumps and valves in wastewater treatment systems.
-
HVAC Systems: Integrating with HVAC systems to read temperature and humidity sensors for controlling heating and cooling.
Product Advantages
-
Wide Input Compatibility: الدعمs 4-20mA and 0-10V signals, making it compatible with a wide range من industrial sensors and equipment.
-
High Accuracy: With an accuracy من ±0.1% من full scale, this module provides precise analog measurements for critical process control.
-
Compact Design: Its compact DIN rail mountable design saves space and allows for easy integration in control panels or automation systems.
-
Temperature Resilience: The module operates reliably within a -20°C to +60°C temperature range, ensuring functionality in diverse environments.
-
Reliable Signal Conversion: High-performance analog-to-digital conversion ensures that incoming signals are processed with minimal delay and maximum precision.
-
Flexible Integration: الدعمs Modbus and Ethernet communication protocols, making it adaptable to a variety من industrial control systems.
-
Cost-Effective: Offers an affordable solution for acquiring and processing analog signals, reducing overall system costs.
FAQ
1. What types من signals can the SE4003S2B1 Analog Input Card handle?
The module can handle 4-20mA and 0-10V analog signals, making it versatile for a range من industrial applications.
2. How many input channels does the SE4003S2B1 have?
This card supports 8 analog input channels, enabling it to monitor multiple parameters simultaneously.
3. What is the accuracy من the SE4003S2B1 module?
The module منfers ±0.1% accuracy من full scale, ensuring precise readings for critical applications.
4. What is the power supply requirement for the SE4003S2B1?
The module requires a 24V DC power supply for operation.
5. Can the SE4003S2B1 be used in extreme temperatures?
Yes, it can operate in temperatures ranging from -20°C to +60°C, making it suitable for various industrial environments.
6. How is the SE4003S2B1 connected to the control system?
The module supports Modbus and Ethernet communication protocols, enabling easy integration with industrial control systems.
7. Can this module be used in hazardous environments?
While the SE4003S2B1 is designed for industrial environments, additional certifications may be required for use in hazardous areas.
8. What is the mounting method for this module?
The SE4003S2B1 is designed for DIN rail mounting, allowing for easy installation in control panels.
9. How does the SE4003S2B1 ensure signal integrity?
It features high-performance analog-to-digital conversion, ensuring reliable and accurate signal processing.
10. What types من sensors can be connected to this module?
You can connect a variety من industrial sensors that output 4-20mA or 0-10V signals, such as temperature sensors, pressure transmitters, and flow meters.
