مقدمة المنتج

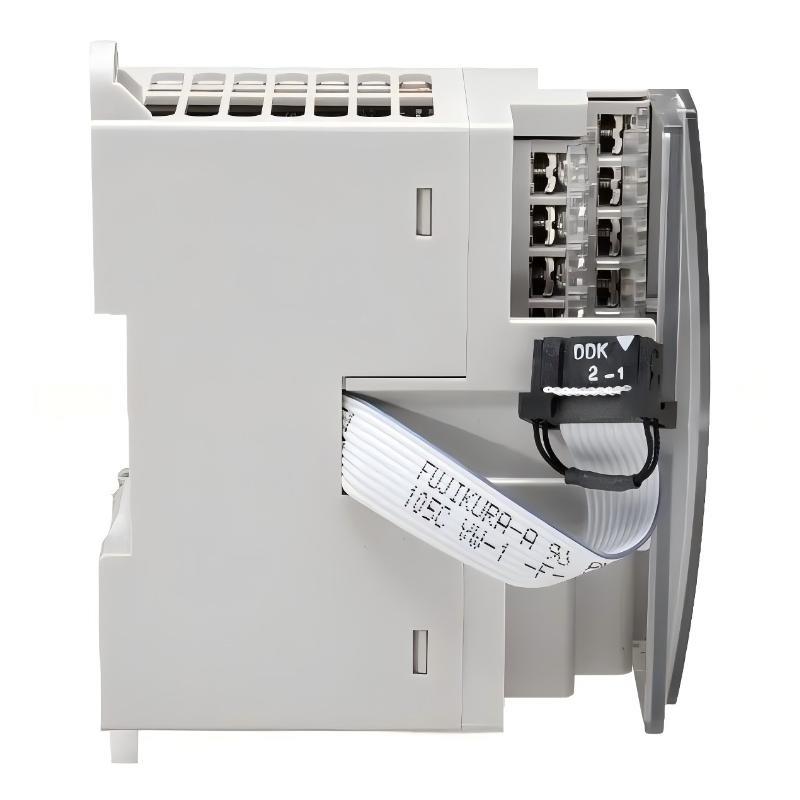

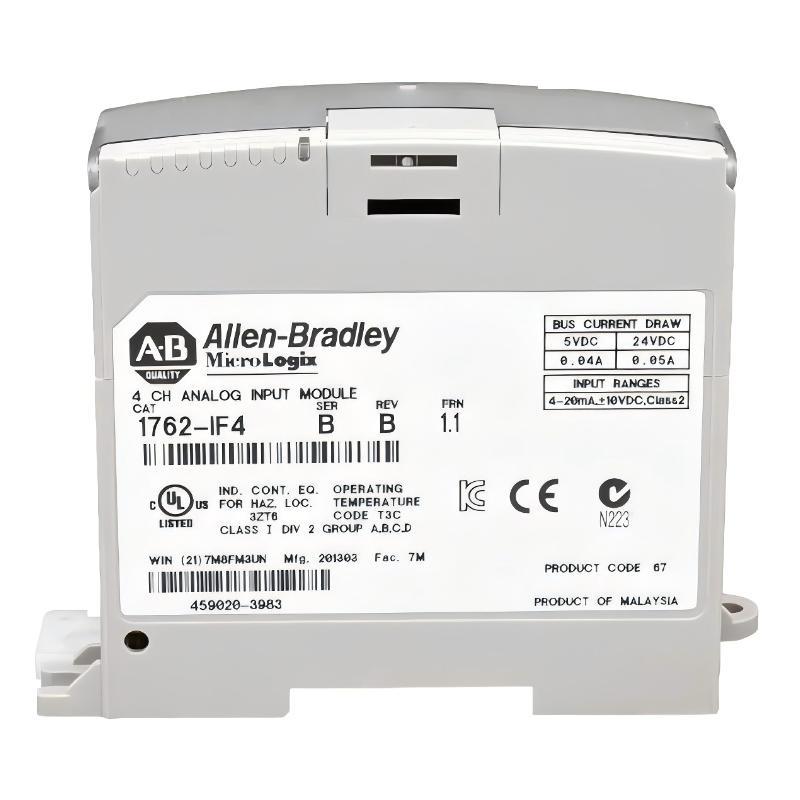

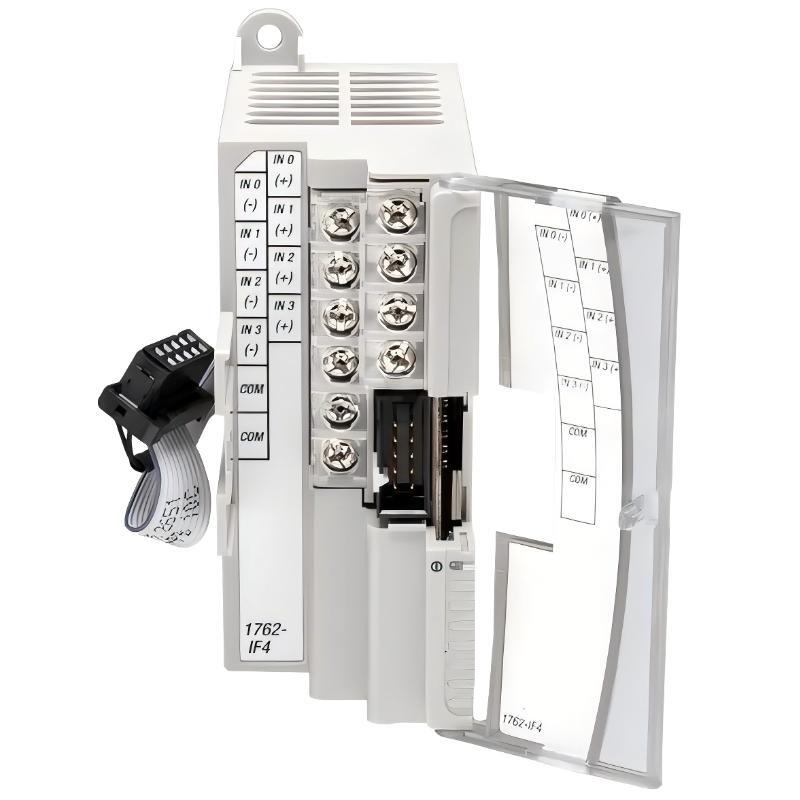

The Allen Bradley 1762-IF4 MicroLogix 1200 4 Channel Voltage/Current Analog Input Module is a high-precision analog input expansion module designed for MicroLogix control systems. Manufactured by Allen-Bradley, this module provides four independently configurable analog input channels capable من measuring voltage or current signals.
Designed for industrial applications requiring accurate measurement من process variables, the 1762-IF4 supports both 0–5 VDC, 0–24 VDC voltage inputs and 4–20 mA current loops. Its compact DIN rail-mounted housing allows seamless integration into MicroLogix 1200 control systems, making it ideal for monitoring sensors and transmitting precise data to the controller for process automation.
With a wide operating temperature range and durable construction, this module is suitable for harsh industrial environments where reliable and stable analog input measurement is critical.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Product Type | 4-Channel Voltage/Current Analog Input Module |
| Number من Channels | 4 |
| Input Signal Type | Voltage or Current (configurable per channel) |
| Voltage Input Range | 0–5 VDC / 0–24 VDC |
| Current Input Range | 4–20 mA |
| Nominal Operating Voltage | 24 VDC |
| Operating Temperature | −20 to 65 °C |
| Storage Temperature | −40 °C minimum |
| Mounting | DIN Rail |
| Isolation | Field-to-backplane isolation |
| Dimensions | 90 x 40.4 x 87 mm |
| الوزن | 0.235 kg |
Applications
• Process Monitoring Systems – Captures analog signals from sensors measuring temperature, pressure, flow, and level.
• Industrial Automation – Provides reliable analog data input for MicroLogix 1200 controllers in machine and process control.
• Control Loop Feedback – الدعمs closed-loop control systems requiring voltage or current feedback.
• OEM Equipment – Integrates into machinery needing compact, multi-channel analog input capability.
• Building and Utility Systems – Monitors environmental or utility parameters for automated control.
Advantages
• Flexible Signal Input – Each channel can measure either voltage or current signals.
• High Measurement Accuracy – Ensures precise analog input for process and machine control.
• Compact Design – Space-efficient form factor suitable for DIN rail installation.
• Wide Operating Range – Functions reliably from −20 to 65 °C.
• Durable Industrial Construction – Provides stable operation in harsh industrial environments.
• Seamless MicroLogix Integration – Easily connects to MicroLogix 1200 control systems.
