مقدمة المنتج

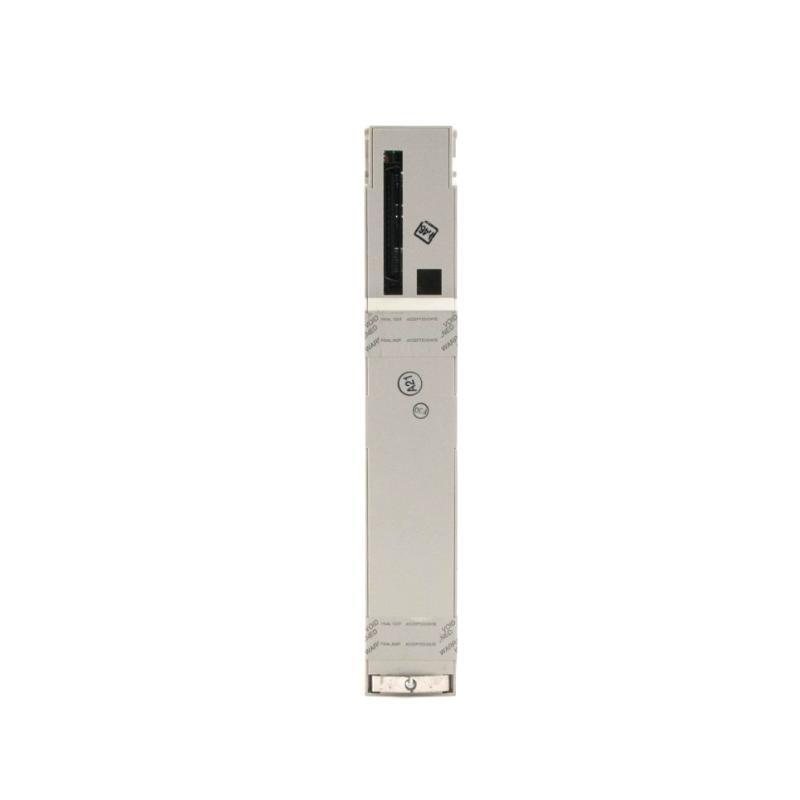

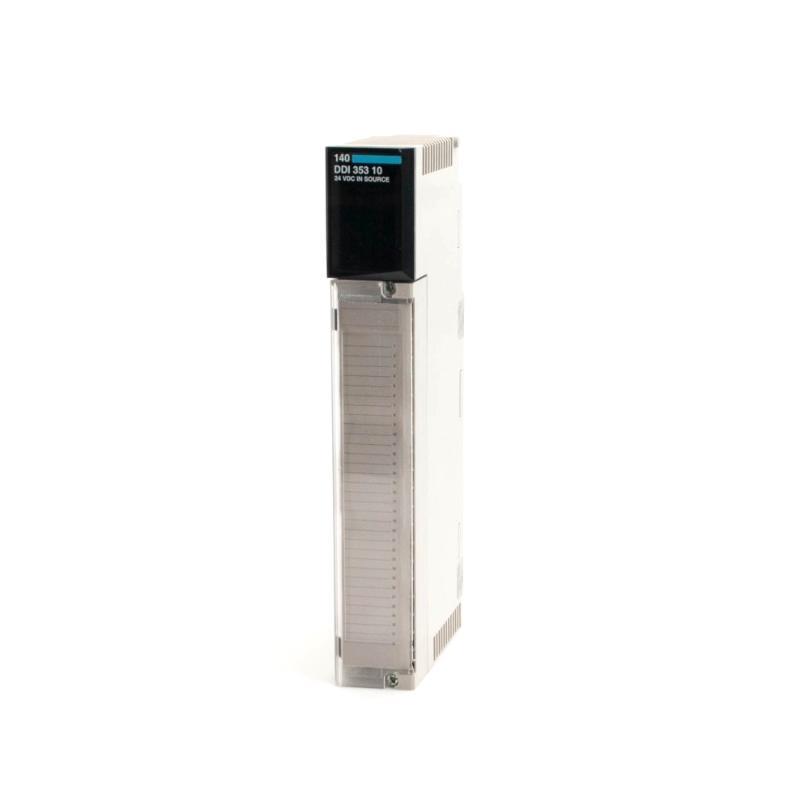

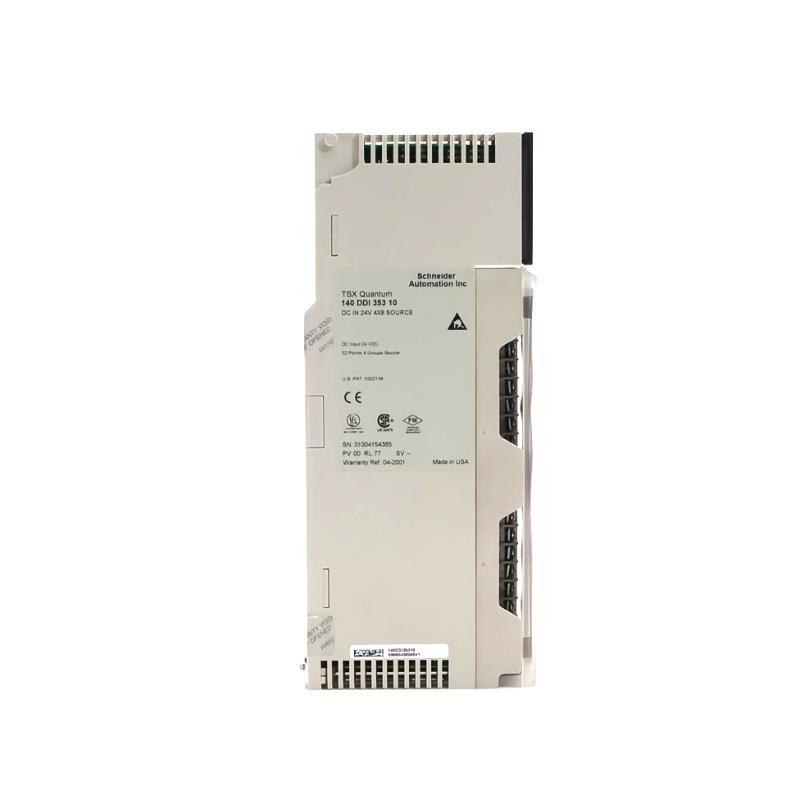

The Schneider 140DDI35310 Discrete Input Module is an essential component designed for integration into the Modicon Quantum programmable logic controller (PLC) series. This high-quality input module is used to receive discrete signals from field devices, ensuring precise data handling and communication within industrial control systems. It plays a critical role in the automation process, منfering reliable and efficient input signal processing for a range من industrial applications.
The module is engineered to support multiple types من input devices, providing a flexible and scalable solution for various operational needs. Its compatibility with Schneider’s Quantum PLC series makes it an ideal choice for complex control applications, ensuring seamless integration with the broader automation system.
Specifications
| Parameter | Specification |
|---|---|
| الطراز | 140DDI35310 |
| Input Type | Discrete (Digital) |
| Number من Inputs | 32 |
| Input Voltage Range | 24V DC |
| Input Current | 3 mA (Typical) |
| Isolation | 500V AC |
| Mounting Type | Rack-Mount |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -25 to 85°C |
| Dimensions (WxHxD) | 103.9 × 40.3 × 250 mm |
| الوزن | 0.3 kg |
| Certifications | CE, UL, RoHS |
Applications
The 140DDI35310 Discrete Input Module is used across various industrial environments for the following applications:
-
Process Automation: Essential for interfacing sensors, switches, and other digital devices within control systems.
-
Machine Control: Allows seamless integration من various input devices into machine control systems, ensuring precise and reliable data acquisition.
-
Factory Automation: Used for gathering signals from field devices such as limit switches, push buttons, and proximity sensors.
-
Energy Management: Helps monitor and control energy flow within industrial facilities by processing discrete signals related to energy systems.
-
Safety Systems: Utilized in systems requiring precise monitoring من safety devices like emergency stops and safety gates.
Advantages
-
High Reliability: The module ensures high operational reliability even in demanding industrial environments, thanks to its robust design and comprehensive isolation features.
-
Flexible Input Options: الدعمs 32 discrete input points, providing scalability to meet a wide range من application needs.
-
Ease من Integration: Designed for easy installation and seamless integration with Schneider’s Modicon Quantum PLC series, minimizing configuration complexities.
-
Wide Temperature Range: Operates efficiently in environments with temperature fluctuations between 0°C and 60°C, making it suitable for diverse industrial settings.
-
Durable and Compact Design: The compact, rack-mountable design allows for efficient space usage in control panels, while the durable construction ensures long-lasting performance.
-
Global Compliance: The module is certified with global standards, including CE and UL, ensuring compatibility with international safety and quality regulations.
FAQ
1.What is the purpose من the Schneider 140DDI35310 module? T
he 140DDI35310 module is used to receive discrete (digital) signals from field devices, allowing these signals to be processed by the PLC for automation tasks.
2.How many inputs does the 140DDI35310 module support?
This module supports 32 discrete inputs, making it suitable for handling multiple field devices simultaneously.
3.What is the operating temperature range من the 140DDI35310?
The module operates within a temperature range من 0°C to 60°C, ensuring functionality in various industrial environments.
4.Can the module be used in hazardous environments?
The module is designed for use in general industrial settings. For hazardous environments, ensure compliance with safety standards and certifications.
5.Is the 140DDI35310 compatible with other PLC شنايدر systems?
Yes, the module is designed to be used with the Modicon Quantum PLC series, ensuring compatibility and seamless integration.
6.What types من inputs can be connected to the module?
The module can handle various types من discrete input devices, including limit switches, push buttons, and sensors that output digital signals.
7.What is the weight من the 140DDI35310 module?
The module weighs 0.3 kg, making it lightweight and easy to handle during installation.
8.Does the module support hot swapping?
No, the 140DDI35310 module requires power down before installation or removal to ensure safe operation.
9.How is the module mounted?
The 140DDI35310 is rack-mountable, allowing for easy integration into standard racks used in control cabinets.
10.What certifications does the 140DDI35310 have?
The module is CE, UL, and RoHS certified, ensuring it meets international safety, quality, and environmental standards.
Related الطرازs
| الطراز | الوصف | Inputs | الوزن | Dimensions |
|---|---|---|---|---|
| 140DDI35320 | 32-Point Discrete Input Module (24V DC) | 32 | 0.45 kg | 4.13 x 1.93 x 4.83 in |
| 140DDI35300 | 32-Point Discrete Input Module (12V DC) | 32 | 0.48 kg | 4.13 x 1.93 x 4.83 in |
| 140ADI35310 | Analog Input Module (4-20mA) | 8 | 0.60 kg | 4.13 x 1.93 x 4.83 in |
| 140DIO11000 | Discrete I/O Module with 16 Inputs and 16 Outputs | 16/16 | 0.70 kg | 4.13 x 1.93 x 4.83 in |
| 140CRP93100 | Communication Module for Modicon Quantum PLC | N/A | 0.50 kg | 4.13 x 1.93 x 4.83 in |
| 140HIA32000 | High-Speed Counter Module | 4 | 0.80 kg | 4.13 x 1.93 x 4.83 in |
Popular Schneider الطرازs
| الطراز | الوصف | Inputs | الوزن | Dimensions |
|---|---|---|---|---|
| 140CPU67160 | Modicon Quantum Processor with 16 I/O channels | N/A | 0.70 kg | 4.13 x 1.93 x 4.83 in |
| 140CPS11400 | Power Supply for Modicon Quantum | N/A | 1.20 kg | 4.13 x 1.93 x 4.83 in |
| 140ACI04000 | Analog Output Module (0-10V DC) | 8 | 0.60 kg | 4.13 x 1.93 x 4.83 in |
| 140DPI84000 | Discrete Input Module (48V DC) | 32 | 0.75 kg | 4.13 x 1.93 x 4.83 in |
| 140DIO22100 | Digital Output Module with 16 Points | 16 | 0.60 kg | 4.13 x 1.93 x 4.83 in |
| 140CPS11410 | Redundant Power Supply for Quantum PLCs | N/A | 2.00 kg | 4.13 x 1.93 x 4.83 in |
