Product Overview

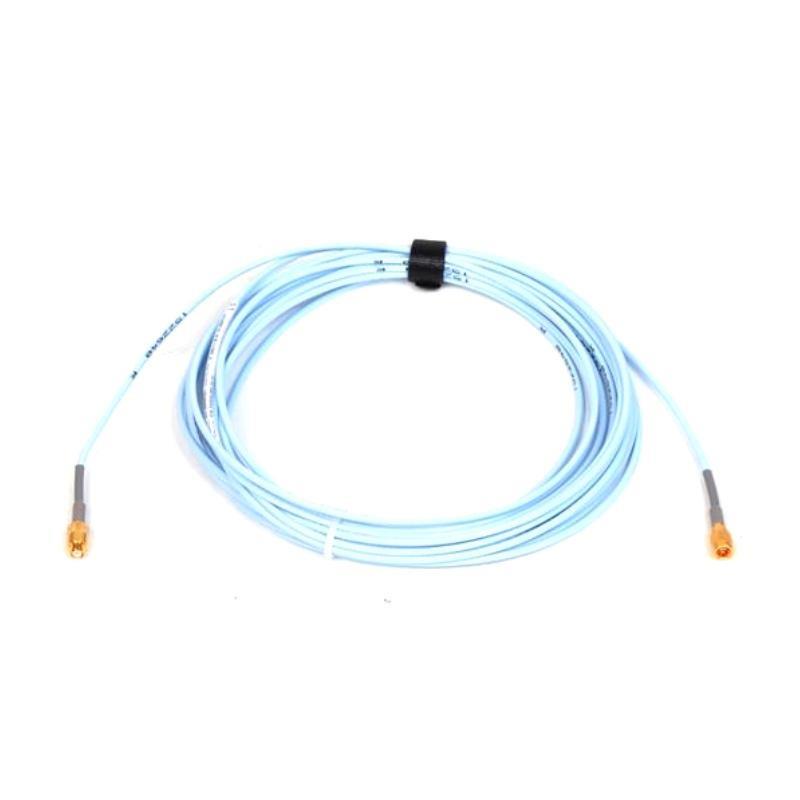

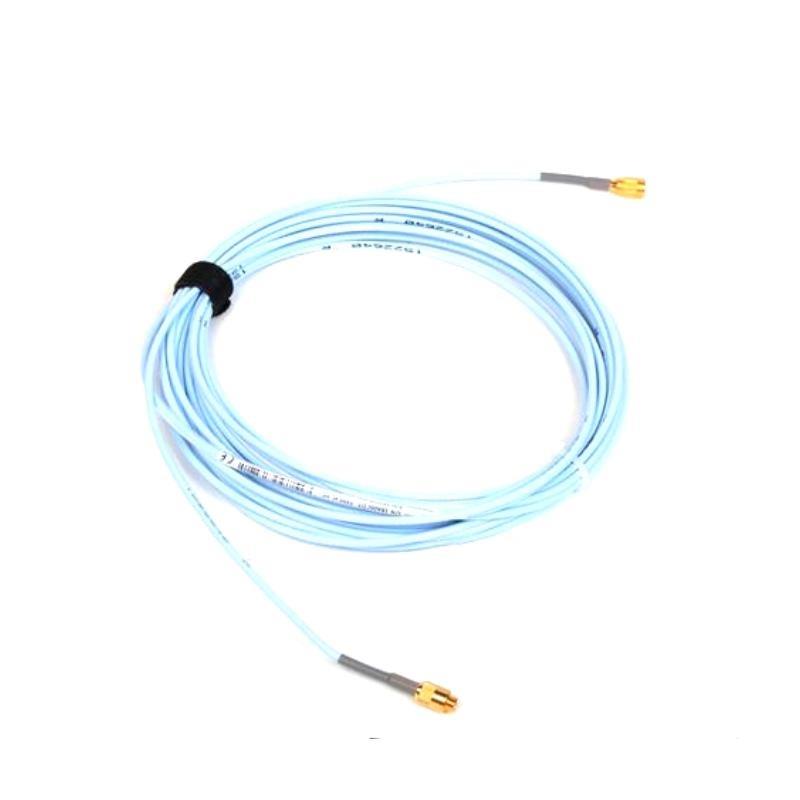

The Bently Nevada 330930-040-03-05 is part من the 3300 XL NSv Proximity Transducer System, designed for tight installation spaces and small shaft applications. It connects the proximity probe to the Proximitor Sensor, enabling accurate measurement من radial vibration, axial position, and phase reference in fluid-film bearing machines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product الطراز | 330930-040-03-05 |
| Cable Length | 4.0 meters |
| الوزن | 0.18 kg |
| Cable Type | Coaxial, FEP insulated |
| Connector Type | Miniature ClickLoc with protector |
| Armor Option | Without stainless steel armor |
| Capacitance | 69.9 pF/m (typical) |
| DC Resistance (Center) | 0.220 Ω/m |
| DC Resistance (Shield) | 0.066 Ω/m |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Minimum Bend Radius | 25.4 mm |
| Pull Strength | 220 N (50 lb) |
Applications
-
Centrifugal and refrigeration compressors
-
Process gas compressors
-
Radial and axial position sensing in tight spaces
-
Keyphasor and zero speed detection
-
Compact machinery with small shafts or restricted side/rear access
Product Advantages
-
Compact Design: Suitable for tight counterbores and small diameters
-
High Durability: FEP insulation and 220 N pull strength for reliability
-
Flexible Integration: Compatible with legacy 3300 RAM systems
-
Enhanced Signal Integrity: Gold-plated ClickLoc connectors with protector
-
Wide Environmental Tolerance: Works in extreme temperatures and humidity
الأسئلة الشائعة (FAQ)
Q1: What is the total length من this cable?
A1: The 330930-040-03-05 extension cable is 4.0 meters long.
Q2: Is this extension cable armored?
A2: No, this model does not include stainless steel armor.
Q3: What is the weight من the 330930-040-03-05 cable?
A3: The cable weighs approximately 0.18 kg.
Q4: What environments is this cable suited for?
A4: It operates from -52°C to +177°C and handles 100% condensing humidity (non-submersible).
Q5: Is this cable compatible with 3300 RAM probes?
A5: Yes, it is mechanically and electrically compatible.
Q6: What type من connector does it use?
A6: It uses miniature coaxial ClickLoc connectors with protector.
Q7: Can it be used in high EMI environments?
A7: Yes, when used with the 3300 XL NSv Proximitor Sensor, it has enhanced RFI/EMI immوحدةy.
Q8: What is the minimum bend radius?
A8: The minimum bend radius is 25.4 mm.
Q9: Is the cable shielded?
A9: Yes, it has a shield with a resistance من 0.066 Ω/m.
Q10: Does it come with silicone tape or connector protector?
A10: Yes, the 03 configuration includes a connector protector. Silicone tape is also provided.
Related NSv and Compatible الطرازs
| الطراز Number | الوصف | Cable Length | الوزن |
|---|---|---|---|
| 330930-045-03-05 | NSv Extension Cable with protector | 4.5 m | 0.20 kg |
| 330930-060-03-05 | NSv Extension Cable with protector | 6.0 m | 0.27 kg |
| 330930-065-03-05 | NSv Extension Cable with protector | 6.5 m | 0.29 kg |
| 330901-00-50-05-02 | NSv Probe, 1/4-28, armored | 5.0 m | 0.25 kg |
| 330980-50-05 | NSv Proximitor Sensor, 5 m panel mount | 5.0 m | 0.26 kg |
| 330906-02-12-05-02 | NSv Reverse Mount Probe, 3/8-24 UNF | 5.0 m | 0.28 kg |
