مقدمة المنتج

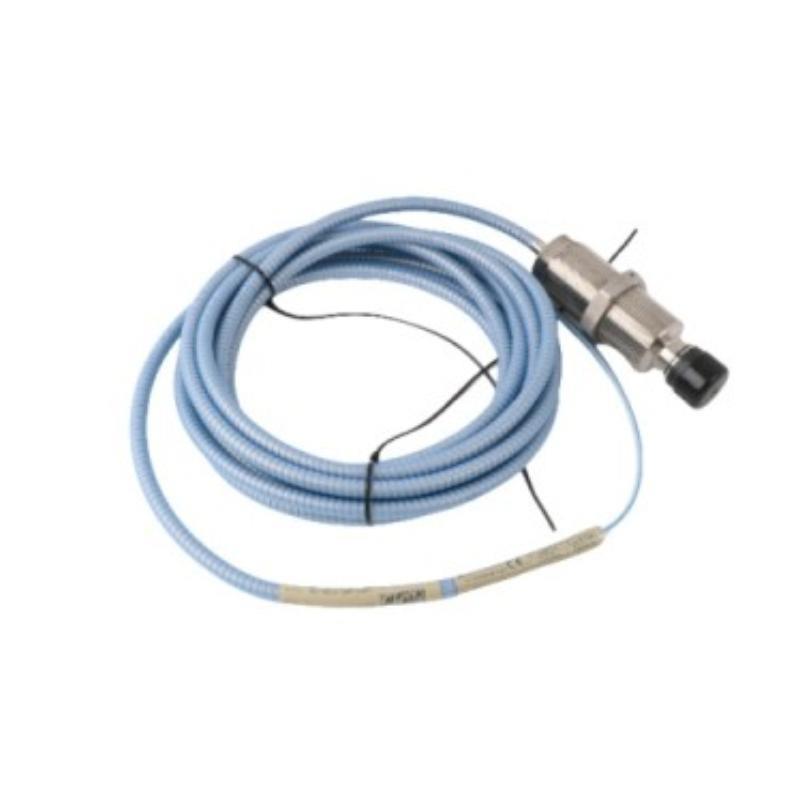

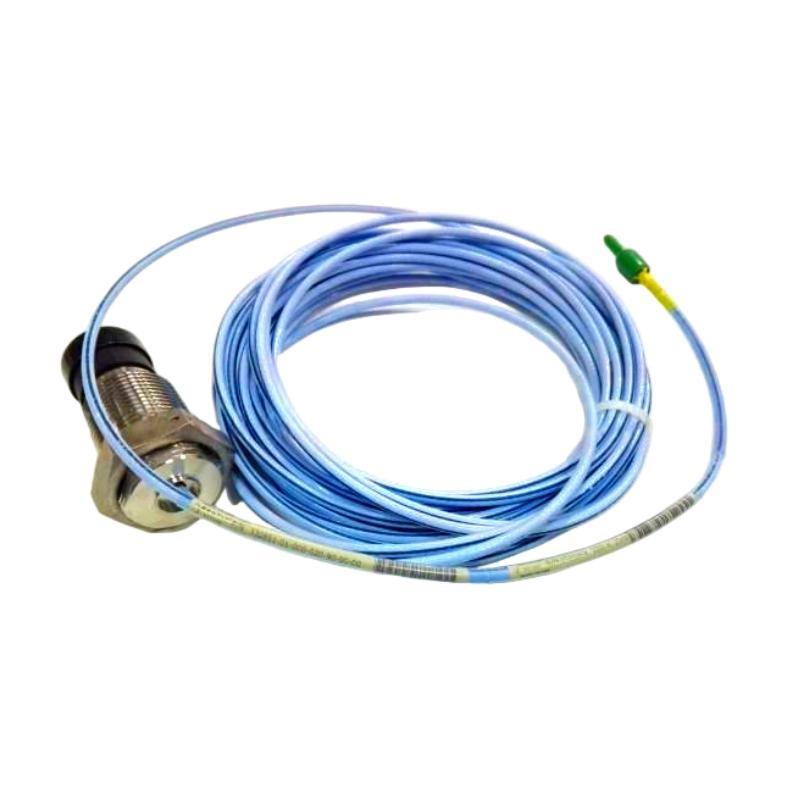

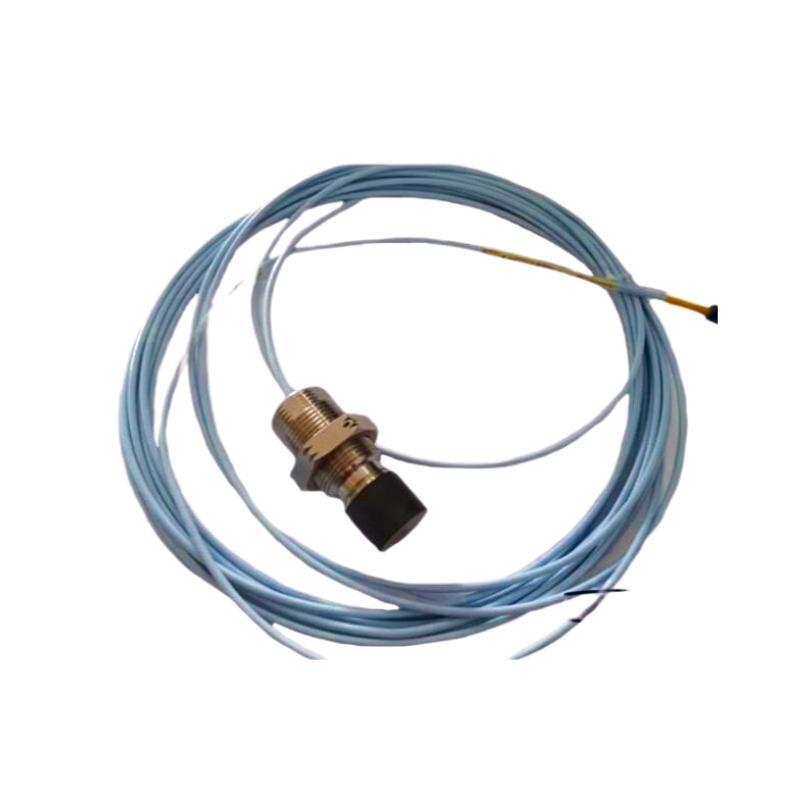

The Bently Nevada 330851-02-010-100-90-01-05 3300 XL 25 mm Proximity Probe is a high-performance non-contact vibration and displacement measurement device designed for industrial machinery monitoring. As part من the 3300 XL series, this probe is engineered to provide highly reliable shaft vibration, axial position, and clearance measurements in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product الطراز | 330851-02-010-100-90-01-05 |
| Series | 3300 XL 25 mm Proximity Probe |
| Probe Tip Diameter | 25 mm |
| Total Length | 9 m |
| الوزن | 1.57 kg |
| Linear Range | Up to 25.4 mm |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Frequency Range | DC to 10 kHz |
| Typical Output Voltage | -2 V to -18 V (proportional to distance) |
| Operating Temperature | -35 °C to +177 °C |
| Cable Type | Armored extension cable for harsh areas |
| Compliance | API 670, ISO vibration monitoring standards |
Product Applications
-
Turbomachinery monitoring such as gas turbines, steam turbines, and compressors.
-
Large rotating equipment including generators, motors, and pumps.
-
Axial position and shaft displacement monitoring in high-speed machinery.
-
الحالة monitoring systems in refineries, petrochemical plants, and power generation facilities.
-
Safety and protection systems to prevent equipment damage due to excessive vibration.
Product Advantages
-
High Precision Measurement – Provides stable and accurate shaft vibration readings.
-
Wide Linear Range – Allows reliable displacement measurements up to 25 mm.
-
Rugged Construction – Designed to withstand high temperatures and harsh operating environments.
-
Long Distance Signal Transmission – 9 m total length ensures installation flexibility.
-
Industry Standard Compliance – Compatible with API 670 and global monitoring requirements.
-
Reliability in Harsh Environments – Armored cabling protects against mechanical damage and interference.
FAQ
Q1: What type من transducer does the 330851-02-010-100-90-01-05 work with?
A1: It is designed to work with Bently Nevada 3300 XL Proximitor sensors for accurate displacement measurements.
Q2: What is the linear measurement range من this probe?
A2: The linear range is up to 25.4 mm, ensuring precise monitoring across a wide shaft displacement.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, it can operate reliably between -35 °C and +177 °C.
Q4: How is the sensitivity من the probe defined?
A4: The sensitivity is 200 mV/mil (7.87 mV/µm), allowing fine resolution in shaft vibration monitoring.
Q5: Does the probe comply with industry standards?
A5: Yes, it complies with API 670 and ISO machinery protection standards.
Q6: What is the frequency response range?
A6: The probe covers a range from DC up to 10 kHz.
Q7: Is the probe suitable for axial position monitoring?
A7: Yes, it is commonly used for both axial position and shaft vibration monitoring.
Q8: What type من cable protection does it have?
A8: It features an armored extension cable designed for durability in harsh industrial settings.
Q9: Can it be used in hazardous environments?
A9: Yes, it is built with rugged construction and can be applied in refinery, petrochemical, and power plant conditions.
Q10: What monitoring systems is it typically integrated with?
A10: It is typically integrated with Bently Nevada 3500 series monitoring systems for machinery protection.
Recommended Same-Series or Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330851-02-000-100-90-01-05 | 3300 XL 25 mm Probe, standard length |
| 330851-02-020-100-90-01-05 | 3300 XL 25 mm Probe, extended cable version |
| 330851-02-030-100-90-01-05 | 3300 XL 25 mm Probe, long distance application |
| 330851-02-040-100-90-01-05 | 3300 XL 25 mm Probe, armored configuration |
| 330851-02-050-100-90-01-05 | 3300 XL 25 mm Probe, special temperature range |
| 330851-02-060-100-90-01-05 | 3300 XL 25 mm Probe, heavy-duty installation |
Popular الطرازs from the Same العلامة التجارية
| الطراز Number | الوصف |
|---|---|

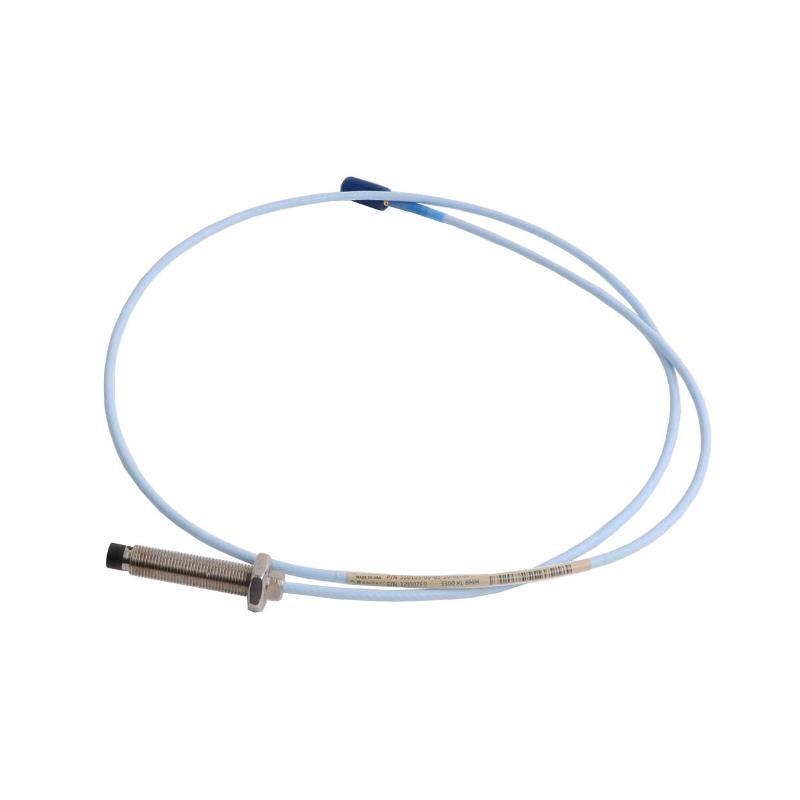

| 330103-00-05-05-02-00 | 3300 XL 8 mm Proximity Probe |
| 330104-00-09-10-02-00 | 3300 XL 11 mm Proximity Probe |
| 330130-045-00-00 | Extension Cable for XL Probes |
| 330180-90-00 | Proximitor Sensor for XL probes |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/22M | Transient Data Interface Module |
| 330500-01-00 | Velocity Seismoprobe |
| 3500/32M | 4-Channel Relay Module |
