Product Overview

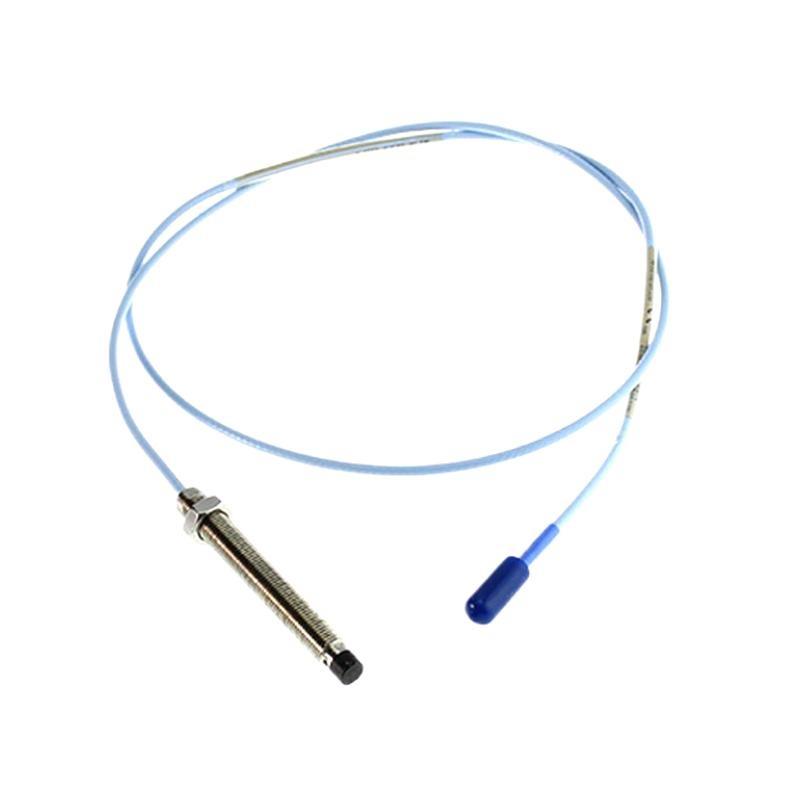

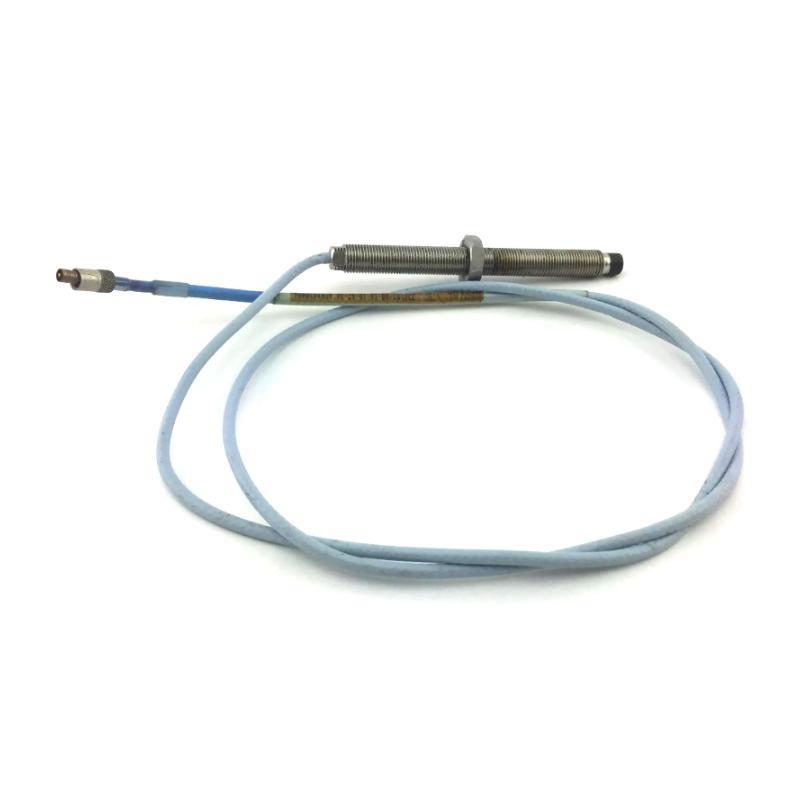

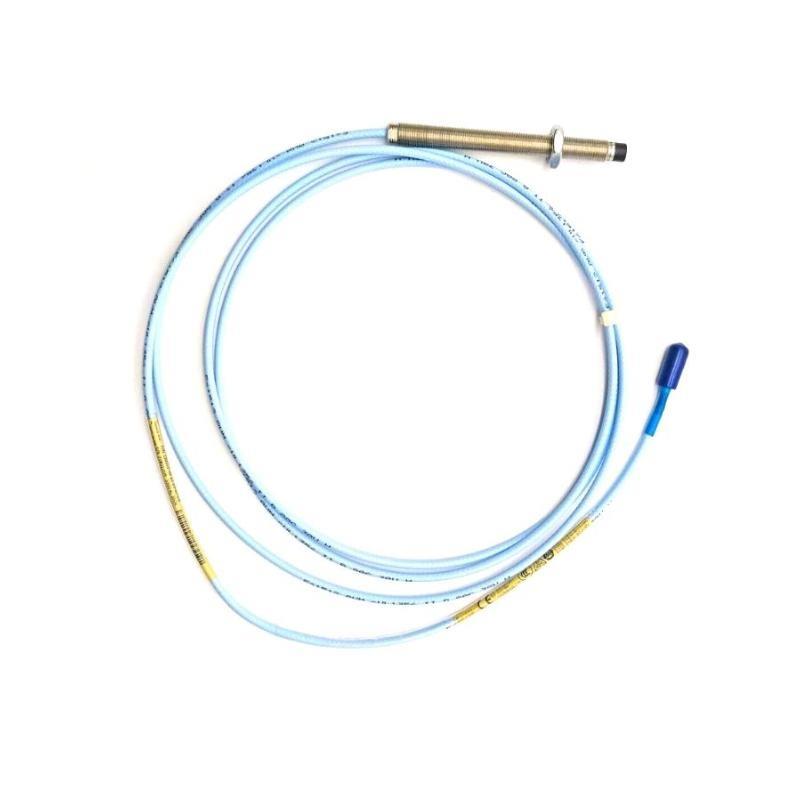

The Bently Nevada 330103-00-10-10-01-CN is an 8 mm non-contact proximity probe from the durable 3300 XL series, featuring a 10 m integral cable, straight connector, and China-specific (“†CN”) connector configuration. Built from stainless steel and sealed to IP68 standards, it منfers high resistance to harsh industrial conditions with stable and accurate shaft vibration and displacement monitoring for critical machinery.
Key Features
-
8 mm probe tip for precise, repeatable measurements
-
10 m integrated triaxial, low-noise cable
-
Straight connector with China-specific boot/configuration
-
5/8‑18 UNF threaded mounting for secure installation
-
Robust stainless steel body with corrosion resistance
-
IP68 rating ensures protection in moisture, oil, and dust environments
-
Withstands extreme shock (5,000 g) and vibration (50 g)
-
Factory calibrated—ready for immediate use with 3300 XL systems
-
Suitable for high-temperature applications
-
Complies with API 670 and CE standards
Technical Specifications
| Specification | Details |
|---|---|
| الطراز Number | 330103-00-10-10-01-CN |
| Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Mounting Thread | 5/8‑18 UNF‑2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25–2.0 mm (10–80 mils) |
| Connector Orientation | Straight (China-specific) |
| Cable Length | 10 meters (integral) |
| Cable Type | Triaxial coaxial, low noise |
| Probe Material | AISI 304 stainless steel |
| Operating Temp | –35 °C to +177 °C (–31 °F to +351 °F) |
| Storage Temp | –51 °C to +177 °C (–60 °F to +351 °F) |
| Environmental Rating | IP68 (when installed correctly) |
| Vibration Rating | 50 g peak, 10–2,000 Hz |
| Shock Rating | 5,000 g, 1 ms half-sine pulse |
| Insulation Resistance | >10⁹ Ω at 500 VDC |
| Accuracy | ±0.07 mm (±2.8 mils) typical |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.323 kg |
| Compliance | API 670, CE |
Industry Applications
Optimized for long‑cable, direct installations that require China-specific connectors:
-
Steam and gas turbine machinery
-
High-speed compressors and pumps in oil & gas
-
Petrochemical process equipment
-
Mining crushers and conveyor drives
-
Marine propulsion systems
-
HVAC and industrial fan monitoring
-
Pulp & paper rollers
-
Water treatment pump monitoring
Product Advantages
-
Long 10 m cable simplifies connection in larger installations
-
Robust stainless steel body withstands severe environments
-
IP68 sealing ensures protection against moisture and contamination
-
Non-contact sensing avoids wear and maintenance
-
Straight, China-configured connector facilitates vertical or direct connections
-
High shock and vibration tolerance ensures reliable performance
-
Factory calibrated—no field setup required
-
Compatible with full Bently Nevada 3300 XL ecosystem
-
Meets stringent industry standards for safety and performance
-
Reliable signal over long cable runs with low interference
الأسئلة الشائعة (FAQ)
-
What does “-CN” indicate?
It denotes a China-specific connector configuration, منten matching local system requirements. -
How long is the cable?
The integrated cable is 10 meters long. -
Is the connector straight or angled?
It’s a straight connector compatible with China-style fittings. -
Can it be used in harsh industrial conditions?
Yes, it’s rated IP68 when installed properly. -
What industries use this probe?
Power, petrochemical, mining, marine, HVAC, and water industries. -
Does it require calibration on-site?
No, it comes factory calibrated. -
What temperature range can it handle?
From –35 °C to +177 °C. -
How rugged is it?
Vibration up to 50 g and shock resistance up to 5,000 g. -
Can it connect to standard extension cables?
No need—comes with integral cable; avoid extension unless specified. -
What is its accuracy?
Typically ±0.07 mm, ensuring precise measurements.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330103-00-05-10-01-CN | 5 m cable, straight China‑configured connector |
| 330103-00-06-10-01-CN | 6 m cable, straight China-configured connector |
| 330103-00-08-10-01-CN | 8 m cable, straight Chinese connector |
| 330103-00-10-10-12-CN | 10 m cable, 90° angled China-configured connector |
| 330104-00-10-10-02 | 10 m XL extension cable for probe systems |
| 330180-91-05 | 8 mm Proximitor sensor module designed for 8 mm probes |
