مقدمة المنتج

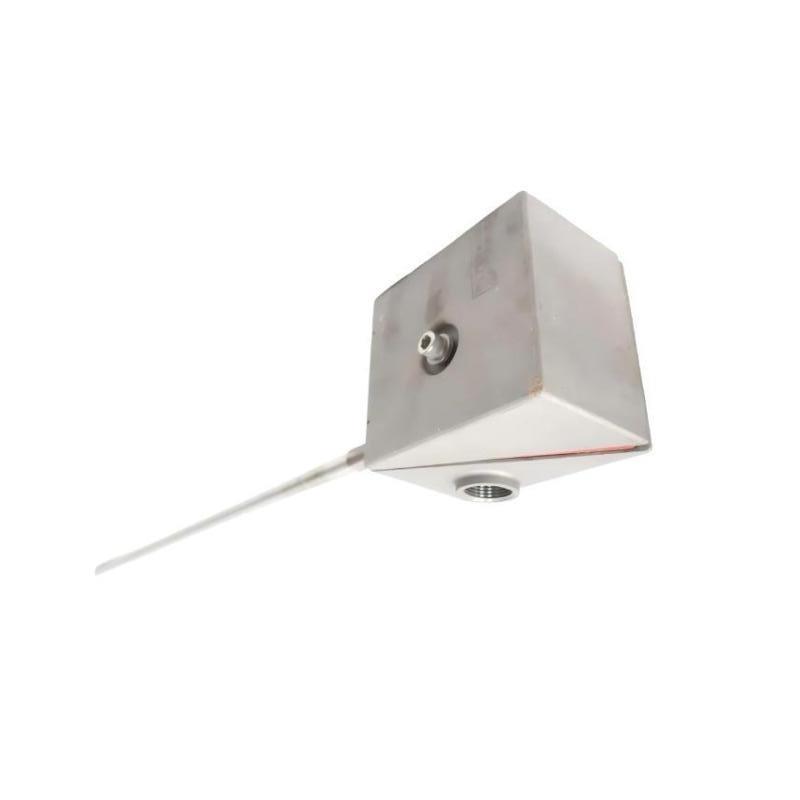

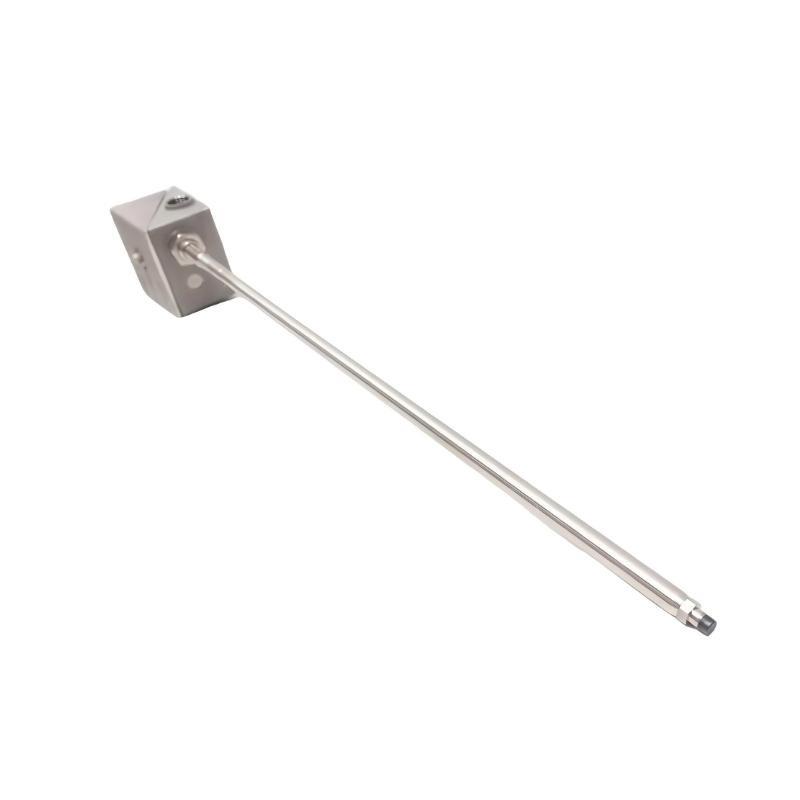

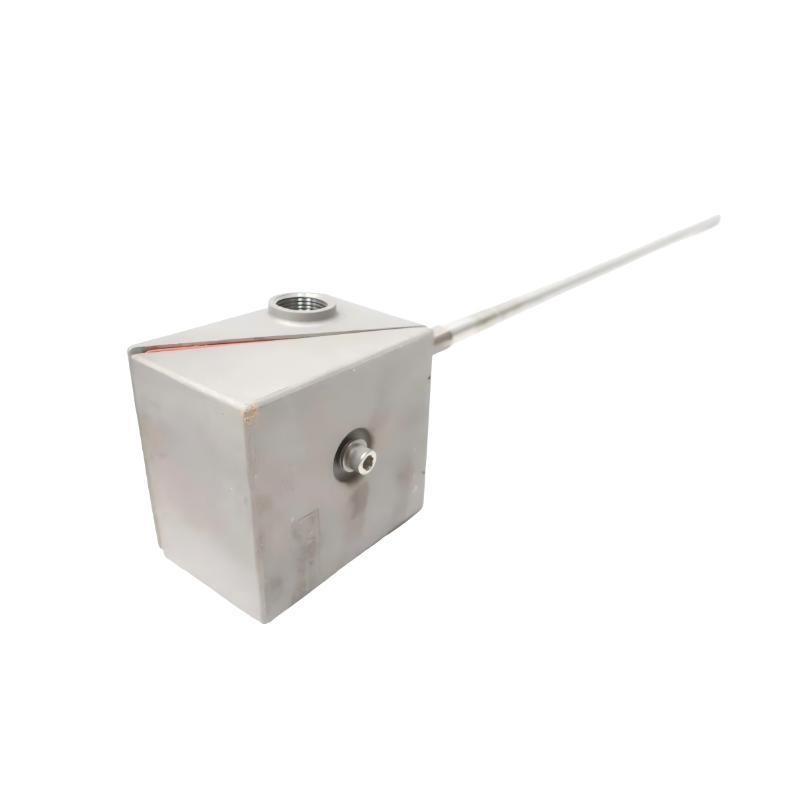

The Bently Nevada 26530-12-10-03-018-210-22-04-00 Dual Probe Transducer System is an advanced vibration and displacement monitoring solution specifically developed for critical rotating equipment in power generation, petrochemical, and heavy process industries. This model features a dual-probe configuration that ensures redundant sensing capability for maximum reliability and continuous performance monitoring in high-demand industrial environments.
Engineered to deliver precise shaft vibration and radial displacement data, this system integrates seamlessly with Bently Nevada’s 3300 and 3500 machinery protection platforms. The وحدة provides high-fidelity differential voltage output, ensuring superior immوحدةy to electromagnetic interference and electrical noise commonly found in industrial environments.
Constructed from high-grade stainless steel and industrial polymer composites, the 26530-12-10-03-018-210-22-04-00 transducer is designed for durability, thermal stability, and consistent performance across a wide range من operating conditions. Its 1.0-meter probe lead provides installation flexibility, allowing optimal probe positioning near critical bearing and shaft locations.
This system embodies Bently Nevada’s decades من experience in precision monitoring, منfering unmatched stability, linearity, and repeatability. It is an essential component in predictive maintenance programs aimed at preventing machinery damage and reducing unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 26530-12-10-03-018-210-22-04-00 |
| Product Type | Dual Probe Transducer System |
| Measurement Function | Shaft vibration and radial displacement |
| Number من Probes | 2 (dual configuration) |
| Probe Lead Length | 1.0 meter |
| Output Signal Type | Differential voltage output |
| Nominal Sensitivity | 50 mV/mil |
| Frequency Response | DC to 10 kHz |
| Linear Range | Up to 2.0 mm (80 mils) depending on target |
| Operating Temperature Range | –40°C to +120°C |
| Storage Temperature Range | –40°C to +125°C |
| Relative Humidity | 0–95% non-condensing |
| Power Supply Voltage | +24 VDC nominal |
| Power Consumption | 2 W typical |
| Electrical Isolation | 500 V RMS minimum between signal and ground |
| Housing Material | Stainless steel / industrial polymer |
| Environmental Protection | IP65 enclosure (dust and water resistant) |
| Mounting Type | Threaded probe with locknut and mounting bracket |
| Signal Cable Type | Shielded twisted-pair cable for EMI protection |
| Compliance Standards | CE, ISO 9001, RoHS |
| Compatible Monitoring Systems | Bently Nevada 3300 / 3500 Series |
| الشحن الوزن | 3 kg |
| Target Material | Ferromagnetic metals (steel, iron, nickel alloys) |
Applications
The 26530-12-10-03-018-210-22-04-00 Dual Probe Transducer System is designed for use in heavy industrial and process environments requiring precise measurement and continuous vibration analysis. Its applications include:
-
Turbines (steam, gas, and hydro) — measurement من shaft vibration, eccentricity, and bearing clearance.
-
Compressors and Pumps — detection من imbalance, misalignment, and rotor instability.
-
Electric Generators — monitoring من rotor movement and bearing condition.
-
Motors and Drives — analysis من vibration trends and early fault detection.
-
Industrial Process Equipment — real-time condition monitoring for predictive maintenance.
-
High-speed rotating machinery — monitoring dynamic shaft motion for system protection.
Its rugged and noise-resistant design makes it ideal for integration into automated monitoring systems that safeguard high-value industrial assets.
Advantages
-
Dual Redundant Design: Two independent probes ensure reliable data acquisition and system fault tolerance.
-
High Measurement Accuracy: Provides stable output with ±1% typical linearity within the operating range.
-
Wide Frequency Bandwidth: Covers DC to 10 kHz for accurate detection من slow- and high-speed machinery dynamics.
-
Superior Noise Immوحدةy: Differential voltage signal minimizes susceptibility to EMI and electrical interference.
-
Industrial-Grade Construction: Resistant to oil, vibration, and mechanical shock; IP65 protection ensures long-term operation.
-
Flexible Installation: 1.0-meter lead length allows easy routing and optimal probe placement.
-
Consistent Calibration: Maintains precise sensitivity and response over extended operating periods.
-
Low Power Consumption: Only 2 W required, minimizing system energy load.
-
Comprehensive Compatibility: Designed for use with Bently Nevada 3300/3500 machinery protection systems.
-
Predictive Maintenance Integration: Enables real-time data collection for early fault identification and condition-based maintenance.
FAQ
-
What is the primary function من this dual probe transducer system?
It measures both shaft vibration amplitude and radial displacement in rotating machinery. -
What type من electrical signal does the system output?
It provides a differential voltage signal for high noise immوحدةy and precise data transmission. -
Is the transducer compatible with Bently Nevada 3500 Monitoring Systems?
Yes, it is fully compatible with both the 3300 and 3500 series platforms. -
What is the nominal sensitivity value من the probes?
Each probe provides approximately 50 mV/mil nominal sensitivity under standard calibration. -
What is the frequency response range for this system?
The system operates effectively from DC up to 10 kHz. -
How is electromagnetic interference minimized?
The transducer uses shielded twisted-pair cables and a differential output configuration to reject external noise. -
Can the system operate in environments exposed to oil or vibration?
Yes, its IP65 housing allows reliable operation in oil-contaminated and high-vibration industrial environments. -
What is the required power supply for normal operation?
The system operates from a +24 VDC supply and consumes 2 W. -
What materials are suitable targets for accurate measurement?
The probes are optimized for ferromagnetic materials such as steel and nickel-based alloys. -
Why is a dual probe configuration used instead من a single probe?
Dual probes provide redundant measurement, ensuring data integrity and uninterrupted monitoring even if one probe fails.
