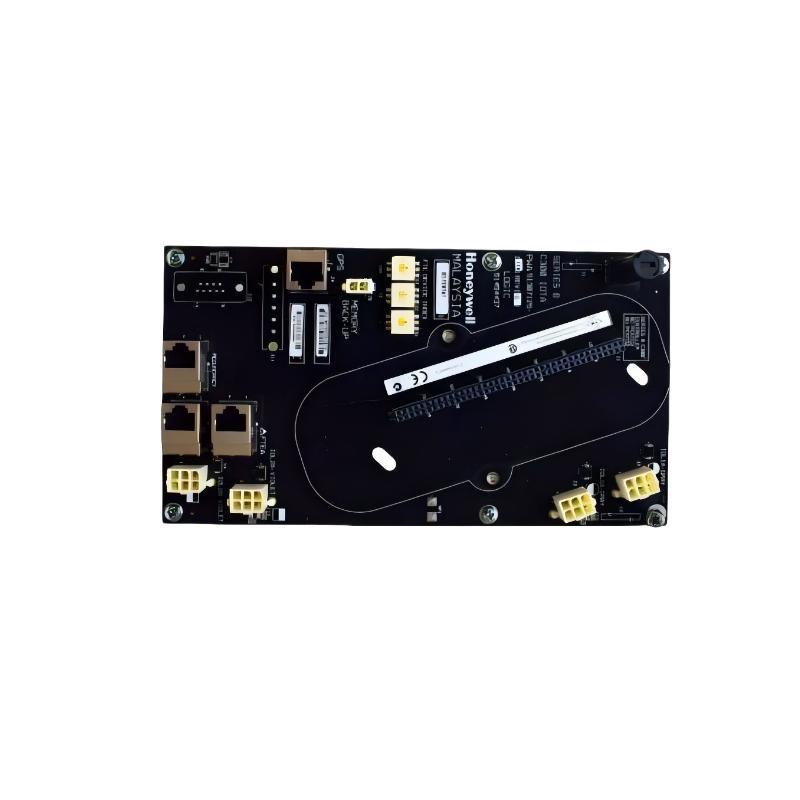

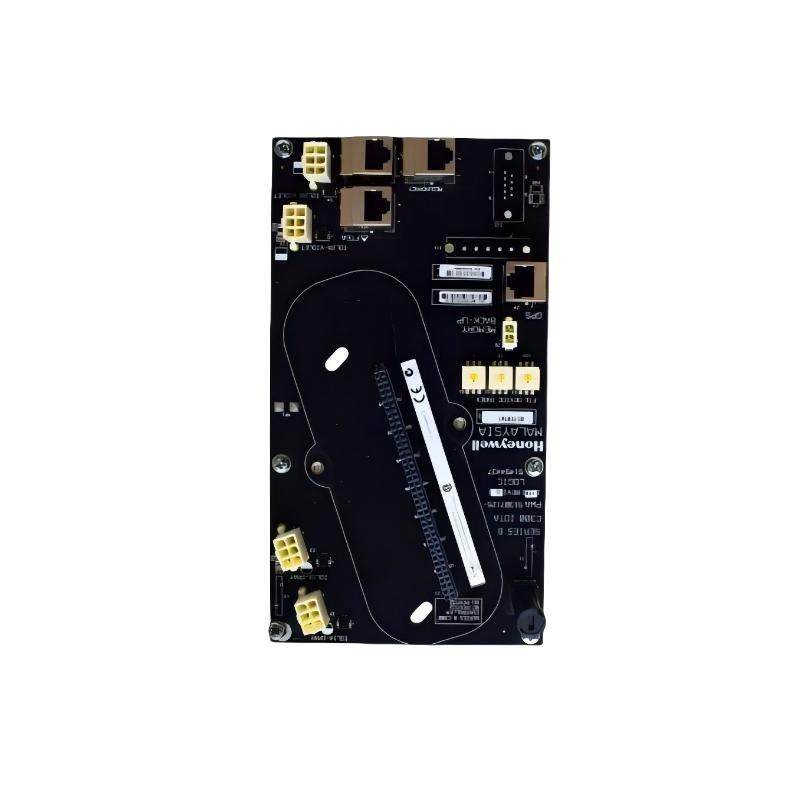

Product Overview
The Honeywell 8U-TCNT02 is a high-quality I/O terminal block assembly (also known as IOTA) designed to facilitate the connection من various field devices to the control system. This component is an essential part من industrial automation, منfering reliable signal transmission and simplifying the process من wiring in control systems. The 8U-TCNT02 is engineered for use with Honeywell’s Experion PKS and other industrial control systems, making it a versatile solution for complex automation processes.
The IOTA serves as a reliable intermediary between the field instruments (such as sensors and actuators) and the central control system, ensuring secure, stable, and efficient signal transmission. The modular design من the 8U-TCNT02 allows for easy configuration and expansion, providing an ideal solution for flexible automation system architectures. This component is designed to ensure safety, minimize electrical noise interference, and provide a robust interface for industrial applications that require a high degree من reliability and precision.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 220 × 120 mm |
| الوزن | 0.5 kg |
| Mounting Type | DIN Rail Mounting |
| Connection Type | Screw terminals |
| Input/Output Channels | 8 I/O Channels |
| Operating Voltage | 24 VDC |
| Temperature Range | -20°C to 60°C |
| Certification | UL, CE, IEC |
| Wire Gauge | 24-14 AWG |
| Installation | Easy-to-install, modular design |
Product Applications
The Honeywell 8U-TCNT02 I/O terminal block assembly is used in a wide range من industrial automation applications where reliable and efficient signal interfacing is required. The primary applications من the 8U-TCNT02 include:
-
Process Control Systems: Used to connect field devices such as temperature, pressure, and flow sensors to the control system, ensuring accurate data acquisition and control.
-
Building Automation: Facilitates the integration من field devices in HVAC, lighting, and security systems, enabling smooth and reliable control.
-
Energy Management: Essential for connecting energy meters, load controllers, and other monitoring equipment to central control systems in energy distribution and management systems.
-
Manufacturing Automation: Provides the interface between sensors, actuators, and controllers in automated manufacturing systems, including assembly lines and robotic systems.
-
Water/Wastewater Treatment: Used to connect field instruments like flow meters, level sensors, and pumps, helping in precise monitoring and control من water treatment processes.
The 8U-TCNT02 is designed to support a variety من industrial devices and systems, ensuring seamless and reliable communication between field equipment and central control وحدةs.
Product Advantages
-
Modular Design: The 8U-TCNT02 features a modular design, which allows for easy configuration and expansion, making it adaptable to different control systems.
-
Easy Installation: With DIN rail mounting and screw terminals, the terminal block assembly is easy to install, ensuring a hassle-free setup and secure connections.
-
Reliable Signal Transmission: The 8U-TCNT02 ensures high-quality, noise-free signal transmission between field devices and control systems, minimizing the risk من signal degradation and errors.
-
Flexible I/O Configuration: The module منfers 8 I/O channels, providing the flexibility to connect multiple devices, making it ideal for both small-scale and large-scale automation systems.
-
Wide Operating Temperature Range: The terminal block assembly operates in a temperature range من -20°C to 60°C, ensuring reliable performance in a variety من environmental conditions.
-
Safety and Certification: The 8U-TCNT02 is certified to UL, CE, and IEC standards, ensuring it meets the highest safety and quality standards in industrial environments.
FAQ
1. What is the main function من the 8U-TCNT02 I/O terminal block assembly?
The 8U-TCNT02 serves as an interface between field devices (such as sensors and actuators) and the control system, facilitating reliable and efficient signal transmission.
2. How many I/O channels does the 8U-TCNT02 support?
The 8U-TCNT02 supports 8 I/O channels, which provide multiple connections for field devices to interact with the control system.
3. What type من mounting is supported by the 8U-TCNT02?
The 8U-TCNT02 is designed for DIN rail mounting, which is a standard and convenient method for mounting in control panels.
4. What is the operating voltage for the 8U-TCNT02?
The 8U-TCNT02 operates with a 24 VDC power supply, commonly used in industrial automation systems.
5. What is the temperature range for the 8U-TCNT02?
The 8U-TCNT02 is capable من operating in a wide temperature range من -20°C to 60°C, making it suitable for various industrial environments.
6. Can the 8U-TCNT02 be used in hazardous areas?
The 8U-TCNT02 is not inherently rated for hazardous locations, but its high-quality construction and reliable signal processing make it suitable for most standard industrial applications.
7. How is the wiring connected to the 8U-TCNT02?
The 8U-TCNT02 uses screw terminals for easy and secure wiring connections, allowing for fast installation and reliable performance.
8. Does the 8U-TCNT02 support high-speed signal transmission?
Yes, the 8U-TCNT02 is designed to support efficient and high-quality signal transmission between field devices and control systems, ensuring minimal signal interference.
9. Is the 8U-TCNT02 compatible with other Honeywell control systems?
Yes, the 8U-TCNT02 is designed to work seamlessly with Honeywell’s Experion PKS and other industrial control systems.
10. What certifications does the 8U-TCNT02 have?
The 8U-TCNT02 is certified with UL, CE, and IEC standards, ensuring that it meets the highest safety and quality requirements for industrial applications.
Related الطرازs from Honeywell
| الطراز Number | الوصف |
|---|---|
| 8U-TCNT03 | I/O terminal block assembly with additional channels for complex systems |
| 8U-TCNT04 | Enhanced version with greater flexibility and higher I/O capacity |
| 8U-TCNT05 | Compact I/O terminal block with improved space efficiency |
| 8U-TCNT06 | High-speed I/O terminal block with support for fast data transfer |
| 8U-TCNT07 | Isolated I/O terminal block for enhanced signal integrity |
| 8U-TCNT08 | Modular I/O terminal block for large-scale industrial systems |
