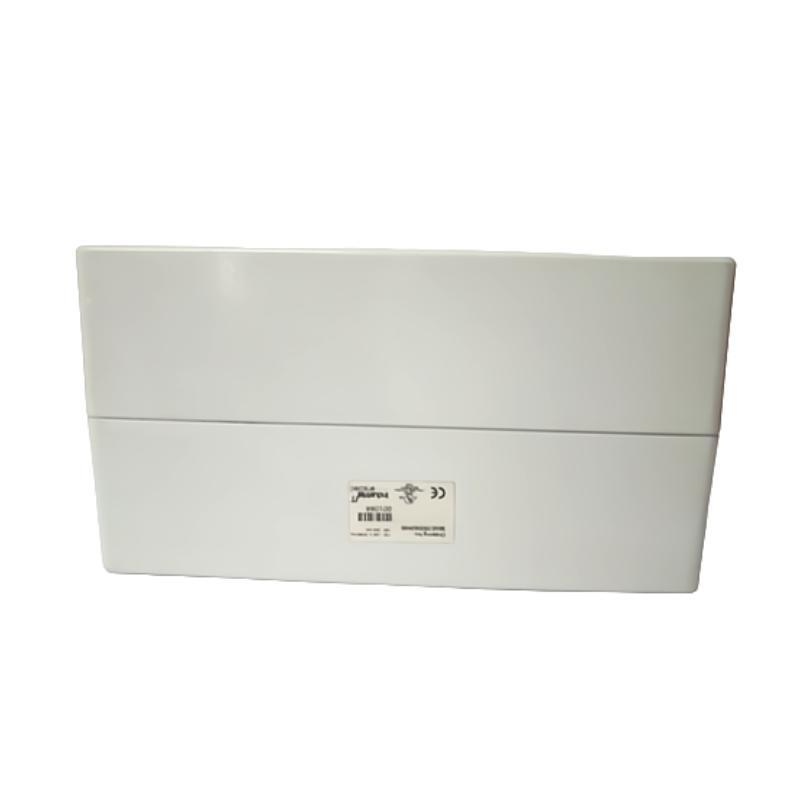

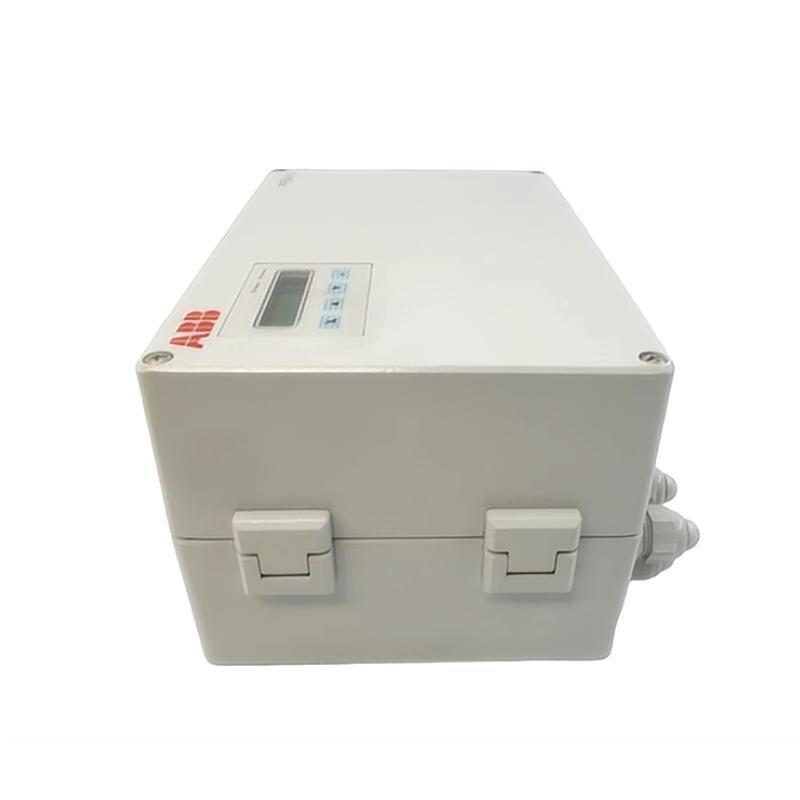

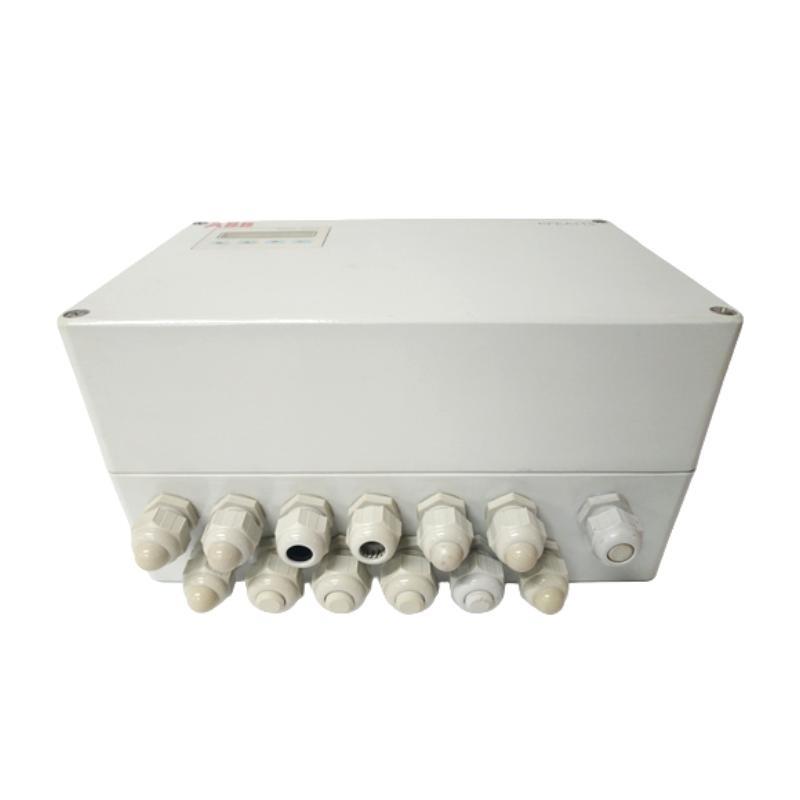

ABB PFEA113-65 3BSE028144R65 Tension Sensor

مقدمة المنتج

The ABB PFEA113-65 (3BSE028144R65) is a high-performance tension measurement module engineered for industrial applications that require real-time web tension monitoring. As part من ABB’s tension control system family, this module supports precise control and stable production processes in continuous material handling systems. It plays a crucial role in maintaining optimal tension during unwinding, rewinding, and intermediate processing من web materials such as paper, film, foil, textiles, and metal sheets.

This sensor module is designed to interface with strain gauge-based tension load cells and transmits accurate tension data to the control system, enabling dynamic adjustments to the drive or brake systems. Known for its reliability and robustness, the PFEA113-65 helps increase product quality, reduce material waste, and minimize downtime across a variety من industries.

Technical Specifications

Applications

The PFEA113-65 module is tailored for industrial applications that rely on accurate web tension control. Some من the most common applications include:

• Paper Mills: Tension monitoring during unwinding, rewinding, and paper stretching processes.

• Plastic and Film Production: Ensuring consistent film stretch and uniformity during extrusion and lamination.

• Textile Machinery: Maintaining correct yarn or fabric tension to prevent defects.

• Printing Presses: Reducing print misalignment through stable web feed tension.

• Packaging Machines: Controlling the tension من films and foils in wrapping and sealing processes.

• Steel and Aluminum Rolling: Precision tension control during coiling and recoiling operations.

Product Advantages

• High-Precision Tension Measurement
  Uses dual 16-bit ADC channels to achieve accurate and responsive tension readings, critical for modern automation systems.

• Robust Industrial Design
  Housed in a compact, IP20-rated enclosure designed for use in harsh industrial environments.

• Easy Integration with ABB Systems
  Seamlessly interfaces with ABB’s automation platforms such as AC500, DCS800, and DriveIT systems via internal communication buses.

• الدعمs Dual Channel Monitoring
  Capable من simultaneously reading two independent tension sensors for better system feedback and fault tolerance.

• DIN Rail Mounting
  Quick and secure installation inside control cabinets reduces wiring complexity and space usage.

• Real-Time Diagnostics
  Built-in LED indicators and system messages support troubleshooting and maintenance without system downtime.

• Low Power Consumption
  Operates efficiently on standard 24 VDC supply with minimal heat dissipation, ideal for long-duration industrial operation.

الأسئلة الشائعة (FAQ)

1. What kind من sensors can I use with the PFEA113-65?
   The module supports standard 350 Ω strain gauge tension load cells commonly used in industrial web tension systems.

2. Does this module support both analog and digital outputs?
   It receives analog inputs from sensors but transmits processed data digitally to ABB controllers.

3. Can I use this module with third-party PLCs?
   It is optimized for use with PLC أي بي بيs and systems. Integration with third-party platforms may require additional interface modules.

4. How accurate is the tension measurement?
   The 16-bit resolution and fast sampling provide high precision, suitable for most tension-sensitive industrial processes.

5. Is this module suitable for outdoor installation?
   The module has an IP20 rating and is designed for indoor use inside control cabinets.

6. What is the difference between PFEA113-65 and PFEA112-65?
   PFEA113-65 supports dual independent tension channels, whereas PFEA112-65 may have only single or mirrored inputs.

7. Does the device require periodic calibration?
   Yes, regular calibration is recommended, especially when replacing or changing load cells.

8. What happens if a sensor disconnects during operation?
   The module has built-in fault detection that alerts the system من sensor failure or disconnection.

9. Can this module be hot-swapped?
   No, it should only be installed or removed with power منf to avoid signal issues or damage.

10. What are the maintenance requirements?
    Minimal maintenance is needed; periodic checks on connections and signal integrity are sufficient for long-term reliability.
