产品介绍

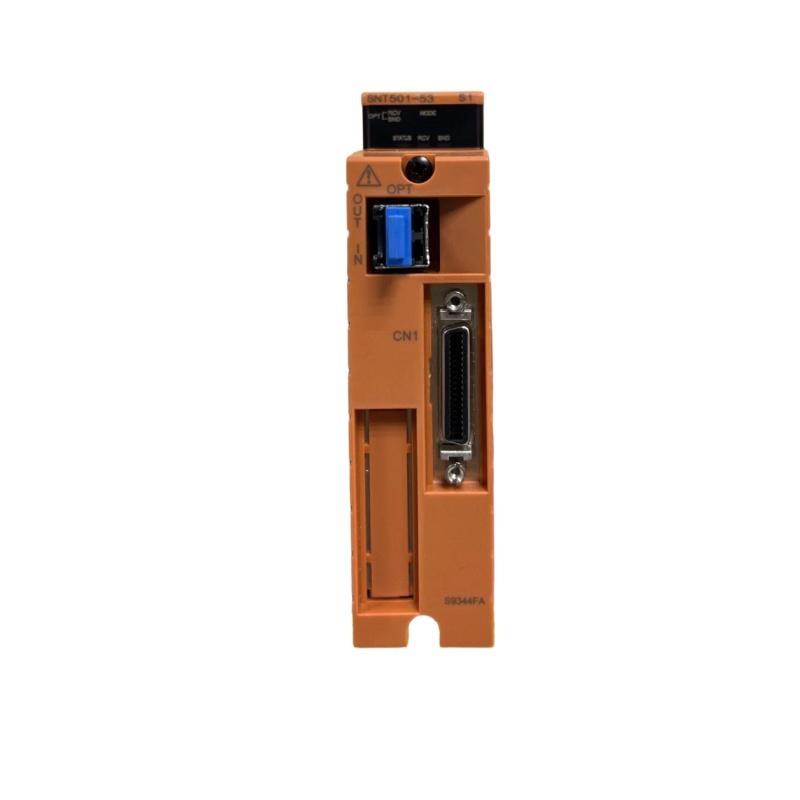

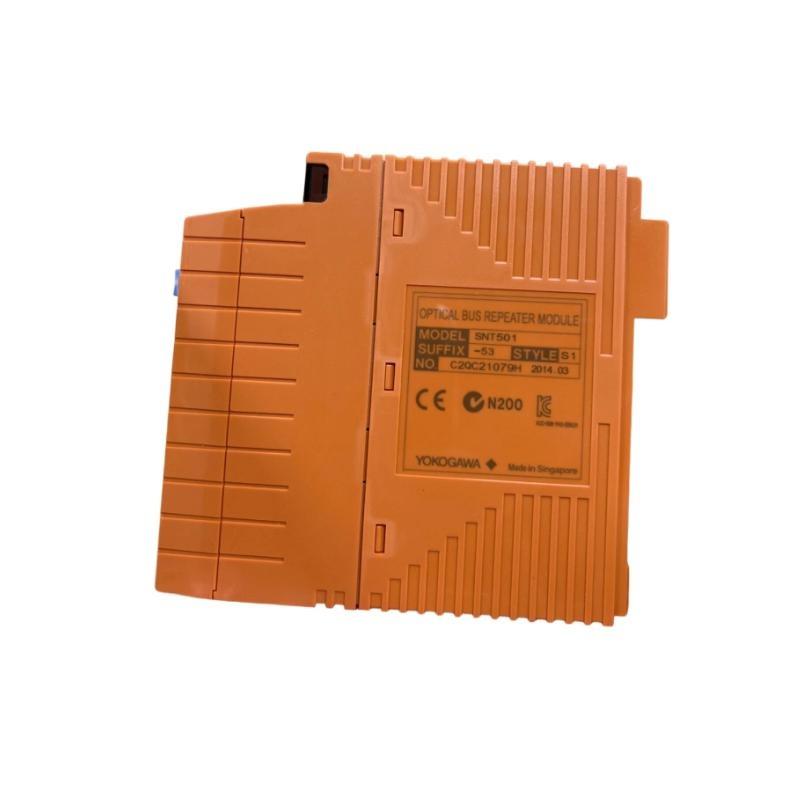

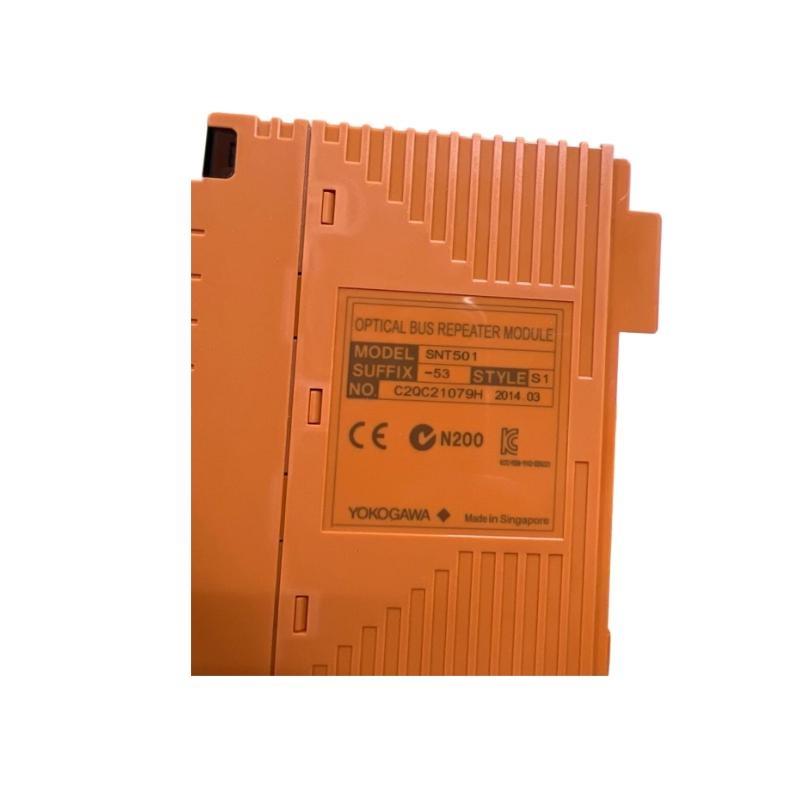

The Yokogawa SNT501-53 is a highly reliable optical bus repeater module designed to enhance communication within complex industrial control networks. As part / the STARDOM and CENTUM series safety and control systems, this module plays a critical role in converting electrical ESB bus signals into optical signals for long-distance, interference-free transmission and reconversion at the destination point.
With its advanced optical interface, the SNT501-53 ensures stable data transfer, reduced noise susceptibility, and simplified network scalability. It is widely deployed in industries such as power generation, petrochemical processing, refining, and advanced manufacturing, where high-speed and uninterrupted communication is crucial.
产品规格
| Feature | Specification |
|---|---|
| 型号 | SNT501-53 |
| Function | Optical repeater for ESB bus communication |
| Signal Conversion | Converts electrical ESB bus signals to optical and back |
| Topology 支持 | Star, chain, and hybrid configurations |
| Max Connection Stages | Up to 2 cascading stages supported |
| Transmission Range | Up to 5 km (standard); up to 10 km with Vnet/IP setup |
| Current Consumption | 0.5 A |
| Dimensions | 142.5 × 130 × 32.8 mm |
| 重量 | 0.3 kg |
| Mounting | DIN-rail or rack-mounted |
| Noise Imm件y | High; optical interface eliminates EMI interference |
| Reliability | Industrial-grade durability for critical processes |
Product Applications
-
Long-Distance Data Transmission
Ensures reliable optical communication over distances up to 5 km or 10 km with advanced configurations, making it ideal for large industrial facilities. -
Fault Isolation in Critical Systems
Provides effective electrical isolation to prevent damage or downtime caused by electromagnetic interference. -
Scalable Network Designs
支持s cascaded repeater setups, enabling expansion / existing systems without major hardware overhauls. -
High-Reliability Industrial Processes
Optimized for industries such as power plants, petrochemical plants, and manufacturing environments that demand non-stop, stable communication. -
Legacy System Integration
Allows seamless upgrades from older ESB bus infrastructures to optical-based systems without requiring full system replacement.
Product Advantages
-
High Transmission Stability – Maintains consistent and reliable data flow even in noisy industrial environments.
-
Extended Range – 支持s up to 10 km in optimized setups, perfect for extensive facilities.
-
Superior Noise Imm件y – Optical transmission eliminates signal degradation from electromagnetic interference.
-
Flexible Topology – Compatible with star, chain, and hybrid network configurations.
-
Compact, Lightweight Design – Space-saving module with just 0.3 kg weight for easy installation.
-
Low Power Consumption – Consumes only 0.5 A, making it energy efficient.
-
Cascadable for Expansion – Allows up to two repeater stages for flexible system scaling.
-
Robust Build Quality – Designed to perform reliably in harsh industrial conditions.
-
Seamless Compatibility – Fully integrates with Yokogawa control and safety platforms.
-
Cost-Effective Solution – Enables cost-efficient upgrades without replacing the existing infrastructure.
FAQ
1. What is the main function / the SNT501-53?
It acts as an optical repeater, converting ESB bus signals for long-distance and interference-free data transmission.
2. What is the maximum communication distance?
Standard setups support up to 5 km, and advanced configurations with Vnet/IP allow up to 10 km.
3. Can the SNT501-53 be cascaded with other modules?
Yes, it supports up to two cascaded stages for expanded network coverage.
4. Does it support different network topologies?
Yes, it is compatible with star, chain, and hybrid configurations, /fering design flexibility.
5. How does the module handle electrical interference?
By converting signals to optical, it eliminates risks from EMI, RFI, and grounding issues.
6. What is the current consumption / this module?
It operates efficiently at only 0.5 A, ensuring low energy usage.
7. Is this module compatible with existing Yokogawa systems?
Yes, it is designed to integrate seamlessly with Yokogawa’s DCS and safety platforms.
8. Can it be used in high-vibration environments?
Absolutely, it features industrial-grade durability and reliable performance even in harsh conditions.
9. How many modules can I use in one network?
Multiple modules can be deployed, with a maximum / two cascaded stages per segment for optimal performance.
10. Who should I contact for technical setup or purchasing information?
For any configuration or purchasing needs, please contact our customer service team for assistance.
Recommended Related 型号s
| 型号 | 描述 |
|---|---|
| SNT401-53/CU1T | Master optical repeater module with built-in terminator |
| SNT401-53/CU1N | Master repeater module without built-in terminator |
| SNT411/CU1N | Extended-range optical master repeater module |
| SNT511/CU1N | Extended-range optical slave repeater module |
| SNT10D | Rack chassis for mounting repeater modules |
| S2EN501 | N-ESB bus module for complex system expansions |
Popular Yokogawa Modules
| 型号 | 描述 |
|---|---|
| SEC401/SEC402 | ESB bus coupler modules for safety control systems |
| SSB401 | ESB bus interface module for safety node 件s |
| NT255-AA00 | High-speed communication interface module |
| PW482-50 | Power supply module for stable and efficient operations |
| ADV151-P50 | Digital output module supporting advanced automation tasks |
| AAI543-H00 | Analog input module for precise process monitoring |
