产品介绍

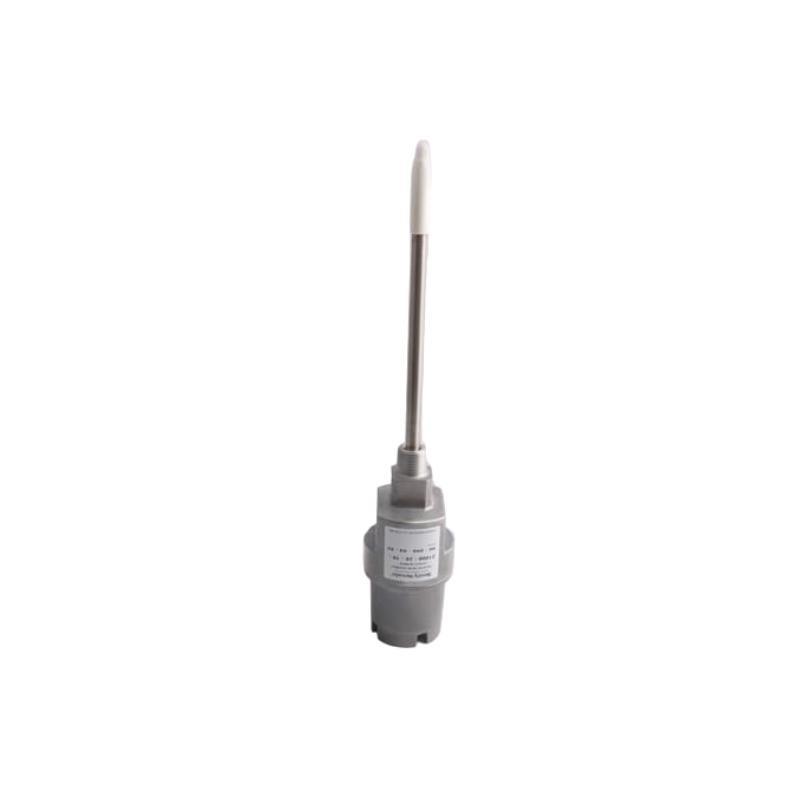

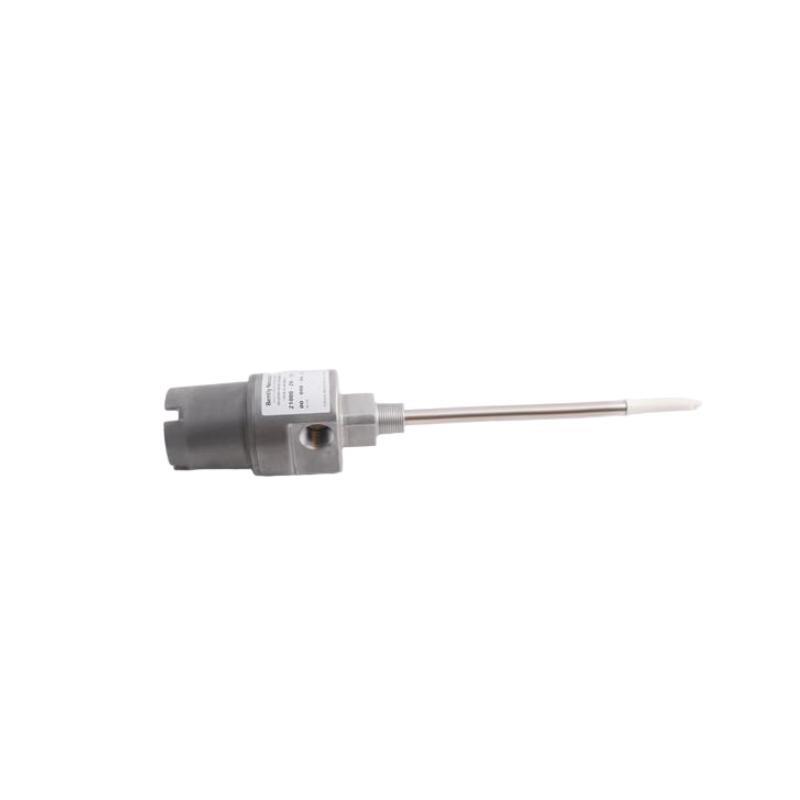

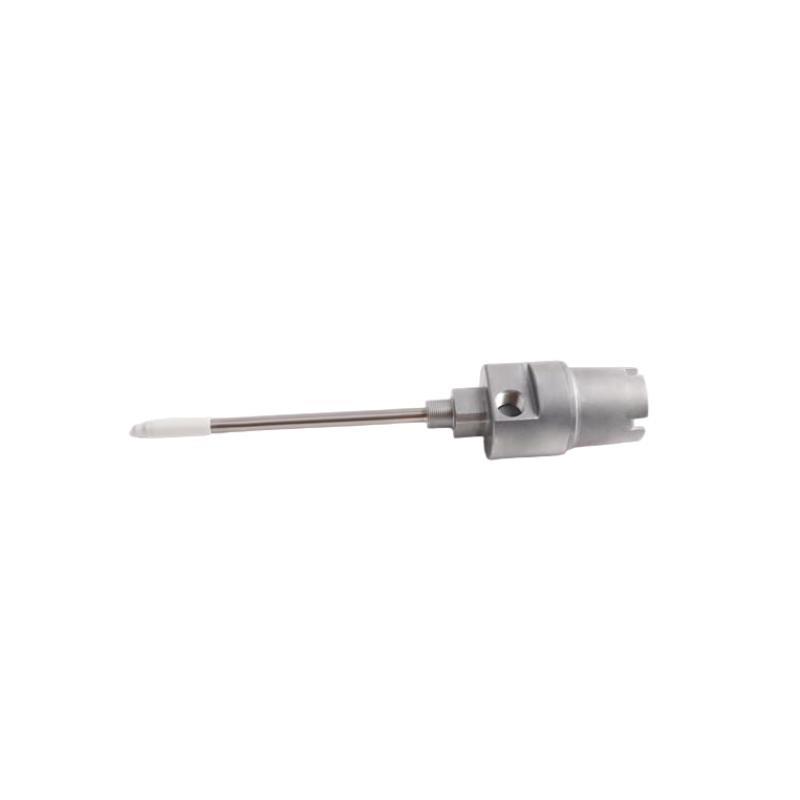

The Bently Nevada 21000-16-10-15-085-03-02 Proximity Probe Housing Assembly is a high-precision sensor enclosure solution, specifically engineered for harsh industrial environments requiring accurate and reliable vibration monitoring. Designed to work seamlessly with Bently Nevada’s eddy current proximity transducers and probes, this housing ensures protection, environmental sealing, and optimal alignment for sensitive vibration measurement instruments.
This model is part / the widely respected 21000 Series, known for its robust construction, corrosion resistance, and compatibility with API 670-compliant systems. It provides a secure and durable enclosure for probe mounting in areas with high temperatures, contamination, or other environmental hazards.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 21000-16-10-15-085-03-02 |
| Series | 21000 Series |
| Material | 316L Stainless Steel |
| Probe Mounting Type | Side-entry with locking collet |
| Mounting Thread | 3/4-16 UNF |
| Cable Entry | Conduit fitting with environmental seal |
| Ingress Protection Rating | IP66 / NEMA 4X |
| Operating Temperature Range | -40°C to +177°C (-40°F to +350°F) |
| Vibration Limit | Up to 50 g |
| Housing Body Diameter | 83.3 mm |
| 重量 | 1.1 kg |
| Certification | CE, ATEX, CSA (depending on configuration) |
| Sealing Mechanism | Dual O-ring and compression fitting |
| Probe Compatibility | Bently Nevada 3300, 7200, and 9000 series |
| Field Wiring | Terminal strip inside housing |
| Material Finish | Electro-polished for corrosion resistance |
Product Applications
The 21000-16-10-15-085-03-02 housing assembly is widely deployed in the following industrial environments:
-
Power Generation: Enclosing probes on gas turbines, steam turbines, and generators for shaft vibration and thrust position monitoring.
-
Oil & Gas Refineries: Protecting critical sensors on compressors and pumps from harsh, corrosive atmospheres.
-
Petrochemical Facilities: Ensuring sensor integrity on rotating equipment operating under volatile and high-temperature conditions.
-
Pulp & Paper Mills: Providing environmental sealing in high-moisture, dusty environments.
-
Steel & Metal Processing: Used in high-vibration zones near gearboxes and rolling mill equipment.
-
Marine and Offshore Applications: Deployed in naval systems and /fshore rigs for bearing and shaft condition monitoring.
Product Advantages
-
Rugged Environmental Protection: Built with corrosion-resistant stainless steel and IP66/NEMA 4X rating to withstand harsh industrial settings.
-
Precision Alignment Design: Machined to strict tolerances to guarantee exact probe positioning and optimal signal performance.
-
High Compatibility: 支持s legacy and modern Bently Nevada proximity probe models including 3300, 7200, and 9000 series.
-
Simplified Installation: Side-entry cable routing, accessible wiring terminal block, and threaded mounting reduce install time.
-
Certified Safety and Reliability: Offers certifications for hazardous area installations including ATEX and CSA when required.
-
Field Serviceability: Modular design enables fast inspection, maintenance, or replacement without major downtime.
常见问题 (FAQ)
-
What probe series are compatible with the 21000-16-10-15-085-03-02 housing?
It is compatible with Bently Nevada 3300, 7200, and 9000 series probes. -
Is the housing suitable for hazardous environments?
Yes, it supports ATEX, CE, and CSA certifications depending on the specific variant. -
Can this housing be used in /fshore platforms?
Absolutely. Its stainless steel build and sealing mechanisms make it ideal for marine and /fshore environments. -
What ingress protection rating does this housing /fer?
It is rated IP66 and NEMA 4X for dust-tight and water-resistant performance. -
What is the operating temperature range / the housing?
The assembly operates effectively from -40°C to +177°C. -
How is the probe secured within the housing?
The probe is locked in place with a collet and dual O-ring sealing. -
Does the housing assembly support conduit cable routing?
Yes, it includes a conduit fitting for secure and sealed cable entry. -
Is field wiring complicated?
No, the internal terminal strip simplifies field wiring connections. -
Is the surface treated for corrosion resistance?
Yes, it is electro-polished to resist corrosion in aggressive environments. -
Can the housing withstand high vibration?
It is tested for up to 50 g / vibration, making it suitable for high-impact areas.
Related 型号s (Same Series or Type)
| 型号 Number | 描述 |
|---|---|
| 21000-16-10-15-085-02-01 | Standard housing with alternative thread and exit angle |
| 21000-16-10-15-085-03-01 | Similar to target model with slightly different fitting |
| 21000-16-10-15-050-03-02 | Shorter body length, same probe compatibility |
| 21000-16-10-15-085-05-02 | Dual probe configuration version |
| 21000-12-10-10-085-03-02 | Compact version for confined installation spaces |
| 21000-20-10-15-085-03-02 | Extended model for long-shaft equipment |
Popular Bently Nevada 型号s (Same 品牌)
| 型号 Number | 描述 |
|---|---|
| 3300 XL 8mm Proximity Probe | Standard proximity sensor for general machinery monitoring |
| 3500/22M | Transient Data Interface Module for 3500 Series Rack |
| 330104-00-05-10-02-00 | Proximitor Sensor with 5-meter cable |
| 330730-040-00-00 | Accelerometer sensor for high-frequency vibration |
| 990-04-XX-01-00 | Velocity sensor used in low-speed machinery monitoring |
| 190501-00-01 | Seismic vibration transmitter for plant-wide applications |
