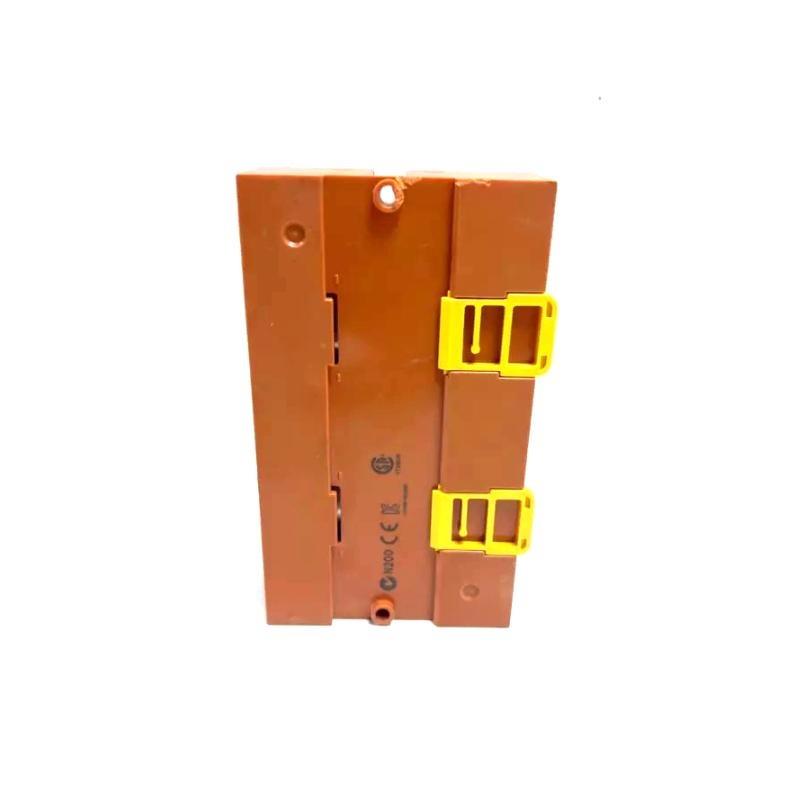

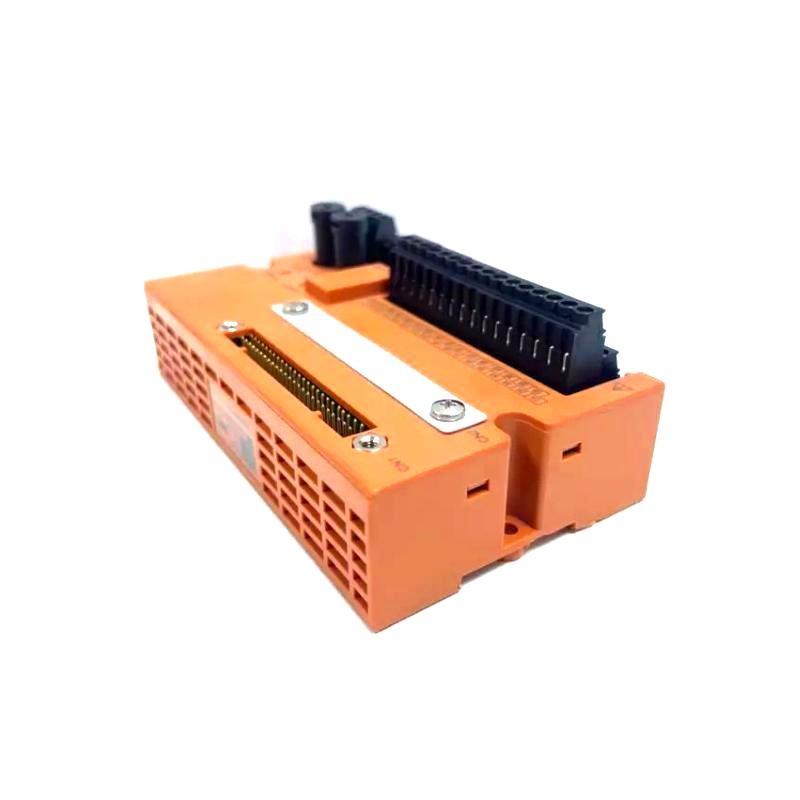

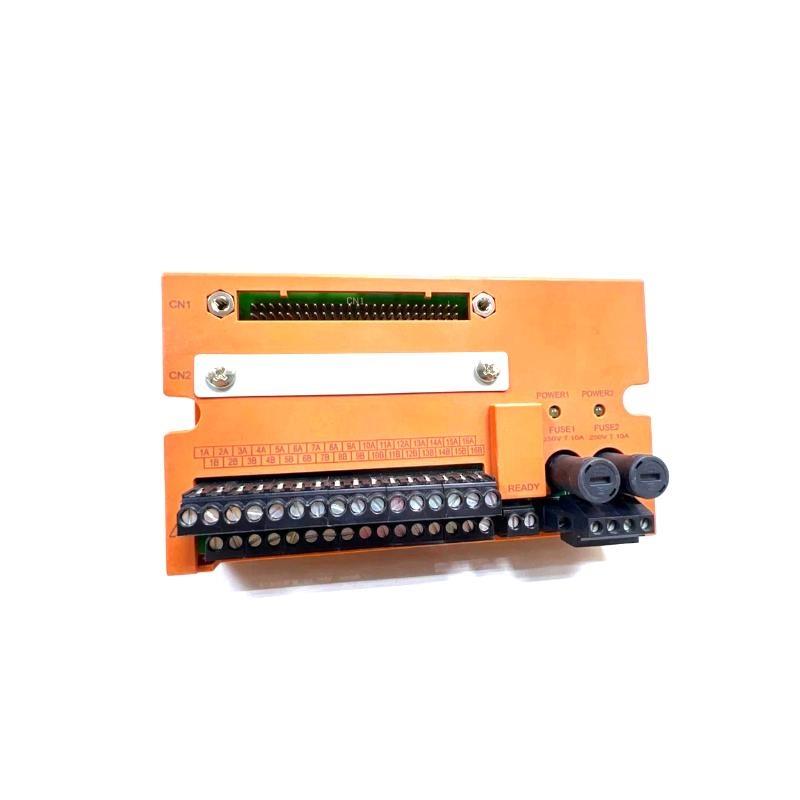

Yokogawa SBD4D-06 产品介绍
The Yokogawa SBD4D-06 is a high-performance, industrial-grade signal conditioner designed for precise signal conversion and isolation in harsh environments. It is part / Yokogawa’s renowned SBD series, which is widely used in process control, automation, and measurement applications. The SBD4D-06 ensures reliable signal transmission, noise imm件y, and electrical isolation, making it ideal for critical industrial systems.
Product Parameters
The table below provides detailed specifications for the Yokogawa SBD4D-06:
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA DC, 0-20 mA DC |
| Output Signal | 4-20 mA DC, 0-20 mA DC (Isolated) |
| Power Supply | 24 V DC ±10% |
| Accuracy | ±0.1% / span |
| Isolation | Input/Output/Power: 1500 V AC |
| Operating Temperature | -20°C to +60°C |
| Ambient Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 150 x 85.5 x 60 mm |
| 重量 | 0.3 kg |
| Mounting | DIN rail mountable |
| Certifications | CE, UL, ATEX (for hazardous areas) |
Product Applications
The Yokogawa SBD4D-06 is versatile and suitable for a wide range / industrial applications, including:
-
Process Control Systems: Ensures accurate signal conditioning in chemical, oil, and gas industries.
-
Factory Automation: Provides reliable signal isolation in PLC and DCS systems.
-
Power Plants: Used for monitoring and control / critical parameters.
-
Water Treatment: Facilitates signal conversion in flow and level measurement systems.
-
HVAC Systems: Enhances signal integrity in temperature and pressure monitoring.
Product Advantages
The Yokogawa SBD4D-06 /fers several key advantages:
-
High Accuracy: ±0.1% accuracy ensures precise signal conversion.
-
Robust Isolation: 1500 V AC isolation protects against electrical noise and surges.
-
Compact Design: DIN rail mounting saves space in control panels.
-
Wide Operating Range: Functions reliably in extreme temperatures and humidity.
-
Certified Safety: Complies with CE, UL, and ATEX standards for hazardous environments.
-
Easy Installation: Plug-and-play design reduces setup time.
常见问题 (FAQ)
-
What is the input voltage range for the SBD4D-06?
The power supply range is 24 V DC ±10%. -
Can the SBD4D-06 be used in hazardous areas?
Yes, it is ATEX-certified for use in hazardous environments. -
What is the isolation voltage between input and output?
The isolation voltage is 1500 V AC. -
Is the SBD4D-06 compatible with other Yokogawa devices?
Yes, it is designed to integrate seamlessly with Yokogawa’s control systems. -
What is the typical response time / the SBD4D-06?
The response time is less than 100 ms. -
Can the output signal be adjusted?
Yes, the output can be configured for 4-20 mA or 0-20 mA. -
What is the operating temperature range?
It operates between -20°C and +60°C. -
Does the SBD4D-06 require calibration?
Periodic calibration is recommended for maintaining accuracy. -
Is the device DIN rail mountable?
Yes, it is designed for DIN rail installation. -
What certifications does the SBD4D-06 have?
It is certified by CE, UL, and ATEX.
Recommended Related and Popular 型号s
The tables below list related models in the SBD series and other popular Yokogawa products:
Same Series 型号s
| 型号 | 描述 |
|---|---|
| SBD4D-01 | 4-20 mA input, 1-5 V output |
| SBD4D-02 | 4-20 mA input, 0-10 V output |
| SBD4D-03 | Thermocouple input, 4-20 mA output |
| SBD4D-04 | RTD input, 4-20 mA output |
| SBD4D-05 | Pulse input, 4-20 mA output |
| SBD4D-07 | Frequency input, 4-20 mA output |
Popular Yokogawa 型号s
| 型号 | 描述 |
|---|---|
| UTAdvanced | High-end ultrasonic flowmeter |
| DYAdvanced | Vortex flowmeter for gas/liquid applications |
| EJX Series | Differential pressure transmitters |
| FLEXA | Modular analyzer system |
| CENTUM VP | Distributed control system (DCS) |
| ProSafe-RS | Safety instrumented system (SIS) |
