产品介绍

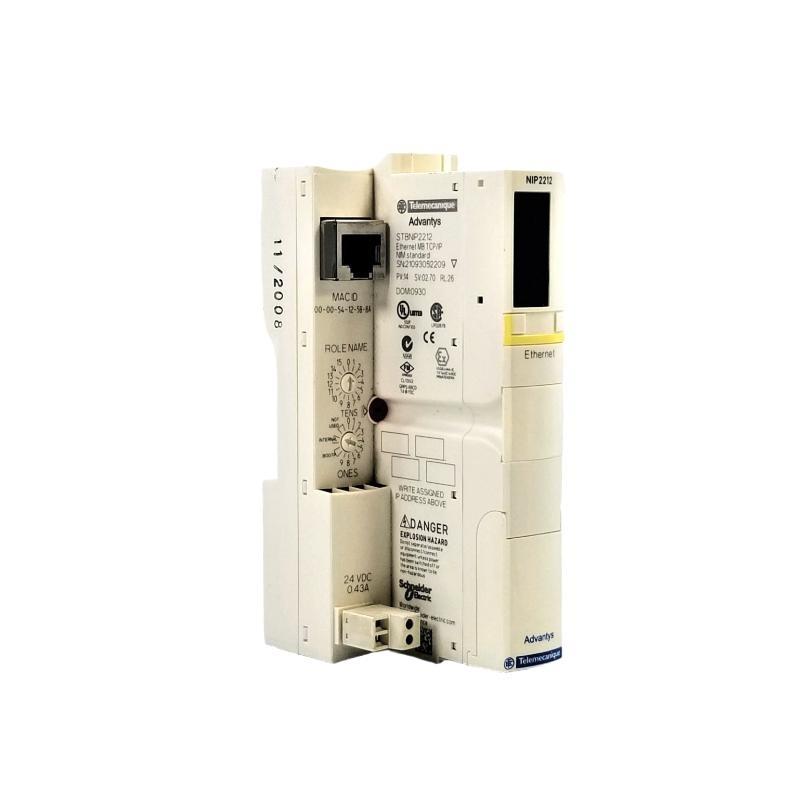

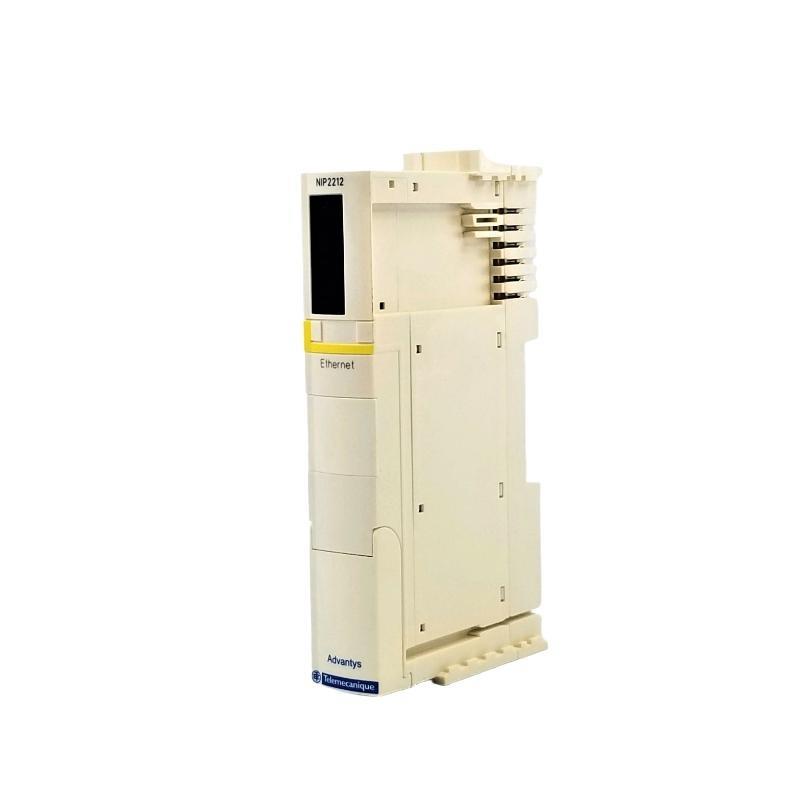

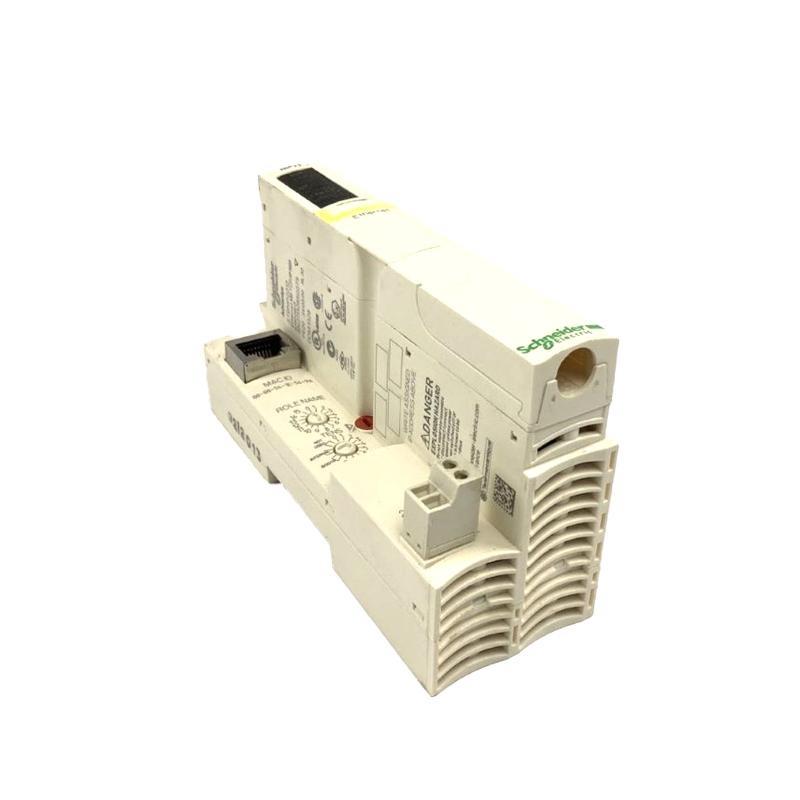

The Schneider STBNIB2212 Standard Network Interface Module serves as a vital communication gateway within industrial automation systems. Designed to bridge controllers, human-machine interfaces (HMIs), and other devices, it provides stable and efficient network connectivity. The module supports multiple industrial protocols, making it highly adaptable across a variety / automation architectures.
Engineered to meet the rigorous demands / industrial environments, the STBNIB2212 ensures reliable data transmission with minimal latency. Its compact size and robust construction allow for easy integration within control cabinets, /fering operators seamless network interfacing capabilities. This module enhances system flexibility, enabling smoother coordination between devices and improved operational efficiency.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | STBNIB2212 |
| Module Type | Standard Network Interface Module |
| 支持ed Protocols | Modbus TCP, Ethernet/IP, PROFINET |
| Communication Speed | Up to 100 Mbps |
| Network Ports | 2 (RJ45 Ethernet connectors) |
| Power Supply | 24 V DC |
| Power Consumption | Approx. 3.5 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Electrical Isolation | Isolation between network and controller |
| Dimensions (WxHxD) | 44 x 73 x 130 mm |
| 重量 | 0.163 kg |
| Mounting | Standard DIN rail |
| Certifications | CE, UL, RoHS |
Product Applications
The STBNIB2212 is a versatile communication module suitable for many industrial and commercial applications, including:
-
Factory Automation: Facilitates network communication between PLCs and peripheral devices, supporting coordinated control / machinery and processes.
-
Process Industry: Enables data exchange in industries such as chemical processing, water treatment, and oil & gas for improved monitoring and control.
-
Building Automation: Connects systems such as HVAC, lighting, and security to centralized control networks.
-
Energy Management: 支持s communication for load monitoring, power distribution control, and smart grid applications.
-
Transportation: Provides network interfacing for systems including railway signaling and traffic management.
-
Machine Control: Ensures reliable data transfer among controllers and machines, enabling precise sequencing and synchronization.
Product Advantages
-
Protocol Flexibility: 支持s multiple major industrial protocols, enabling broad compatibility across systems.
-
Compact Form Factor: Slim design saves valuable space inside control panels.
-
Reliable and Fast Communication: Provides Ethernet connectivity at speeds up to 100 Mbps, minimizing communication delays.
-
Industrial-Grade Durability: Built to withstand temperature fluctuations and humidity typical / industrial environments.
-
Easy Installation: Equipped with standard DIN rail mounting and RJ45 connectors for quick setup.
-
Electrical Protection: Features electrical isolation to safeguard connected devices from voltage spikes and interference.
-
Energy Efficiency: Low power consumption helps reduce operating expenses.
-
Certified Safety: Complies with CE, UL, and RoHS directives, ensuring quality and safety.
-
Real-Time Data Exchange: 支持s efficient and timely transmission / control and monitoring data.
-
Scalable Network Integration: Allows seamless expansion / networked automation systems.
常见问题 (FAQ)
-
What protocols does the STBNIB2212 support?
It supports Modbus TCP, Ethernet/IP, and PROFINET. -
How many network ports are available?
The module has two RJ45 Ethernet ports. -
What is the communication speed / the module?
It supports speeds up to 100 Mbps. -
What power supply does the module require?
It operates on 24 V DC power supply. -
Is the module compatible with all Schneider controllers?
It is compatible with Schneider Electric controllers that use the supported protocols. -
What environmental conditions can it operate under?
Operating temperature ranges from -20°C to +60°C; it supports 5% to 95% relative humidity (non-condensing). -
How is the module installed?
It mounts on a standard DIN rail for easy installation. -
Does it provide electrical isolation?
Yes, electrical isolation protects connected devices from voltage surges. -
What certifications does this module hold?
It holds CE, UL, and RoHS certifications. -
Can the STBNIB2212 be used outdoors?
It is designed for indoor industrial use; for outdoor applications, suitable enclosures are necessary.
Recommended Related 型号s (Same Series or Similar)
| 型号 | Function | Network Ports | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| STBNIB2210 | Standard Network Interface | 1 RJ45 port | 45 x 110 x 75 | 0.32 |
| STBNIB2213 | Standard Network Interface | 2 RJ45 ports | 45 x 110 x 75 | 0.36 |
| STBNIB2220 | Advanced Network Interface | 2 RJ45 + Fiber | 60 x 110 x 80 | 0.40 |
| STBNIB2301 | Redundant Network Interface | 2 RJ45 ports | 50 x 120 x 85 | 0.45 |
| STBNIB2405 | Protocol Converter | 1 RJ45 port | 45 x 100 x 70 | 0.28 |
| STBNIB2500 | Gateway Module | 2 RJ45 ports | 55 x 115 x 80 | 0.42 |
Popular Schneider 型号s (Same 品牌)
| 型号 | 描述 | Function | 重量 (kg) |
|---|---|---|---|
| Modicon M221 | Compact Programmable Logic Controller | Automation controller | 0.6 |
| Modicon M241 | Mid-range PLC | Automation controller | 1.1 |
| Harmony XB5 | Control and Signaling Devices | Push buttons & indicators | Varies |
| Telemecanique Sensors | Industrial Sensors | Position & proximity sensors | Varies |
| Altivar ATV320 | Variable Frequency Drive | Motor speed control | 2.0 |
| Lexium Servo Drives | Servo Motor Drives | Precision motion control | 1.8 |
