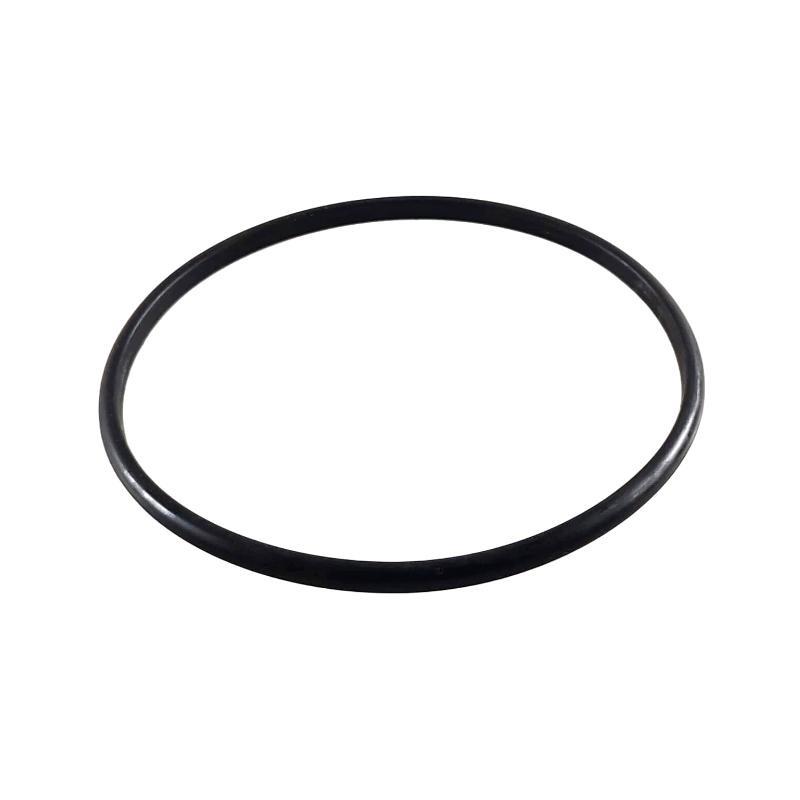

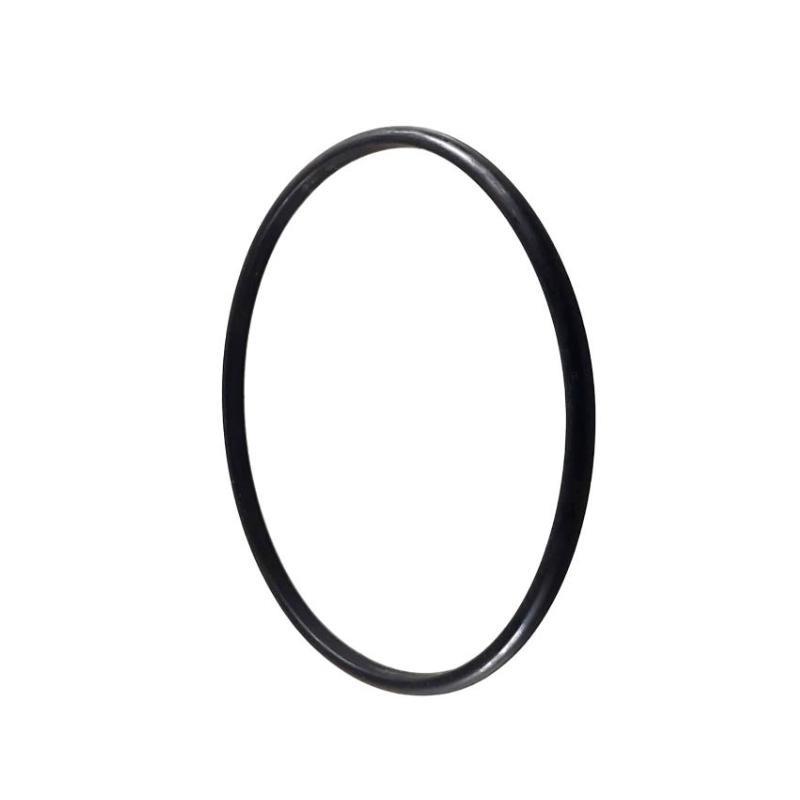

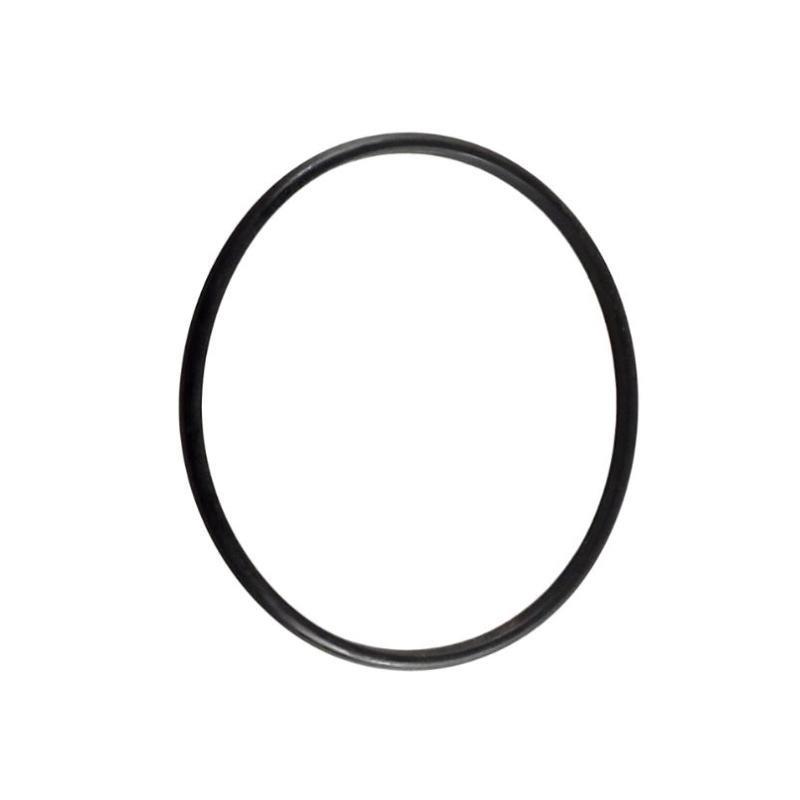

The Yokogawa F9340GP Gasket is a precision-engineered sealing component designed for use in capsule assemblies and industrial instrumentation systems. Constructed from degreased fluorinated rubber (FKM), this gasket combines exceptional chemical resistance, high thermal stability, and mechanical durability. The degreasing process removes all surface oils and contaminants, ensuring purity and optimal sealing integrity in demanding industrial environments.
The F9340GP gasket is widely used in capsule assemblies for pressure transmitters, flow meters, analytical instruments, and control valves, especially where clean, oil-free sealing is critical. It performs reliably under fluctuating pressure and temperature conditions, maintaining a consistent seal and preventing leakage or measurement drift. Its robust fluorocarbon material composition provides superior resistance to corrosive fluids, solvents, and high temperatures, making it a preferred choice for chemical processing, petrochemical, and power generation industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | F9340GP |
| Material | Fluorinated Rubber (FKM), degreased |
| Hardness | 75 ± 5 Shore A |
| Temperature Range | -25 °C to 200 °C |
| Chemical Resistance | 优秀 resistance to acids, bases, oils, and most organic solvents |
| Pressure Rating | Up to 25 MPa |
| Outer Diameter | 40 mm |
| Inner Diameter | 30 mm |
| Thickness | 2.5 mm |
| 运输 重量 | 3 kg |
| Application | Capsule assemblies in industrial instruments |
| Compliance | RoHS, CE |
| Surface Treatment | Degreased (oil-free) |
| Installation Type | Static and dynamic sealing configurations |
Applications
The F9340GP Gasket is specifically designed for capsule assemblies that require chemical purity and reliable sealing under high-demand operating conditions. Its main applications include:
-
Pressure transmitters in oil, gas, and chemical process plants
-
Flow meter capsule assemblies operating with corrosive or high-temperature media
-
Control valve actuators and housings requiring oil-free seals
-
Analytical and measurement instruments exposed to aggressive fluids
-
Power plant instrumentation systems subjected to temperature fluctuations
-
General industrial instruments needing clean, degreased sealing components
This gasket is ideal for both static and dynamic sealing environments, providing reliable sealing performance and maintaining accuracy in measurement and control systems.
Advantages
The Yokogawa F9340GP Gasket provides numerous performance and operational advantages:
-
Oil-Free Purity: Degreased fluorinated rubber ensures a clean, contamination-free surface ideal for analytical and precision instruments.
-
High Chemical Resistance: Outstanding compatibility with acids, bases, hydrocarbons, and organic solvents.
-
Thermal Stability: Reliable operation across a wide temperature range from -25 °C to 200 °C.
-
Pressure Resistance: Maintains consistent sealing performance up to 25 MPa.
-
Durable Construction: Resists deformation, wear, and compression set under repeated use.
-
Low Permeability: Reduces gas and vapor leakage through the gasket body.
-
Stable Mechanical Properties: Retains elasticity and sealing integrity over long-term operation.
-
Easy Integration: Precisely machined dimensions for perfect compatibility with Yokogawa capsule assemblies.
-
Corrosion Prevention: Degreased surface prevents reaction with sensitive materials.
-
Certified Quality: Complies with RoHS and CE standards for safety and environmental assurance.
FAQ
-
What is the material composition / the F9340GP gasket?
It is made from degreased fluorinated rubber (FKM), /fering excellent chemical and thermal resistance. -
What is the working temperature range?
It can operate effectively between -25 °C and 200 °C. -
How much pressure can the gasket withstand?
It provides reliable sealing performance up to 25 MPa. -
Why is the gasket degreased?
The degreasing process removes oils and contaminants, ensuring chemical purity and preventing contamination in sensitive applications. -
Which industrial applications is the F9340GP suitable for?
It is suitable for capsule assemblies, pressure transmitters, flow meters, and control valves. -
Does the gasket maintain elasticity at high temperatures?
Yes, FKM maintains its elasticity and sealing performance even at elevated temperatures. -
Is the gasket compatible with corrosive fluids?
Yes, it /fers excellent resistance to acids, bases, oils, and most solvents. -
Can it be used in dynamic sealing applications?
Yes, the F9340GP performs reliably in both static and dynamic sealing conditions. -
Is the gasket compliant with industrial standards?
Yes, it meets RoHS and CE compliance standards. -
What are its advantages compared to standard rubber gaskets?
It provides superior chemical resistance, thermal stability, oil-free cleanliness, and long-term sealing reliability.
Related 型号s (Same Series or Compatible)
| 型号 | 描述 |
|---|---|
| F9340GE | PTFE gasket for capsule assemblies |
| F9340GF | Degreased PTFE gasket for analytical instruments |
| F9340GN | Fluorinated rubber gasket for capsule assemblies |
| F9340GJ | High-performance chemical-resistant gasket |
| F9340GK | Flow meter capsule assembly gasket |
| F9340GL | Pressure transmitter capsule gasket |
Popular 型号s (Same 品牌)
| 型号 | 描述 |
|---|---|
| F9300 Series | O-Rings for industrial instrumentation |
| F9310 Series | Capsule assembly sealing components |
| F9320 Series | Chemical-resistant gasket assemblies |
| F9330 Series | Gaskets for pressure transmitters |
| F9340 Series | Flow meter and control valve sealing gaskets |
| F9350 Series | High-temperature-resistant gasket assemblies |
