产品介绍

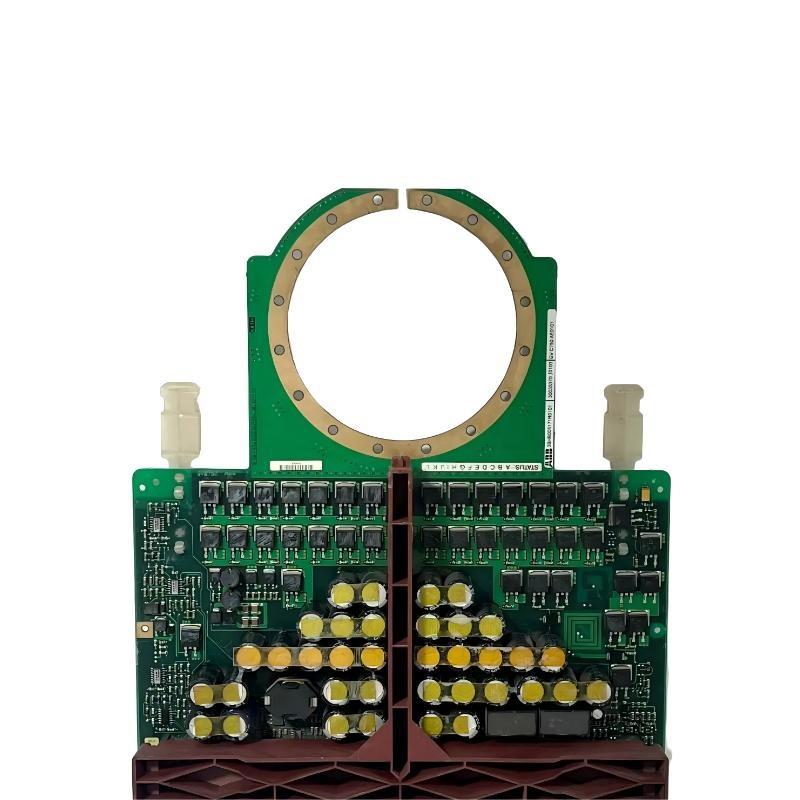

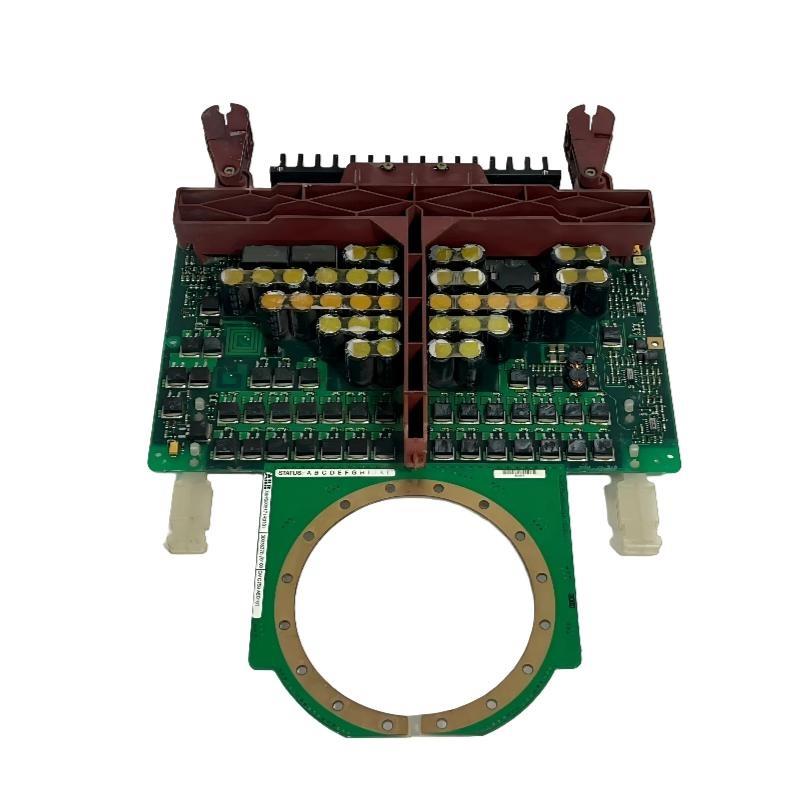

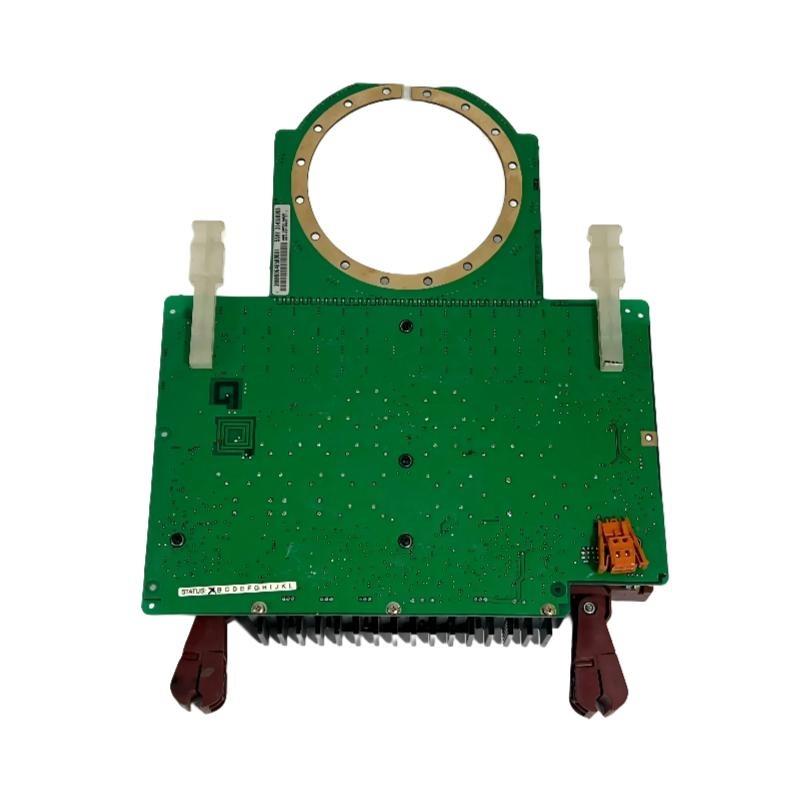

The ABB 5SGY3545L0014 3BHB006485R0001 IGCT Module is a high-performance Integrated Gate-Commutated Thyristor (IGCT) designed for use in high-power converters, variable speed drives, and medium-voltage applications. As a crucial component within ABB’s advanced IGCT-based converter systems, this module integrates a thyristor and gate 件 into a single, compact, and robust structure to achieve superior current control and switching efficiency.
The IGCT technology combines the ruggedness / traditional thyristors with the controllability / IGBTs, enabling high current capacity, low conduction losses, and fast turn-/f times. The 5SGY3545L0014 module /fers exceptional performance under high thermal and electrical stress, ensuring long-term reliability and stability in industrial and power conversion environments.
Designed specifically for ABB’s medium-voltage drives (ACS6000, MEGADRIVE-LCI) and power converters, this module supports high current ratings up to several kiloamperes and blocking voltages / several kilovolts, making it ideal for demanding energy and process control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product 型号 | 5SGY3545L0014 |
| 制造商 | ABB |
| Product Type | IGCT (Integrated Gate-Commutated Thyristor) |
| 零件号 | 3BHB006485R0001 |
| Series | ABB 5SGY Series |
| Rated Voltage | 4500 V |
| Repetitive Peak Off-状态 Voltage (VDRM) | 4500 V |
| Repetitive Peak Reverse Voltage (VRRM) | 4500 V |
| Continuous On-状态 Current (IT) | 2000 A @ 125°C |
| Surge Current (ITSM) | 6000 A (10 ms half-sine) |
| Gate Trigger Current (IGT) | 2 A typical |
| Turn-/f Time (tq) | 50 µs typical |
| Switching Frequency | Up to 2 kHz |
| On-状态 Voltage Drop (VTM) | 2.1 V typical |
| Operating Temperature Range | -40°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
| Isolation Voltage | 5000 Vrms |
| Gate Circuit Voltage | 15 VDC nominal |
| Thermal Resistance, Junction to Case (RthJC) | 0.012 K/W |
| Mounting Type | Press-pack |
| Cooling Method | Forced air or liquid cooling |
| Protection Features | Short-circuit withstand, overtemperature detection |
| Package Material | High-strength ceramic and copper base |
| Dimensions | 155 × 120 × 40 mm |
| 重量 | 0.55 kg |
| Compliance | IEC 60747-6, RoHS, CE Certified |
Product Applications
The ABB 5SGY3545L0014 IGCT Module is specifically engineered for medium- and high-voltage industrial systems requiring efficient and reliable power conversion.
Main application fields include:
-
Medium Voltage Drives (MVD): Used in ABB’s ACS6000 and MEGADRIVE systems for efficient motor control.
-
High-Power Converters: Ideal for AC/DC and DC/DC conversion in industrial and renewable energy systems.
-
Traction and Locomotive Systems: 支持s high-current switching for traction inverters in electric railways.
-
Static VAR Compensators (SVC): Provides fast and efficient switching for reactive power compensation.
-
HVDC (High Voltage Direct Current) Transmission: Ensures efficient and reliable DC current control.
-
Wind Turbine Converters and Power Grids: Manages current flow and load balancing under varying generation conditions.
-
Industrial UPS and Energy Storage Systems: Enables robust and high-efficiency energy conversion.
Product Advantages
-
High Voltage and Current Capability: Handles up to 4500 V and 2000 A continuous current, suitable for heavy-duty systems.
-
Low Conduction and Switching Losses: Improves overall system efficiency and reduces heat generation.
-
Fast Turn-Off Performance: Delivers precise current control and fast protection response.
-
Integrated Gate 单位 Design: Minimizes inductance, improves reliability, and reduces driver complexity.
-
High Thermal Stability: 优秀 thermal management through low junction-to-case resistance.
-
Long-Term Reliability: Designed for continuous operation under high electrical and mechanical stress.
-
High Isolation Strength: 5000 Vrms insulation for safe integration into high-voltage assemblies.
-
Compact, Press-Pack Design: Ensures even current distribution and easy maintenance.
-
Rugged Ceramic Package: Resistant to vibration, temperature fluctuation, and harsh industrial environments.
-
Proven ABB Quality: Tested under ABB’s strict quality control for performance consistency and safety.
常见问题 (FAQ)
-
What type / semiconductor device is the ABB 5SGY3545L0014?
It is an IGCT (Integrated Gate-Commutated Thyristor), which combines the characteristics / an IGBT and a conventional thyristor. -
How does the IGCT differ from a standard IGBT?
The IGCT features circular gate drive and full wafer turn-/f, allowing higher current capacity and lower conduction losses than typical IGBTs. -
Can this module handle both AC and DC switching?
Yes, the 5SGY3545L0014 supports AC and DC switching operations in converters and inverters. -
What is the maximum blocking voltage rating?
The device supports up to 4500 V repetitive peak /f-state voltage (VDRM). -
Is the module isolated from the case?
Yes, it provides 5000 Vrms isolation between the semiconductor and the case for safe high-voltage operation. -
What type / cooling method is recommended?
The module can be cooled by forced air or liquid cooling, depending on the system’s power density and duty cycle. -
What are the typical switching frequencies supported?
The module can operate up to 2 kHz, depending on the application and thermal management. -
Does it require an external gate driver?
Yes, it works with a dedicated ABB gate 件, designed to match the module’s current and voltage characteristics. -
What kind / protection features are built-in?
The IGCT module includes short-circuit withstand capability, overtemperature protection, and reverse voltage blocking. -
Is this module compatible with ABB medium-voltage drives?
Yes, it is widely used in ABB ACS6000, MEGADRIVE-LCI, and ACS1000 drive systems for power conversion.
Related 型号s (Same Series)
| 型号 Number | 描述 | 分类 |
|---|---|---|
| 5SGY3545L0005 | 4500V, 1500A IGCT Module | Power Semiconductor |
| 5SGY3545L0010 | 4500V, 1800A IGCT Module | Power Switch Device |
| 5SGY3545L0012 | 4500V, 1900A IGCT Module | High-Power Converter Component |
| 5SGY3545L0015 | 4500V, 2200A IGCT Module | Medium Voltage Converter |
| 5SGY3545L0018 | 4500V, 2500A IGCT Module | Industrial Drive Component |
| 5SGY3545L0020 | 4500V, 2800A IGCT Module | High-Current Power Device |
Popular ABB 型号s (Same 品牌)
| 型号 Number | 描述 | 分类 |
|---|---|---|
| ABB PM866K01 3BSE050198R1 | AC800M Controller CPU | Control Processor |
| ABB DI810 3BSE008508R1 | 24V DC Digital Input Module | I/O Module |
| ABB DO810 3BSE008510R1 | 24V DC Digital Output Module | I/O Module |
| ABB AI810 3BSE008516R1 | Analog Input Module | I/O Module |
| ABB AO810 3BSE008522R1 | Analog Output Module | I/O Module |
| ABB CI854A 3BSE030220R1 | PROFIBUS Communication Interface | Communication Module |
