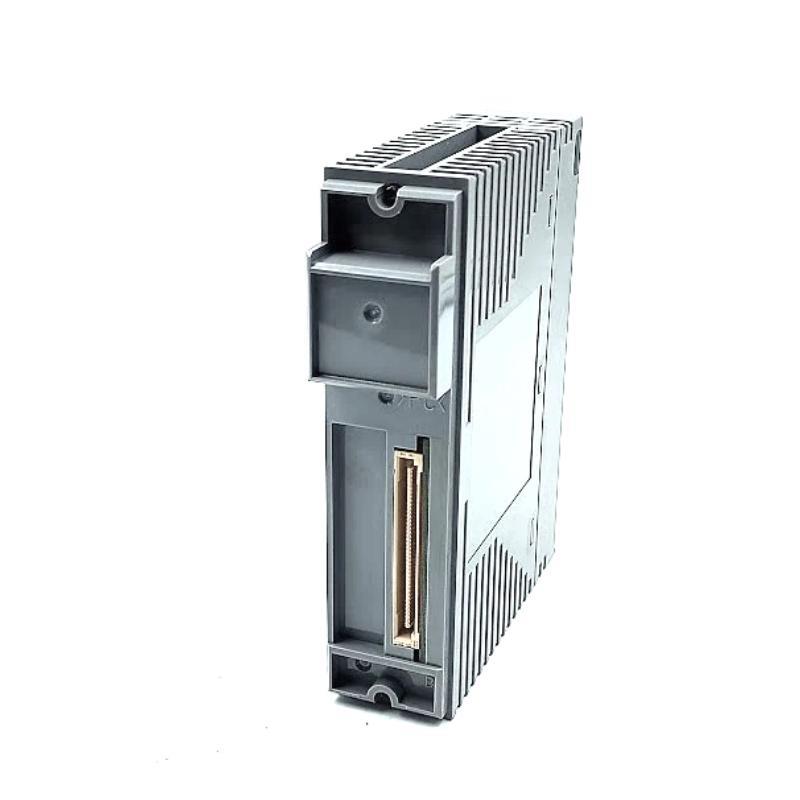

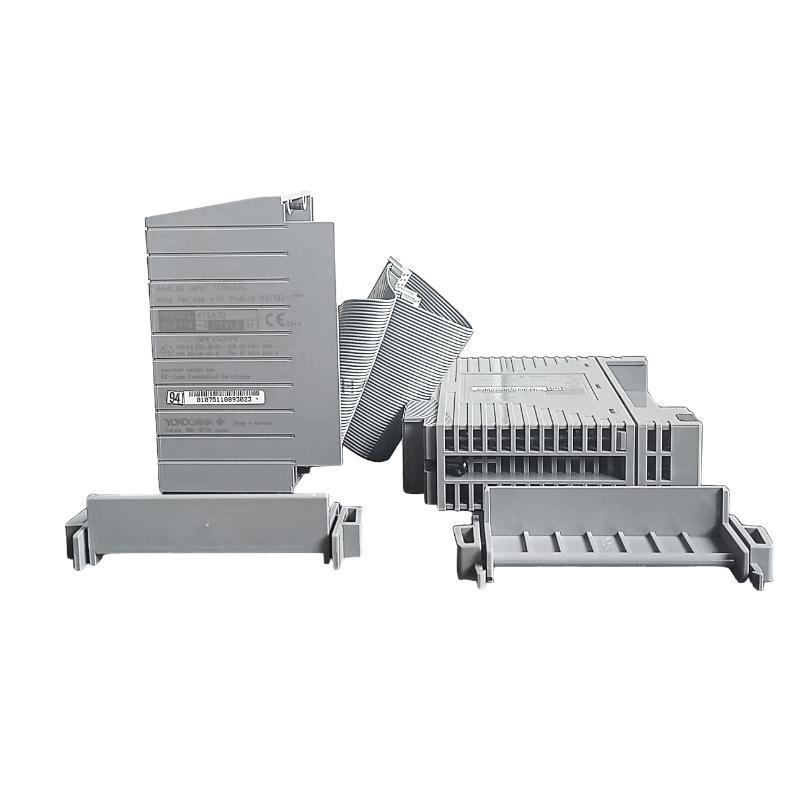

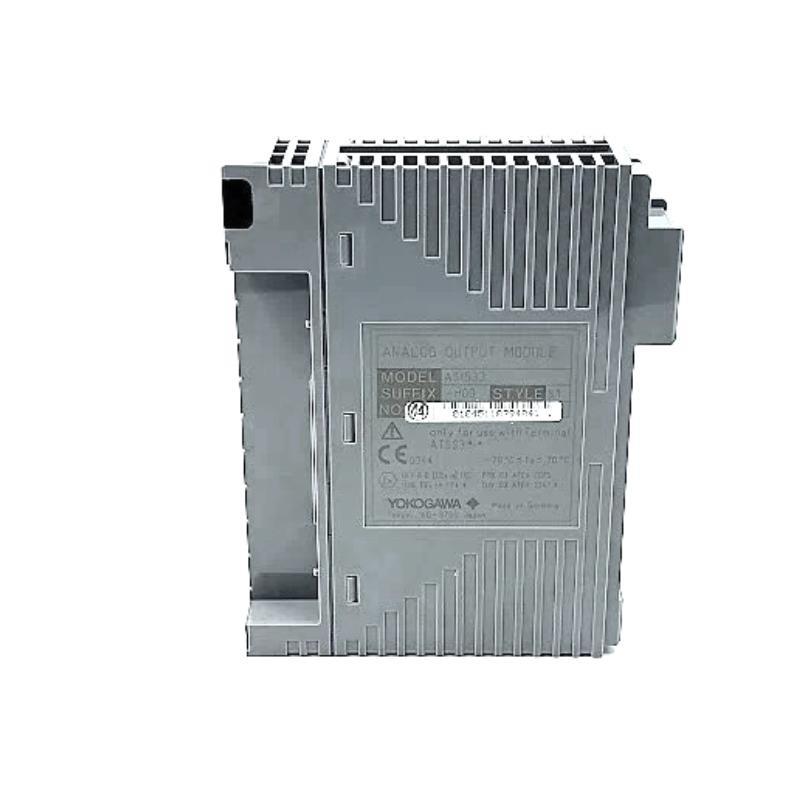

The Yokogawa ASI533-S00/SS3S0 is an industrial-grade analog output module designed for process control systems. It provides precise 4–20 mA current outputs across 8 isolated channels, ensuring accurate control / actuators, valves, and other field devices. Its compact and robust design allows easy installation within control cabinets and /fers high reliability in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Signal | 4–20 mA |
| Number / Channels | 8 (isolated) |
| Output Load Resistance | 0–750 Ω (at 20 mA) |
| Accuracy | ±0.1% Full Scale |
| Update Time | 10 ms per channel |
| Power Supply | 24 V DC nominal |
| Power Consumption | 6 W typical |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| Dimensions | 107.5 × 130 × 32.8 mm |
| 重量 | 0.3 kg |
| Terminal Interface | Crimped terminal block ATSS3S-0 |
| Redundant Configuration | Dual redundant option available |
Applications
-
Process automation systems requiring precise analog output control.
-
Actuator and control valve signal interfacing.
-
Integration with PLCs for proportional signal conversion.
-
Field device monitoring and feedback control loops.
Advantages
-
High-precision signal conversion for reliable process control.
-
Compact design for efficient cabinet space utilization.
-
Robust construction suited for harsh industrial environments.
-
Easy installation and maintenance, minimizing system downtime.
-
支持s redundant configuration for increased system availability.
常见问题 (FAQ)
1. What is the maximum load resistance supported by ASI533-S00?
The module supports a load resistance up to 750 Ω at 20 mA output.
2. How many channels does the module provide?
It provides 8 isolated analog output channels.
3. What is the update time / the analog outputs?
Each channel updates at a rate / 10 milliseconds.
4. Can this module be used in redundant configuration?
Yes, dual redundant configuration is supported for increased reliability.
5. What is the accuracy / the output signal?
The output accuracy is ±0.1% / full scale.
6. What are the operating temperature limits?
It operates between -10°C and +60°C.
7. What power supply does the module require?
The module requires a 24 V DC nominal supply.
8. What is the module weight and dimensions?
The module measures 107.5 × 130 × 32.8 mm and weighs 0.3 kg.
9. Does the module support HART communication?
The standard ASI533-S00/SS3S0 does not include HART; HART-capable versions are available.
10. How is the module connected to field devices?
It uses crimped terminal blocks (ATSS3S-0) for reliable field wiring.
