产品介绍

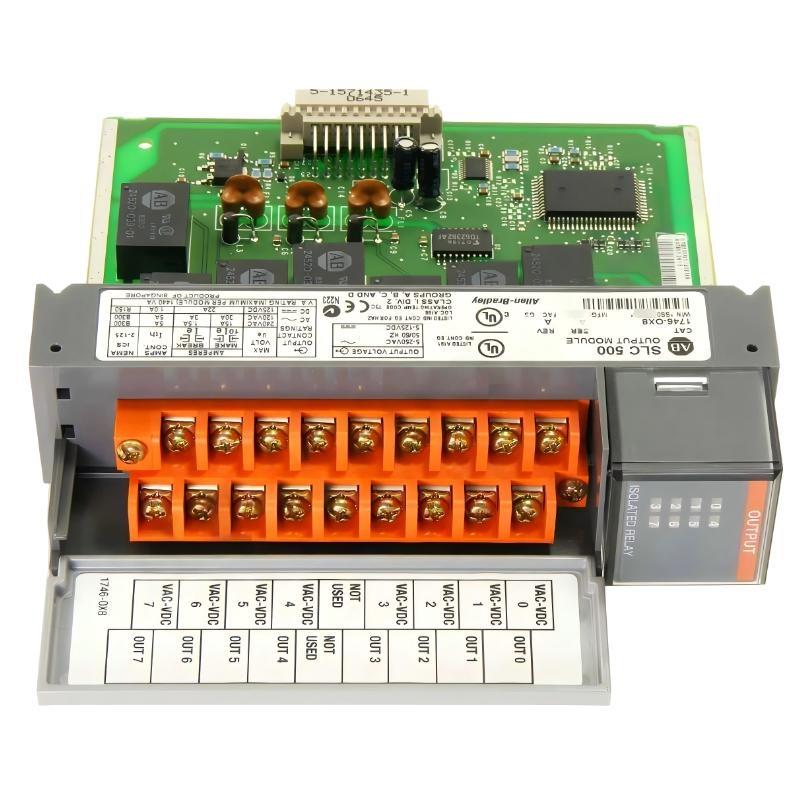

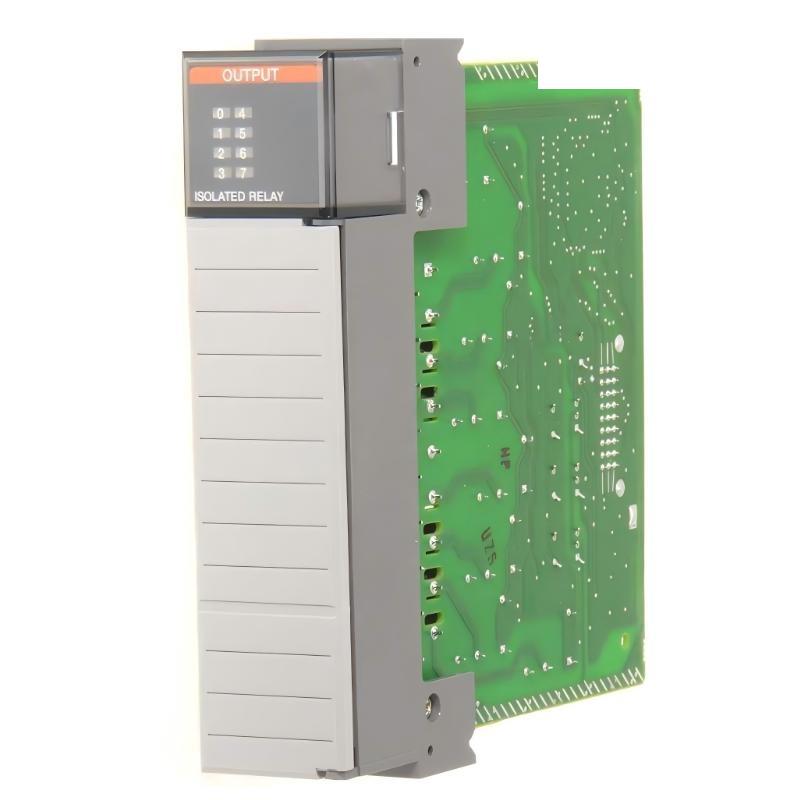

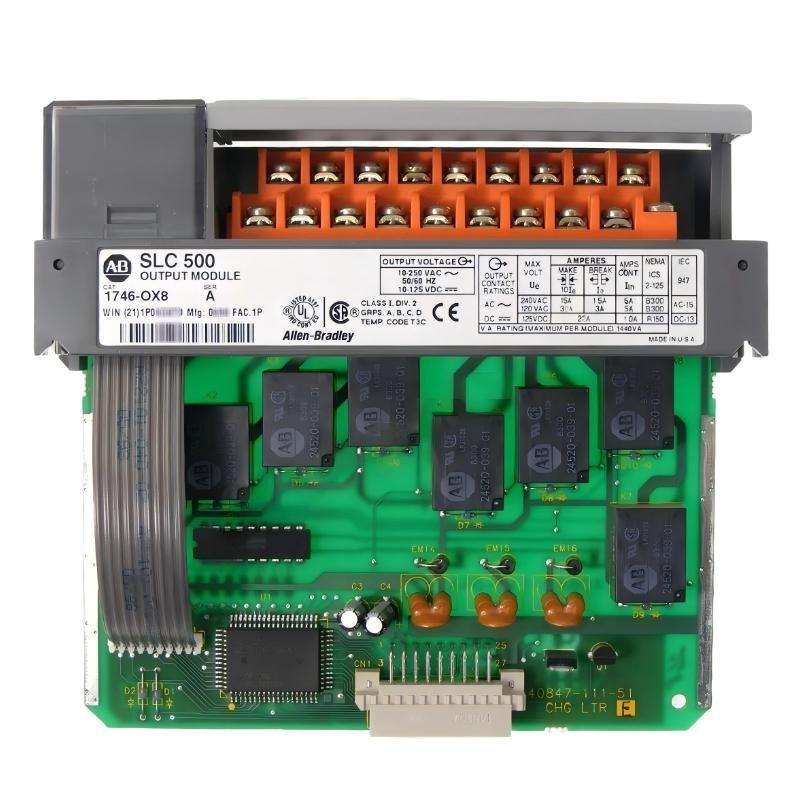

The Allen-Bradley 1746-OX8 is an isolated relay output module designed for the SLC 500 programmable controller family. It is intended for applications that require high electrical isolation, robust switching capability, and reliable control / higher-power field devices.
This module provides 8 independent relay output points, each capable / switching up to 5 A, supporting 265 VAC or 125 VDC at 50/60 Hz. The isolated relay design ensures strong separation between the PLC backplane and field wiring, making the 1746-OX8 especially suitable for noisy electrical environments or systems with mixed power domains.
The 1746-OX8 is widely used in industrial automation systems where safety, flexibility, and durability are critical. It integrates seamlessly into SLC 500 I/O chassis and is commonly selected for controlling contactors, motor starters, valves, and other power-demanding devices.
产品规格
| Parameter | 描述 |
|---|---|
| Module Type | Isolated Relay Output Module |
| Series | SLC 500 |
| Number / Output Points | 8 |
| Output Technology | Electromechanical relay |
| Isolation Type | Fully isolated relay contacts |
| Maximum Switching Current | 5 A per output |
| AC Output Voltage | Up to 265 VAC |
| DC Output Voltage | Up to 125 VDC |
| Operating Frequency | 50/60 Hz |
| Output Control | Individually controlled by SLC 500 processor |
| Load Compatibility | AC and DC loads |
| Electrical Protection | Galvanic isolation between field and backplane |
| Backplane Interface | SLC 500 I/O chassis |
| Operating Mode | Continuous industrial operation |
| Installation | Plug-in I/O module |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| 重量 | 0.295 kg |
Applications
• Power control systems, switching contactors, motor starters, and control relays
• Industrial machinery, controlling valves, solenoids, and auxiliary devices
• Mixed-voltage environments, where strong electrical isolation is required
• Process automation panels, ensuring safe separation between PLC logic and field power
• Material handling systems, driving higher-current AC or DC loads
• Legacy SLC 500 systems, adding isolated relay outputs for system expansion
Advantages
• High-current switching capability, suitable for demanding industrial loads
• Isolated relay outputs, protecting PLC electronics from electrical noise and transients
• Wide voltage compatibility, supporting both AC and DC power systems
• Independent output control, allowing flexible and precise switching
• Reliable electromechanical design, proven in industrial environments
• Seamless SLC 500 integration, simplifying configuration, replacement, and upgrades
