产品介绍

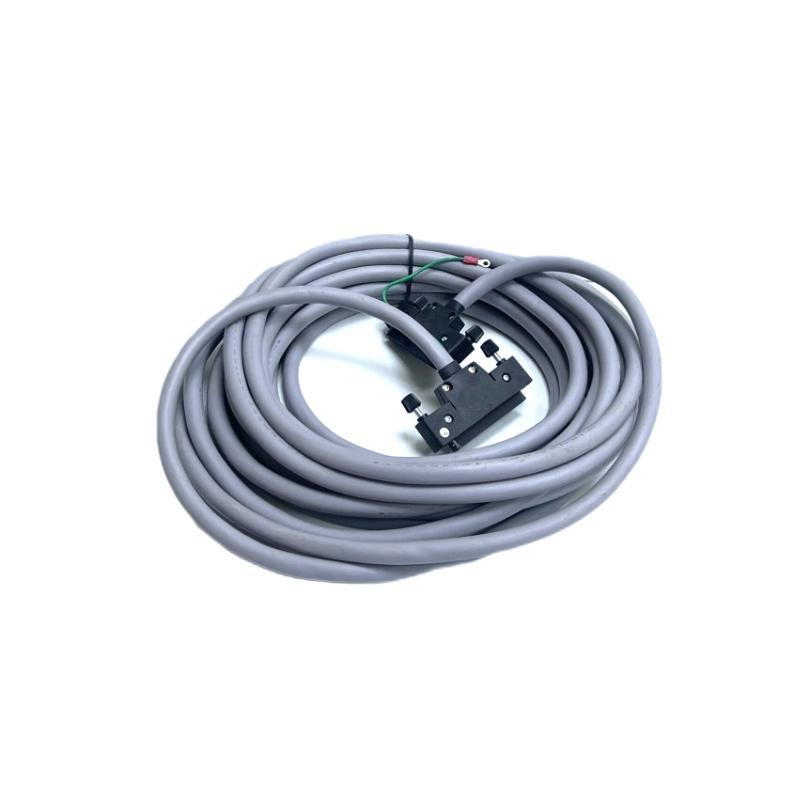

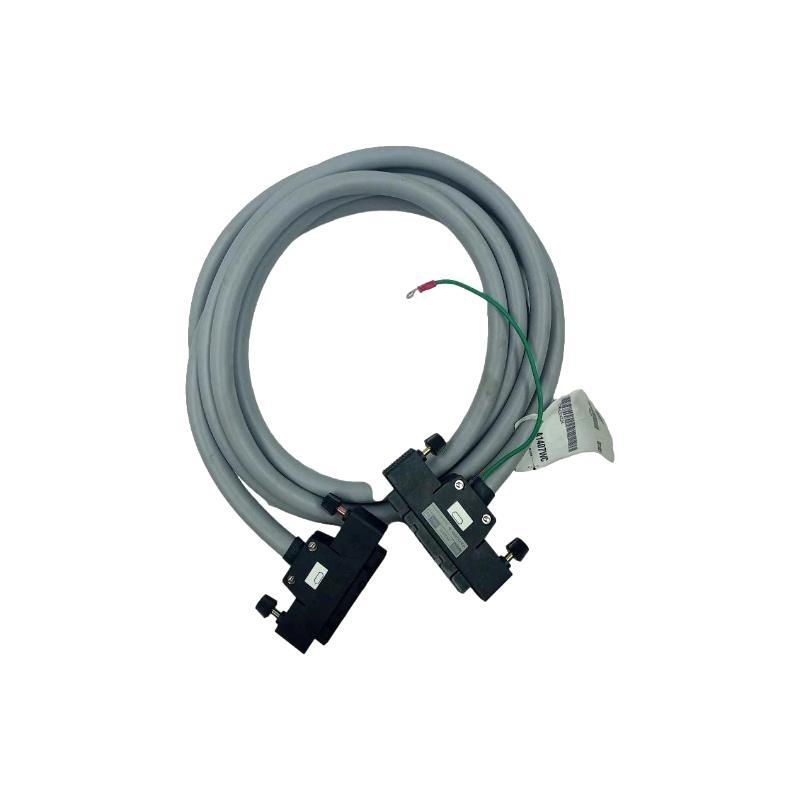

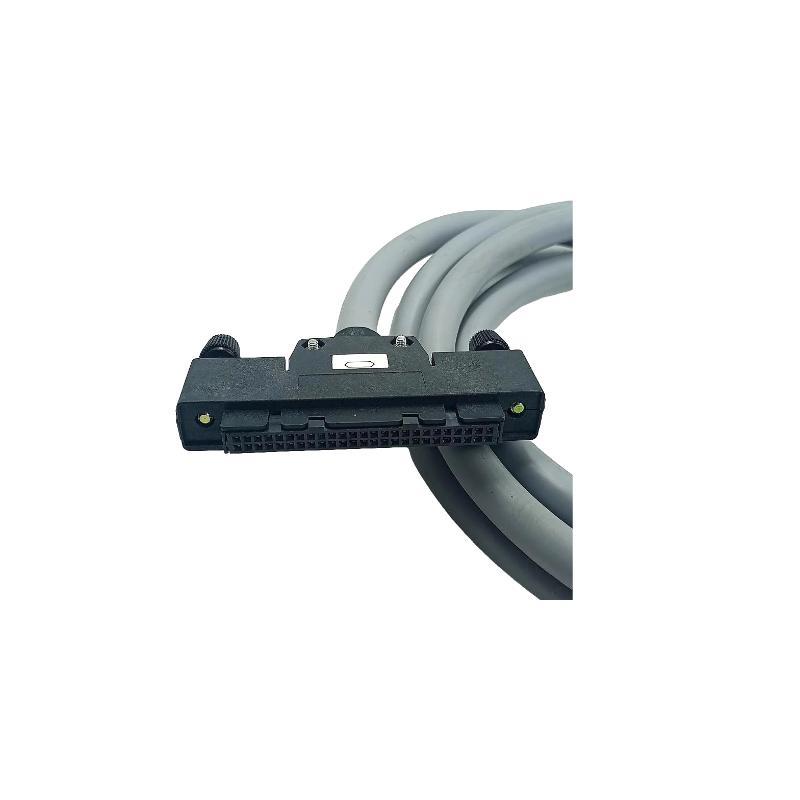

The Yokogawa AKB331 Signal Cable is a premium-grade industrial signal transmission cable engineered for compatibility with Yokogawa’s high-reliability process control and automation systems. Designed to ensure precise and low-noise transmission / analog and digital signals, the AKB331 is a vital interconnection component in control cabinets, distributed control systems (DCS), safety instrumented systems (SIS), and field device integration setups. Its robust shielding, flame-retardant insulation, and industrial durability make it suitable for mission-critical environments including petrochemical plants, power stations, and manufacturing automation systems.
Whether connecting I/O modules to control processors or sensors to field junction boxes, the AKB331 provides outstanding performance in noise imm件y, flexibility, and long-term operational stability.
Technical Specifications
| Specification | Details |
|---|---|
| 制造商 | 横河 Corporation |
| Product 型号 | AKB331 |
| Product Type | Industrial Signal Cable |
| Cable Structure | Multi-core shielded twisted pair |
| Number / Pairs | 1 pair (2 conductors) |
| Conductor Material | Annealed tinned copper |
| Conductor Size | 0.75 mm² (approx. 18 AWG) |
| Voltage Rating | 300V AC/DC |
| Shielding Type | Aluminum-Mylar foil with drain wire |
| Outer Jacket Material | PVC, flame-retardant |
| Insulation Material | Polyethylene |
| Color Code | Standard color-coded insulation |
| Operating Temperature | -25°C to +80°C |
| Minimum Bending Radius | 10 × cable outer diameter |
| Cable Diameter | 1-50 m |
| 重量 (Approx.) | 0.9 kg |
| 可用 Lengths | 10 m / 20 m / 30 m / Custom lengths available |
| Environmental Rating | Suitable for indoor, cabinet, and protected outdoor industrial installations |
Applications
The AKB331 Signal Cable is designed for high-reliability communication and data transmission within Yokogawa’s instrumentation network. Its key application areas include:
-
Control Cabinets: Connecting analog input/output modules to field terminals.
-
Process Plants: Transmitting sensor data from temperature, flow, and pressure transmitters to control systems.
-
DCS Systems (CENTUM VP, CS3000): Used for signal integrity between system modules and field I/O.
-
Chemical and Oil Refineries: Resistant to EMI and environmental challenges in hazardous areas.
-
Power Generation: Ideal for turbine control, boiler monitoring, and auxiliary process communication.
-
SIS and ESD Systems: Ensures secure and noise-free data for safety shutdown signals.
Advantages
-
High Noise Imm件y: Aluminum shielding and twisted pair structure reduce electrical noise and interference.
-
Durable Outer Jacket: Flame-retardant and oil-resistant PVC sheath enhances longevity in industrial environments.
-
Flexible Installation: Compact diameter and multi-core construction enable easy cable routing and panel wiring.
-
Reliable Performance: Maintains signal quality over long distances and in electrically noisy environments.
-
System Integration: Fully compatible with Yokogawa DCS, PLCs, and SIS systems.
-
Safety Standards Compliant: Meets global industrial standards for flame resistance and electrical insulation.
-
Reduced Downtime: Designed for extended service life with minimal maintenance requirements.
-
Multiple Length Options: Pre-cut and custom lengths reduce installation time and material waste.
常见问题 (FAQ)
-
What is the primary use / the AKB331 Signal Cable?
It is used to carry low-voltage analog and digital signals between Yokogawa control devices and field instruments. -
Can the AKB331 be used in high-EMI environments?
Yes, its shielded construction is specifically designed to perform well in EMI-prone industrial settings. -
Is this cable suitable for outdoor installations?
It can be used in protected outdoor environments, but for exposed applications, additional conduit or UV-resistant versions are recommended. -
What conductor material is used in the AKB331?
The cable uses annealed tinned copper for excellent conductivity and corrosion resistance. -
Is the cable jacket oil-resistant?
Yes, the outer PVC jacket is oil- and flame-resistant, suitable for most industrial environments. -
Does it come in standard or custom lengths?
Both. Standard lengths like 10m and 20m are available, and it can also be ordered in custom lengths. -
Can this be used with non-Yokogawa systems?
Technically yes, it can be used with any compatible voltage-rated device, but it’s optimized for Yokogawa systems. -
What is the voltage rating / the AKB331?
It is rated for up to 300V AC/DC. -
What is the typical weight / a 20-meter cable?
0.9 kg. -
What safety certifications does the cable meet?
It conforms to IEC standards for flame retardancy, electrical insulation, and industrial-grade durability.
Recommended 型号s (Same Series or Related)
| 型号 | 描述 |
|---|---|
| AKB330 | 2-core signal cable for general industrial use |
| AKB332 | Multi-pair version for dense signal environments |
| AKB333 | Low-noise version with enhanced shielding |
| AKB331-YW | Yellow-jacketed version for easy identification |
| AKB335 | High-temperature variant for furnace and kiln use |
| AKB337 | Signal + power hybrid cable for field transmitter use |
Popular Yokogawa 型号s
| 型号 | Product Name | Application |
|---|---|---|
| CENTUM VP FCS | Field Control Station | Core controller for Yokogawa DCS systems |
| EJX530A | Pressure Transmitter | High-accuracy differential pressure measurement |
| YHC5150X | Field Communicator | Configures field instruments (HART, FF, etc.) |
| ADMAG AXF | Magnetic Flowmeter | Liquid flow measurement in various industries |
| YTA610 | Temperature Transmitter | Analog output temperature transmission |
| GX20 | Paperless Recorder | Process |
