产品介绍

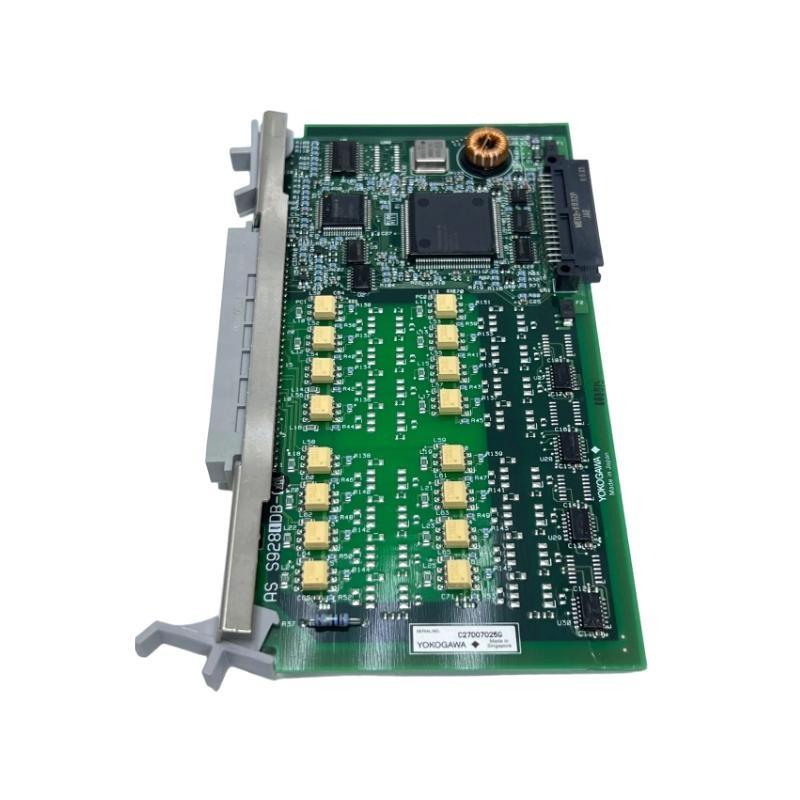

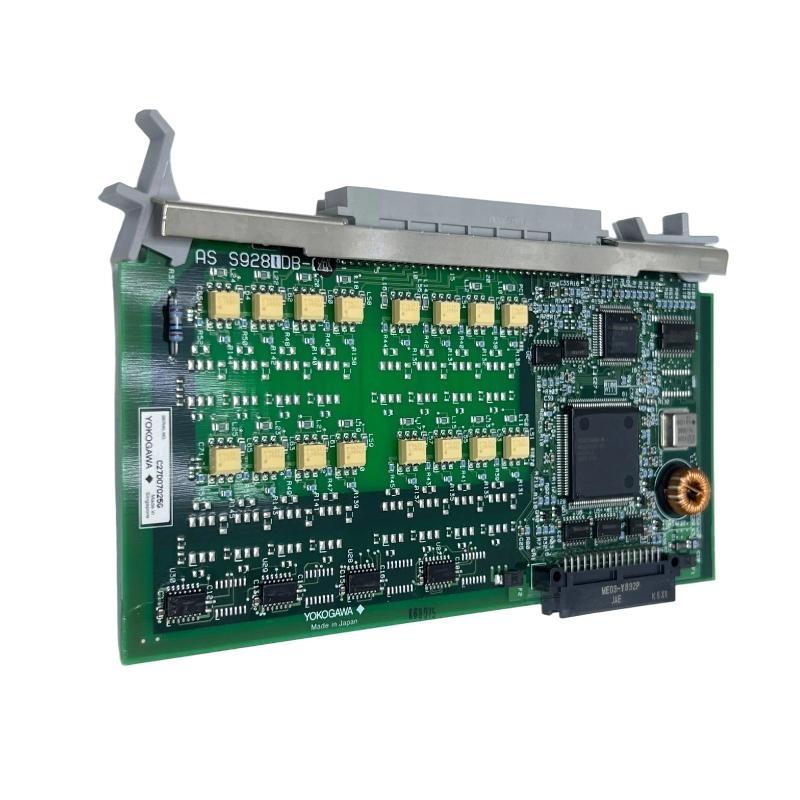

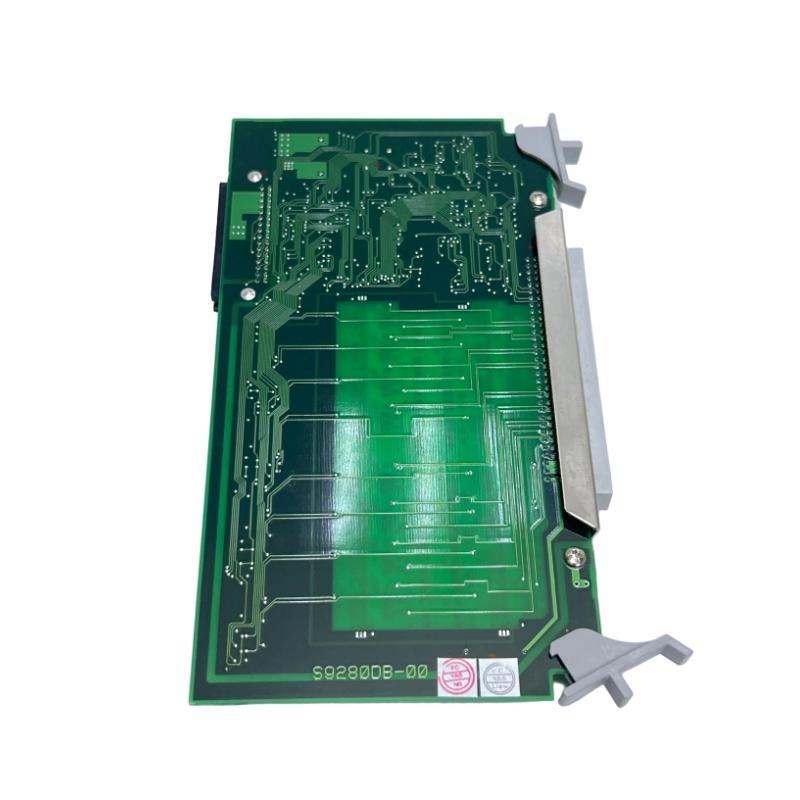

The Yokogawa ADM51 联系我们 Output Module is a high-performance digital output module designed for driving field devices through contact signals in Yokogawa control systems such as CENTUM VP and ProSafe-RS. The module converts digital output commands from the control system into reliable contact outputs for actuators, alarms, relays, and other field devices.
ADM51 is engineered for high-speed, reliable operation in industrial environments. Its robust design ensures precise output switching and fault detection, providing operators with dependable control / safety and process devices. This module is widely used in oil & gas, chemical, petrochemical, power generation, and water treatment facilities where precise, timely, and reliable control / field devices is essential.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | ADM51 |
| Series | Yokogawa 联系我们 Output Module |
| Function | Digital contact output for field devices |
| Number / Output Channels | 16 channels per module |
| Output Type | Relay contact outputs |
| Load Capacity | AC: 250 V / 3 A, DC: 30 V / 3 A |
| Response Time | ≤ 10 ms per channel |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Redundancy 支持 | No, standard single-path output |
| Diagnostic Functions | Output status monitoring, short-circuit detection, channel error reporting |
| Operating Temperature | 0°C to +55°C |
| Power Supply | 24 VDC via system backplane |
| Communication Interface | Backplane bus compatible with CENTUM VP/ProSafe-RS |
| Dimensions | 125 x 130 x 248 mm |
| 重量 | 2 kg |
| Mounting | DIN rail or system backplane installation |
| Certifications | CE, UL, CSA, ATEX (depending on configuration) |
Product Applications
The ADM51 module is used to provide reliable contact outputs for industrial process control and automation systems:
-
Process Plants – Drives alarms, relays, and actuators from control system outputs.
-
Oil & Gas Facilities – Controls solenoid valves, trip relays, and interlock devices.
-
Power Generation – Provides contact outputs for breakers, relays, and auxiliary equipment.
-
Water & Wastewater Treatment – Activates pumps, valves, and warning systems.
-
Chemical & Petrochemical Plants – Controls safety interlocks, alarms, and automated equipment.
-
Refineries – Ensures accurate and reliable control / safety-critical field devices.
Product Advantages
-
High Channel Density – 16 discrete output channels per module.
-
Fast Response – ≤ 10 ms per channel enables near real-time output switching.
-
Robust Isolation – Channel-to-channel and channel-to-system isolation minimizes interference.
-
Reliable Monitoring – Continuous output status monitoring and error detection.
-
Flexible Installation – 支持s DIN rail or backplane mounting for easy integration.
-
Seamless System Integration – Fully compatible with CENTUM VP and ProSafe-RS systems.
FAQ
-
What type / output does ADM51 provide?
Relay contact outputs for AC and DC loads. -
How many output channels are available per module?
16 discrete output channels. -
What is the maximum response time per channel?
≤ 10 ms per channel. -
Does ADM51 provide channel-to-channel isolation?
Yes, full isolation between channels and from the system is provided. -
Can the module monitor output status in real-time?
Yes, it continuously monitors output states and reports errors. -
What is the operating temperature range / the module?
0°C to +55°C. -
How is the module powered?
Powered via 24 VDC supplied by the system backplane. -
Can it be mounted on DIN rails?
Yes, supports both DIN rail and system backplane installation. -
Does ADM51 support redundant output paths?
No, it is a standard single-path output module. -
Which certifications does ADM51 hold?
CE, UL, CSA, and ATEX depending on the configuration.
Related 型号s (Same Series or Compatible)
| 型号 | 描述 |
|---|---|
| ADM50 | Standard digital output module with 16 channels. |
| ADM51C | 联系我们 output module with enhanced diagnostics. |
| ADM52 | High-density output module with 32 channels. |
| ADM53 | Relay output module for hazardous area applications. |
| ADM54 | Mixed signal output module combining analog and digital outputs. |
| ADM55 | Redundant output module for critical process control. |
