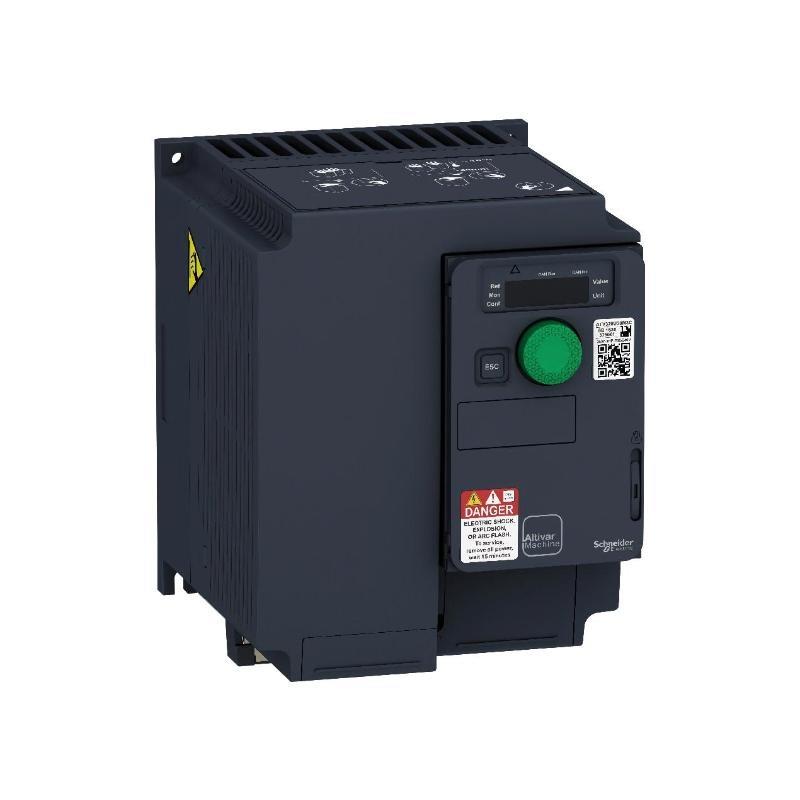

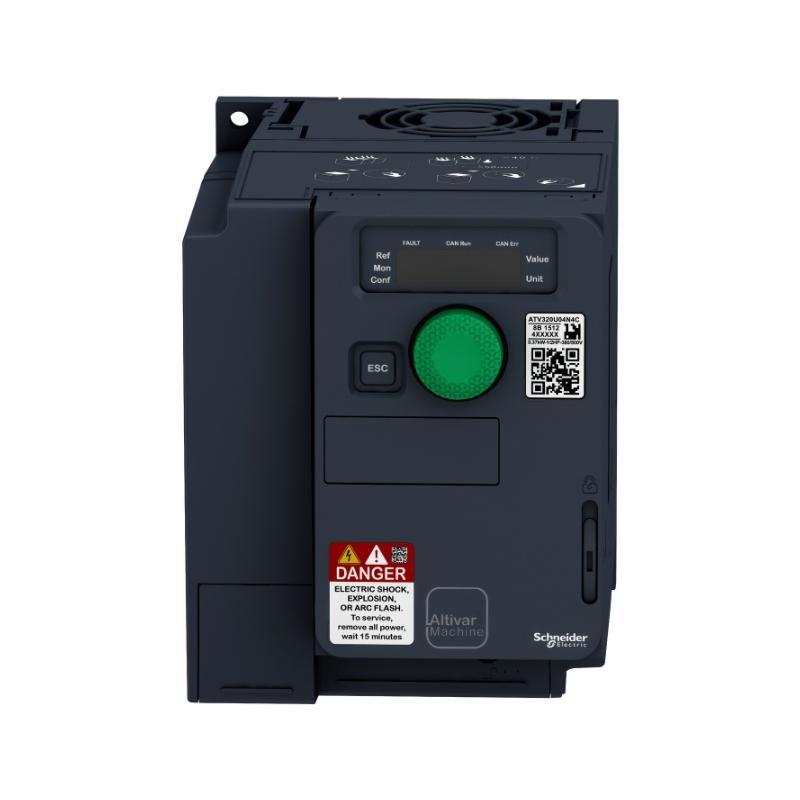

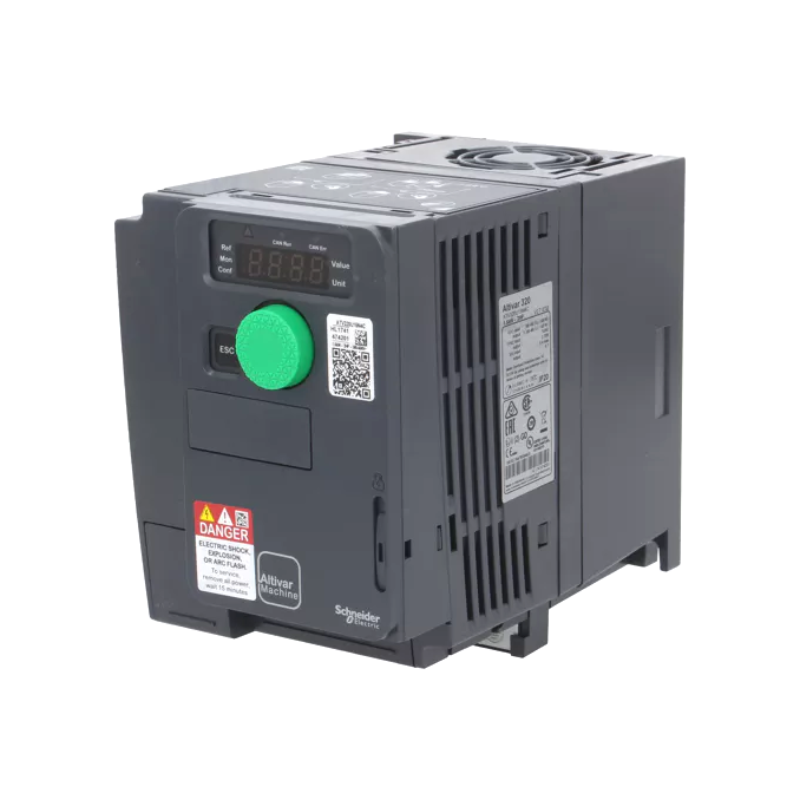

The Schneider ATV320U15N4C is an advanced variable speed drive (VSD) from the Altivar Machine ATV320 series, designed specifically to meet the diverse demands / machine manufacturers. 支持ing asynchronous and permanent magnet motors, it /fers robust performance and precise motor control in a compact and highly durable enclosure. Its flexibility and integration capabilities make it an essential component for automation, packaging, material handling, and a broad range / machine applications where space, reliability, and easy integration are priorities.
Product Advantages
– Versatile motor support: Compatible with both asynchronous motors and permanent magnet motors.
– Compact design: 保存s cabinet space, ideal for machine builders and retr/its.
– Integrated safety: Includes built-in Safe Torque Off (STO) function to simplify compliance with machine safety standards.
– Flexible communication: 支持s a variety / industrial protocols including Modbus, CANopen, and options for Ethernet-based networks.
– Wide operating temperature range: Designed to operate reliably in harsh environments.
– Energy efficiency: Reduces power consumption through advanced motor control algorithms.
– Simple setup & diagnostics: Intuitive programming via integrated display and s/tware tools like SoMove.
– Global standards compliance: Meets international standards such as IEC, UL, CSA, and EAC, supporting worldwide applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Schneider ATV320U15N4C |
| Series | Altivar Machine ATV320 |
| Input Voltage | Three-phase 380–500 V AC |
| Power Rating | 1.5 kW (2 HP) |
| Maximum Output Frequency | 599 Hz |
| Motor Control Type | V/F, Sensorless Vector Control, PM motor control |
| Integrated Safety Function | Safe Torque Off (STO) |
| Protection Degree | IP20 |
| Ambient Temperature Range | -10°C to +50°C without derating |
| Dimensions | 142x 158x 105mm |
| 重量 | 1.3 kg |
| Communication Protocols | Modbus, CANopen (integrated) |
| Compliance Standards | CE, UL, CSA, EAC, etc. |
Product Applications
The ATV320U15N4C is widely used in:
– Packaging machinery requiring precise speed and torque control
– Material handling systems including conveyors, hoists, and lifts
– Textile machines demanding reliable motor performance
– Food & beverage processing equipment
– Printing and paper machinery where space and efficiency matter
– Light machine tools and woodworking equipment
– Any small to mid-size machine application requiring flexible motor control
Product Advantages (Detailed)
In addition to the main features listed earlier, the ATV320U15N4C provides:
– Plug & play design: Quick connection for peripherals and option modules.
– Integrated EMC filters: Helps meet electromagnetic compatibility requirements.
– Expandable functionality: Can be paired with optional communication cards.
– Diagnostics & monitoring: Built-in event logging for quick troubleshooting.
– Reduced downtime: Robust design extends product life and minimizes service interruptions.
常见问题 (FAQ)
Q1: What motors can the ATV320U15N4C control?
A1: It controls standard asynchronous (induction) motors and permanent magnet motors, /fering flexibility in machine design.
Q2: Can I use it directly on a 400 V network?
A2: Yes, it is designed for three-phase networks from 380–500 V AC.
Q3: Does it have built-in safety functions?
A3: Yes, it includes Safe Torque Off (STO), certified up to SIL 3 / PLe.
Q4: Is s/tware required for basic setup?
A4: No, the drive can be configured directly through its local keypad; s/tware like SoMove is optional for advanced setup.
Q5: What communication protocols are supported?
A5: Modbus and CANopen are integrated; optional modules add Ethernet/IP, Pr/iNet, EtherCAT, etc.
Q6: Is it suitable for harsh environments?
A6: Yes, it operates up to +50°C without derating and features robust design.
Q7: How is maintenance performed?
A7: Preventive maintenance is supported by event logs and status monitoring, helping plan service before failure.
Q8: Can it be mounted side-by-side?
A8: Yes, thanks to its compact IP20 design, saving valuable panel space.
Q9: What is the typical lifespan?
A9: When used within specified conditions, it /ten exceeds 5 years / service.
Q10: How long is the warranty period?
A10: The standard warranty is 1 years, subject to proper usage and conditions.
Recommended Related 型号s (Same Series / Similar)
– ATV320U07N4C (0.75 kW)
– ATV320U22N4C (2.2 kW)
– ATV320U30N4C (3 kW)
– ATV320U40N4C (4 kW)
– ATV320U55N4C (5.5 kW)
– ATV320U75N4C (7.5 kW)
其他 Popular Schneider 型号s (With Specs)
| 型号 | Series | Power Rating | Input Voltage | Dimensions (H×W×D) mm | 重量 |
|---|---|---|---|---|---|
| ATV12H075M2 | Altivar 12 | 0.75 kW | 200–240 V | 142×72×130 | 1.1 kg |
| ATV212HU15N4 | Altivar 212 | 1.5 kW | 380–480 V | 184×110×152 | 2.2 kg |
| ATV340U22N4E | Altivar 340 | 2.2 kW | 380–480 V | 233×90×221 | 2.7 kg |
| ATV630D22N4 | Altivar Process | 2.2 kW | 380–480 V | 320×180×232 | 6.8 kg |
| ATV71HU15N4 | Altivar 71 | 1.5 kW | 380–480 V | 184×105×152 | 3.0 kg |
| ATV930D15N4 | Altivar Process | 1.5 kW | 380–480 V | 280×130×215 | 5.9 kg |
