产品介绍

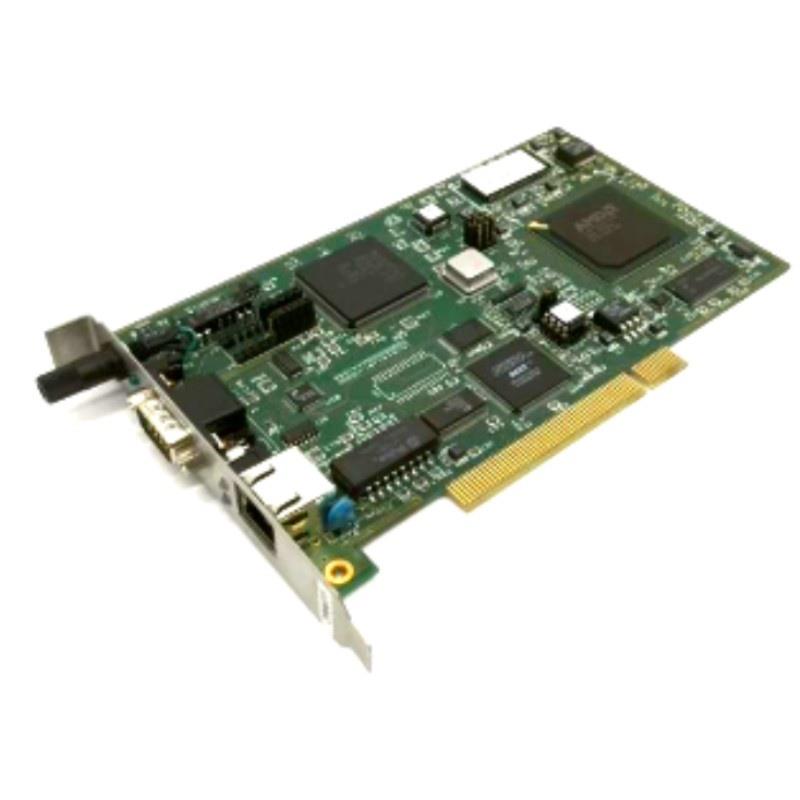

The 伍德沃德 PCU2000ETH Ethernet Card is designed as a high-performance communication module for integration with the PCU2000 controller system. It enables robust and reliable Ethernet-based communication, facilitating real-time monitoring, control, and data exchange between industrial devices. The card supports multiple networking protocols, enhancing flexibility in industrial automation, power generation, and turbine control applications.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | PCU2000ETH |
| Interface | 10/100 Mbps Ethernet |
| Protocol 支持 | Modbus TCP/IP, EtherNet/IP |
| Power Supply | 5 VDC |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Dimensions (mm) | 120 x 100 x 25 mm |
| 重量 (kg) | 0.18 kg |
| LED Indicators | Link/Activity, Power, Status |
| Mounting | PCU2000 Slot Module |
Product Applications
-
Integration with 伍德沃德 PCU2000 controllers in turbine and generator systems
-
Industrial automation networks for monitoring and control / process equipment
-
Remote access for diagnostics, configuration, and firmware updates
-
Data acquisition systems in power plants and distributed energy systems
-
Networking / multiple controllers for synchronized control
-
SCADA system integration for real-time monitoring
Product Advantages
-
High-speed Communication: Provides fast 10/100 Mbps Ethernet connectivity for real-time control.
-
Protocol Flexibility: 支持s Modbus TCP/IP and EtherNet/IP to ensure compatibility with diverse industrial networks.
-
Robust Design: Operates reliably in harsh industrial environments, with a wide temperature and humidity range.
-
Easy Integration: Directly plugs into the PCU2000 system without additional hardware requirements.
-
LED Status Indicators: Simplifies network diagnostics and troubleshooting.
-
Scalability: Facilitates connection / multiple devices in a networked control system.
FAQ
Q1: Can the PCU2000ETH card support both Modbus TCP/IP and EtherNet/IP simultaneously?
A1: Yes, the card can be configured to communicate using either protocol, but simultaneous communication on the same network port is not supported.
Q2: What is the maximum cable length supported for Ethernet communication?
A2: Standard Cat5e or Cat6 cables up to 100 meters are supported per Ethernet segment.
Q3: Can I use the PCU2000ETH card for redundant network communication?
A3: No, the card does not natively support network redundancy protocols such as HSR or PRP.
Q4: Is it possible to update the firmware / the PCU2000ETH card independently?
A4: Yes, firmware updates are performed through the PCU2000 controller s/tware interface.
Q5: What diagnostic tools are available for monitoring the card’s network performance?
A5: The card provides LED indicators for link and activity status and can be monitored via the PCU2000 diagnostic s/tware.
Q6: Can the card handle high-frequency data acquisition?
A6: Yes, it is optimized for industrial real-time data exchange and can handle high-speed communication typical for turbine control systems.
Q7: How does the PCU2000ETH card handle electromagnetic interference?
A7: The card is designed with industrial-grade shielding to maintain reliable operation in environments with EMI/RFI.
Q8: Can the card be hot-swapped while the PCU2000 is running?
A8: No, the card should be installed or removed only when the controller is powered down to avoid system errors.
Q9: Is the card compatible with third-party PLCs?
A9: It can communicate using standard Ethernet protocols, but full integration and functionality are guaranteed only with the 伍德沃德 PCU2000 system.
Q10: How are IP addresses configured on the PCU2000ETH card?
A10: IP addresses are assigned via the PCU2000 controller configuration s/tware, supporting both static and DHCP assignments.
