产品介绍

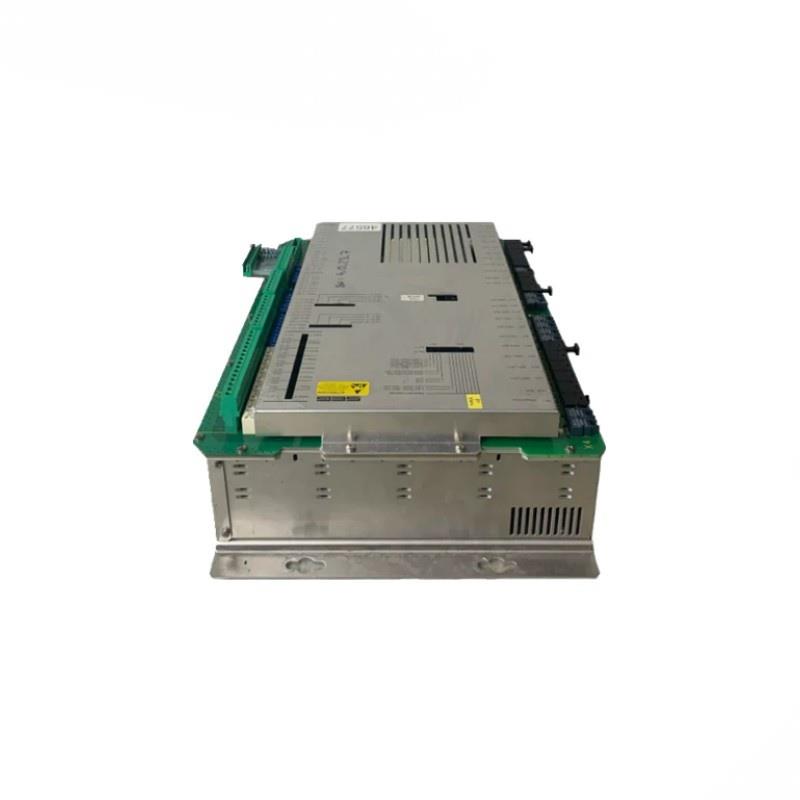

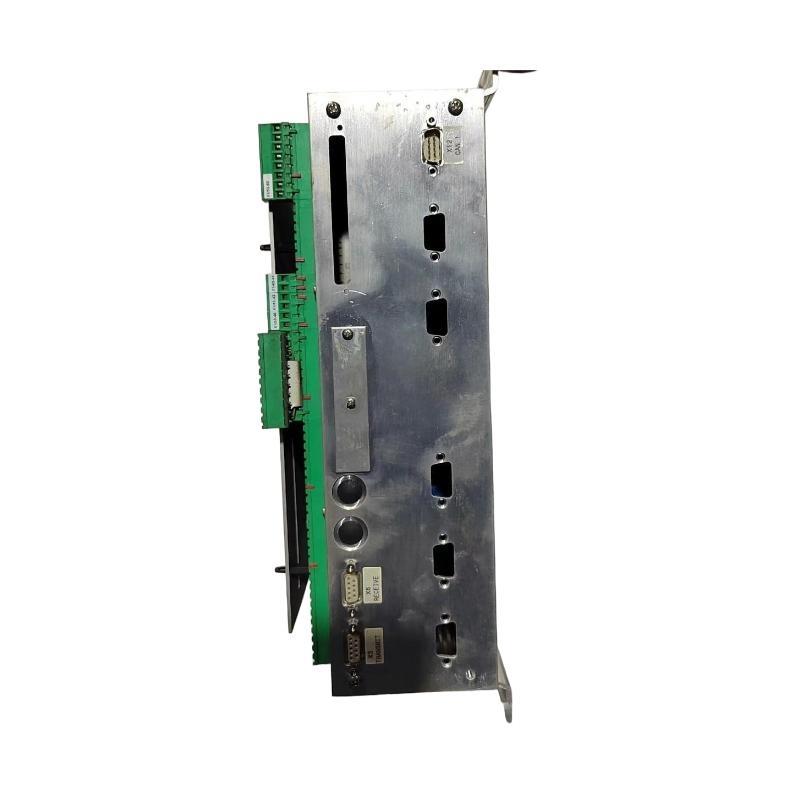

The 伍德沃德 CSC3HUWB Controller Module is a highly reliable and versatile control 件 designed for industrial engine and generator applications. It serves as a critical component in engine control systems, providing precise monitoring and control / speed, load, and safety functions. The module integrates seamlessly with 伍德沃德 control networks, enabling efficient and stable operation / complex machinery under varying operational conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | CSC3HUWB |
| Function | Controller Module for engine and generator control systems |
| Input Voltage | 24 VDC |
| Communication Interfaces | CAN, Modbus RTU, Ethernet (optional) |
| I/O Points | 16 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -50°C to +85°C |
| Protection Rating | IP65 |
| Dimensions | 200 x 150 x 75 mm |
| 重量 | 1.8 kg |
| Mounting | Panel or DIN-rail |
Product Applications
-
Power generation plants for engine speed and load control
-
Marine engines for propulsion and auxiliary systems
-
Industrial turbines for process and safety management
-
Backup and emergency generator systems
-
Distributed control systems for critical infrastructure
Product Advantages
-
High Reliability: Designed to operate in harsh industrial environments with wide temperature and vibration tolerance.
-
Comprehensive Control: Offers integrated monitoring and control / engine parameters for precise operation.
-
Flexible Communication: 支持s multiple industrial communication protocols for seamless integration.
-
Safety Functions: Built-in protections for overspeed, over-temperature, and emergency shutdown.
-
Easy Integration: Compatible with other 伍德沃德 modules and control networks.
-
Compact Design: Small footprint allows flexible installation in tight spaces.
FAQ
Q1: Can the CSC3HUWB handle multiple engine control configurations simultaneously?
A1: Yes, it supports multi-engine and multi-generator configurations with coordinated control logic.
Q2: What communication protocols are supported by the module?
A2: The module supports CAN, Modbus RTU, and optional Ethernet connectivity for network integration.
Q3: How does the module manage overspeed protection?
A3: The CSC3HUWB continuously monitors engine speed and triggers emergency shutdown when pre-set overspeed thresholds are exceeded.
Q4: Can it interface with existing 伍德沃德 analog sensors?
A4: Yes, it provides analog inputs compatible with standard 伍德沃德 sensors for temperature, pressure, and speed.
Q5: Is remote monitoring possible?
A5: Yes, remote monitoring is available via Ethernet or Modbus RTU connections to a central control system.
Q6: How are control parameters configured?
A6: Parameters can be configured using the 伍德沃德 configuration s/tware or via the module’s HMI interface.
Q7: Does the module include load sharing functionality?
A7: Yes, it supports load sharing among multiple generators in parallel operation.
Q8: Can it operate under extreme temperatures?
A8: Yes, the module is rated for -40°C to +70°C operational temperature range.
Q9: Are there built-in diagnostic features?
A9: Yes, the module provides fault logging, real-time alarms, and self-diagnostics for preventive maintenance.
Q10: Can the CSC3HUWB work with both diesel and gas engines?
A10: Yes, it is designed for flexibility and can control diesel, gas, and dual-fuel engines efficiently.
Related or Same-Series 型号s
| 型号 | 描述 |
|---|---|
| CSC3HUXB | High-performance controller for industrial engines |
| CSC3HUWA | Controller module with enhanced analog inputs |
| CSC3HUPB | Controller with integrated protective functions |
| CSC3HUWC | Compact variant for space-constrained applications |
| CSC3HUWD | Module with extended communication options |
| CSC3HUXC | Redundant control module for critical systems |
Popular 伍德沃德 型号s
| 型号 | 描述 |
|---|---|
| 2301A | Electronic governor module for small engines |
| 9907-135 | Driver module for engine speed and load control |
| 9903-543 | PLC module for automation and control integration |
| PCU2000ETH | Ethernet communication card for 伍德沃德 controllers |
| 9905-976 | Overspeed protection system |
| 9905-973 | Channel relay module |
| 2301D | Diesel engine governor |
| 9900-018 | Modular control system for industrial engines |
