产品介绍

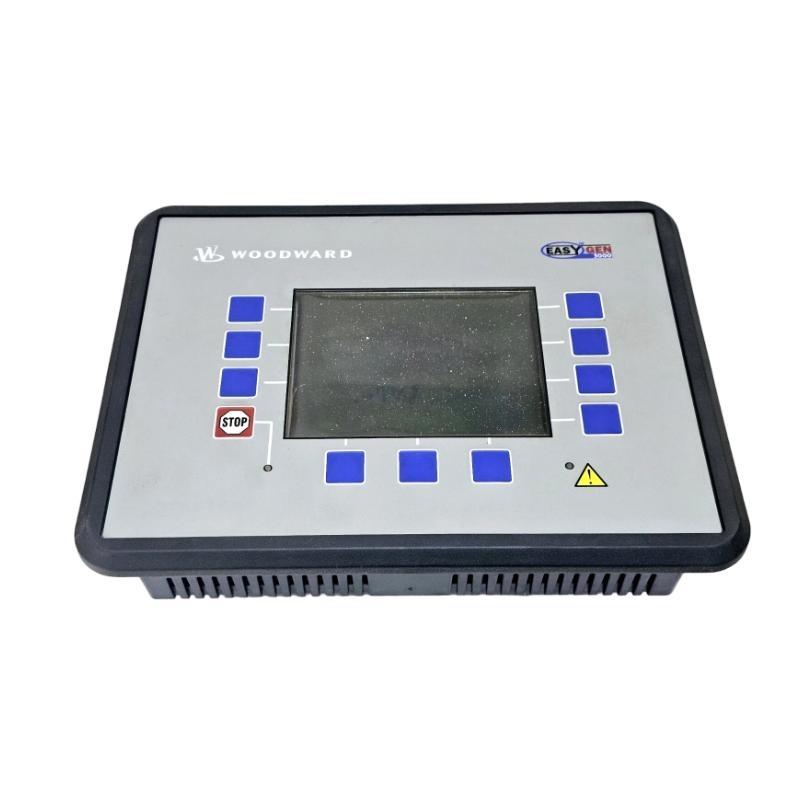

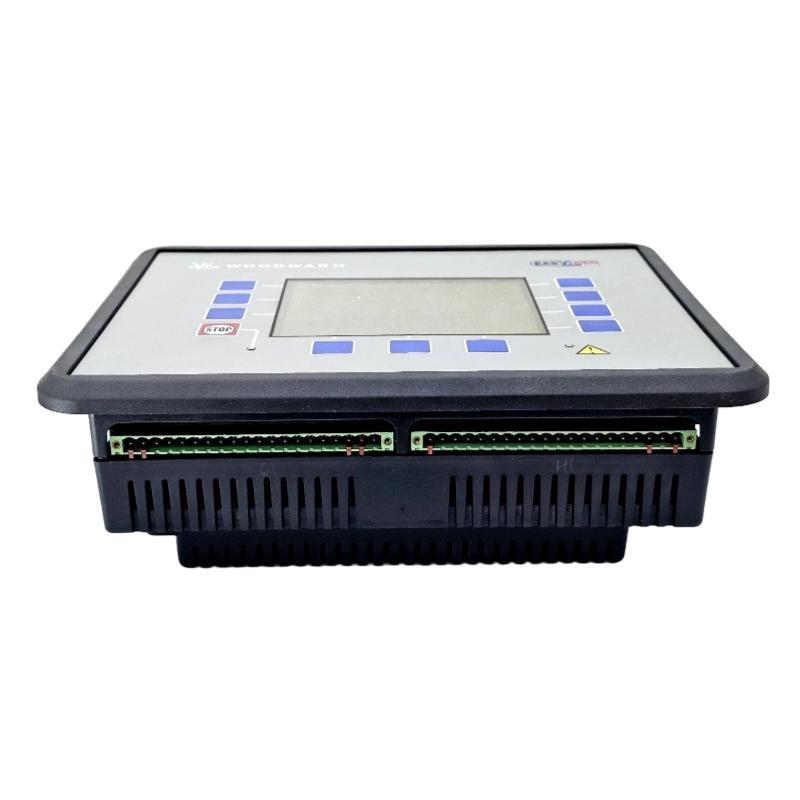

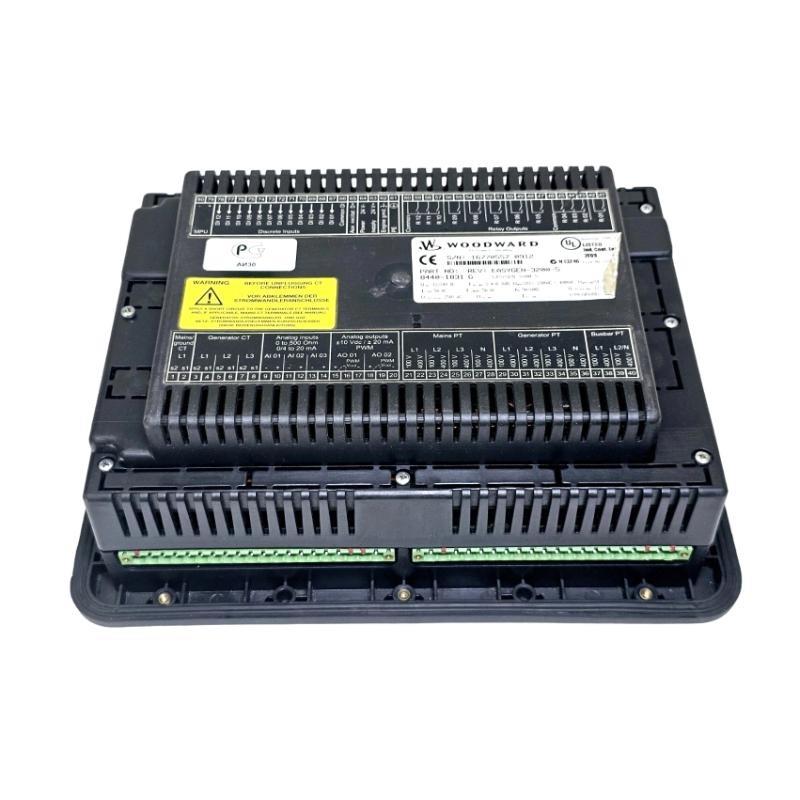

The 伍德沃德 8440-1831 Operator Interface Panel (OIP) is a robust and intelligent human-machine interface designed to provide operators with clear visibility and control over 伍德沃德-based engine and turbine management systems. Featuring a compact design with a 4.5 x 3.5-inch graphical screen, it serves as a user-friendly gateway for monitoring process data, configuring control parameters, and responding to alarms in real time.
Built for demanding industrial environments, the 8440-1831 combines intuitive navigation with rugged reliability. It is engineered to handle a variety / control architectures, making it a versatile component across power generation, oil and gas, marine, and process automation industries. Its compact footprint makes it suitable for panel-mounted installations where space is limited, while maintaining high standards / performance and operator convenience.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 8440-1831 |
| Product Type | Operator Interface Panel (OIP) |
| Display | 4.5 x 3.5-inch high-resolution graphical display |
| Input Methods | Keypad with tactile buttons and navigation keys |
| Communication Ports | RS-232, RS-485, Ethernet |
| 支持ed Protocols | Modbus TCP/IP, Modbus RTU, CANopen |
| Processor | Industrial-grade embedded CPU |
| Memory | 256 MB Flash, 512 MB RAM |
| Event Logging | Alarm and system event storage |
| Power Supply | 24 VDC nominal |
| Protection Features | Surge protection, reverse polarity protection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA, marine approvals |
| Dimensions | 280 x 130 x 60 mm |
| 重量 | 0.953 kg |
| Mounting | Panel-mounted |
| Diagnostics | Built-in self-test and error notification |
Applications
The 伍德沃德 8440-1831 OIP is deployed across multiple industries to facilitate operator interaction and system monitoring. Typical applications include:
-
Power Generation – Provides operator access to turbine and generator control systems.
-
Oil & Gas – Used for compressor, pump, and drilling rig control monitoring.
-
Marine Industry – Integrates with propulsion and auxiliary machinery management.
-
Petrochemical Plants – Ensures efficient process monitoring and system adjustments.
-
Industrial Manufacturing – Interfaces with automated processes and drive control systems.
-
Renewable Energy – 支持s monitoring for wind, hydro, and biomass power installations.
Advantages
The 8440-1831 Operator Interface Panel delivers significant advantages for industrial control applications:
-
Compact and Lightweight Design – Fits in limited space installations while maintaining functionality.
-
Clear Operator Visibility – The 4.5 x 3.5-inch display ensures accurate real-time data visualization.
-
Wide Communication Capability – Ethernet, RS-232, and RS-485 interfaces ensure flexible integration.
-
Industrial-Grade Reliability – Designed for continuous operation in demanding environments.
-
Built-in Event Logging – Stores alarms and system history for quick troubleshooting.
-
High Compatibility – Works seamlessly with 伍德沃德 control modules and third-party systems.
-
User-Friendly Operation – Intuitive navigation reduces operator training requirements.
-
Safety-Oriented Design – Equipped with surge and polarity protection to prevent accidental damage.
常见问题 (FAQ)
-
Which communication interfaces are supported by the 8440-1831 OIP?
It supports Ethernet, RS-232, and RS-485 interfaces. -
Does the panel support Modbus communication?
Yes, it supports Modbus TCP/IP and Modbus RTU protocols. -
How are system alarms displayed to the operator?
Alarms are shown on the graphical display and logged for later review. -
What is the required power input for the device?
The panel operates on a nominal 24 VDC supply. -
Can the 8440-1831 interface with redundant control systems?
Yes, it is capable / integrating into redundant system architectures. -
What memory resources are available in the panel?
It includes 256 MB / Flash memory and 512 MB / RAM for operation and event storage. -
How is operator input handled on the device?
Inputs are handled via a keypad with tactile buttons and navigation controls. -
What diagnostic features are included?
It has built-in self-tests, error detection, and on-screen notifications. -
Is this panel suitable for marine applications?
Yes, it carries marine certifications and is designed for maritime environments. -
Does the panel support event logging?
Yes, it stores alarms and system events for operator review and troubleshooting.
Related 伍德沃德 型号s (Same Series or Similar)
| 型号 Number | Module Type | 描述 |
|---|---|---|
| 8440-1830 | Operator Interface Panel | Compact OIP with standard communication options |
| 8440-1832 | Operator Interface Panel | Extended memory version for larger data storage |
| 8440-1833 | Operator Interface Panel | Ruggedized OIP for outdoor and marine environments |
| 8440-1834 | Operator Interface Panel | High-performance OIP with advanced logging |
| 8440-1835 | Operator Interface Panel | Touchscreen-based operator panel |
| 8440-1836 | Operator Interface Panel | 下一页-generation OIP with enhanced graphical interface |
Popular 伍德沃德 型号s (Same 品牌)
| 型号 Number | Module Type | 描述 |
|---|---|---|
| 2301E | Digital Control | Engine and turbine speed/load sharing controller |
| 505XT | Turbine Control | Advanced steam turbine controller |
| 723PLUS | Digital Controller | Flexible engine control solution |
| ProTech-GII | Overspeed Protection | High-integrity overspeed protection system |
| Flex500 | Digital Control Platform | Plant-wide scalable control system |
| Atlas-II | Turbine Control | Digital control system for gas turbines |
