产品介绍

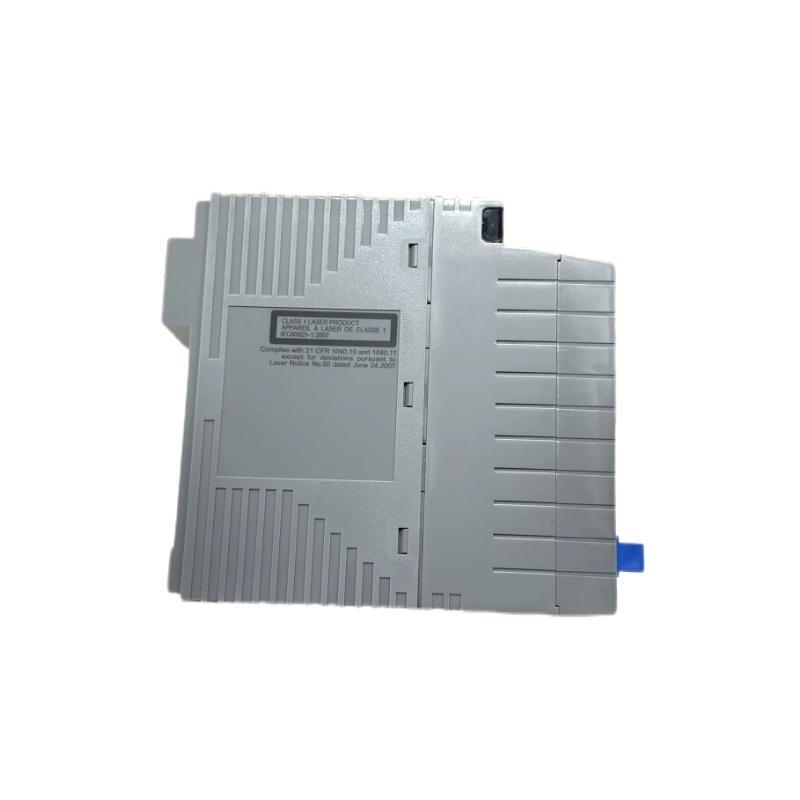

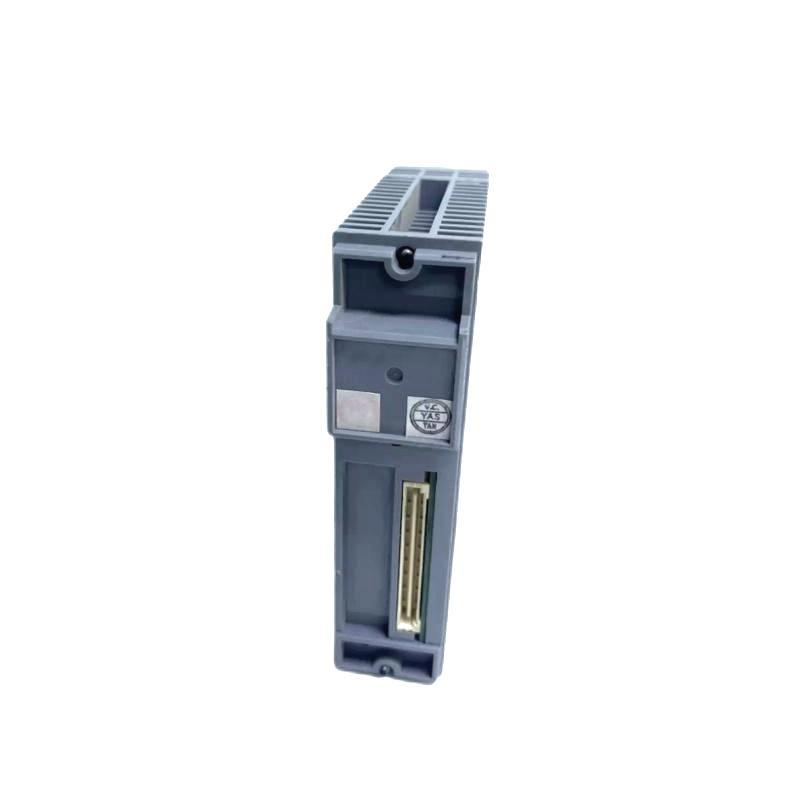

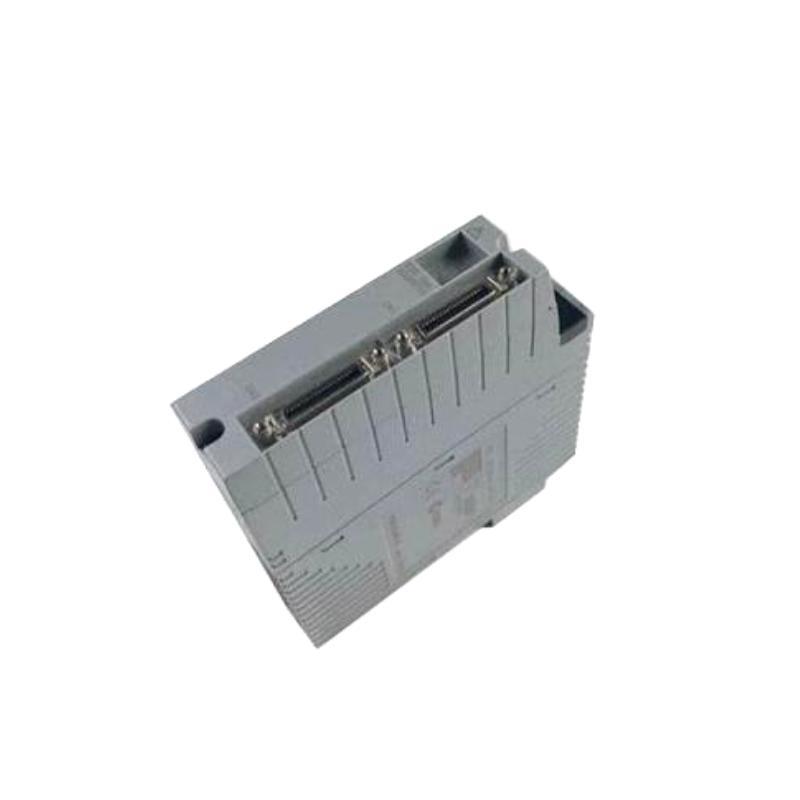

The Yokogawa ANT502-5F is an Optical ESB Bus Repeater Slave Module engineered to extend the communication capabilities / Yokogawa’s control systems. Designed for seamless integration within the Optical ESB Bus architecture, it facilitates reliable data transmission over extended distances, ensuring optimal performance in complex industrial environments. The ANT502-5F is typically installed in the Optical ESB Bus Node 单位 (ANB11) as a slave module and can also be utilized within the 单位 for Optical ESB Bus Repeater Module (ANT10U).
产品规格
| Parameter | Details |
|---|---|
| 制造商 | 横河 Corporation |
| 型号 Number | ANT502-5F |
| Function | ESB Bus Optical Transport (Slave Module) |
| Connection Types | Chain and Star Configurations |
| Maximum Stages (Chain) | 2 |
| Maximum Connections | 8 (paired connections between ANT401 and ANT502) |
| Maximum Transmission Distance | 5 km |
| Current Consumption | 0.5 A |
| 重量 | 0.25 kg |
| Dimensions (H x W x D) | 155.9 x 32.8 x 130 mm |
| Optical Connector Type | LC (compliant with IEC61754-20) |
| Optical Fiber Type | Quartz Single-Mode Optical Fiber |
| Required Number / Cores | 2 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN Rail Mount or System Rack |
| Certifications | CE, UL, CSA |
Applications
The Yokogawa ANT502-5F module is utilized in various industrial applications requiring extended communication distances and reliable data transmission:
-
Industrial Automation: Enhances communication between field control 件s and central systems over long distances.
-
Power Generation: Facilitates data transfer in large-scale power plants where control systems are spread across vast areas.
-
Oil & Gas: 支持s reliable communication in extensive pipeline monitoring and /fshore platforms.
-
Chemical Processing: Ensures consistent data flow in large chemical plants with multiple processing 件s.
-
Water Treatment: Enables centralized control and monitoring / widespread water treatment facilities.
-
Pharmaceutical: Assists in maintaining stringent control over dispersed manufacturing processes.
Product Advantages
-
Extended Communication Range: 支持s data transmission up to 5 km, accommodating large industrial complexes.
-
Flexible Network Topology: Compatible with both chain and star configurations, allowing adaptable system design.
-
High Reliability: Designed to maintain data integrity over long distances, reducing the risk / communication errors.
-
Compact and Lightweight: With a weight / 0.25 kg and compact dimensions, it allows for easy installation in space-constrained environments.
-
Standardized Connectivity: Utilizes LC optical connectors compliant with IEC61754-20, ensuring compatibility with standard fiber optic components.
-
Low Power Consumption: Operates with a current consumption / 0.5 A, promoting energy efficiency.
-
Robust Design: Built to withstand harsh industrial conditions, ensuring long-term operational stability.
-
Seamless Integration: Designed for compatibility with Yokogawa’s ANB11 and ANT10U 件s, facilitating straightforward system expansion.
Latest News Titles
-
Yokogawa Enhances Optical ESB Bus Capabilities with ANT502-5F Module
-
ANT502-5F Achieves Milestone in Long-Distance Industrial Communication
-
Yokogawa’s ANT502-5F Module Now Certified for Global Industrial Standards
-
Innovative Applications / ANT502-5F in Large-Scale Manufacturing
-
ANT502-5F Module: A Game-Changer in Industrial Network Expansion
-
Yokogawa Introduces Advanced Diagnostics for ANT502-5F Module
-
Successful Deployment / ANT502-5F in Multi-Site Industrial Operations
-
ANT502-5F Module Receives Industry Acclaim for Reliability and Performance
-
Yokogawa’s ANT502-5F Facilitates Seamless System Upgrades
-
Future-Pro/ing Industrial Networks with Yokogawa’s ANT502-5F Module
常见问题 (FAQ)
-
Q: What is the primary function / the ANT502-5F module?
A: The ANT502-5F serves as an Optical ESB Bus Repeater Slave Module, extending communication distances and enhancing data transmission reliability in Yokogawa control systems. -
Q: What are the supported network topologies for the ANT502-5F?
A: It supports both chain and star configurations, /fering flexibility in system design. -
Q: What is the maximum transmission distance / the ANT502-5F?
A: The module can transmit data over distances up to 5 km. -
Q: Is the ANT502-5F compatible with other Yokogawa modules?
A: Yes, it is designed for integration with Yokogawa’s ANB11 and ANT10U 件s. -
Q: What type / optical connectors does the ANT502-5F use?
A: It utilizes LC connectors compliant with IEC61754-20 standards. -
Q: What are the dimensions and weight / the ANT502-5F module?
A: The module measures 155.9 x 32.8 x 130 mm and weighs 0.25 kg. -
Q: What is the operating temperature range for the ANT502-5F?
A: The module operates effectively within a temperature range / -10°C to +55°C. -
Q: How many connections can the ANT502-5F support?
A: It supports up to 8 paired connections between ANT401 and ANT502 modules. -
Q: What is the current consumption / the ANT502-5F?
A: The module has a current consumption / 0.5 A - Q: Can the ANT502-5F be hot-swapped or replaced during system operation?
A: Hot-swapping is not recommended due to potential disruption / optical communication. Always follow Yokogawa’s /ficial maintenance procedures for module replacement.
Related 型号s from the Same Series or Architecture
| 型号 Number | 描述 | Function |
|---|---|---|
| ANT401-5F | Optical ESB Bus Repeater Master Module | Acts as the master counterpart to ANT502 |
| ANT10U | 单位 for Optical ESB Bus Repeater Module | Hosts the ANT401/502 modules |
| ANB11D | Optical ESB Bus Node 单位 | Mounts repeater modules like ANT502 |
| AAI543-H00 | Analog Input Module (ESB Bus Compatible) | Input signal acquisition |
| AAI835-H00 | RTD Input Module | Temperature monitoring over ESB |
| ANR10D | Network Repeater 单位 | Communication extension 件 |
| AAI141-H00 | Analog Input Module (High-speed, ESB Bus) | Signal acquisition for DCS |
| AAI841-H00 | Thermocouple Input Module | Temperature data input module |
Popular Yokogawa Modules Across 产品分类
| 型号 Number | 描述 | 分类 |
|---|---|---|
| AAI143-H50 | Analog Input Module, 16 ch, HART | Input Module |
| AAI841-H00 | Temperature Input Module, Thermocouple | Input Module |
| ADV551-P03 | Digital Output Module, 32 channels | Output Module |
| CP451-10 | Central Processing 单位 Module | Controller CPU |
| PW482-10 | Power Supply Module | Power Supply |
| AMM12C | Multi-point Analog Input Module | Legacy System Module |
| STARDOM FCN-RTU | Compact RTU Controller | Edge/Remote Controller |
| F3RP61-2L | Linux-based CPU module for PLC | PLC Controller |
