Product Overview

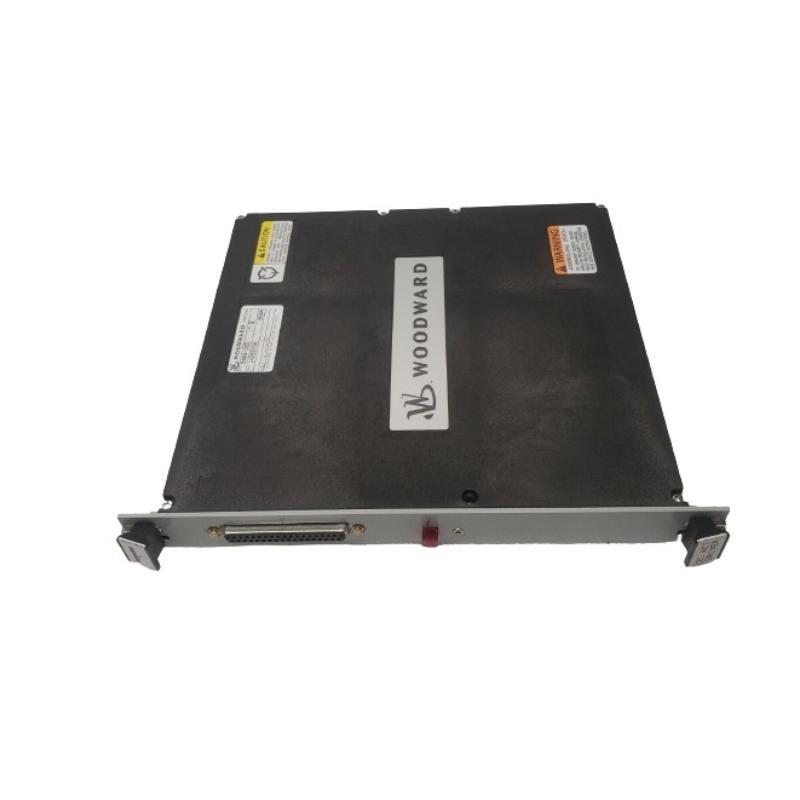

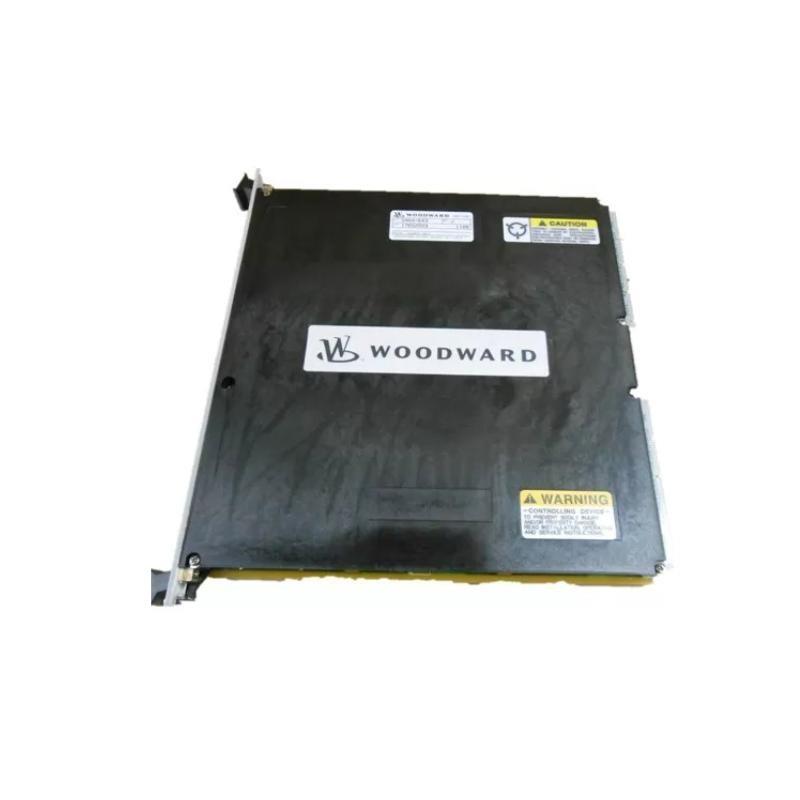

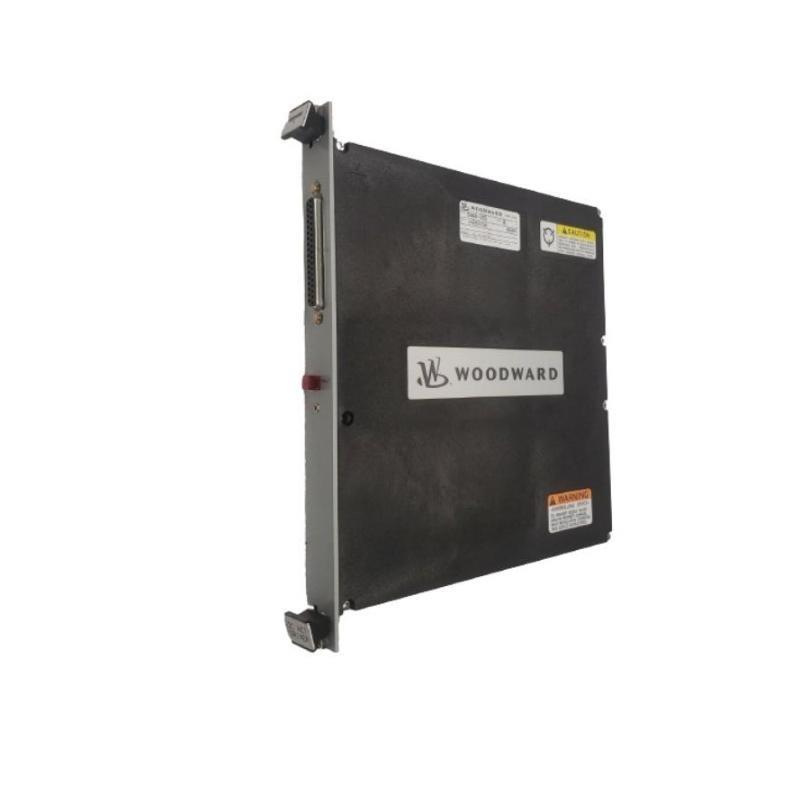

The 伍德沃德 5464-643 Discrete Input Module is a reliable and high-performance component designed to collect digital signals from field devices such as switches, sensors, and relays in industrial control systems. Built for compatibility with 伍德沃德’s MicroNet™ and NetCon™ platforms, this module provides real-time digital signal acquisition for monitoring and control applications in demanding industrial environments.
Key Features
-
32-channel discrete input module
-
Fast signal response time for critical control systems
-
Designed for robust industrial applications
-
LED indicators for channel status diagnostics
-
Isolated input channels for enhanced signal integrity
-
Plug-and-play integration with 伍德沃德 systems
-
DIN rail or chassis mount installation
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 5464-643 |
| Module Type | Discrete Input Module |
| Number / Channels | 32 discrete input channels |
| Input Voltage Range | 18–32 VDC (typical) |
| Input Signal Type | Dry contact or active DC signals |
| Input Isolation | Optical isolation between channels and system bus |
| Status Indication | Per-channel LED indicators |
| Scan Time | <1 ms typical |
| Diagnostics | Input state and fault detection |
| Mounting Style | Rack or chassis-mounted |
| Dimensions | 180 × 120 × 25 mm |
| 重量 | 0.5 kg |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –55 °C to +85 °C |
| Designed For | 伍德沃德 MicroNet™, NetCon™, and compatible systems |
| Country / Manufacture | 单位ed 状态s / America |
Industry Applications
-
Turbine control systems
-
Engine and generator monitoring
-
Industrial automation and safety systems
-
Power plant instrumentation
-
Manufacturing process control
常见问题 (FAQ)
-
What does the 5464-643 module do?
It collects 32 discrete input signals for use in industrial control systems. -
Which systems is it compatible with?
It is designed for 伍德沃德 MicroNet™ and NetCon™ platforms. -
Are the input channels isolated?
Yes, each channel features optical isolation. -
Does it support signal diagnostics?
Yes, it includes input status and fault detection features. -
What kind / signals can it accept?
Both dry contacts and active 24 VDC signals. -
How is it mounted?
It can be rack-mounted or integrated into chassis systems. -
Is it hot-swappable?
This depends on system design—refer to specific platform documentation. -
What is its operating temperature range?
From –40 °C to +70 °C. -
Is it suitable for safety applications?
Yes, when implemented within a certified safety system. -
Where is it manufactured?
In the 单位ed 状态s.
