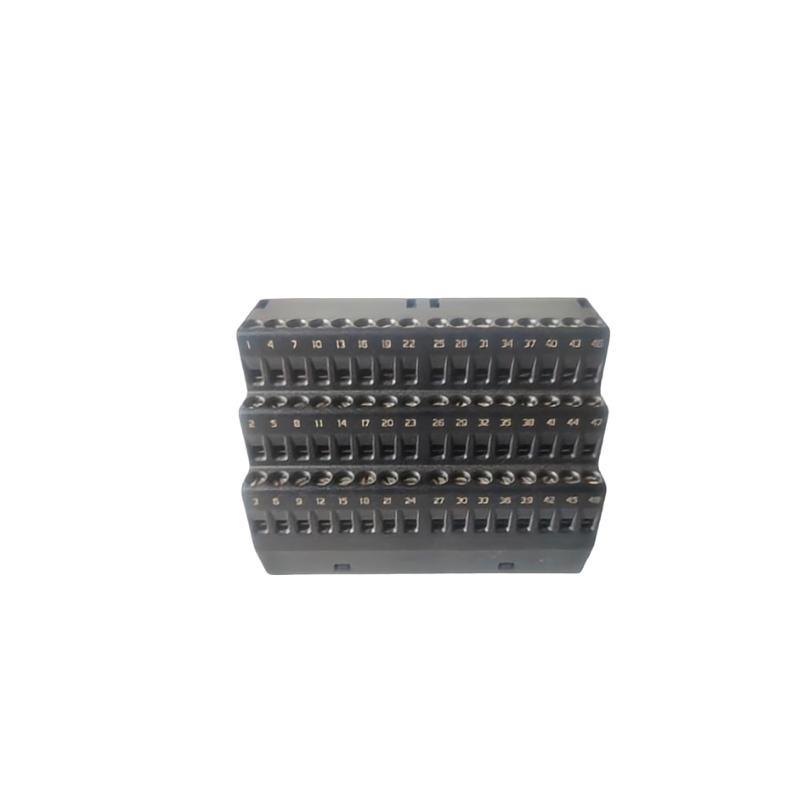

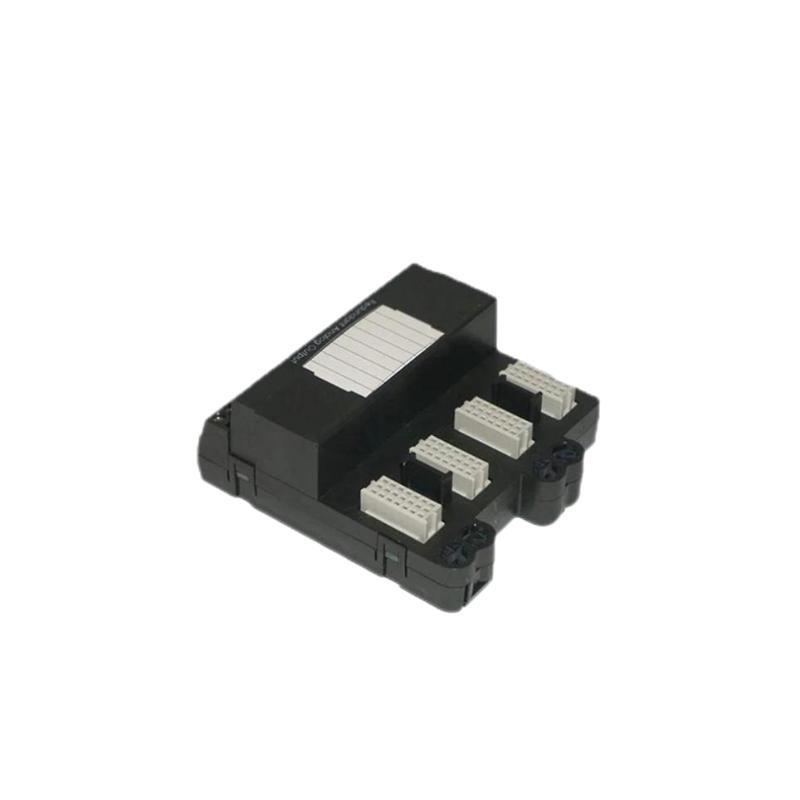

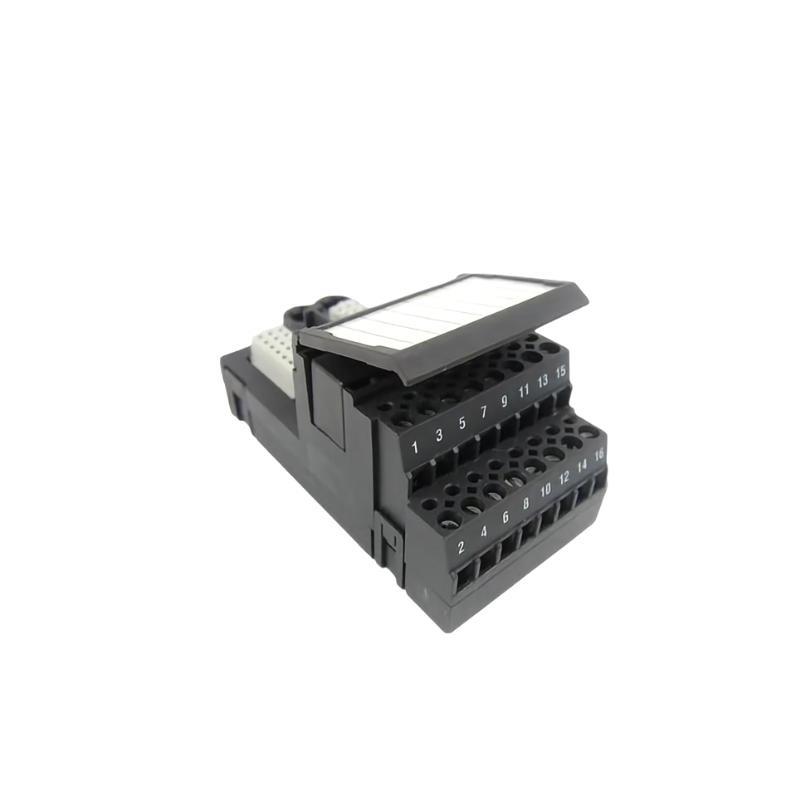

Emerson KC4011X1-BA1 Terminal Block

产品介绍

The Emerson KC4011X1-BA1 is a 16-channel, 4-wire analog input terminal block designed for integration with Emerson’s DeltaV control system. Engineered for hazardous area applications, this terminal block ensures reliable analog signal acquisition from various field devices. Its robust construction and compliance with international safety standards make it suitable for demanding industrial environments.

Technical Specifications

Applications

The Emerson KC4011X1-BA1 terminal block is utilized in various industrial sectors, including:

• Oil and Gas: For monitoring and controlling processes in hazardous environments.

• Chemical Processing: Ensuring accurate data acquisition in corrosive atmospheres.

• Power Generation: Facilitating reliable signal transmission in power plants.

• Pulp and Paper: Managing analog inputs in moisture-rich settings.

• Water and Wastewater Treatment: Providing dependable performance in humid conditions.

Its design caters to industries requiring high reliability and safety in signal acquisition.

Product Advantages

• High Channel Density: Accommodates 16 analog input channels, optimizing space and reducing wiring complexity.

• Hazardous Area Compliance: Certified for use in explosive atmospheres, ensuring safety and compliance.

• Robust Construction: Built to withstand harsh industrial conditions, /fering durability and longevity.

• Modular Design: Facilitates easy integration and scalability within the DeltaV system.

• Diagnostic Features: Incorporates built-in diagnostics for efficient troubleshooting and maintenance.

常见问题 (FAQ)

1. What is the typical use case for the KC4011X1-BA1 in hazardous environments?
   This terminal block is commonly deployed in Class I Division 2 or Zone 2 areas to safely transmit analog input signals from field devices such as pressure transmitters and temperature sensors back to the DeltaV control system, ensuring intrinsically safe operation.

2. How does the 4-wire configuration improve signal integrity?
   A 4-wire analog input setup separates power and signal grounds, which minimizes voltage drops and noise—critical for precise analog measurements in long cable runs or electrically noisy environments.

3. Is channel-to-channel isolation provided on this model?
   No, the KC4011X1-BA1 provides isolation from the field to the system but not between individual channels. This design is intended for applications where isolated input signals do not interfere with each other.

4. Can the terminal block be used with thermocouples or RTDs directly?
   Not directly. The KC4011X1-BA1 handles analog signals (typically 4-20 mA). Thermocouples or RTDs must be connected to a transmitter that outputs a compatible analog signal.

5. What wiring practices are recommended to maintain signal quality?
   Use shielded twisted-pair cables, separate analog and power cables in conduits, and ground shields properly at one end only to avoid ground loops, especially in electrically harsh environments.

6. Is there a built-in method to detect open circuit conditions on analog loops?
   The terminal block itself doesn’t perform diagnostics like open-loop detection, but this can be configured in the DeltaV AI cards for enhanced fault detection during operation.

7. Can multiple terminal blocks be mounted side-by-side in a compact panel?
   Yes, the KC4011X1-BA1 is DIN rail mountable with a compact form factor that supports dense panel configurations, though proper ventilation and spacing for heat dissipation should be maintained.

8. Does the KC4011X1-BA1 support redundancy at the terminal level?
   Redundancy is not implemented at the terminal block level. However, redundant I/O can be achieved through paired I/O cards and proper configuration within the DeltaV system architecture.

9. What is the expected lifespan / this terminal block in continuous operation?
   When used within specified temperature, humidity, and electrical loading conditions, the terminal block can exceed 10 years / reliable service, aligning with the lifecycle / most DeltaV system deployments.

10. How is field wiring labeled or identified on the KC4011X1-BA1?
    Each terminal point is clearly labeled on the block itself, and wiring diagrams provided in the product documentation correspond to specific channel positions to ensure accurate and traceable installation.
