产品介绍:

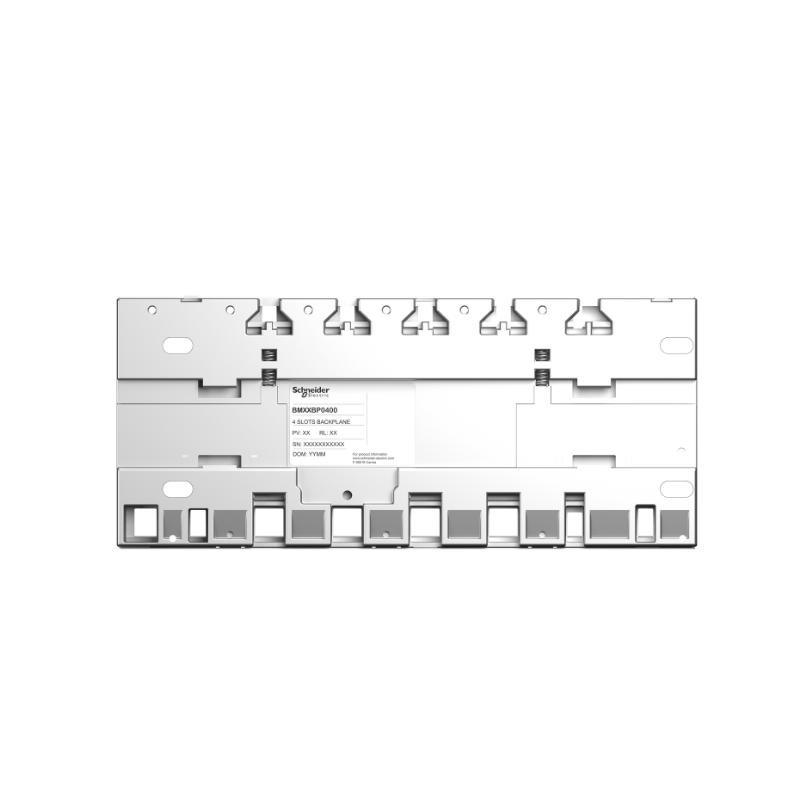

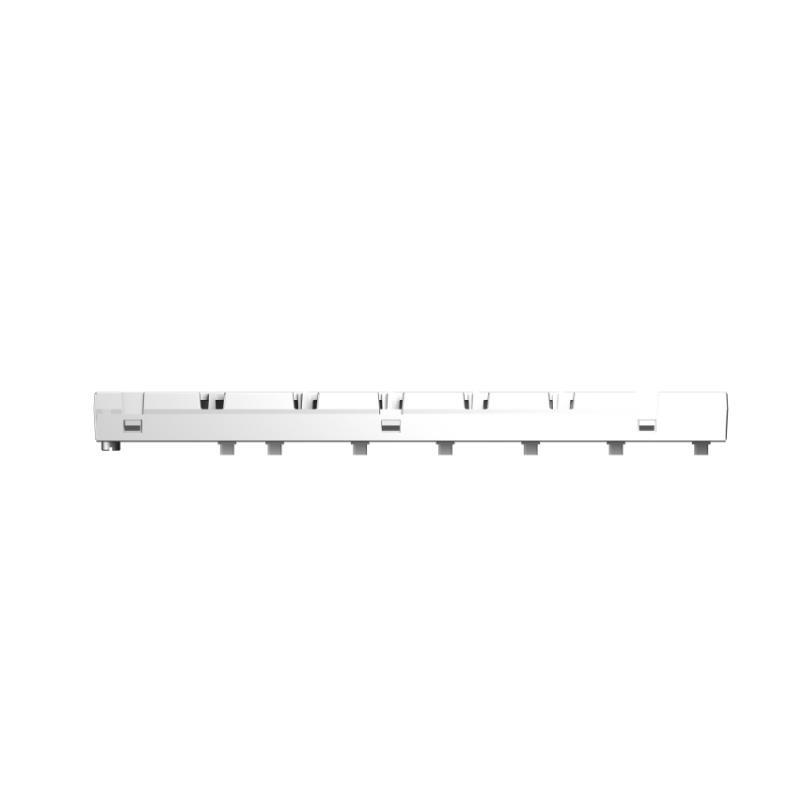

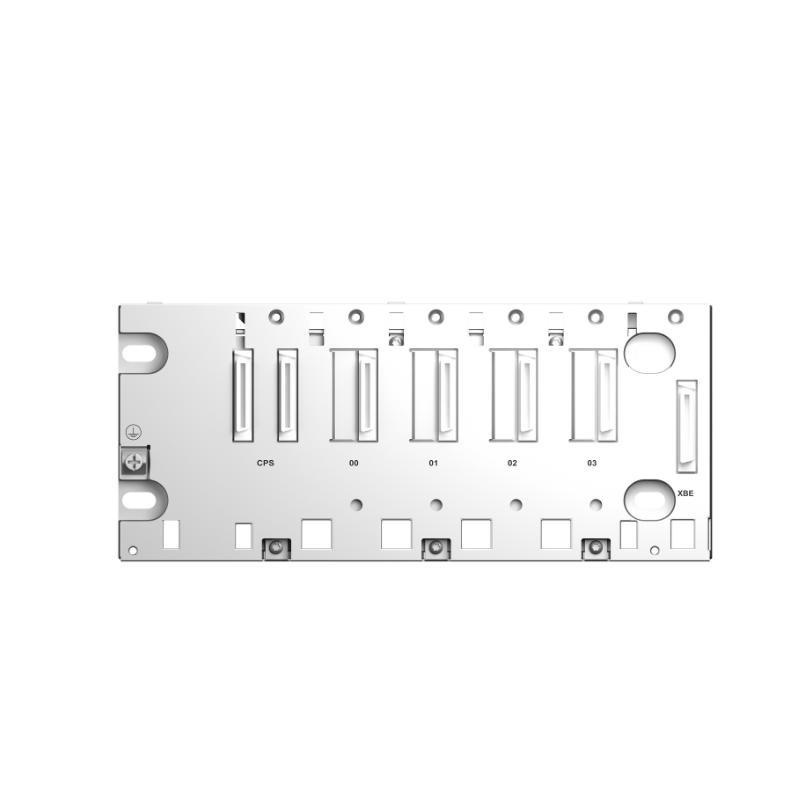

The Schneider Electric BMXXBP0400 is a 4-slot backplane rack that is part / the Modicon M340 automation platform. Designed to provide modular flexibility and robust support for programmable logic controllers (PLCs), communication modules, power supplies, and I/O modules, this X-Bus rack serves as the mechanical and electrical foundation / the M340 PLC system.
The BMXXBP0400 ensures secure electrical connection between modules through a high-speed backplane bus while maintaining compactness and ease / installation. It supports up to four modules and is ideal for applications requiring reliable automation performance in constrained cabinet spaces.
Whether used in a central control panel or an expansion setup, this 4-slot rack delivers long-term durability, vibration resistance, and optimal module interconnection, making it a staple in industrial automation environments.
产品规格:
| Parameter | 描述 |
|---|---|
| Product Name | BMXXBP0400 |
| Product Type | X-Bus Rack / Backplane |
| Series | Modicon M340 |
| Slot Count | 4 module slots |
| Compatible Modules | PLC CPUs, power supplies, I/O modules, communication modules |
| Backplane Bus Type | High-speed X-Bus |
| Slot Addressing | Automatic by position |
| Power Distribution | Through integrated bus and power rails |
| Module Retention | Secure snap-in module holders |
| Mounting Type | DIN rail mounting |
| Ambient Operating Temp. | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH non-condensing |
| Vibration Resistance | 3.5 mm (5–8.4 Hz); 1 g (8.4–150 Hz), conforming to IEC 60068-2-6 |
| Shock Resistance | 15 g (11 ms), conforming to IEC 60068-2-27 |
| Protection Rating | IP20 |
| Standards & Certifications | CE, CSA, UL, RoHS compliant |
| Material | Industrial-grade thermoplastic with aluminum frame |
| Dimensions (W x H x D) | 242.4 x 103.7 x 19 mm |
| 重量 | 0.63 kg |
Product Applications:
The BMXXBP0400 is widely used in a range / industrial and infrastructure automation scenarios where compact, modular design and high-reliability PLC backplane support are essential. Typical applications include:
-
Discrete Manufacturing Systems: Compact machine control stations requiring multiple I/O and communication modules.
-
Water Treatment Plants: Integration / sensor, actuator, and pump control modules in distributed PLC stations.
-
Food & Beverage Automation: Control systems for packaging lines or batch process control where flexibility is key.
-
Building Management Systems (BMS): HVAC control and lighting automation panels.
-
Transport and Infrastructure Projects: For railway signaling, tunnel ventilation systems, or airport automation.
-
Energy Sector Installations: Substation or generation site PLC panels requiring small form-factor racks.
Product Advantages:
-
Modular Design: Allows easy customization and scaling / control systems by accommodating four modules.
-
Robust Build Quality: Resistant to industrial shock, vibration, and temperature changes.
-
High-Speed Interconnection: Integrated X-Bus system provides reliable and fast communication between modules.
-
Ease / Installation: DIN rail mounting makes it quick to install and remove in any control cabinet.
-
Compact Size: Ideal for use in confined spaces without sacrificing performance.
-
Electrical Safety: Certified to meet key international safety and compliance standards.
-
Automatic Addressing: Slot addressing is automatic based on position, simplifying setup and integration.
-
Wide Compatibility: 支持s the entire range / M340-compatible modules, including CPU, power supply, digital/analog I/O, and communication 件s.
常见问题 (FAQ):
-
What type / modules can be installed in BMXXBP0400?
This backplane supports CPU, power supply, communication, and I/O modules / the Modicon M340 series. -
Is the backplane powered externally?
No, it is powered via the power supply module installed in one / the slots. -
Can this rack be extended for more slots?
Not directly, but additional backplanes can be connected using backplane extenders like BMXXBE1000. -
What is the maximum operating temperature?
The maximum operating temperature is +60°C. -
Can it be mounted horizontally and vertically?
Yes, but DIN rail mounting is preferred and must ensure natural convection. -
Are the slots hot-swappable?
No, modules should be inserted or removed when the system is powered /f. -
Does it include communication cables?
No, it is a mechanical/electrical interface only; cables are supplied separately based on module setup. -
What is the role / the backplane bus?
It handles power and data communication among modules, eliminating the need for external wiring between them. -
Is it CE and UL certified?
Yes, the BMXXBP0400 meets CE, UL, CSA, and RoHS standards. -
Can it be used outdoors?
No, it should be installed inside a protective enclosure for industrial indoor environments.
Related 型号s from the Same Series (Modicon M340):
| 型号 Number | 描述 | Application | Slot Count |
|---|---|---|---|
| BMXXBP0600 | 6-slot X-Bus rack for Modicon M340 | Medium-sized I/O configurations | 6 slots |
| BMXXBP0800 | 8-slot X-Bus rack for Modicon M340 | Large I/O systems | 8 slots |
| BMXXBE1000 | Backplane expander for remote rack setups | For linking multiple racks | N/A |
| BMXP342020 | M340 PLC CPU module | Central processing 件 | 1 slot (CPU) |
| BMXCPS2010 | Power supply for M340 systems | Supplies power to modules | 1 slot |
| BMXNOE0110 | Ethernet module for M340 | Network communication via Modbus TCP | 1 slot |
Popular Schneider Electric 型号s (Same 品牌):
| 型号 Number | 描述 | Platform | Key Features |
|---|---|---|---|
| TM241CEC24T | Modicon M241 PLC | MachineStruxure | Ethernet, Modbus, CANopen |
| TM251MESE | High-performance PLC with dual Ethernet | MachineStruxure | Advanced connectivity |
| M580 P342030 | M580 PAC CPU module | Modicon M580 | Ethernet/IP, cybersecurity features |
| TSXPSY2600 | Power supply module for Modicon Premium | Modicon Premium | 24 VDC, 6 A |
| BMXNOC0401 | Communication module with multiple ports | Modicon M340/M580 | EtherNet/IP, Modbus TCP |
| BMENOC0301 | Ethernet interface for PACs | Modicon M580 | OPC UA, HTTPS, secure communication |
