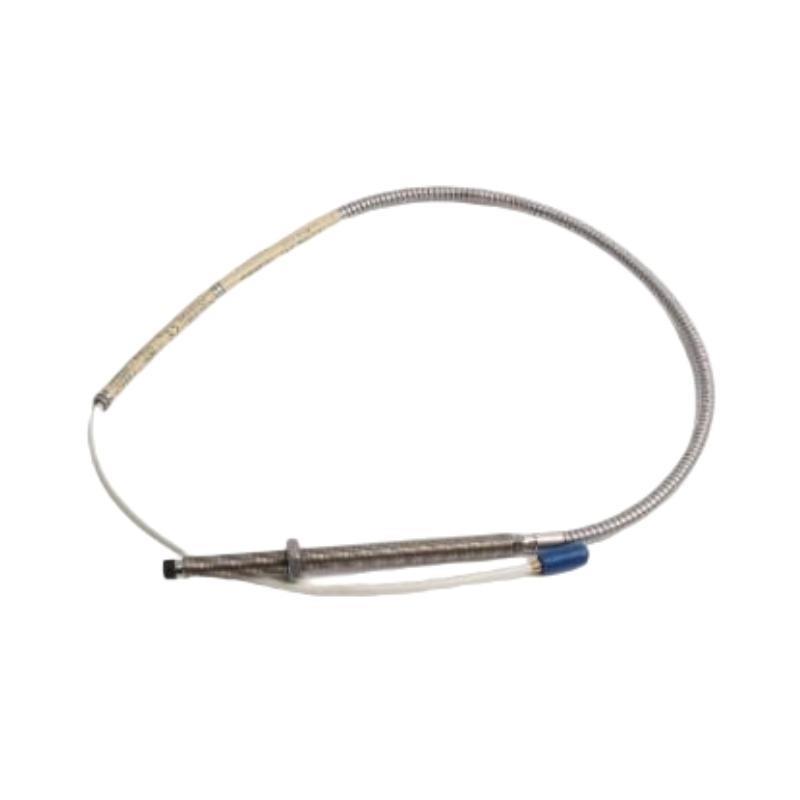

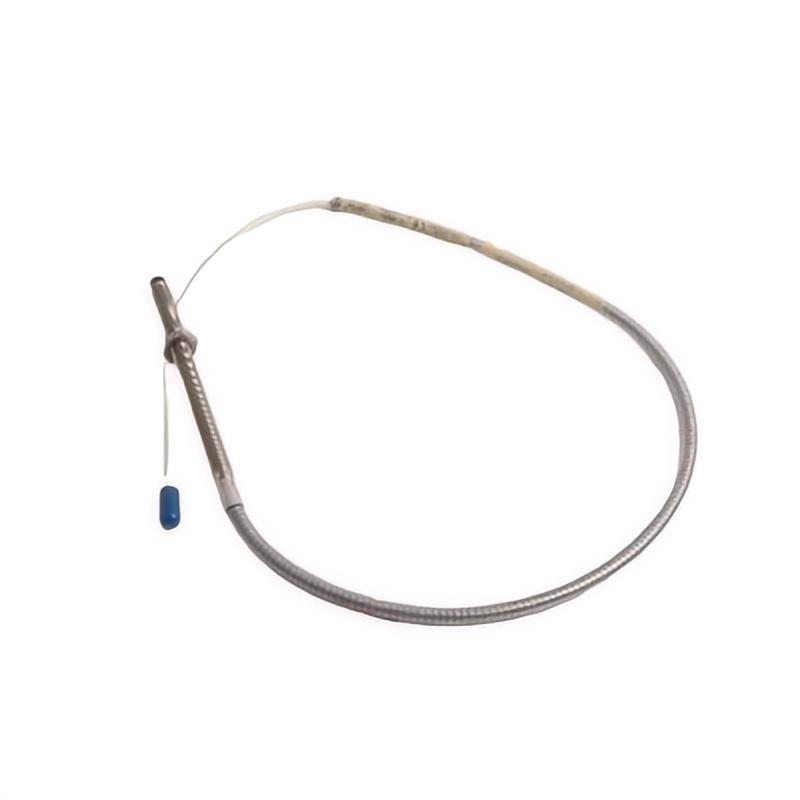

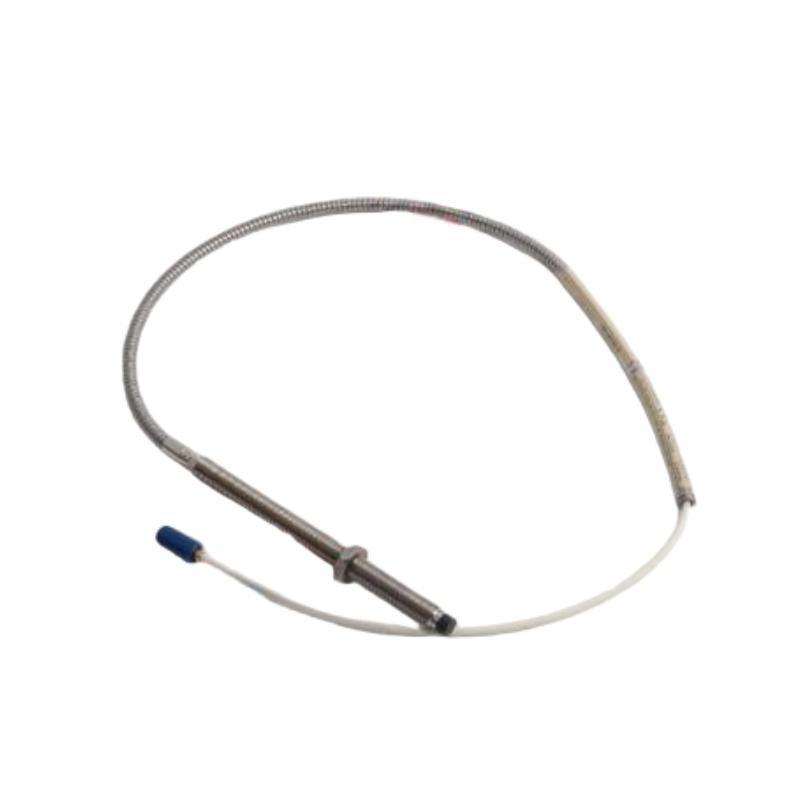

The Bently Nevada 22810-00-04-50-02 8 mm Standard Mount Probe is a precision industrial sensor designed to provide accurate measurement / shaft displacement and vibration for rotating machinery. Part / Bently Nevada’s 22810 series, this probe is engineered for use in turbines, compressors, generators, and other critical rotating equipment. Its robust construction allows reliable operation in high-vibration, high-temperature, and electrically noisy environments. With a linear AC output, the probe ensures high-quality signal transmission to Bently Nevada monitoring systems, supporting machinery protection and predictive maintenance strategies. The 7.5-meter cable allows flexible installation without compromising signal integrity.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | 22810-00-04-50-02 |
| Series | 22810 |
| Probe Type | Standard Mount Proximitor Probe |
| Measurement Range | 0–8 mm |
| Probe Tip Diameter | 8 mm |
| Output Signal | AC Voltage |
| Linearity | ±1% / full scale |
| Operating Temperature | -40°C to +120°C |
| Housing Material | Stainless Steel |
| Insulation Resistance | ≥100 MΩ at 500 VDC |
| Connector Type | Coaxial Connector |
| Cable Length | 7.5 m |
| 重量 | 3 kg |
Applications
The 22810-00-04-50-02 probe is widely used in industrial machinery monitoring:
-
Turbine Monitoring: Provides precise shaft vibration and displacement data for steam, gas, and hydro turbines.
-
Compressor and Generator Protection: Enables early detection / rotor imbalance, misalignment, and mechanical faults.
-
Rotating Equipment 状态 Monitoring: 支持s condition-based maintenance by providing high-resolution signals for vibration trend analysis.
-
Research and Development: Used in rotor dynamics testing, alignment studies, and laboratory simulations.
-
Harsh Industrial Environments: Durable design allows reliable performance in high-vibration, high-temperature, and electrically noisy settings.
Advantages
-
High Accuracy: Linear AC output ensures precise measurement / radial shaft displacement.
-
Robust Construction: Stainless steel housing provides resistance to mechanical stress and industrial hazards.
-
Reliable Signal Transmission: Coaxial connector and cable maintain signal quality over long distances.
-
Flexible Installation: 7.5-meter cable allows convenient probe positioning in complex machinery setups.
-
Wide Operating Temperature Range: Operates reliably from -40°C to +120°C.
-
System Compatibility: Fully compatible with Bently Nevada monitoring systems for seamless integration.
FAQ
-
What type / signal does the 22810-00-04-50-02 probe output?
The probe provides an AC voltage signal proportional to shaft displacement. -
What is the linearity specification / this probe?
Linearity is ±1% / full-scale measurement. -
What is the operating temperature range?
The probe operates reliably between -40°C and +120°C. -
Can this probe handle high-vibration environments?
Yes, it is designed to operate accurately under high-vibration conditions. -
What is the response frequency range?
The probe responds instantaneously to vibration frequencies within the rated range / the 22810 system. -
Is the probe suitable for high-speed rotors?
Yes, it accurately monitors displacement and vibration for high-speed rotating machinery. -
How is the probe installed in the system?
It is mounted with a standard threaded housing and aligned coaxially with the shaft. -
What is the insulation resistance requirement?
Insulation resistance is ≥100 MΩ at 500 VDC. -
Can the probe detect both axial and radial displacement?
The probe measures radial displacement; axial measurement requires additional system setup. -
How does the probe maintain signal stability over long-term operation?
High-quality materials, robust coil design, and coaxial connections ensure minimal signal drift and reliable output.
Related 型号s / 22810 Series
| 型号 | Measurement Range | Tip Diameter | Notes |
|---|---|---|---|
| 22810-00-04-50-01 | 0–8 mm | 8 mm | Standard variant |
| 22810-00-04-50-03 | 0–8 mm | 8 mm | High-temperature version |
| 22810-00-04-50-04 | 0–10 mm | 10 mm | Extended measurement range |
| 22810-00-05-50-02 | 0–8 mm | 8 mm | Longer housing for deep installations |
| 22810-00-04-30-02 | 0–5 mm | 5 mm | Fine-resolution probe |
| 22810-00-04-60-02 | 0–8 mm | 8 mm | Enhanced vibration tolerance |
Popular Bently Nevada 型号s
| 型号 | Series | Measurement Range | Application |
|---|---|---|---|
| 330130-040-00 | 3300 | 0–13 mm | Turbomachinery monitoring |
| 330600-00-02 | 3300 | 0–6 mm | Generator protection |
| 21502-01 | 2150 | 0–8 mm | Shaft displacement monitoring |
| 7200-00-12-05 | 7200 | 0–5 mm | Standard industrial probe |
| 3300XL-00-12 | 3300XL | 0–12 mm | High-speed rotor measurement |
| 3300XL-00-15 | 3300XL | 0–15 mm | Large turbine shaft monitoring |
