产品介绍

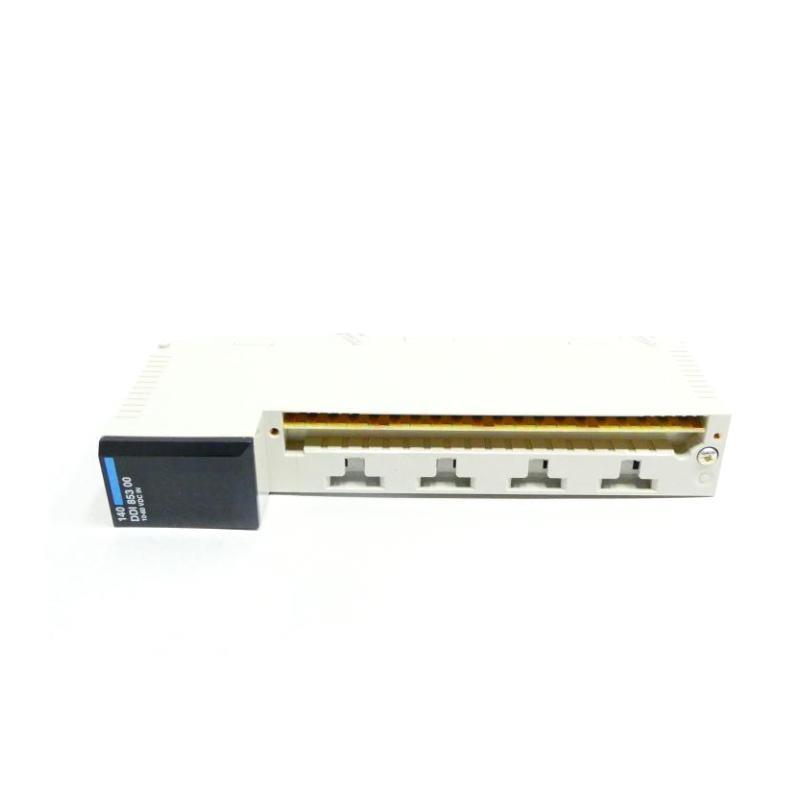

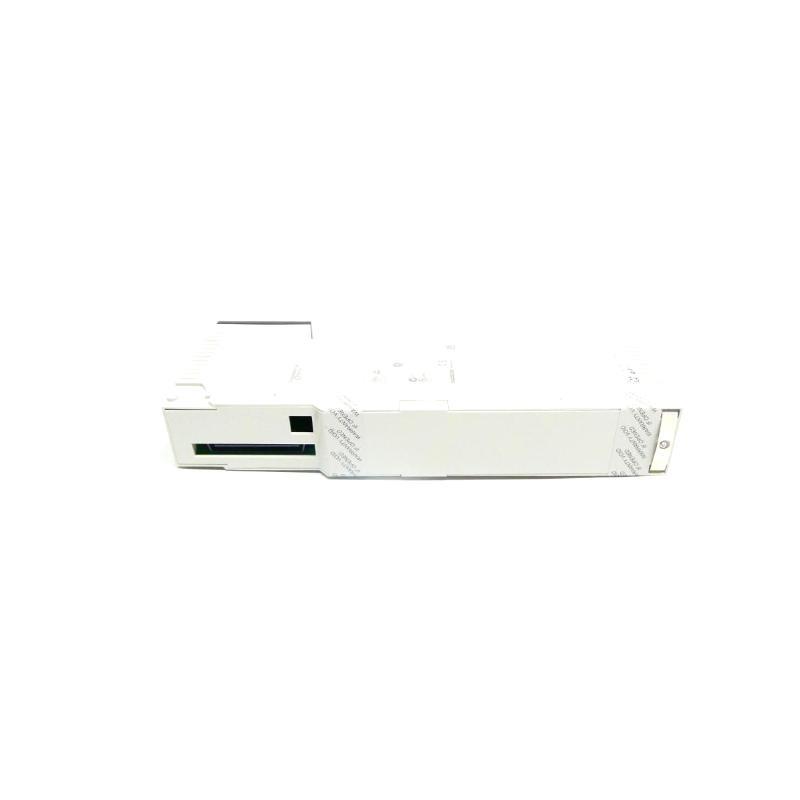

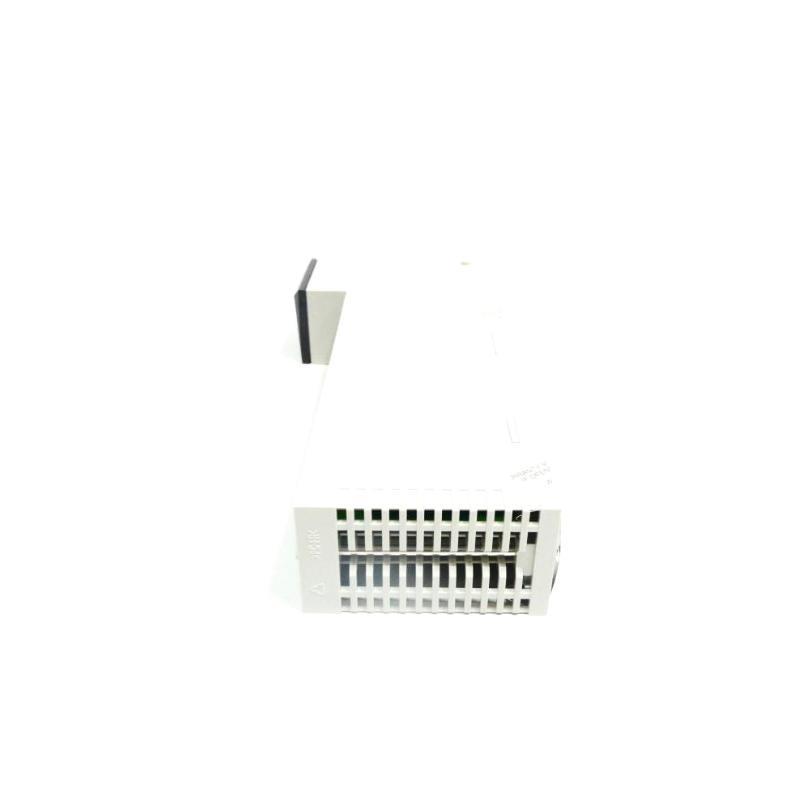

The Schneider 140DDI85300 is a Modicon Quantum discrete input module, engineered for high-performance automation and industrial control systems. It is designed to interface with 24V DC signals and supports 32 input channels, making it an ideal solution for applications that require multiple discrete inputs. This module is known for its fast response time, high reliability, and robust isolation, making it widely used in industries such as manufacturing, energy, transportation, and infrastructure.
产品规格
| Specification | Details |
|---|---|
| Discrete Input Channels | 32 |
| Input Voltage Range | 24V DC |
| Input Current | 5-7 mA per channel |
| Voltage 状态 1 Guaranteed | 11-30V DC |
| Voltage 状态 0 Guaranteed | 0-5V DC |
| Response Time | 2 ms (state 0 to 1 and state 1 to 0) |
| Isolation Voltage | 2500 Vrms between group and bus, 500 Vrms between channels |
| Bus Current Requirement | 300 mA |
| Power Dissipation | 1 W + (0.8 W per activated input) |
| Local Signaling | – 32 Green LEDs (input status) – 1 Red LED (external fault detected) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Operating Altitude | ≤ 5000 m |
| Shock Resistance | 15g for 11 ms |
| Vibration Resistance | 1g from 5 to 200 Hz |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| 重量 | 0.295 kg |
Applications
The Schneider 140DDI85300 is widely implemented in industrial automation environments where reliable and high-speed digital input processing is essential. Its applications include:
- Manufacturing Plants: Used in automated assembly lines, robotic systems, and process control.
- Energy Sector: Facilitates power grid monitoring, substation automation, and renewable energy integration.
- Transportation Systems: Applied in railway signaling, automated traffic control, and airport operations.
- Building Automation: Plays a role in smart building controls, security systems, and HVAC management.
- Water Treatment Facilities: Ensures efficient monitoring and control / pumps, valves, and filtration systems.
Advantages
- High-Density Input Handling: 支持s 32 discrete inputs, reducing the need for multiple modules.
- Fast Signal Processing: 2 ms response time ensures real-time data acquisition.
- Robust Electrical Isolation: 2500 Vrms isolation provides protection against electrical noise and interference.
- LED Status Indication: Each channel has an individual LED indicator for quick diagnostics.
- Seamless Modicon Quantum Integration: Easily connects with Schneider Electric’s Quantum series PLCs.
- Wide Operating 状态s: Withstands extreme temperatures, high humidity, and industrial vibrations.
Latest News and Updates
- “Schneider Electric Enhances Quantum Series with Advanced Digital Input Modules”
- “Modicon Quantum PLCs: Expanding Industrial Automation with High-Speed Discrete Inputs”
- “Energy Sector Adopts Schneider 140DDI85300 for Smart Grid Automation”
- “Manufacturing 4.0: How Schneider’s Quantum Series is Leading the Industry”
- “New Innovations in Discrete Input Modules: Schneider’s Role in Industrial Automation”
常见问题 (FAQ)
-
What type / signals does the Schneider 140DDI85300 process?
- It processes 24V DC discrete signals with a guaranteed state detection range / 11-30V DC for “1” and 0-5V DC for “0”.
-
How many discrete inputs does this module support?
- The 140DDI85300 supports 32 discrete input channels, making it a high-density solution for industrial control applications.
-
What kind / electrical isolation does this module have?
- It features 2500 Vrms isolation between the input group and the system bus, providing strong protection against electrical interference.
-
What is the response time / the 140DDI85300?
- The response time is 2 ms, which ensures fast and accurate signal processing in automation applications.
-
Does the module provide LED indicators for diagnostics?
- Yes, it has 32 green LEDs to indicate the status / each input and 1 red LED to signal external faults.
-
Can this module be used in environments with high humidity or vibration?
- Yes, it operates in 5% to 95% relative humidity (non-condensing) and withstands vibrations up to 1g (5-200Hz) and shock resistance / 15g for 11 ms.
-
Is the module hot-swappable?
- No, the 140DDI85300 is not hot-swappable, meaning the system must be powered down before replacing or installing the module.
-
What kind / power consumption does this module have?
- The base consumption is 1W, plus 0.8W per activated input, ensuring efficient energy usage in industrial settings.
-
What certifications does the 140DDI85300 have?
- It meets industry standards, including CE, UL, and CSA certifications, making it compliant with global safety and performance regulations.
-
What is the power consumption / this module?
- The base consumption is 1W, plus 0.8W per activated input.
Related 型号s in the Same Series
| 型号 Number | 描述 | Input Voltage | Channels | Response Time |
|---|---|---|---|---|
| 140DDI84100 | Discrete Input Module (Quantum) | 10-60V DC | 16 | 4 ms |
| 140DDI35300 | Discrete Input Module (Quantum) | 24V DC | 16 | 3 ms |
| 140DDI84110 | Discrete Input Module (Quantum) | 48-125V DC | 16 | 4 ms |
| 140DDO35300 | Discrete Output Module (Quantum) | 24V DC | 16 | 2 ms |
| 140DDO84300 | Discrete Output Module (Quantum) | 24V DC | 32 | 1 ms |
| 140CRP93100 | Remote I/O Communication Module (Quantum) | N/A | N/A | N/A |
| 140DAI55300 | Analog Input Module (Quantum) | 4-20mA | 16 | 3 ms |
| 140DAO84000 | Analog Output Module (Quantum) | ±10V DC | 8 | 5 ms |
Popular 型号s from Schneider Electric
| 型号 Number | 描述 | Voltage Range | Channels | Application |
|---|---|---|---|---|
| BMXDDI1602 | Discrete Input Module (M340) | 24V DC | 16 | Industrial Control |
| BMXDDO1602 | Discrete Output Module (M340) | 24V DC | 16 | Factory Automation |
| BMEP582040 | Modicon M580 CPU | N/A | N/A | PLC System |
| BMECRA31210 | Modicon X80 Ethernet Remote I/O Adapter | N/A | N/A | Communication |
| TSXAEY414 | Analog Input Module (Modicon Premium) | 0-10V DC | 8 | Sensor Integration |
| TSXP573623M | Modicon Premium PLC Processor | N/A | N/A | Process Control |
