产品介绍

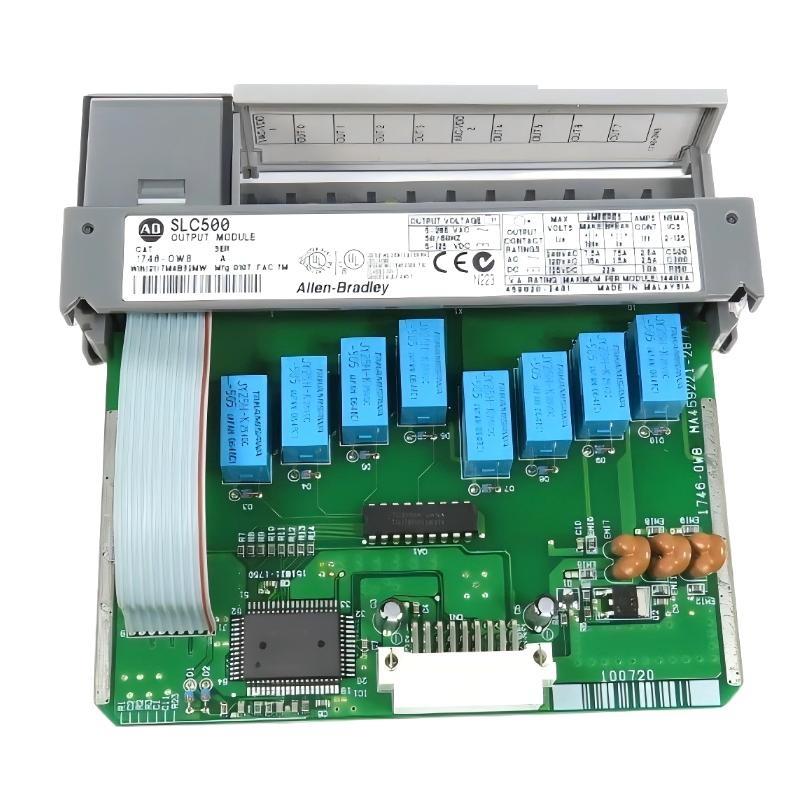

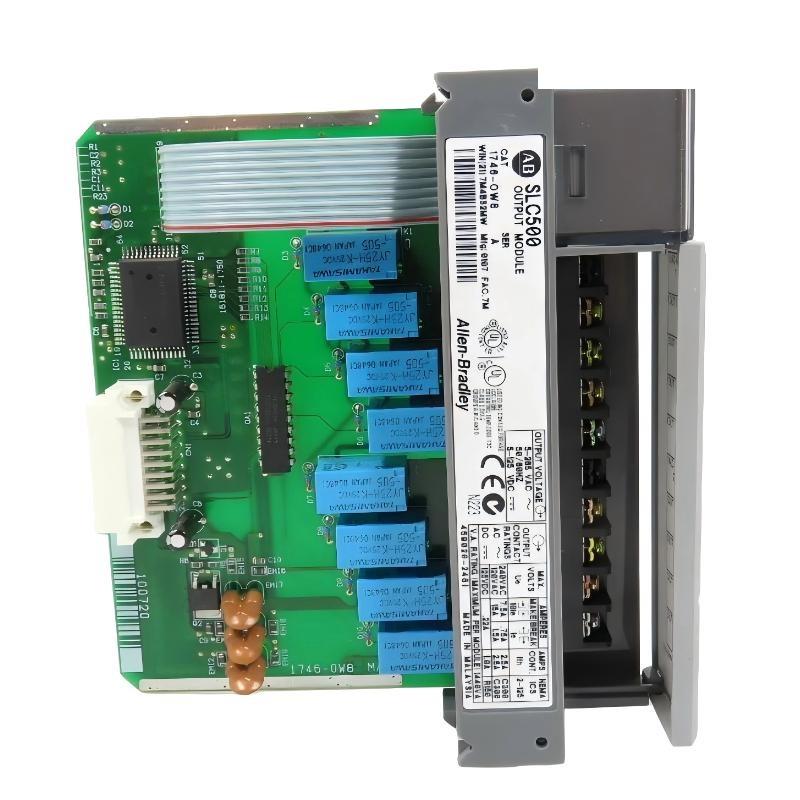

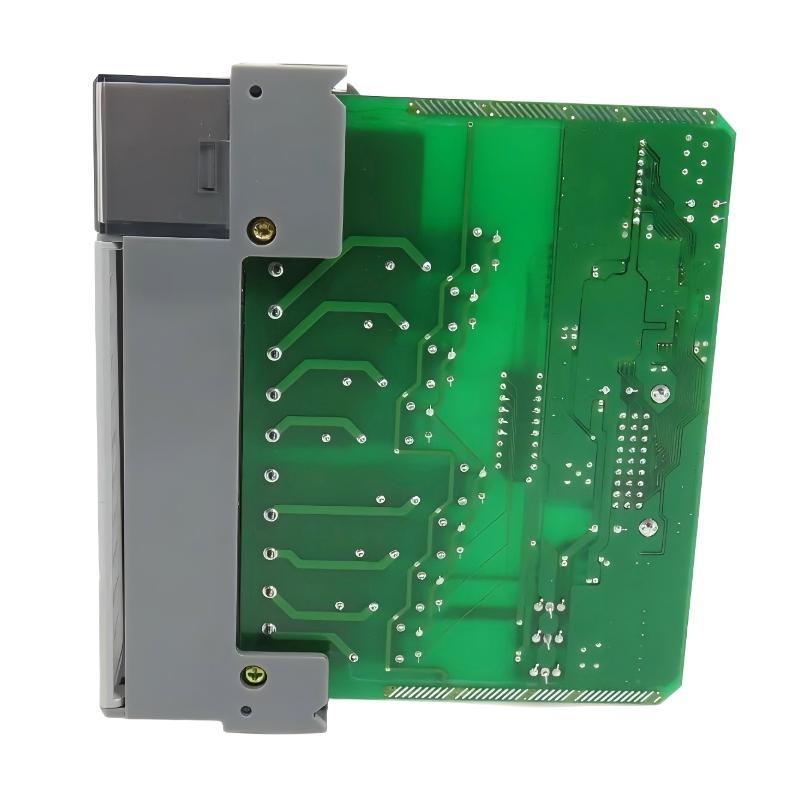

The Allen-Bradley 1746-OW8 is a relay output module developed for the SLC 500 programmable controller platform. It is designed to provide flexible and electrically isolated switching for both AC and DC loads, making it suitable for a wide range / industrial control applications.
Equipped with 8 independent relay output points, the 1746-OW8 supports 5–125 VDC and 5–265 VAC at 50/60 Hz, allowing it to interface directly with diverse field devices without the need for additional interposing relays. The relay-based output design makes this module particularly well suited for mixed-voltage environments and applications requiring galvanic isolation between the controller and field loads.
The 1746-OW8 integrates seamlessly into SLC 500 I/O chassis and is commonly used in systems where reliability, versatility, and compatibility with various load types are critical.
产品规格
| Parameter | 描述 |
|---|---|
| Module Type | Relay Output Module |
| Series | SLC 500 |
| Number / Output Points | 8 |
| Output Technology | Electromechanical relay |
| DC Output Voltage Range | 5–125 VDC |
| AC Output Voltage Range | 5–265 VAC |
| Frequency | 50/60 Hz |
| Output Control | Individually controlled by SLC 500 processor |
| 联系我们 Type | Isolated relay contacts |
| Load Compatibility | AC and DC loads |
| Electrical Isolation | Relay isolation between field and backplane |
| Backplane Interface | SLC 500 I/O chassis |
| Operating Mode | Continuous industrial operation |
| Installation | Plug-in module |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| 重量 | 0.45 kg |
Applications
• Mixed-voltage control systems, switching both AC and DC field devices
• Industrial machinery, controlling contactors, solenoids, and pilot devices
• Process automation panels, providing isolated control for external loads
• Material handling equipment, driving relays and actuators
• Utility and infrastructure systems, where voltage flexibility is required
• Legacy SLC 500 installations, expanding relay-based output capability
Advantages
• Wide voltage compatibility, supporting both AC and DC loads
• Relay-based isolation, protecting PLC electronics from field-side disturbances
• Flexible application use, ideal for mixed-signal environments
• Individual output control, enabling precise switching per channel
• Seamless SLC 500 integration, simplifying system design and upgrades
• Robust industrial design, suitable for demanding control environments
