Product 描述

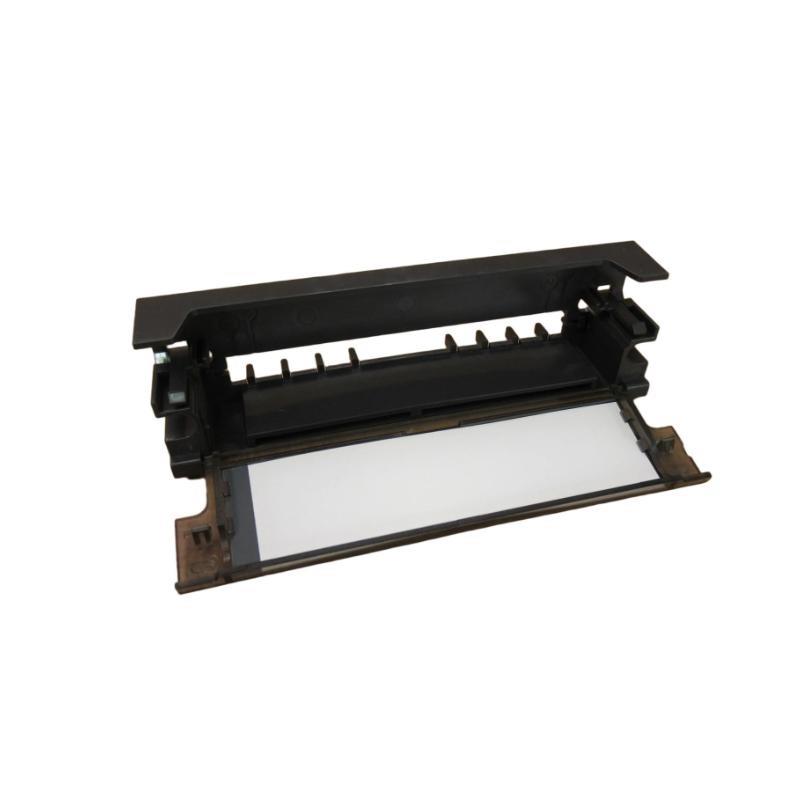

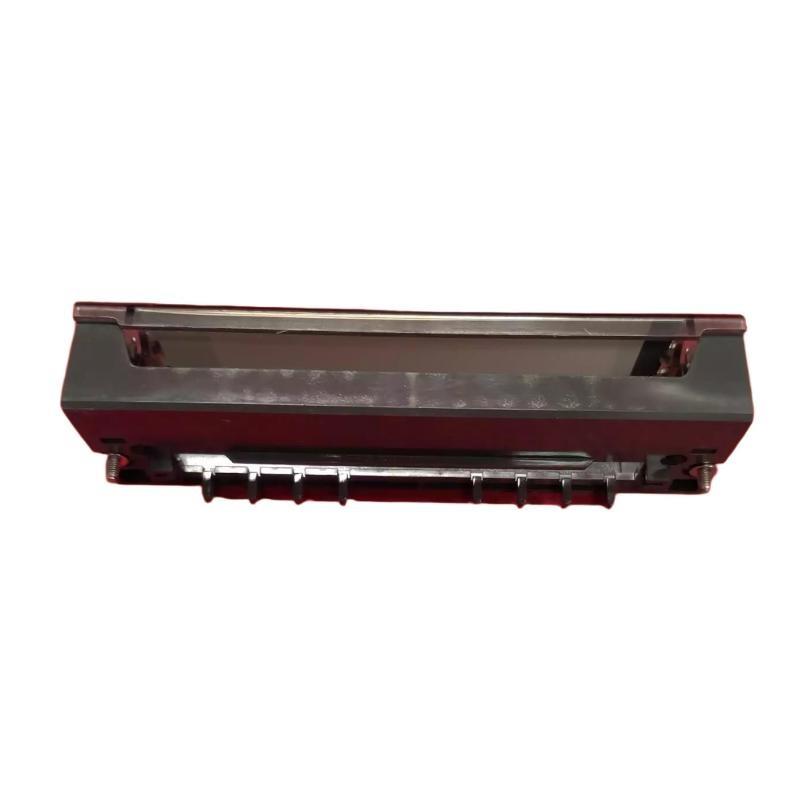

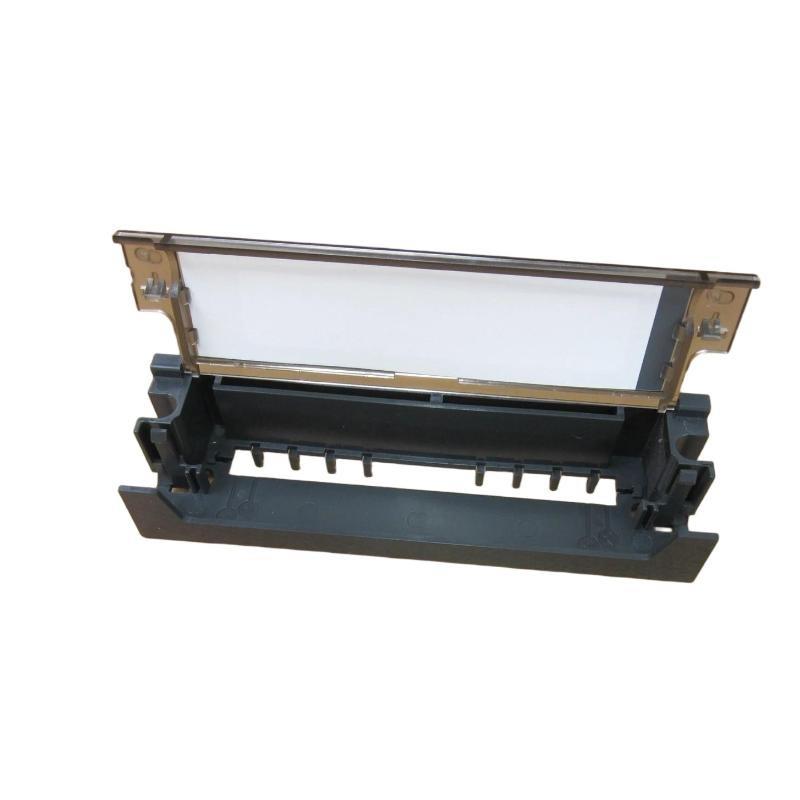

The Honeywell 900TNF-0001 is a terminal block designed for the ControlEdge HC900 Process and Safety System. It provides a secure and organized wiring interface between field I/O and the system’s input/output modules, ensuring reliable electrical connections and simplified maintenance.
Product Applications
-
Process control wiring for the HC900 platform
-
Terminal interfacing for analog and digital I/O modules
-
Signal routing for field instrumentation in industrial environments
-
Use in safety-critical automation systems
Product Advantages
-
Optimized for Honeywell HC900 I/O modules
-
Compact and modular terminal layout
-
支持s fast installation and wiring
-
Enhances system reliability and maintainability
-
Durable design suitable for harsh environments
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 | 900TNF-0001 |
| Product Type | Terminal Block for HC900 I/O |
| Dimensions (W × H × D) | 50.8 × 152.4 × 50.8 mm |
| 重量 | 0.57 kg |
| Mounting | DIN-rail or panel mount |
| Material | Industrial-grade plastic and metal alloy |
| Compatible Systems | ControlEdge HC900 Controller & I/O Modules |
| Wiring Method | Screw or spring clamp terminals |
| Maximum Channels 支持ed | Depends on connected I/O module |
| Certifications | UL, CE, RoHS |
常见问题 (FAQ)
Q1: What is the purpose / the 900TNF-0001 terminal block?
A1: It serves as the physical wiring interface between field devices and the HC900 I/O modules.
Q2: Is this terminal block compatible with all HC900 modules?
A2: Yes, it is designed specifically for use with HC900 I/O modules.
Q3: How is the 900TNF-0001 mounted?
A3: It supports DIN-rail or direct panel mounting.
Q4: What types / wire terminals does it support?
A4: It supports screw or spring clamp wiring connections.
Q5: Can the terminal block be replaced during operation?
A5: No, field power must be disconnected before replacing or rewiring.
Q6: Is this terminal block suitable for safety applications?
A6: Yes, it is used in safety-rated systems such as SIL applications within the HC900 platform.
Q7: Does it include fuse or relay functionality?
A7: No, it is a passive terminal block without fuses or relays.
Q8: What materials are used in its construction?
A8: It is built from high-durability industrial plastic and corrosion-resistant metal alloys.
Q9: What environmental ratings does it meet?
A9: It complies with industrial certifications such as UL and CE for safe operation.
Q10: What is the maximum wire gauge supported?
A10: It typically supports up to 12 AWG, depending on terminal specifications.
