Product Overview

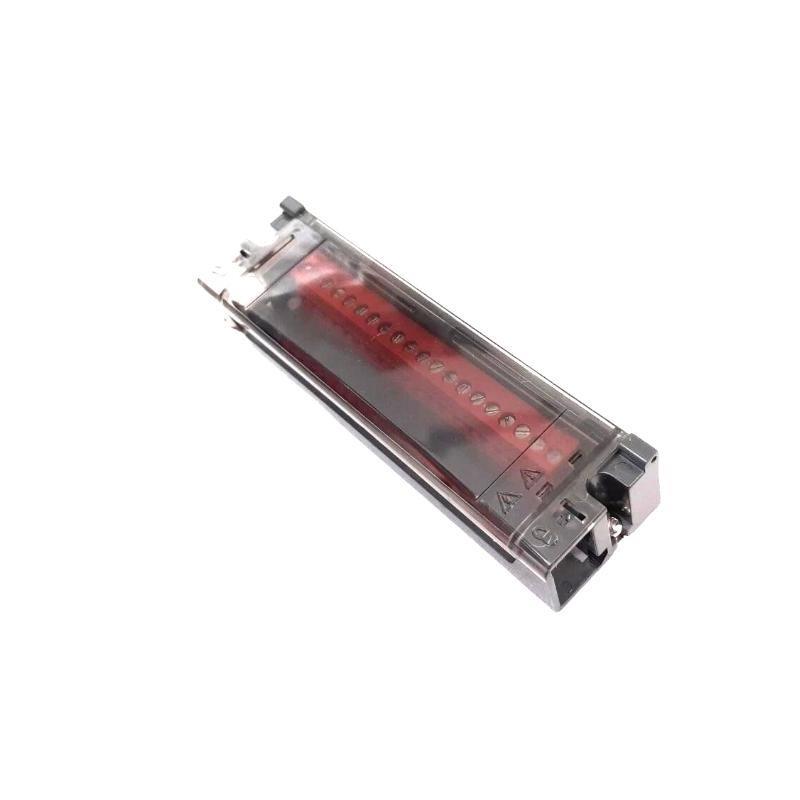

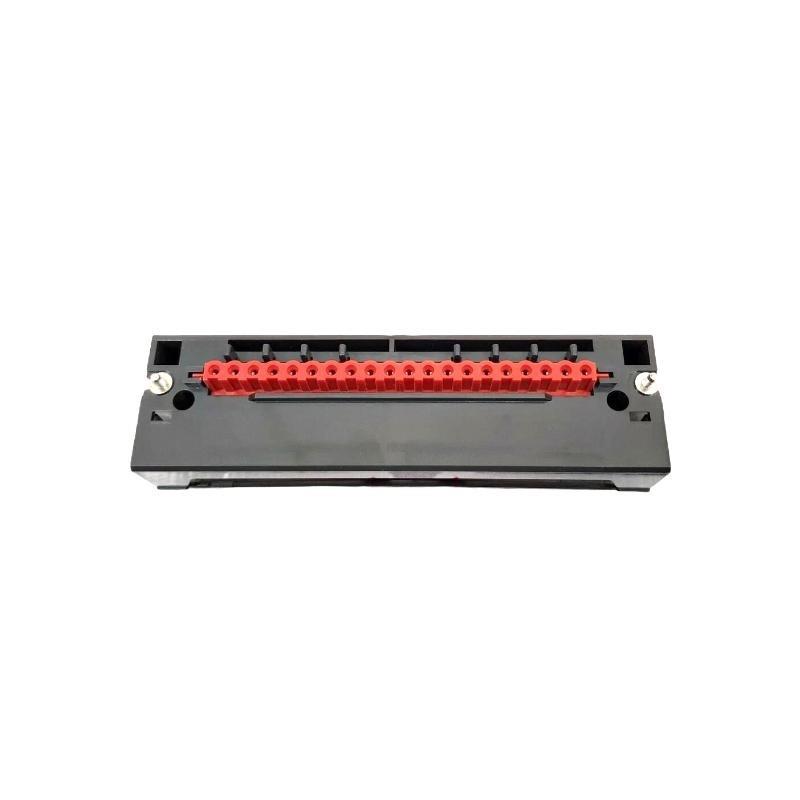

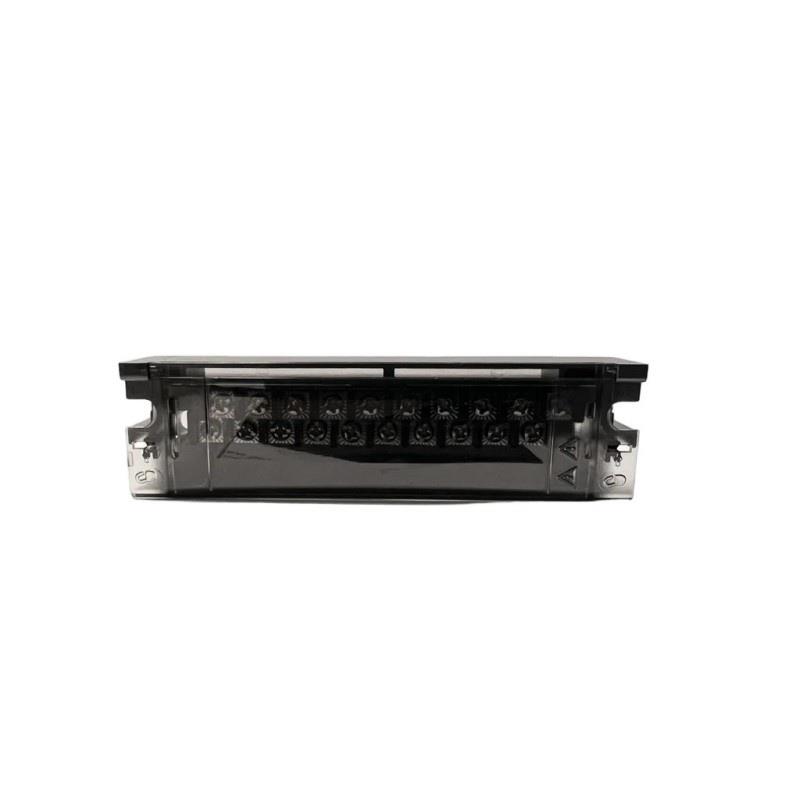

The Honeywell 900TBK-0001 is a terminal block designed for the ControlEdge HC900 automation platform. It provides a secure, organized connection point for field wiring to I/O modules, ensuring safe and efficient integration in process control systems.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | 900TBK-0001 |
| 描述 | Terminal Block (Barrier style or Euro style) |
| Mounting | DIN Rail |
| Material | Polyvinyl Chloride (PVC) |
| Flammability Rating | UL94-V0 |
| Dimensions (L x W x H) | 50 mm x 95 mm x 25 mm |
| 重量 | 0.11 kg |
| Terminal Style | 20-screw or 36-terminal Euro |
| Voltage Rating | Matches associated I/O module |
| Field Wiring | Screw Terminals (Tin or Gold Plated) |
| Safety Color Coding | Red for High Voltage, Black for Low Voltage |
| Compliance | CE, UL, ATEX, CSA, FM |
Applications
-
Industrial automation panels
-
Process control enclosures
-
HC900 controller-based systems
-
I/O wiring termination for analog and digital modules
-
Harsh environment installations with G3 coating
Product Advantages
-
Tool-free Module Swapping: 支持s hot-swapping under power
-
Flexible Wiring Options: Euro or barrier style terminals available
-
Enhanced Safety: High/low voltage color-coded connections
-
DIN Rail Mountable: Quick installation and maintenance
-
Reduced Wiring Time: Compatible with pre-wired RTPs and fused options
常见问题 (FAQs)
Q1: What I/O modules is the 900TBK-0001 compatible with?
A1: It supports all HC900 I/O modules requiring 20 or 36-terminal blocks.
Q2: Can it be removed with power on?
A2: Yes, the system supports hot-swapping modules under power.
Q3: What material is the terminal block made /?
A3: It is made from durable, flame-retardant PVC rated UL94-V0.
Q4: Is it safe for high voltage use?
A4: Yes, red terminal variants are designated for high-voltage connections.
Q5: What are the mounting options?
A5: It is DIN rail mountable for quick and stable installation.
Q6: Is this terminal block fused?
A6: Fusing options depend on the associated RTP panel, not the block itself.
Q7: How many terminals does it have?
A7: Options include 20-screw barrier style or 36-position Euro style.
Q8: Can it be used in hazardous environments?
A8: Yes, it complies with FM, ATEX, and CSA certifications for Class 1, Div. 2.
Q9: Is this terminal block suitable for analog modules?
A9: Yes, especially 36-terminal Euro styles for higher-density analog modules.
Q10: What temperature range does it support?
A10: Operating: 0°C to 60°C; Storage: -40°C to 70°C.
Related ControlEdge HC900 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 900TCK-0001 | Euro Style Terminal Block, 36-terminal | 50 x 95 x 25 | 0.11 kg |
| 900A01-0202 | 8 Ch Universal AI Module | 137 x 35.6 | 210 g |
| 900B01-0301 | 4 Ch AO Module (0–20 mA) | 137 x 35.6 | 408 g |
| 900G01-0202 | 16 Ch Digital Input (联系我们 type) | 137 x 35.6 | 354 g |
| 900H01-0202 | 8 Ch Relay Output Module | 137 x 35.6 | 425 g |
| 900S50-0460 | Scanner Module, Single Port | 137 x 38.1 | 360 g |
Popular Honeywell 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 900C70-0460 | Controller CPU, High Performance | 137 x 38.1 | 400 g |
| 900P01-0301 | Power Supply, 120/240VAC, 60W | 137 x 72.6 | 820 g |
| 900G32-0101 | 32 Ch Digital Input (DC) | 137 x 35.6 | 175 g |
| 900B16-0202 | 16 Ch AO Module (0–20 mA) | 137 x 35.6 | 400 g |
| 900PSM-0200 | Power Status Module | 137 x 35.6 | 448 g |
| 900R08-0200 | 8-slot Rack for I/O Modules | 137 x 419.1 x 151.7 | 3126 g |
