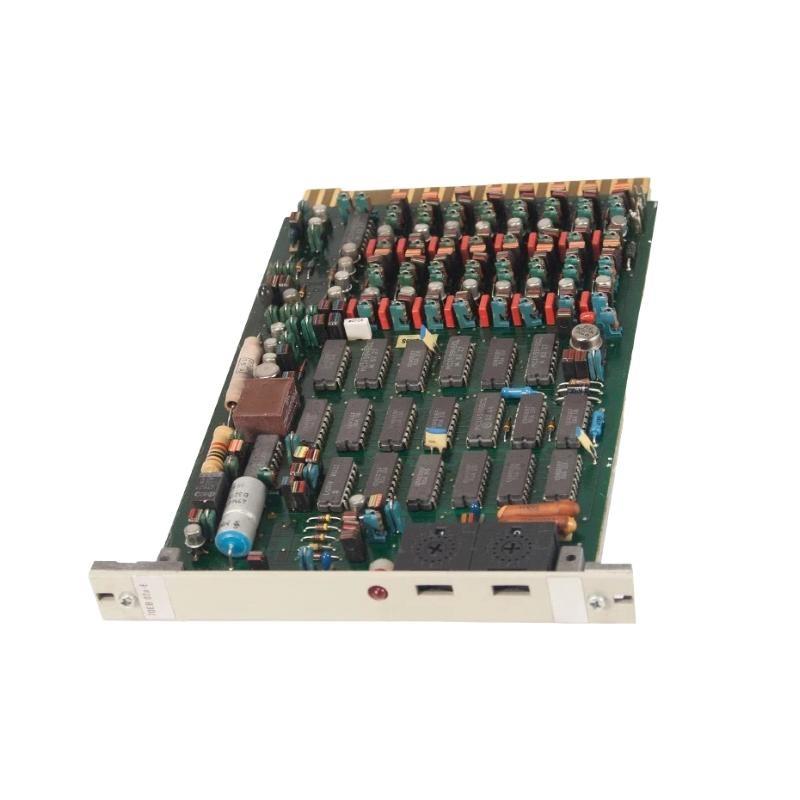

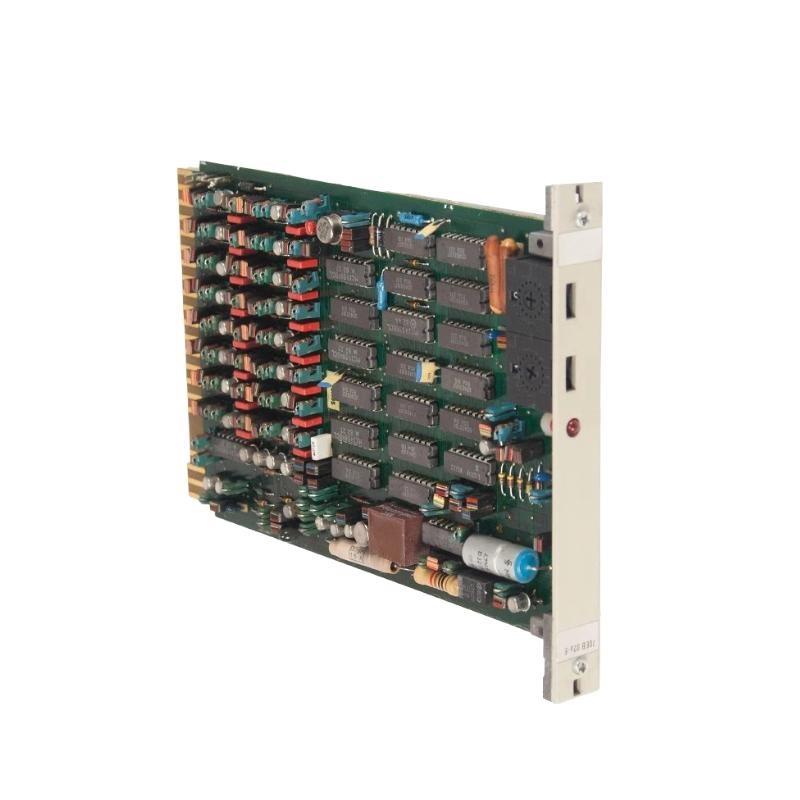

The ABB 70 EB 02a-E GJR319100R0004 Digital Input Module is an essential component / ABB’s Advant Controller Series, specifically designed to acquire, condition, and transmit digital signals from field devices to the main automation system. This module serves as a critical interface between process field instrumentation—such as limit switches, proximity sensors, push buttons, or relay contacts—and the controller’s central processor.
Engineered for high reliability and industrial endurance, the 70EB02a-E provides precise signal detection and galvanic isolation between field inputs and internal control circuits. It /fers multiple channels for flexible digital input acquisition, ensuring dependable monitoring and rapid response even under harsh industrial conditions such as high electrical noise, humidity, and temperature variations.
The module’s robust architecture, combined with ABB’s advanced diagnostic and protection technology, makes it ideal for complex distributed control systems (DCS) and programmable automation solutions used in energy, oil & gas, and manufacturing industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Digital Input Module |
| 型号 Number | 70 EB 02a-E |
| Product Code | GJR319100R0004 |
| Function | Digital input acquisition and transmission |
| Input Channels | 16 digital input channels |
| Input Type | 24 VDC (nominal) optically isolated |
| Input Signal Voltage Range | 18–30 VDC |
| Logic Threshold (ON) | ≥15 VDC |
| Logic Threshold (OFF) | ≤5 VDC |
| Input Current | Approx. 8 mA per channel at 24 VDC |
| Input Isolation | Optical isolation, channel-to-bus and channel-to-channel |
| Galvanic Isolation Voltage | 1500 V RMS |
| Input Delay Time | < 5 ms typical |
| Channel Protection | Overvoltage and reverse polarity protected |
| Status Indication | LED for each input channel |
| Communication Interface | Internal system bus via backplane |
| Power Consumption | Approx. 4.5 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | Plug-in module for Advant Controller rack |
| Dimensions (W × H × D) | 120× 100 × 25 mm |
| 重量 | 0.42 kg |
| Compliance | CE, RoHS, IEC 61131-2, EN 61010-1 certified |
Applications
The ABB 70 EB 02a-E is designed for use in automation systems where accurate digital signal acquisition is critical to process integrity and safety. It is suitable for both centralized and distributed I/O configurations. Typical application areas include:
-
Process Control Systems – Receives digital status signals from process field instruments, ensuring reliable state detection for automation logic.
-
Power Generation and Distribution – Interfaces with circuit breakers, isolators, and protection relays for system monitoring.
-
Oil and Gas Production – Handles control signals from pressure switches, valves, and emergency shutdown systems.
-
Industrial Manufacturing Lines – Monitors digital states / machines, conveyors, or limit switches for production automation.
-
Water and Wastewater Treatment – Reads inputs from flow sensors, pressure devices, and control valves.
-
Chemical and Pharmaceutical Plants – Ensures precise digital input monitoring for process integrity and safety functions.
Its flexibility and strong noise imm件y make it a universal digital input module for mission-critical control systems across multiple industrial domains.
Advantages
-
High Input Reliability – Designed to deliver stable signal acquisition even in environments with high electromagnetic interference.
-
Galvanic Isolation – Provides full electrical isolation between field circuits and control electronics, enhancing system safety.
-
Compact Modular Design – Fits seamlessly into ABB Advant Controller racks, optimizing space usage and maintainability.
-
Integrated Diagnostics – Each channel is equipped with LED indicators for real-time status and troubleshooting.
-
Protection Mechanisms – Features overvoltage, surge, and reverse polarity protection for long-term field reliability.
-
Wide Environmental Tolerance – Capable / operating under extreme temperatures and humidity without performance degradation.
-
Stable Communication – Ensures fast and error-free data transmission via the system backplane bus.
-
Low Power Consumption – Efficient design minimizes thermal stress and energy usage within control cabinets.
-
Maintenance Friendly – Hot-swappable design allows for replacement without shutting down the entire system.
-
Global Compliance – Meets international industrial standards for safety, EMC, and environmental protection.
FAQ
-
What is the function / the ABB 70 EB 02a-E module?
It converts and transmits 24 VDC digital signals from field devices to the control system’s processor. -
How many input channels does the 70 EB 02a-E provide?
The module features 16 optically isolated digital input channels. -
What is the input voltage range supported by this module?
It supports a nominal 24 VDC signal within a range / 18–30 VDC. -
Does it support electrical isolation between channels?
Yes, the module provides optical and galvanic isolation between all input channels and system electronics. -
Can this module be used in high-noise industrial environments?
Yes, it includes EMC protection and noise filtering, making it ideal for heavy industrial conditions. -
What is the typical input delay time?
The module has a fast input response with a delay / less than 5 milliseconds. -
How are input statuses indicated?
Each channel has an individual status LED indicator showing active or inactive states. -
Does it require external power for inputs?
Yes, the digital input field circuits are powered externally at 24 VDC. -
Is it hot-swappable within the control rack?
Yes, it supports hot insertion and removal in compatible Advant Controller racks. -
Which systems are compatible with the 70EB02a-E module?
It is designed for use with ABB Advant Controller 400 and related system families.
Related or Series 型号s
| 型号 | 描述 | Input Type | Channels | 重量 |
|---|---|---|---|---|
| 70EB01-E GJR319090R0003 | Digital Input Module | 24 VDC | 8 | 0.38 kg |
| 70EB02a-E GJR319100R0004 | Digital Input Module | 24 VDC | 16 | 0.42 kg |
| 70EB03-E GJR319110R0005 | Digital Input Module | 48 VDC | 16 | 0.45 kg |
| 70EB04-E GJR319120R0006 | Digital Input Module | 110 VDC | 8 | 0.47 kg |
| 70EB05-E GJR319130R0007 | Digital Input Module | 230 VAC | 8 | 0.50 kg |
| 70EB06-E GJR319140R0008 | Isolated Digital Input Module | 24 VDC | 16 | 0.43 kg |
Popular ABB 型号s
| 型号 | 描述 | Type | Application | 重量 |
|---|---|---|---|---|
| 07KT98C GJR5253100R3260 | Processor Module | CPU | Advant Controller 400 | 0.65 kg |
| 07AC91 GJR5252300R0101 | Communication Module | Serial/Bus | Advant Controller 400 | 0.60 kg |
| 07DC92 GJR5252200R0101 | Digital Output Module | Output | Process Control | 0.58 kg |
| 07AI91 GJR5251600R0101 | Analog Input Module | Analog Input | Signal Acquisition | 0.55 kg |
| 07BT62R1 GJV3074353R1 | Power Supply Module | Power | System Power Supply | 0.70 kg |
| 07BA60R1 GJV3074397R1 | Blank Slot Module | Mechanical | Rack Protection | 0.25 kg |
