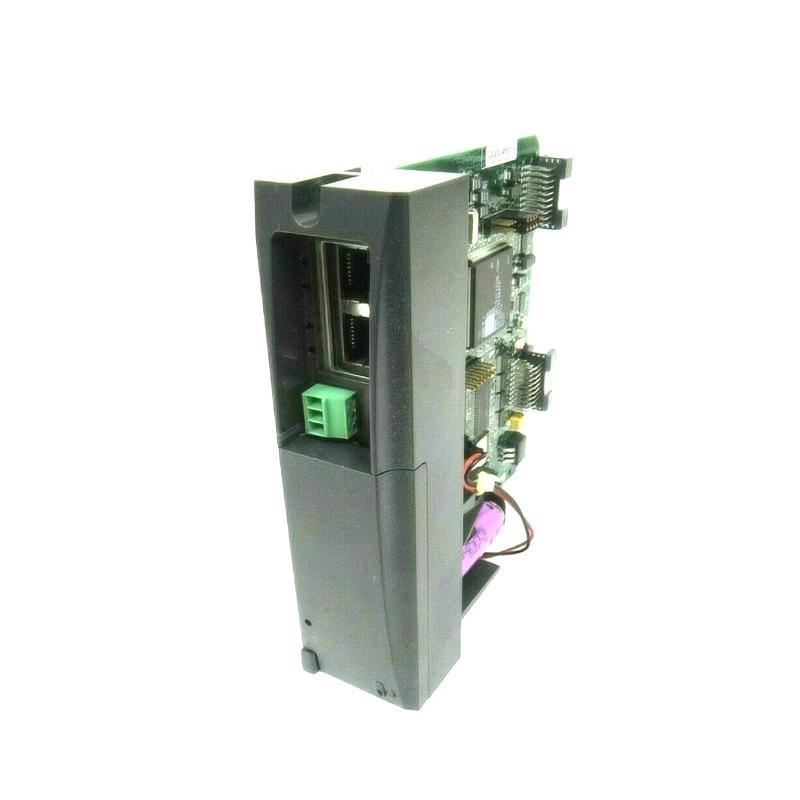

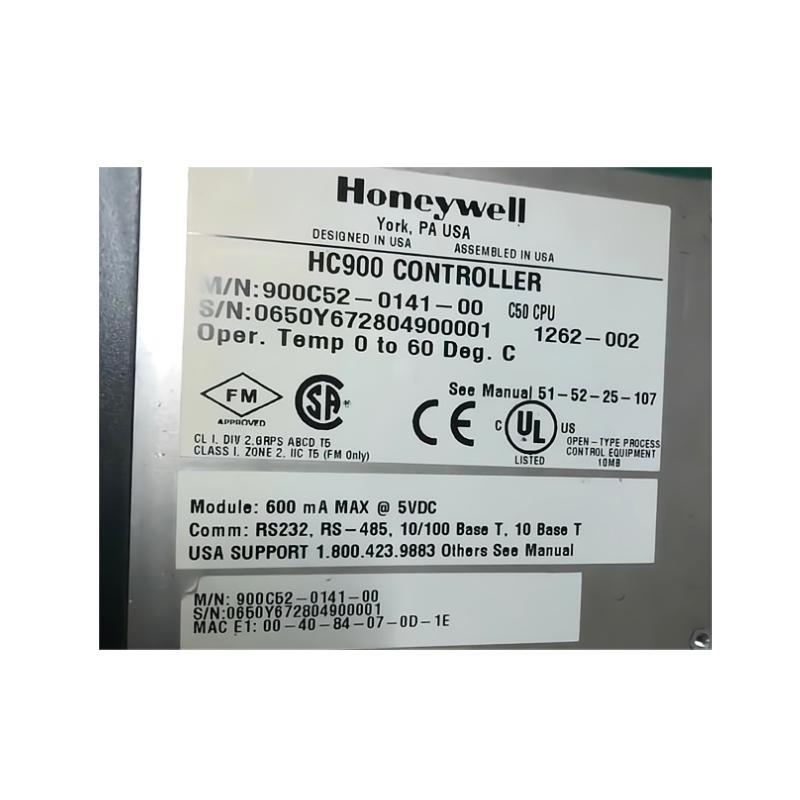

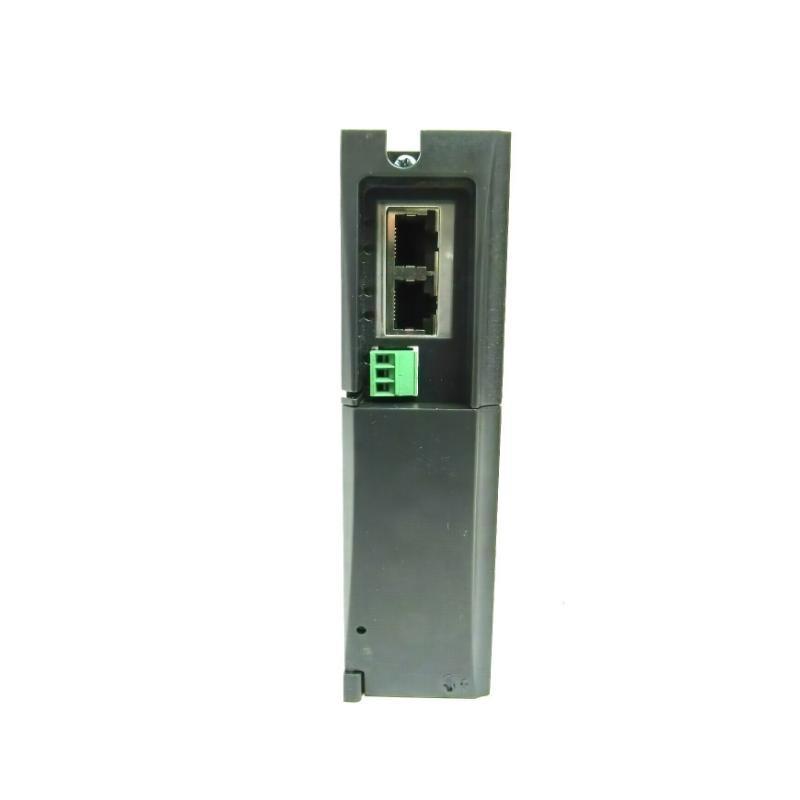

The Honeywell 900C52-0141-00 is part / the HC900 C50 Controller CPU family — a robust, high-performance programmable controller designed for complex hybrid applications where both process and logic control are required. As a core element / the HC900 series, this model is optimized for medium to large-sized automation systems requiring modularity, flexibility, and long-term reliability.
With enhanced processing power, dual Ethernet ports, and large I/O capacity, the 900C52-0141-00 is well-suited for industrial sectors that demand accurate control, real-time communication, and seamless system integration. It supports Honeywell’s Hybrid Control Designer (HCD) s/tware, which /fers intuitive programming with functional block design and ladder logic tools.
The controller’s design emphasizes scalability, redundancy, and diagnostic transparency, making it a smart solution for OEMs, process industries, and system integrators.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 900C52-0141-00 |
| Series | HC900 |
| Controller Type | C50 Controller CPU |
| Memory Capacity | 20 MB Flash, 20 MB RAM |
| Control Strategy Memory | 支持s up to 25,000 Function Blocks |
| Redundancy 支持 | Yes (CPU and Power Redundancy 支持ed) |
| Communication Ports | 2 x Ethernet (10/100 Mbps), 1 x RS485, 1 x RS232 |
| Protocols 支持ed | Modbus TCP/IP, Modbus RTU, Ethernet/IP, Peer Comm |
| I/O Capability | Up to 2048 I/O points |
| Scan Time | 25 ms typical per control loop |
| Programming Tool | Hybrid Control Designer (HCD) |
| Mounting Method | DIN Rail |
| Operating Voltage | 24 VDC (Range: 18–32 VDC) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% RH, non-condensing |
| Certifications | CE, UL, CSA, FM Class 1 Div 2, RoHS |
| Dimensions (W x H x D) | 114 x 176 x 114 mm |
| 重量 | 0.82 kg |
Product Applications
The 900C52-0141-00 is engineered for demanding environments and advanced control systems across various sectors:
-
Chemical & Petrochemical Plants: For precise batch control, recipe management, and blending systems.
-
Pharmaceutical Manufacturing: Ensures compliance with FDA standards, ideal for bioreactors and cleanroom environments.
-
Water & Wastewater Treatment: Effective for pump control, filtration, and flow management systems.
-
Power Generation: Boiler control, turbine monitoring, and balance / plant (BoP) control.
-
Food & Beverage Industry: Used in temperature control, pasteurization, and clean-in-place (CIP) systems.
-
OEM Equipment Control: For machine builders who require modular and scalable logic/process integration.
Product Advantages
-
Dual Ethernet Communication: Provides flexible networking options for plant-wide communication.
-
Scalable I/O System: 支持s up to 2048 points, ideal for medium to large installations.
-
Redundancy-Ready: Designed to support CPU and power supply redundancy for critical processes.
-
Hybrid Control Capability: Integrates both discrete logic and continuous process control seamlessly.
-
Built-In Diagnostics: Real-time diagnostics reduce downtime and simplify maintenance.
-
Flexible Programming Options: Intuitive block-based configuration via HCD s/tware with drag-and-drop UI.
-
Secure and Reliable: Designed for 24/7 operation in industrial-grade environments with harsh conditions.
-
Broad Protocol 支持: Compatible with most SCADA, DCS, and third-party HMI systems.
常见问题 (FAQ)
-
Q: What makes the 900C52-0141-00 different from other C50 CPUs?
A: This model includes support for peer-to-peer communication and redundancy, which some base-level C50 models don’t /fer. -
Q: Can I replace a failed C50 CPU without shutting down the entire system?
A: Yes, if the system is configured for CPU redundancy, the secondary controller will take over automatically. -
Q: Is the 900C52-0141-00 compatible with third-party I/O modules?
A: 序号 It works only with Honeywell HC900 series I/O modules to maintain system integrity and performance. -
Q: What is the average configuration time for a typical project?
A: For mid-sized projects, most engineers can configure the system in HCD within a few hours to a day, depending on the complexity. -
Q: How do I transfer my program to the CPU?
A: Use the Hybrid Control Designer s/tware and download the control strategy via Ethernet or serial connection. -
Q: Can this CPU log data to an external storage device?
A: Not directly. However, data can be logged via connected SCADA or HMI s/tware using Modbus or OPC. -
Q: What kind / redundancy is supported?
A: The controller supports both power and CPU redundancy for uninterrupted control. -
Q: Does the 件 support SNMP for network management?
A: SNMP is not natively supported, but network health can be monitored through diagnostics tools and SCADA integration. -
Q: How do firmware upgrades work?
A: Firmware updates are done via USB or Ethernet using Honeywell tools, typically provided through authorized service channels. -
Q: What happens if communication between the CPU and I/O rack is lost?
A: The system generates a fault and enters a safe state, based on the configured fallback behavior in the control logic.
Related 型号s in the Same Series
| 型号 Number | 描述 | Key Features |
|---|---|---|
| 900C51-0011 | HC900 C50 Base 型号 CPU | Standard C50 controller, non-redundant |
| 900C52-0001 | HC900 C70 Controller CPU | Higher memory and I/O capacity |
| 900R01-0201 | HC900 I/O Rack Module | Modular backplane for I/O modules |
| 900A01-0002 | HC900 Analog Input Module (8 Ch) | High-density analog signal input |
| 900B01-0001 | HC900 Analog Output Module (4 Ch) | Analog output for control applications |
| 900P01-0101 | HC900 24VDC Power Supply Module | Powers controller and I/O system |
Popular Honeywell 型号s
| 型号 Number | 描述 | Primary Use Case |
|---|---|---|
| HC900 C70 (900C52) | Advanced controller for large systems | Complex batch and process control |
| C300 Controller | Experion PKS controller | Distributed control systems (DCS) |
| UDC3500 | Universal Digital Controller | Loop control for temperature/flow |
| MasterLogic ML200 | Modular PLC system | OEM machine control and logic automation |
| Experion LX | Small-to-mid DCS solution | Integrated HMI + control for batch/process |
| HC900 Hybrid RTU | Remote Terminal 单位 for HC900 Series | Remote process & telemetry integration |
